Overview

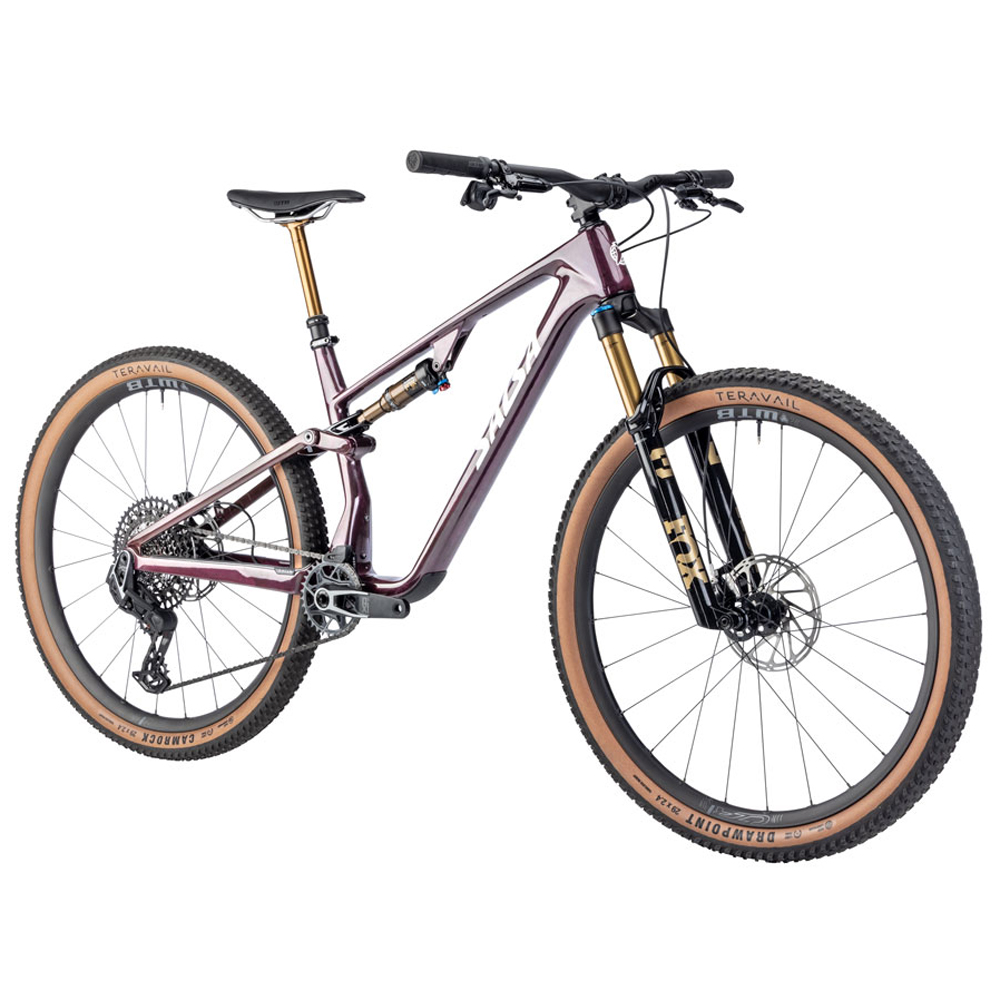

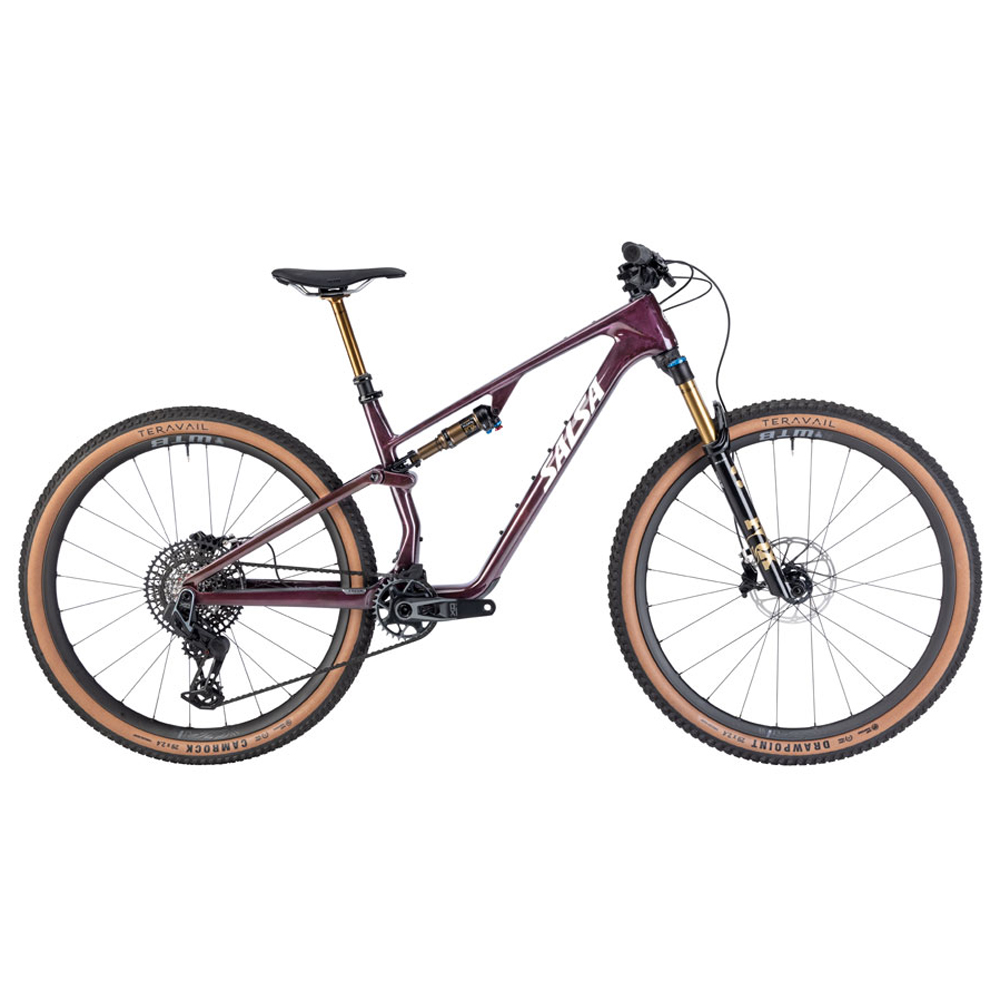

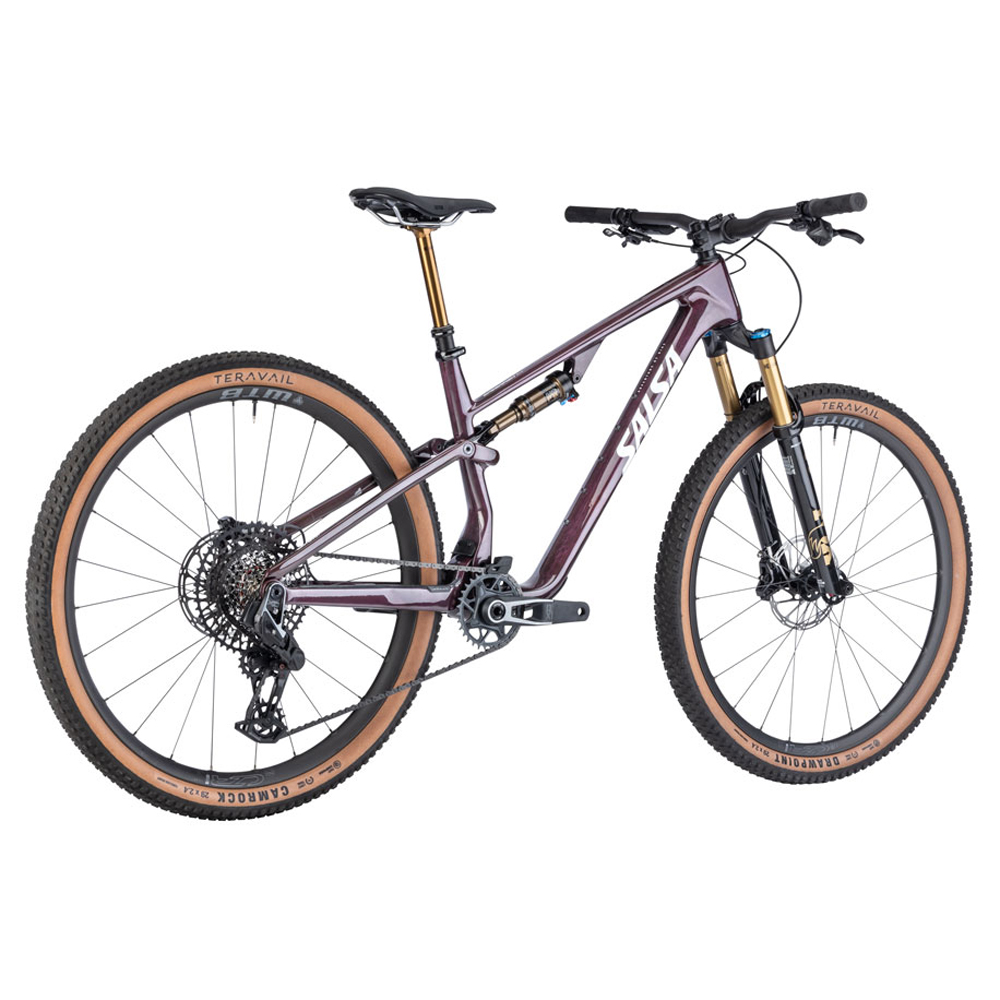

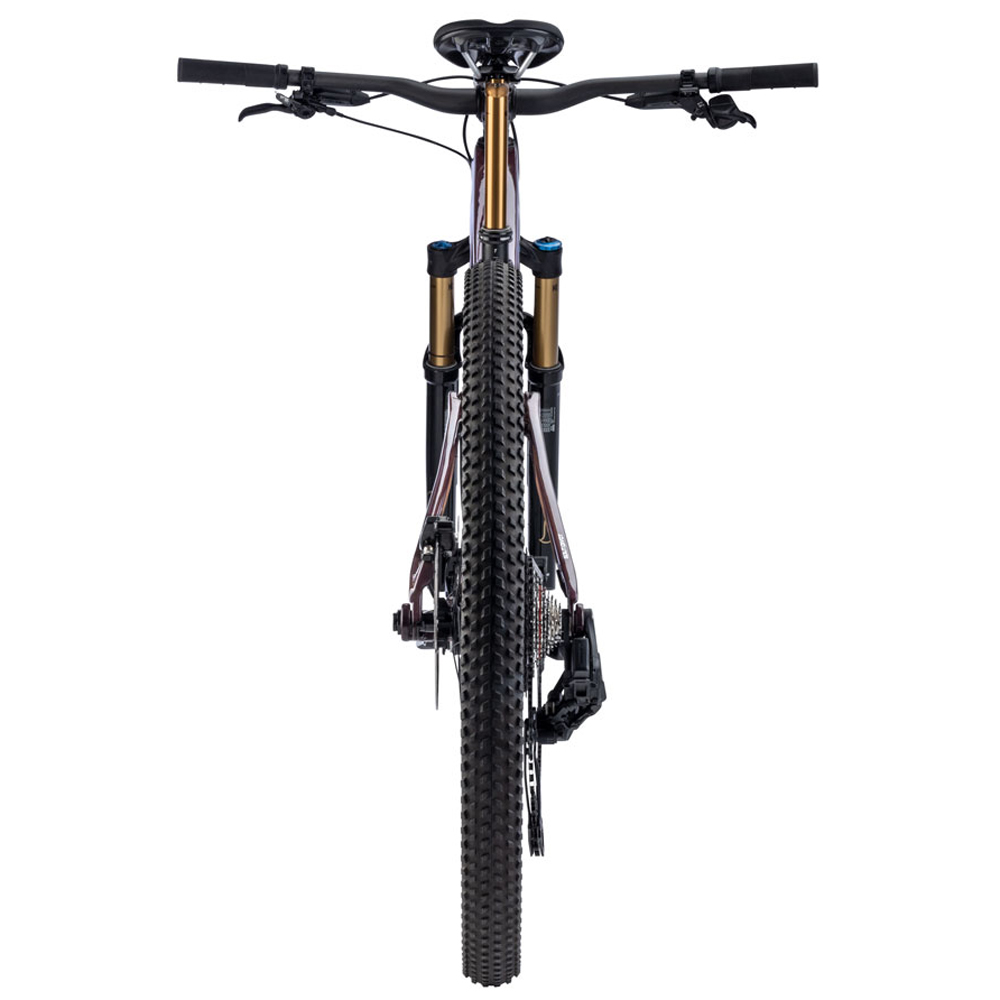

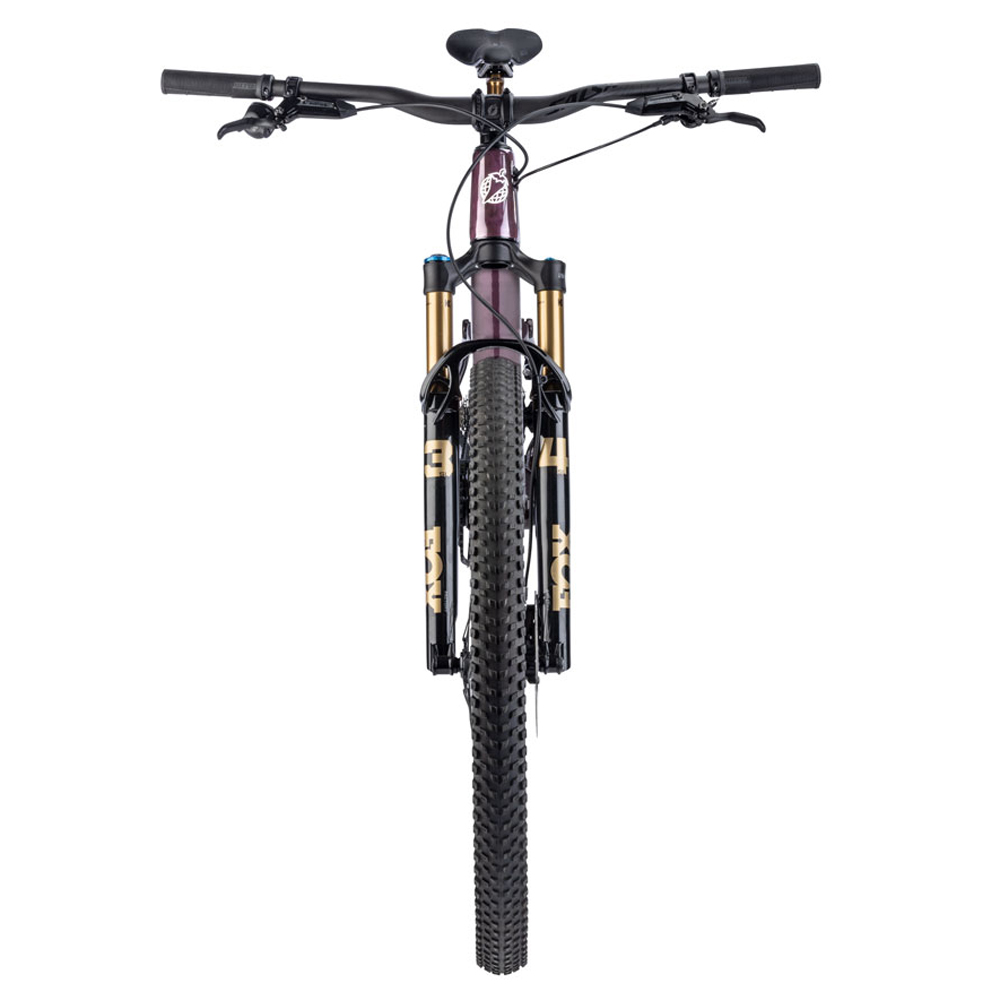

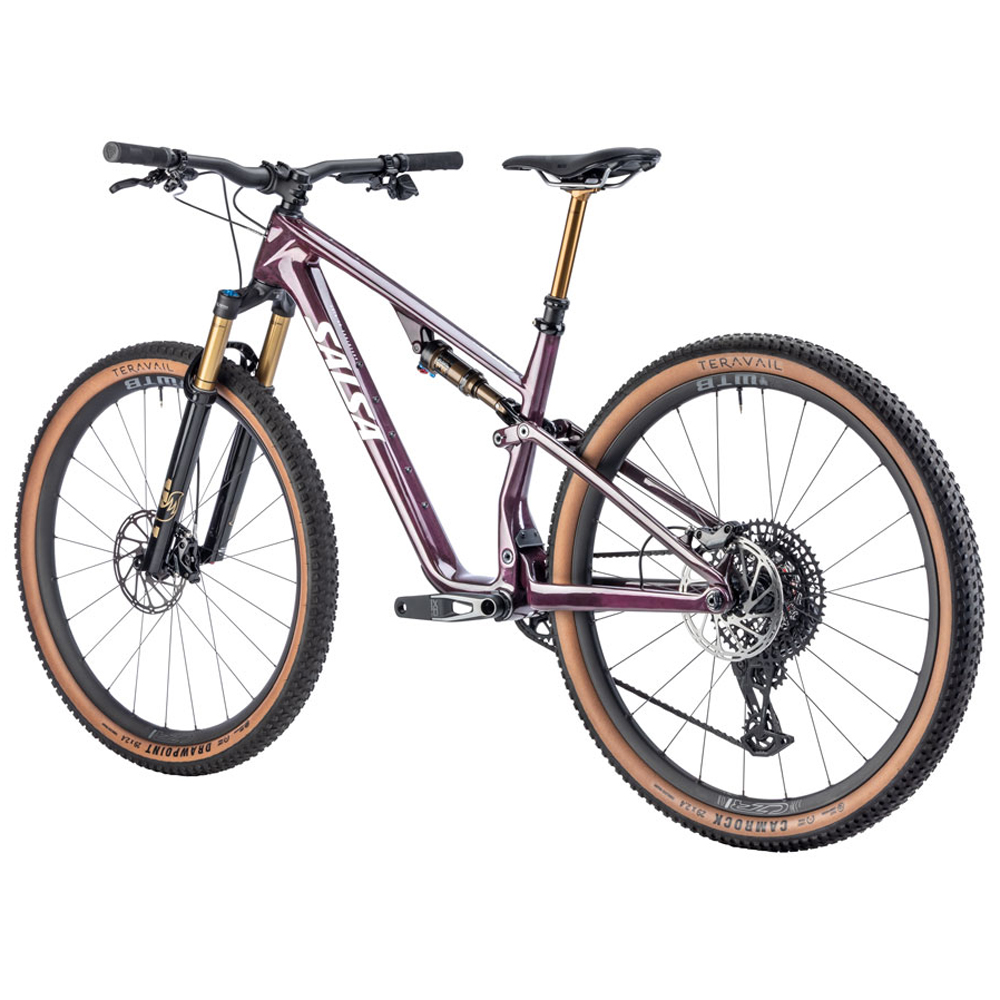

You’re looking at one of the best XC bikes out there. Spearfish C DLX X0 Transmission features our extra-light carbon fiber layup for less weight but all of the ride quality. Its geometry balances efficiency for covering serious ground in an endurance event and capability for when the trail turns technical.
Our Split Pivot suspension design delivers optimized traction whether you’re climbing techy lines or braking on a steep descent. 120mm of travel front and rear keeps the ride smooth — and smooth is fast.
For longer rides that stretch into all day (and night), Spearfish has room for up to three bottles (sizes MD–XL), plus ample cargo mounts and frame bag space (including direct-mount frame bag capability). SRAM’s X0 Transmission drivetrain is as smooth and precise as they come, with lightning-fast electric shifts that always keep you in the right gear for whatever’s ahead.
Features
Deluxe ultra-high-modulus carbon UDH frame — 255g lighter than standard
Efficient Split Pivot suspension design
Split Pivot + allows for 100 – 120mm rear wheel travel
Progressive marathon cross-country geometry in five sizes
Two water bottles and on-bike cargo inside front triangle
SRAM X0 AXS Eagle Transmission drivetrain and Motive Silver four-piston brakes
Fox 34 SL Factory and Float SL Factory suspension, 120mm travel
Fox Transfer Factory dropper post
WTB CZR Light i30 carbon wheels, Teravail Drawpoint and Camrock 29 x 2.4” tires
Specs
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 567.8– 568.6 | 584.9– 585.7 | 606.9– 607.7 | 629– 629.8 | 651.1– 651.9 |
| B. Stand Over | 719.1– 716.4 | 719.2– 716.3 | 719.2– 716.3 | 719.3– 716.2 | 719.3– 716.2 |
| C. Reach | 435– 431.4 | 450– 446.5 | 470– 466.5 | 490– 486.4 | 510– 506.5 |
| D. Stack | 589.3– 591.9 | 598.4– 601.1 | 607.6– 610.3 | 616.7– 619.6 | 625.9– 628.8 |
| E. Total Seat Tube Length | 380 | 405 | 430 | 455 | 480 |
| F. Headtube Length | 95 | 105 | 115 | 125 | 130 |
| G. Headtube Angle |
66.3
– 66.0
|
66.3
– 66.0
|
66.3
– 66.0
|
66.3
– 66.0
|
66.3
– 66.0
|
| H. Seat Tube Angle |
77.3
– 77.0
|
77.3
– 77.0
|
77.3
– 77.0
|
77.3
– 77.0
|
77.3
– 77.0
|
| I. BB Drop | 31– 35.4 | 31– 35.5 | 31– 35.5 | 31– 35.6 | 31– 35.6 |
| J. BB Height | 342– 337.6 | 342– 337.5 | 342– 337.5 | 342– 337.4 | 342– 337.4 |
| K. Chainstay Length | 430– 431.2 | 430– 431.2 | 430– 431.2 | 430– 431.2 | 430– 431.2 |
| L. Fork Length Axle to Crown | 530 | 530 | 530 | 530 | 530 |
| M. Fork Offset | 44 | 44 | 44 | 44 | 44 |
| N. Wheelbase | 1157– 1157.7 | 1176.1– 1176.7 | 1200– 1200.7 | 1224.1– 1224.7 | 1248.1– 1248.7 |
| Crank Arm Length | 165 | 165 | 165 | 165 | 165 |
| Handlebar Width | 760 | 760 | 800 | 800 | 800 |
| Recommended Rider Height | 146 – 159 | 157 – 170 | 168 – 180 | 178 – 191 | 188 |
| Stem Length | 50 | 50 | 50 | 50 | 50 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.4″ tire measuring 746mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Frameset
Frame: Spearfish Carbon Deluxe
Fork: Fox 34 SL Factory GRIP X, 44mm offset, 120mm
Rear Shock: Fox Float SL Factory, EVOL LV, 3P, 190 x 45mm
Color: Deep Orchid Carbon
Drivetrain
Crankset: SRAM X0 Eagle Transmission, 32t
Front Derailleur: N/A
Rear Derailleur: SRAM X0 Eagle Transmission
Cassette: SRAM XS-1295, 10–52t, 12-speed
Chain: SRAM X0 Eagle Transmission Flattop
Components
Grips / Bar Tape: WTB Wavelength lock-on
Handlebar: Salsa Guide Carbon, 35.0mm
Stem: Salsa Guide 35.0, 50mm, 0-degree rise
Headset: FSA Orbit 1.5E ZS NO.57E
Shifter: FSA Orbit 1.5E ZS NO.57E
Brakes & Rotors: SRAM Motive Silver 4-piston, SRAM CenterLine 2.0 Rotors (6-bolt, 180mm front and rear)
Saddle: WTB Silverado SL Cromoly Fusion Form, medium
Seatpost: Fox Transfer Factory, Fox Transfer 1x Matchmaker lever
Wheels
Front Wheel: WTB Frequency 15 x 110mm hub, WTB CZR Light i30 carbon TCS, 24h, 29″ rim
Rear Wheel: WTB Frequency 12 x 148mm hub, WTB CZR Light i30 carbon TCS, 24h, 29″ rim
Tires: Front: Teravail Drawpoint 29 x 2.4″, 120TPI Light Trail casing, tan wall / Rear: Teravail Camrock 29 x 2.4″, 120TPI Light Trail casing, tan wall
Tubeless Accessories: WTB TCS Sealant and valve included
Other
Pedals: Not included
Specifications are subject to change without notice.
Warranty
Register your purchase at Salsa’s Warranty Registration.
LIMITED WARRANTY
Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:
All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.
NOTE:
All warranty periods below apply to the original owner only
ONE YEAR WARRANTY
All apparel
All frame bags
Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.
Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.
This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.
TWO YEAR WARRANTY
Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)
THREE YEAR WARRANTY
Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components
FIVE YEAR WARRANTY
Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames
THE WARRANTY DOES NOT COVER THE FOLLOWING
Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble
Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer
Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use
Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components
Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer
Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt
Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty
Internal rust perforation on all steel frames
Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components
Bent or broken derailleur hangers or Alternator plates
Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds
Damage to carbon fiber caused by any carbon assembly paste
Normal wear and tear
LEGAL DISCLAIMER
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
