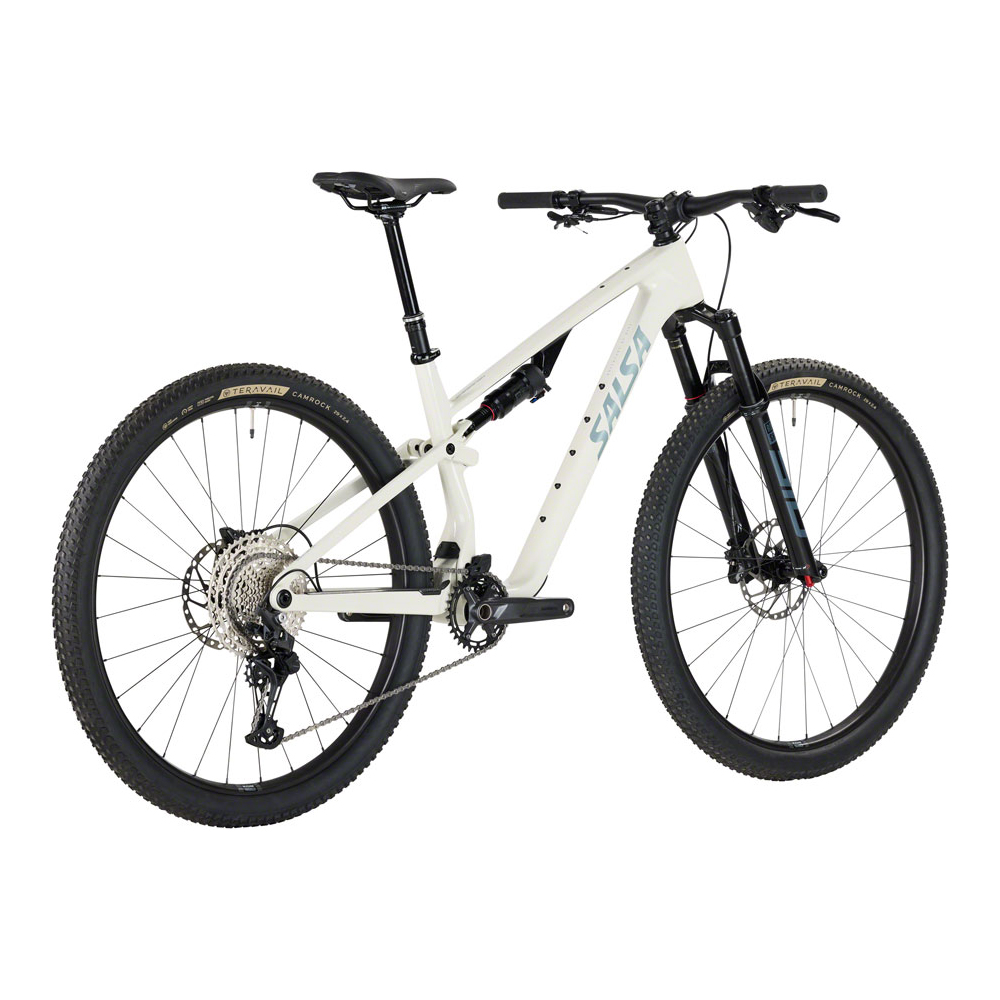

Salsa Spearfish C Deore 12

Features

Carbon fiber frame, seatstays, and chainstays with 6061-T6 aluminum links for durability

Split Pivot suspension design features 120mm of travel that’s responsive when putting down power, fully active under braking, and supportive throughout the middle and end of its stroke, paired with a 120mm suspension fork

Split Pivot + design philosophy lets riders adjust rear travel from 100–120mm; compatible with 100–130mm forks

Endurance XC geometry with 66.3-degree head tube angle and 77.3-degree seat tube angle

Rear flip chip adjusts the head tube angle and bottom bracket height to accommodate varying terrain and personal preference

Sizes XS–SM fit two full-size bottles, plus accessory mount; sizes MD–XL fit three full-size bottles

Top tube mounts for use with EXP-R Series Trillium Top Tube Bag or K-Edge computer mounts

Tool and tube mount location

Clearance for up to 29 x 2.4″ tires

Molded frame protection

Specs

Frame measurements (mm)	XS	SM	MD	LG	XL
A. BB Drop	31 / 35.4	31 / 35.5	31 / 35.5	31 / 35.6	31 / 35.6
B. Chainstay Length	430 / 431.2	430 / 431.2	430 / 431.2	430 / 431.2	430 / 431.2
C. Fork Length – Axle to Crown	530	530	530	530	530
D. Fork Offset	44	44	44	44	44
E. Head Tube Angle (deg)	66.3 / 66.0	66.3 / 66.0	66.3 / 66.0	66.3 / 66.0	66.3 / 66.0
F. Headtube Length	95	105	115	125	130
G. Reach	435 / 431.4	450 / 446.5	470 / 466.5	490 / 486.4	510 / 506.5
H. Seat Tube Angle (deg)	77.3 / 77.0	777.3 / 77.0	77.3 / 77.0	77.3 / 77.0	77.3 / 77.0
I. Seat Tube Length – Center to Top	380	405	430	455	480
J. Stack	589.3 / 591.9	598.4 / 601.1	607.6 / 610.3	616.7 / 619.6	625.9 / 628.8
K. Standover	719.2 / 716.3	719.2 / 716.3	719.2 / 716.3	719.2 / 716.3	719.2 / 716.3
L. Top Tube Length (Effective)	567.8 / 568.6	584.9 / 585.7	606.9 / 607.7	629.0 / 629.8	651.1 / 651.9
M. Wheelbase	1157.0 / 1157.7	1176.1 / 1176.7	1200.0 / 1200.7	1224.1 / 1224.7	1248.1 / 1248.7
Component measurements (mm)
Crank Arm Length	165	165	165	170	170
Handlebar Width
Handlebar Rise
Stem Length	50	50	50	50	50

* All dimensions are preliminary and subject to change. Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position.

Warranty

WARRANTY REGISTRATIONS

LIMITED WARRANTY

Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.

NOTE:
All warranty periods below apply to the original owner only

ONE YEAR WARRANTY

All apparel
All frame bags

Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.

Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.

This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.

TWO YEAR WARRANTY

Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)

THREE YEAR WARRANTY

Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components

FIVE YEAR WARRANTY

Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames

THE WARRANTY DOES NOT COVER THE FOLLOWING

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble

Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer

Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use

Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components

Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer

Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt

Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty

Internal rust perforation on all steel frames

Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components

Bent or broken derailleur hangers or Alternator plates

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds

Damage to carbon fiber caused by any carbon assembly paste

Normal wear and tear

LEGAL DISCLAIMER

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
