Overview
From road, gravel or mountain bike to commuter bike in only 15 seconds – with the innovative Quick-Rack, you transform your sporty bike into an all-rounder for everyday use.
Transform your bike in no time at all from a lightweight bike for sporty tours into a transport bike for shopping and commuting – this way you stay completely flexible. Fifteen seconds is all it takes to mount the practical luggage rack and only five seconds to remove it again.
The struts with a diameter of 10 mm support a payload of up to 20 kilograms.
The Quick Rack is suitable for use with all of Ortlieb fixation systems so that you can combine it with any Ortlieb bag. Thanks to the two hanging levels and a platform, you can also use and fasten panniers and a basket at the same time.
The optional mudguards make sure that you keep dry and clean in bad weather too.
Features
Luggage rack with QUICK RELEASE system for quick installation and removal
Allows for the attachment of compatible bicycle bags with QL1/2.1/3/3.1 and TOP-LOCK system
QL3/3.1 support elements can be removed
Touring rack with two platforms, e.g. for simultaneous use of a basket and side panniers
For 26” and 28”
10mm diameter horizontal and vertical struts
Two seat tube supports of different lengths for optimal adjustment
Prepared for mounting a rear light (50mm bolt spacing)

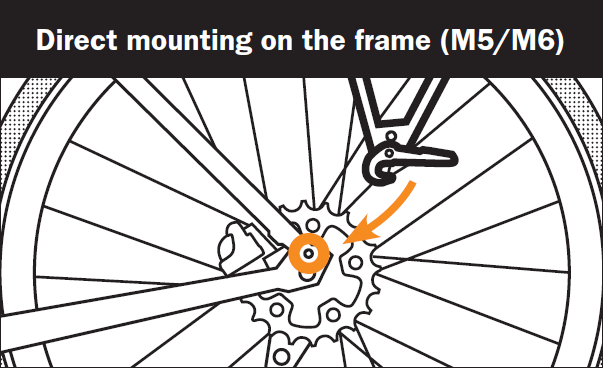

Includes direct mounting set for bicycle frames with M5 or M6 threaded eyelets
Specs
Quick-Rack Standard

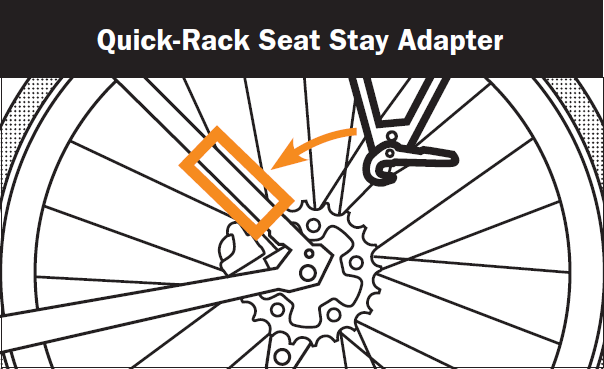

Tire Clearance (Direct Mount / Seat Stay Adapter): 29″ x 2.35″

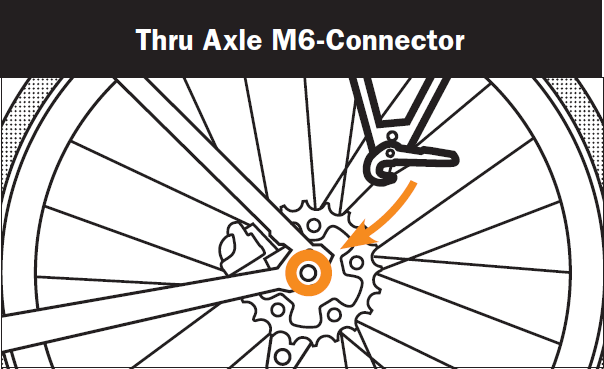

Tire Clearance (Thru Axle M6-Connector): 28″ x 30 mm
Recommended Mounting: Direct mount or Seat Stay Adapter
Maximum Load: 44.1 lbs (20 kg)
Weight: 15.5 oz (approx. 434 g)
Ideal For: Trekking, touring, gravel bikes
Quick-Rack L
Tire Clearance (Direct Mount / Seat Stay Adapter): 29″ x 3″
Tire Clearance (Thru Axle M6-Connector): 28″ x 50 mm
Recommended Mounting: Thru Axle M6-Connector
Maximum Load: 44.1 lbs (20 kg)
Weight: 21.3 oz (approx. 604 g)
Ideal For: Trekking, touring, gravel bikes
Quick-Rack XL
Tire Clearance (Direct Mount / Seat Stay Adapter): 29″ x 3″
Tire Clearance (Thru Axle M6-Connector): 29″ x 2.6″
Recommended Mounting: Thru Axle M6-Connector
Maximum Load: 57.3 lbs (26 kg)
Weight: 27.5 oz (approx. 780 g)
Ideal For: MTB, E-Bike
Warranty
All Ortlieb products are backed by warranty against defects in material and manufacturing.
Please see our Warranty page for the details of our warranty process as well as additional information regarding the Ortlieb warranty policy.
