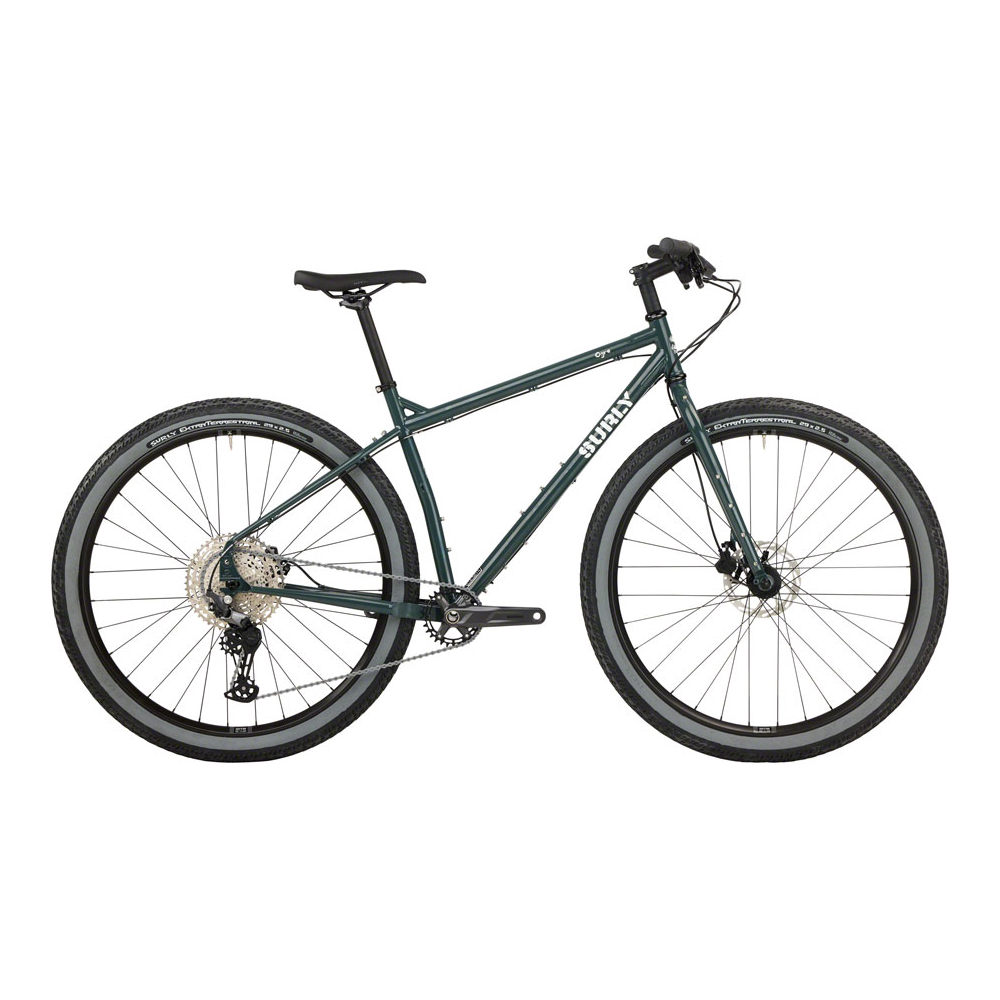

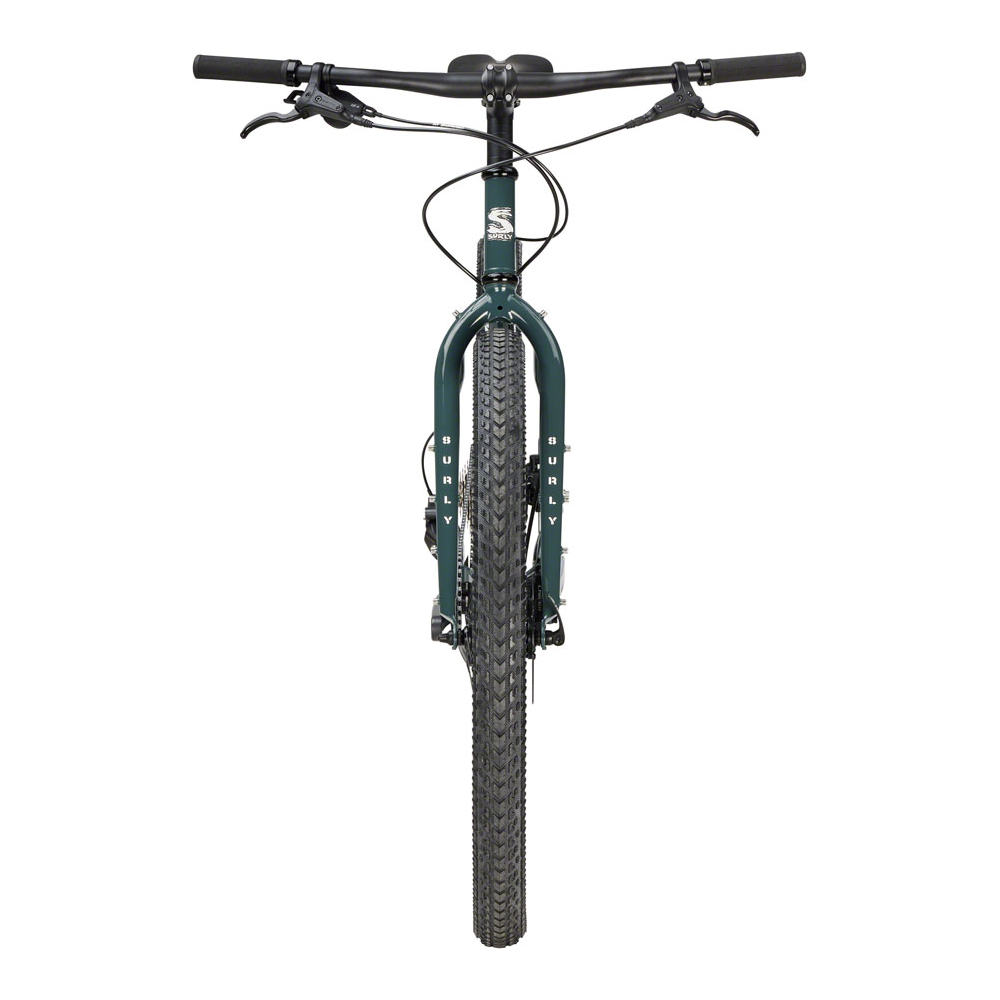

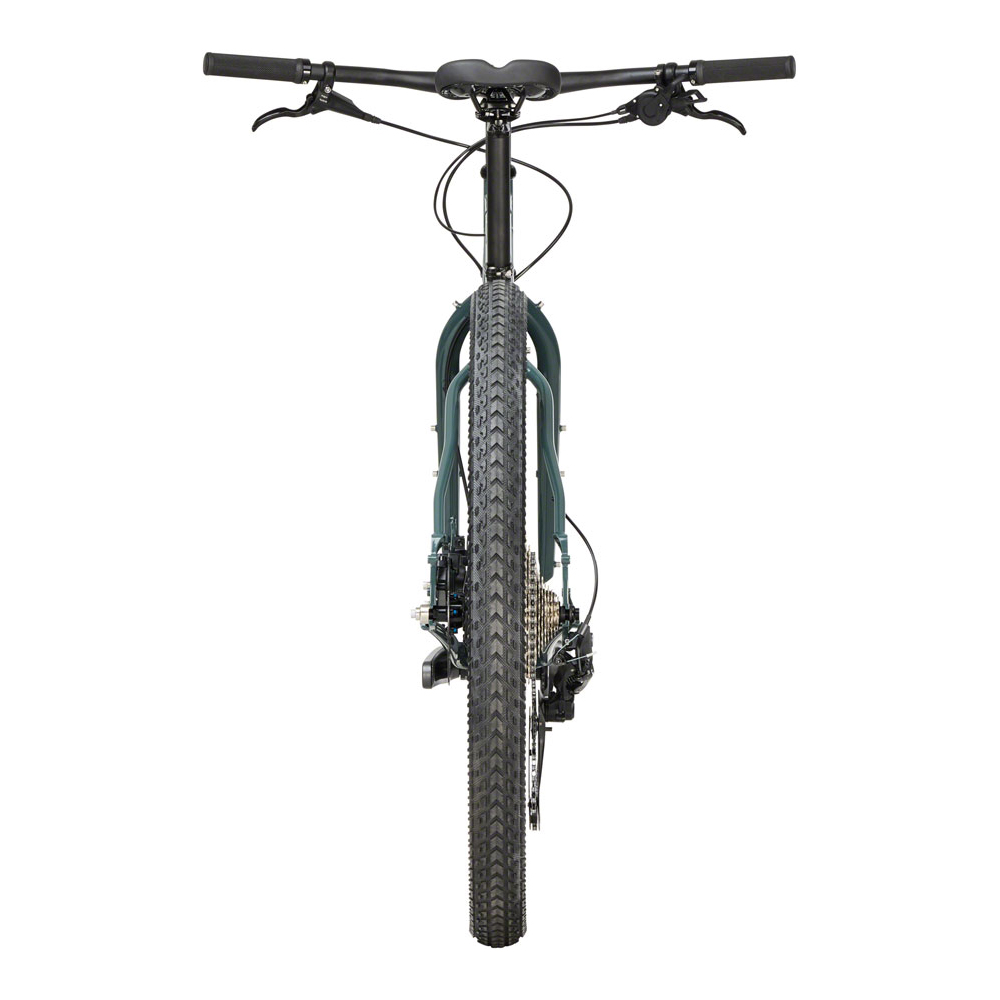

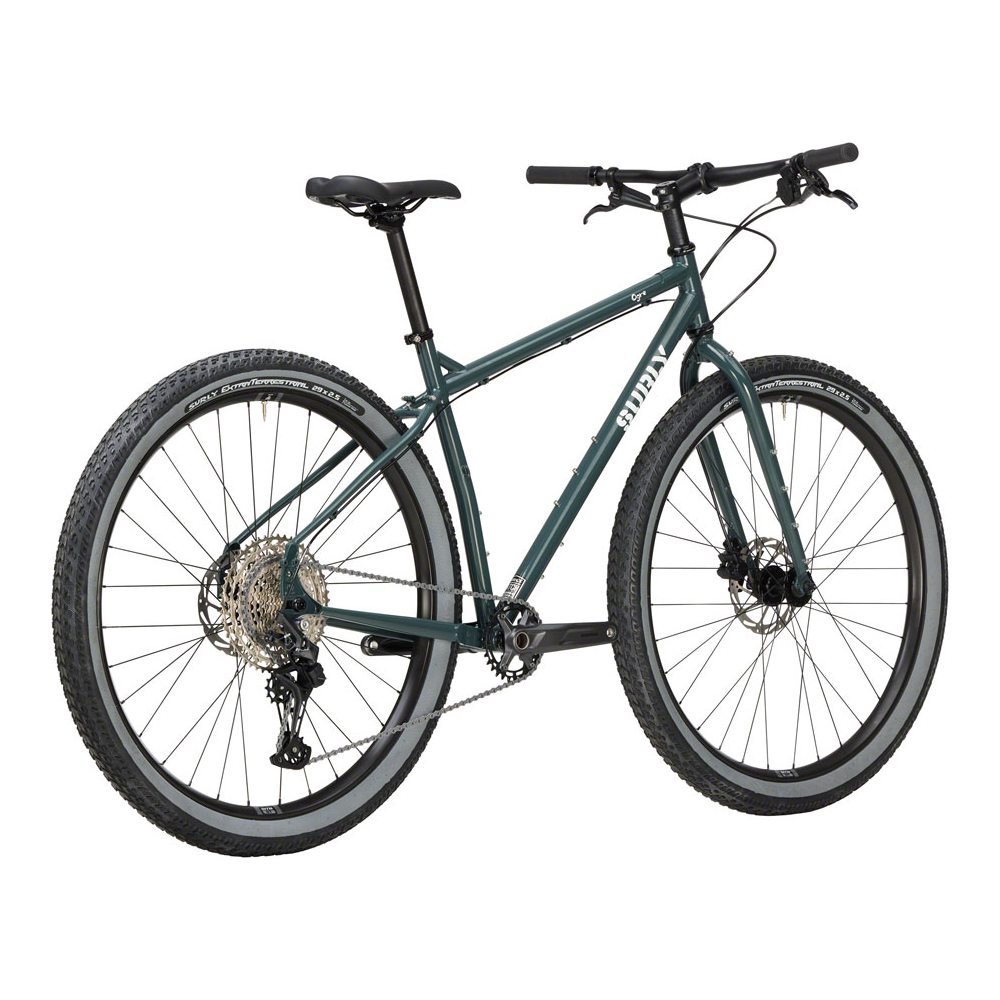

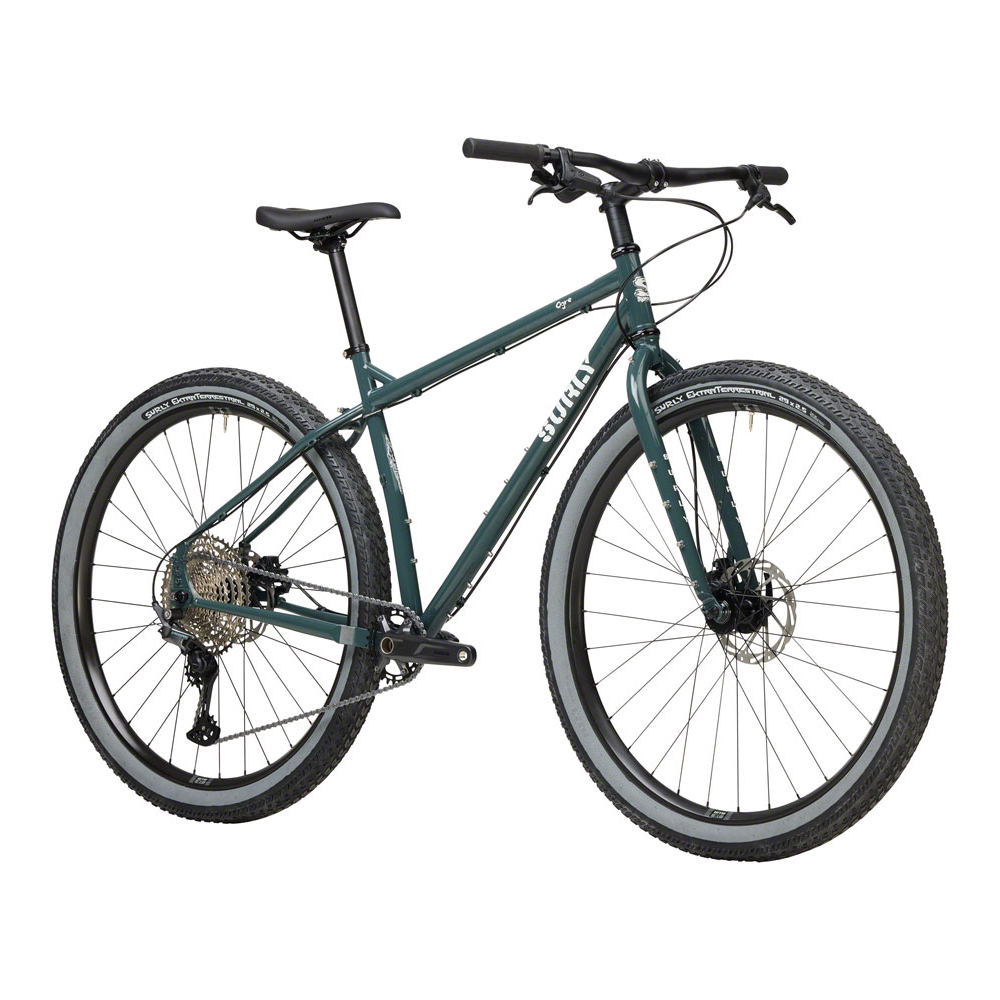

Surly Ogre - Orlok’s Shadow
Surly Ogre - Orlok’s Shadow - Image 2
Surly Ogre - Orlok’s Shadow - Image 3
Surly Ogre - Orlok’s Shadow - Image 4
Surly Ogre - Orlok’s Shadow - Image 5

Surly Ogre – Orlok’s Shadow

$1,898.99

Free shipping on bicycles priced over $1500 (within the lower 48).

SKU: SURORLK Categories: , Tag:

The Ogre can get you to your job during the week, then way out of town on the weekend.


Overview

A Versatile All-Season Commuter Bike

If you’re like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, the Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack.

The Ogre is designed to be the ultimate steel utility vehicle. It relishes in those “take-the-long-way-home-and-find-some-beverages-along-the-way” sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you don’t even have to go home if you don’t want to.

Features

All the barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.

Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount

Clearance for 29” x 2.5” or 27.5″ x 2.8″ tires with fenders

Specs

Geometry Diagram

Frame measurements (mm) SM MD LG XL
A. BB Drop 68 68 68 68
B. Chainstay Length 440 440 440 440
C. Fork Length – Axle to Crown 445 445 445 445
D. Fork Offset 45 45 45 45
E. Head Tube Angle (deg) 71.5 72.0 72.0 72.0
F. Headtube Length 110 120 130 150
G. Reach 395.5 410.5 427.6 447.0
H. Seat Tube Angle (deg) 73.0 73.0 73.0 73.0
I. Seat Tube Length – Center to Top 406.4 457.2 508 558
J. Stack 592 603.4 613.0 632.0
K. Standover 763.5 795.7 824.5 857.85
L. Top Tube Length (Effective) 575 595 615 640
M. Wheelbase 1049.4 1064.5 1084.6 1110.0
Component measurements (mm)
Crank Arm Length 170 175 175 175
Handlebar Width 700 740 740 740
Handlebar Rise / Drop – – – –
Stem Length 70 80 90 100
Stem Angle (deg) 7 7 7 7

* All dimensions are preliminary and subject to change

Frameset

Frame:

100% Surly Chromoly Steel

Natch tubing, double-butted main triangle

TIG welded, E.D. coated

Fork:

100% Surly Chromoly Steel

Natch tubing, double-butted tapered blades

TIG welded, E.D. coated

Cockpit & Contact Points

Headset: Cane Creek 40

Handlebar: Salsa Bend

Stem: Promax DA-296

Grips: Velo Black

Saddle: WTB Volt Medium

Seatpost: Promax SP-2016, 27.2 x 300mm

Seatpost Clamp: Surly Stainless 30.0

Drivetrain

Shifter: Shimano Deore M6100

Rear Derailleur: Shimano Deore M6100 SGS

Crankset: Shimano MT511, 30T

Cassette: Shimano Deore M6100, 10–51T, 12-speed

Chain: KMC X12 EPT Anti-Rust

Bottom Bracket: Shimano MT501 BSA

Brakes

Brake Levers: Tektro HD-M275 / HD-M276

Calipers: Tektro HD-275 / HD-276, 2-piston

Rotors: Tektro 160mm (front and rear), 6-bolt

Wheels & Tires

Rims: WTB ST i30 29″, TCS 2.0, 32h

Spokes: 14g Black

Front Hub: Novatec QR 9x100mm, 32h, 6-bolt

Rear Hub: Novatec TA 12x142mm, 32h, 6-bolt

Front Tire:

    • Surly ExtraTerrestrial 29 x 2.5″, 60 TPI

    • Tubeless Ready (Slate wall), tubes installed

    • Includes WTB TCS sealant

Rear Tire:

    • Surly ExtraTerrestrial 29 x 2.5″, 60 TPI

    • Tubeless Ready (Slate wall), tubes installed

    • Includes WTB TCS sealant

Warranty

Register your purchase at Surly’s Warranty Registration.

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
