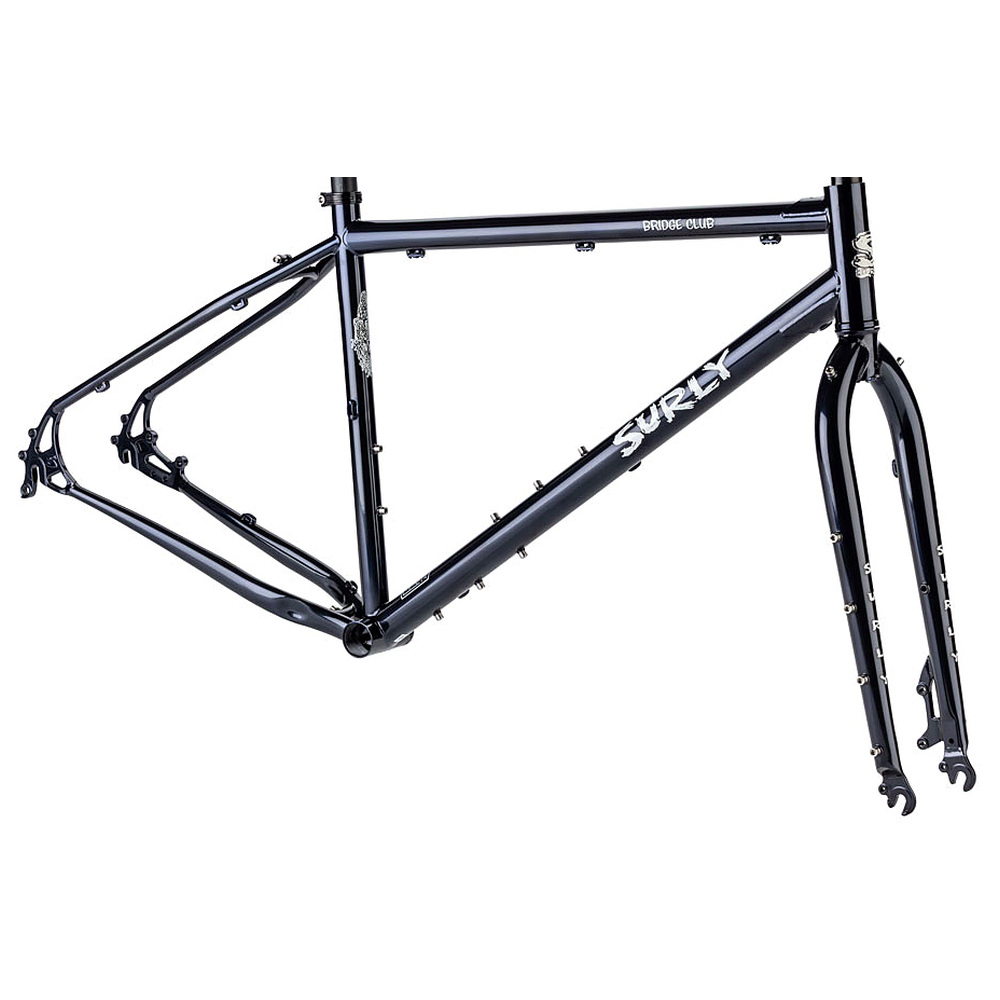

Surly Bridge Club Frameset (Squid Ink)

Overview

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.

Features

100% Surly Chromoly frame, main triangle is double-butted; 1-1/8″ threadless Chromoly fork

Rack, fender, and four sets of three-pack mounts

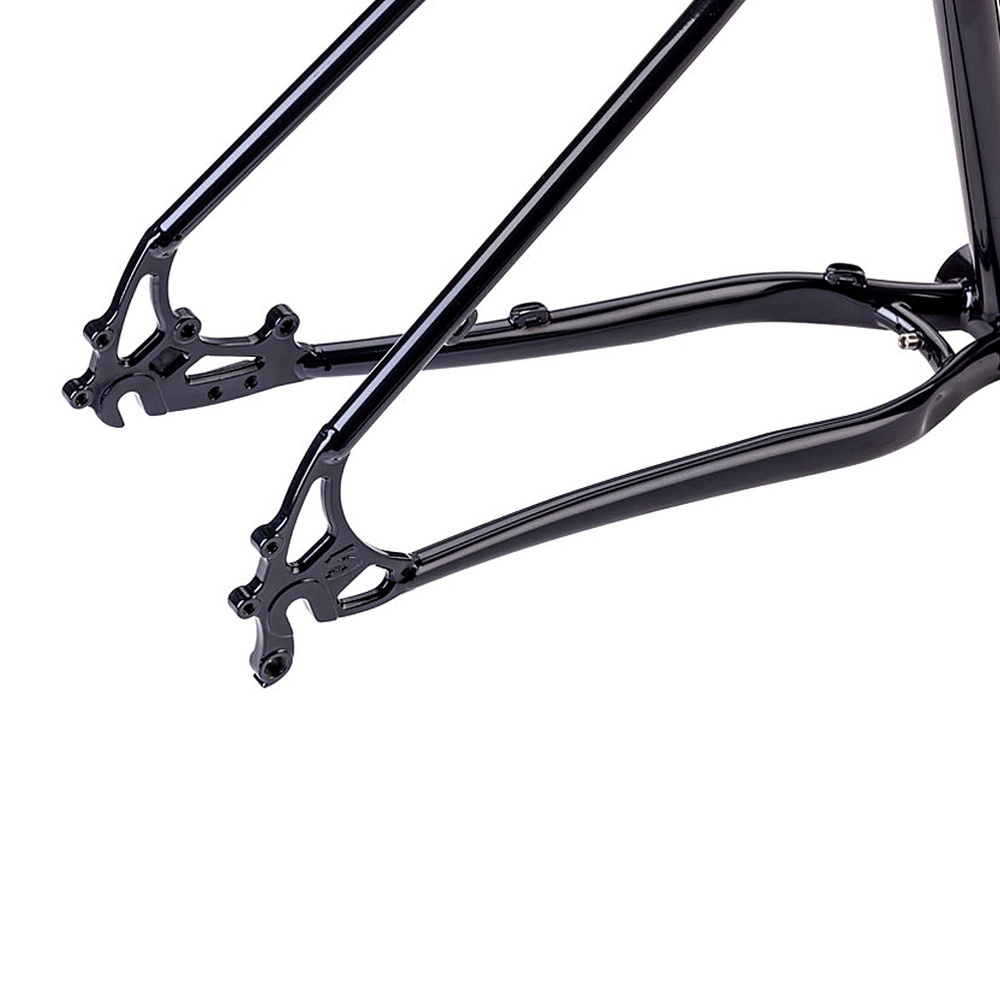

Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category

Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8″ tires (27.5 x 2.6″ with fenders)

Specs

Frame measurements (mm)	XS	SM	MD	LG	XL
A. BB Drop	60	60	60	60	60
B. Chainstay Length	435	435	435	435	435
C. Fork Length – Axle to Crown	420	420	420	420	420
D. Fork Offset	45	45	45	45	45
E. Head Tube Angle (deg)	70.0	71.0	71.0	71.0	71.0
F. Headtube Length	110	120	130	145	165
G. Reach	376	397	419	434.5	444
H. Seat Tube Angle (deg)	73.0	73.0	73.0	73.0	73.0
I. Seat Tube Length – Center to Top	335.6	406.4	457.2	508	558.8
J. Stack	553	567	576	590	609
K. Standover	709	750.5	780	812	845.5
L. Top Tube Length (Effective)	545	570	595	615	630
M. Wheelbase	1032	1047.5	1073	1093	1109

Component measurements (mm)
Crank Arm Length	170	170	170	170	170
Handlebar Width	700	700	740	740	740
Stem Length	80	80	90	90	100
Stem Angle (deg)	6	6	6	6	6

* All dimensions are preliminary and subject to change

Wheel Size: 27.5″ , 700c , 26+

Brake Type: Disc

Platform: Bridge Club

Fork Type: Rigid

Rear Axle: QR x 141mm

Frame Material: Steel

Front Axle: QR x 100mm

Frame Type: Rigid

Warranty

LIMITED WARRANTY FOR THE SURLY BRIDGE CLUB FRAMESET

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
Normal wear and tear
Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
