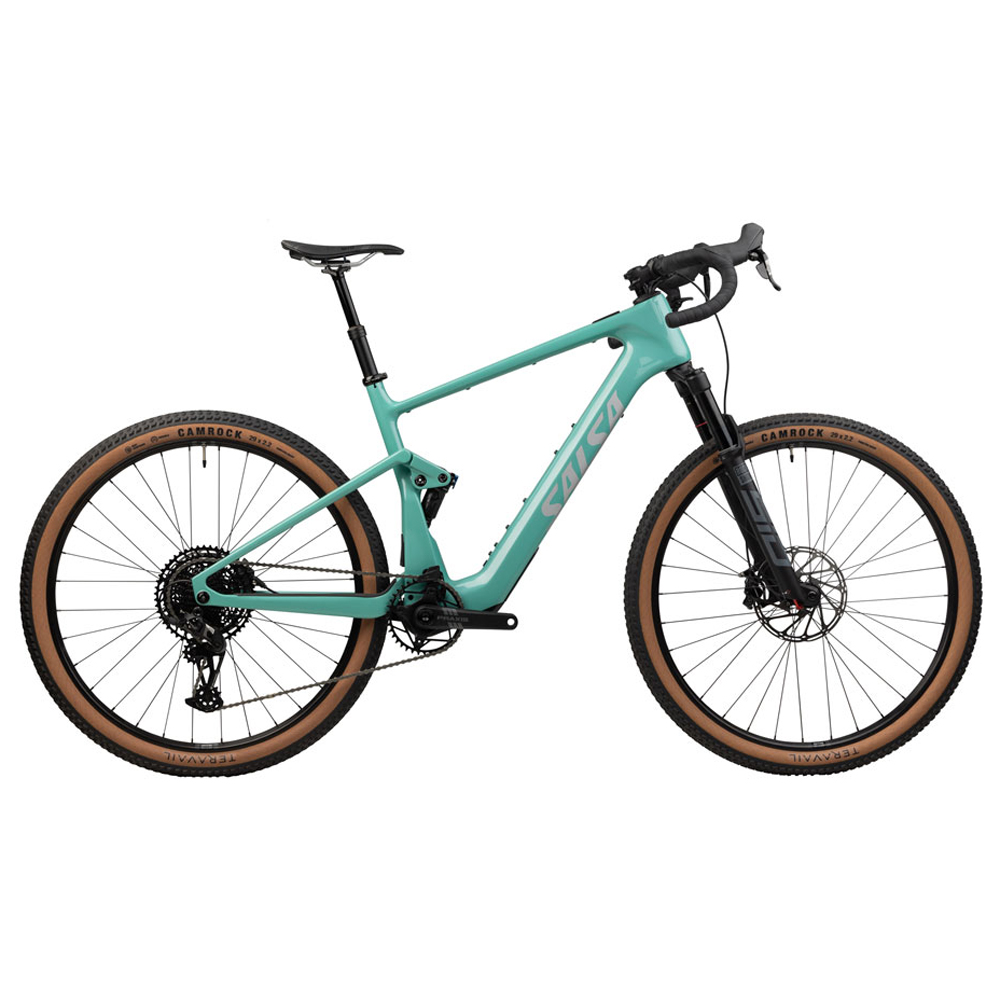

Salsa Wanderosa C Apex Eagle Ebike

Features

High-modulus carbon fiber frame

Boost suspension fork

FAZUA Ride 60 class 3 mid-drive motor

28 mph or 45 kmh max assist

60Nm max torque

480Wh FAZUA Energy internal battery (removable for service)

Internal cable and dropper post routing

148 x 12 Boost thru-axle rear

SRAM UDH compatible

Compatible with direct-mount frame bags

One bottle mount inside main triangle on all sizes

Frame accommodates up to 2.35″ tire

Specs

Frame measurements (mm)	XS	SM	MD	LG	XL
A. Effective Top Tube	538.2	563.3	588.4	613.4	638.5
B. Stand Over	725.6	749.2	776.3	803.1	829.7
C. Reach	380.3	404.1	424.4	444.6	464.9
D. Stack	595.4	599.9	618.1	636.3	654.5
E. Total Seat Tube Length	430.0	460.0	490.0	520.0	550.0
F. Headtube Length	100.0	105.0	125.0	145.0	165.0
G. Headtube Angle	65.3	65.3	65.3	65.3	65.3
H. Seat Tube Angle	75.1	75.1	75.1	75.1	75.1
I. BB Drop	37.6	37.6	37.6	37.6	37.6
J. BB Height	332.4	332.4	332.4	332.4	332.4
K. Chainstay Length	440.6	440.6	440.6	440.6	440.6
L. Fork Length Axle to Crown	531.0	531.0	531.0	531.0	531.0
M. Fork Offset	44.0	44.0	44.0	44.0	44.0
N. Wheelbase	1123.7	1149.7	1178.3	1206.8	1235.5
Component measurements (mm)
Crank Arm Length	160	165	165	170	170
Handlebar Width	44	46	48	50	52
Stem Length	35	35	45	45	45

Frameset

• Frame: Wanderosa Carbon

• Suspension Fork: RockShox SID Base, 2P, 120 mm

• Rear Shock: RockShox SIDLuxe Select+ 3P, 110 mm travel, 165 mm stroke

---

Drive System & E-Bike Details

• Drive Unit: Fazua Ride 60

• E-Bike Classification: Class 3

• Drive Type: Mid-drive

• Max Assist Speed: 28 mph / 45 km/h

• Motor Torque: 60 Nm

• Max Motor Assist: 450 W (with Boost)

• Assist Levels: No Support / Breeze / River / Rocket / Boost

• Walk Assist: Yes, up to 6 km/h

• Throttle: No

---

Battery & Charging

• Battery: Energy 480 lithium-ion

• Capacity: 480 Wh

• Voltage: 43.2 V

• Amp Hours: 9.9 Ah

• Removable Battery: Yes (for service)

• Estimated Charge Time: 3.5 hours

• Charger Included: Yes

• Lights Included: No

---

Drivetrain

• Rear Derailleur: SRAM Apex Eagle

• Cassette: SRAM PG-1210, 10–50t, 12-speed

• Chain: SRAM NX Eagle

• Crankset: Praxis aluminum, ETOR, 38t

• Shifter: SRAM Apex Eagle

• Front Derailleur: N/A

---

Brakes

• Brake Levers: SRAM Apex Eagle

• Brake Calipers: SRAM Apex

  • Post-mount front

  • Flat-mount rear

• Rotors: SRAM CenterLine

  • 200 mm front

  • 180 mm rear

---

Components

• Headset: Acros

• Stem: Salsa Guide Trail

• Handlebar: Salsa Cowchipper

• Grips / Bar Tape: Velo

• Seatpost: TranzX YSP18

• Saddle: WTB Gravelier

---

Wheels & Tires

• Front Hub: Shimano TC500, 15 x 110 mm

• Rear Hub: Shimano TC500, 12 x 148 mm

• Spokes: 2.0 / 1.8 mm butted

• Rims: WTB ST i27, 29″

• Tires:

  • Front: Teravail Camrock, 29 x 2.2″, Durable casing, tan wall

  • Rear: Teravail Camrock, 29 x 2.2″, Durable casing, tan wall

Warranty

LIMITED WARRANTY

Salsa Cycles ( “Salsa ” ) makes the following limited Warranty

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.

NOTE:
All warranty periods below apply to the original owner only

ONE YEAR WARRANTY

All apparel
All frame bags

Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.

Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.

This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.

TWO YEAR WARRANTY

Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)

THREE YEAR WARRANTY

Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components

FIVE YEAR WARRANTY

Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames

THE WARRANTY DOES NOT COVER THE FOLLOWING

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble

Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer

Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use

Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components

Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer

Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt

Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty

Internal rust perforation on all steel frames

Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components

Bent or broken derailleur hangers or Alternator plates

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds

Damage to carbon fiber caused by any carbon assembly paste

Normal wear and tear

LEGAL DISCLAIMER

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
