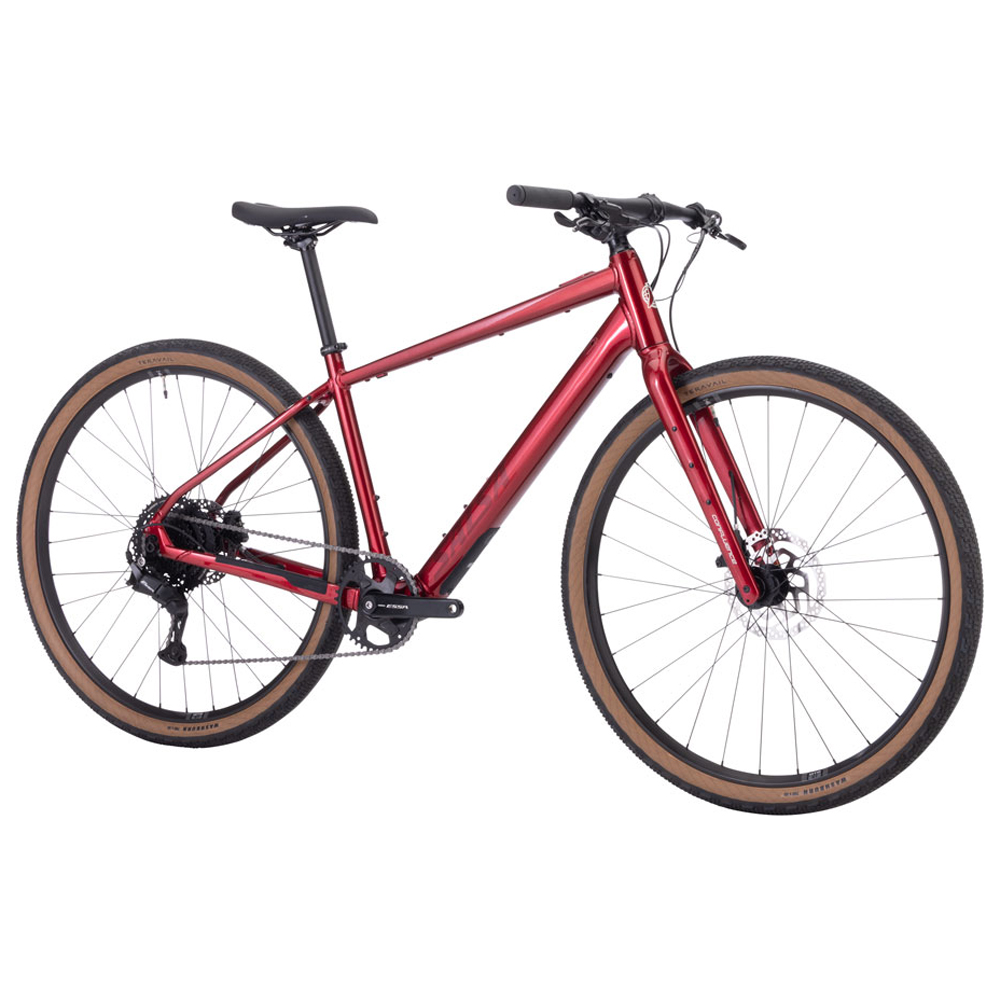

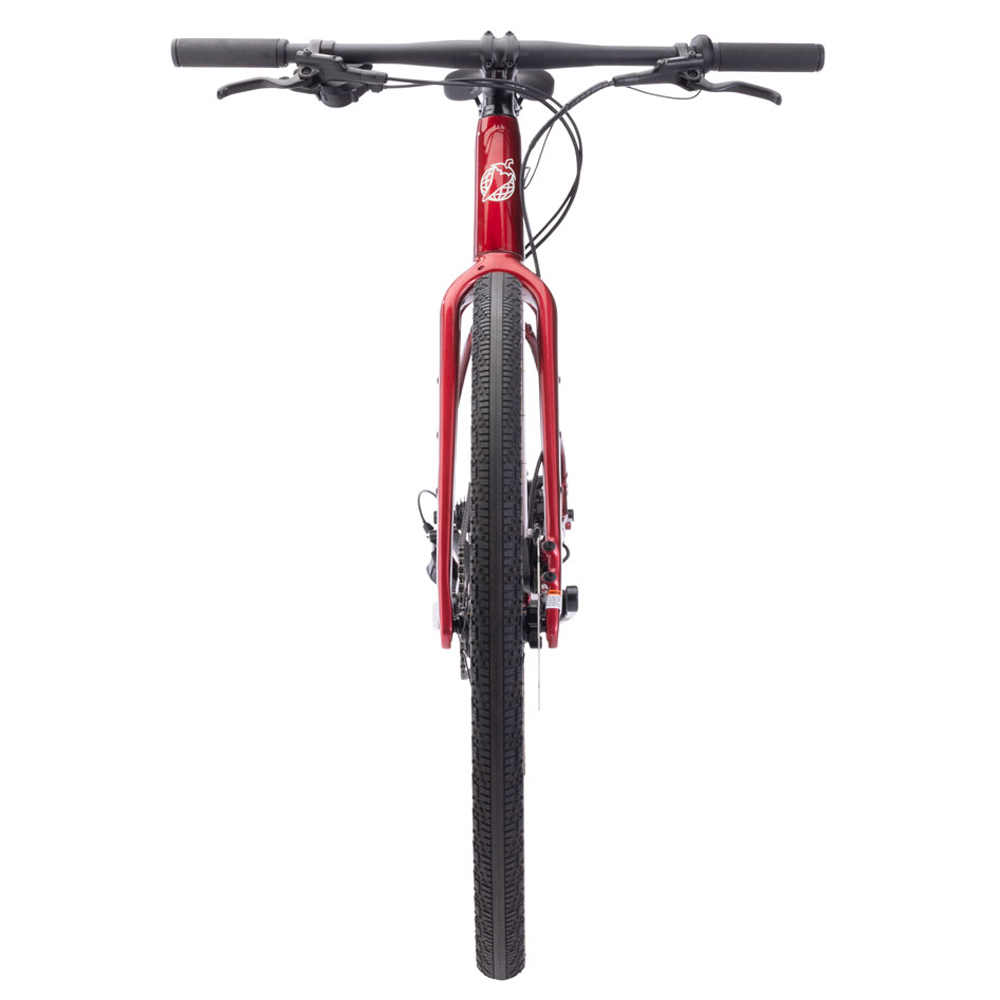

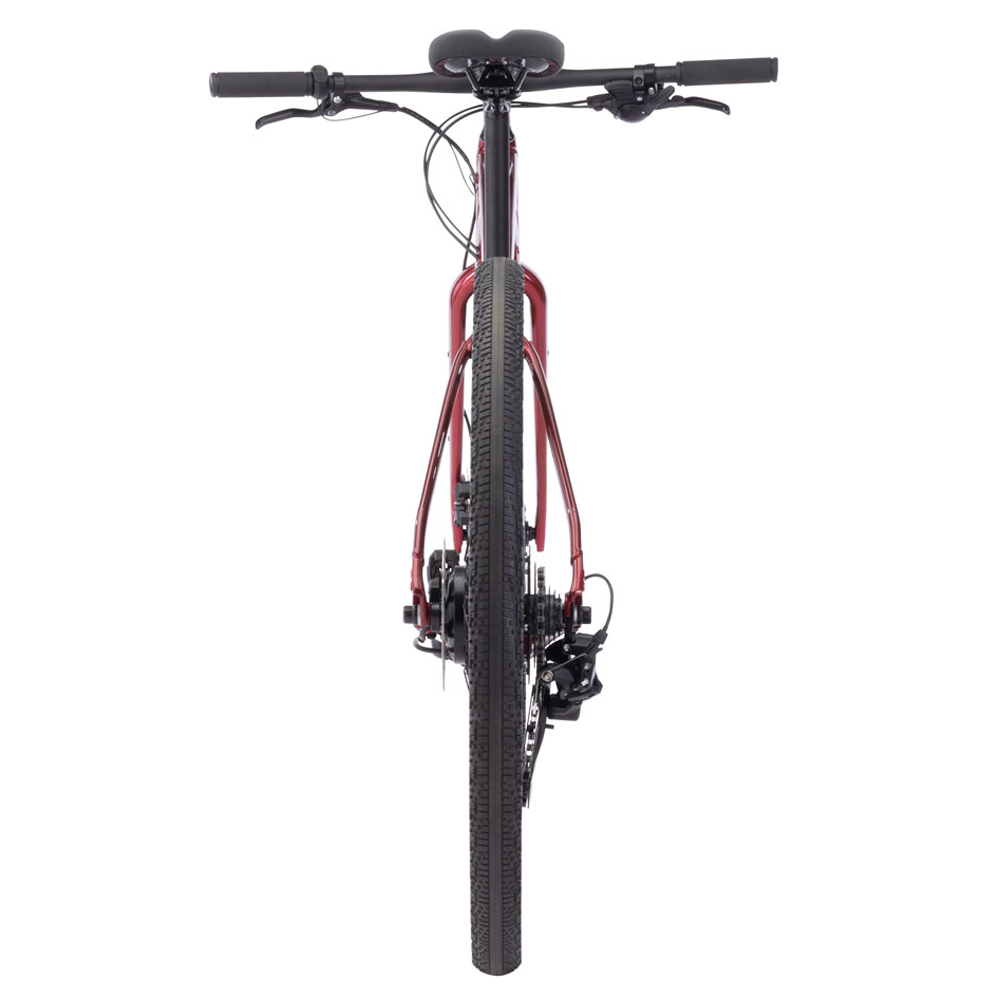

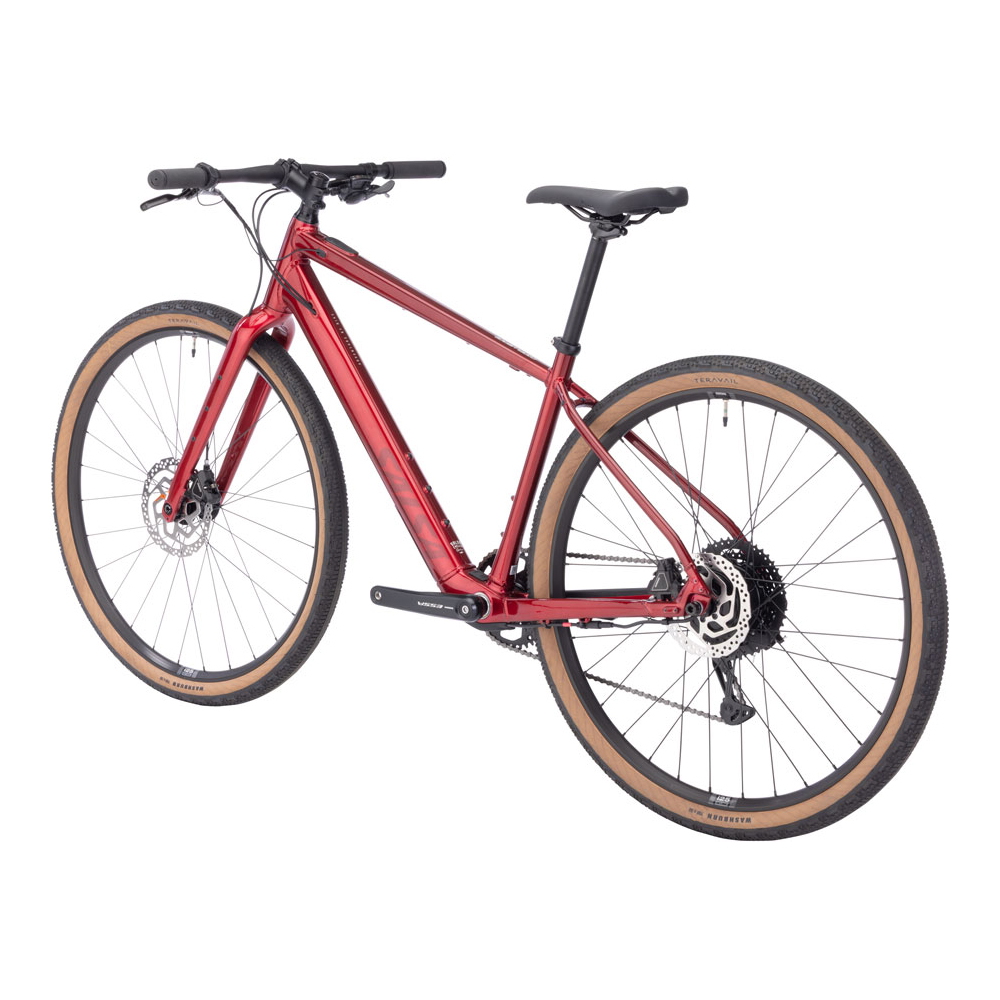

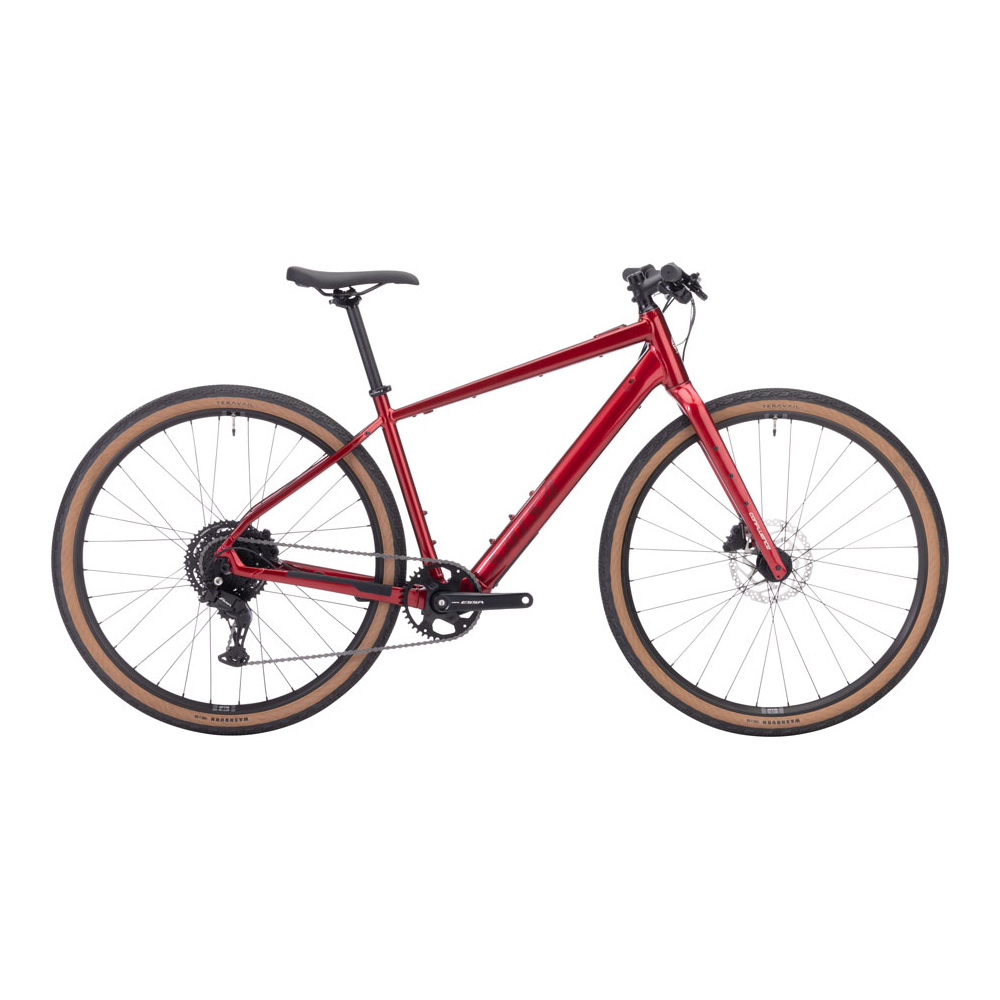

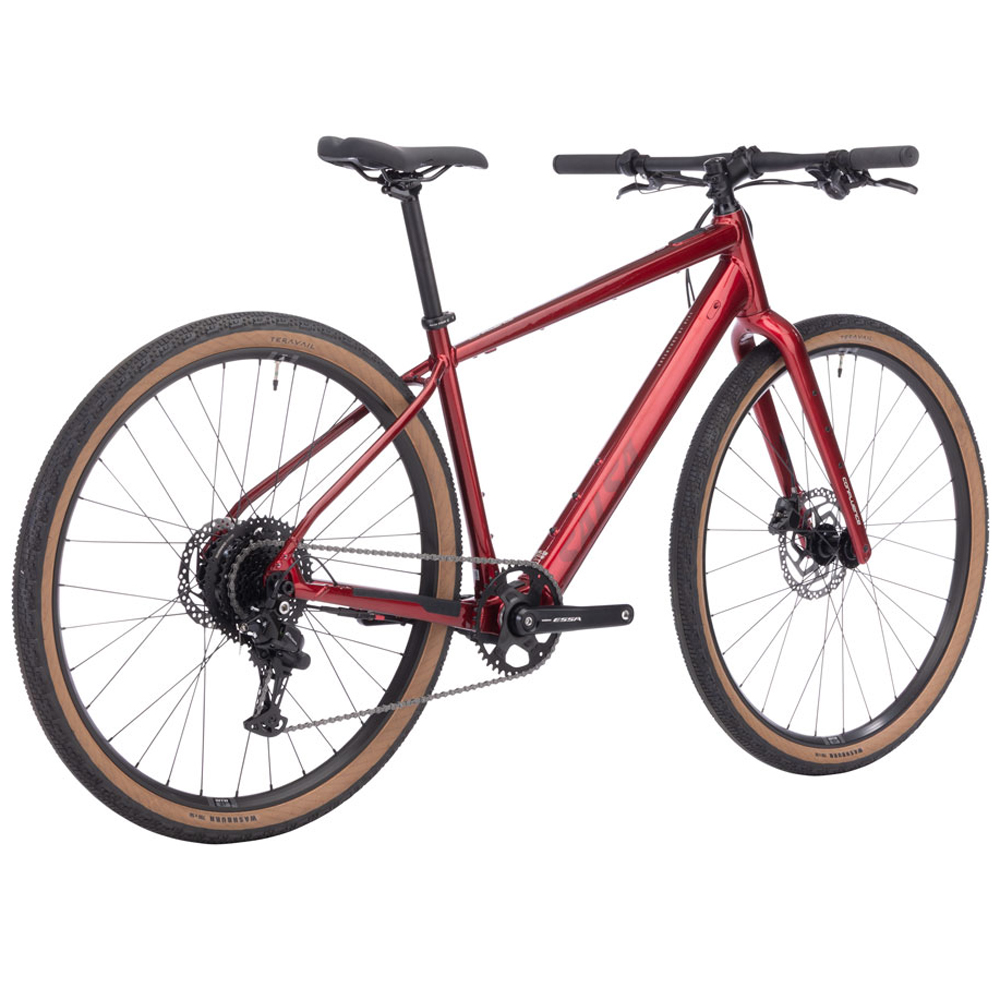

Salsa Confluence Flat Bar ESSA 8

Features

6061-T6 alloy frame with Confluence 2.0 carbon fork

Suspension corrected for 40mm gravel suspension forks

Mahle X30 Class 1 (20mph/32kph assist) hub-drive system

45Nm max torque

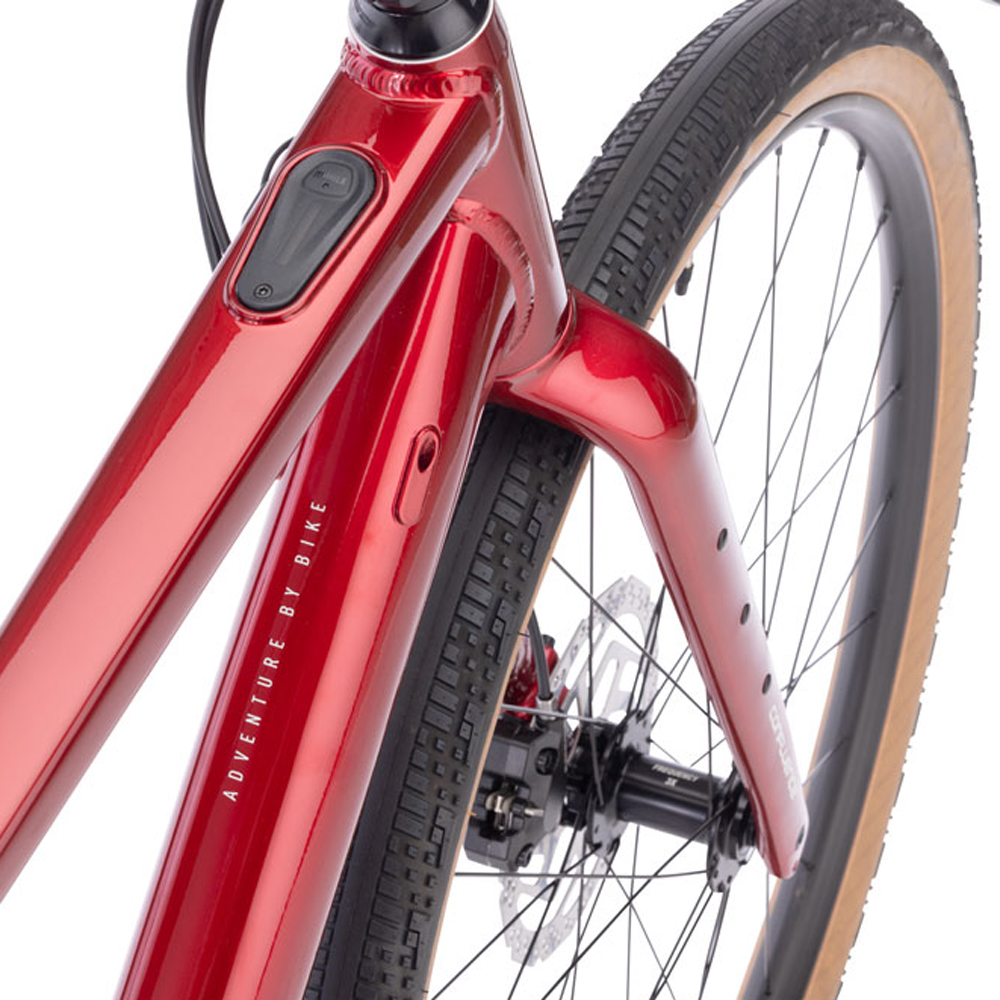

237Wh MAHLE iX2 internal battery in downtube

Capable of up to 421Wh with MAHLE’S External Battery Ex1 171Wh range extender (sold separately)

HMI compact remote top tube controller

MAHLE Duo remote handlebar-mounted controller allows rider to cycle through assist modes and more without taking hands off handlebar

On-bike cargo features including rack mounts and Three-Pack mounts on fork

Massive 700c x 50mm tire clearance ​(max 42mm tire clearance with fenders)

Fender mounts

MAHLE X30 system certified to UL 2849:2020 standards, MAHLE battery certified to UL 2271 standards

Specs

Frame measurements (mm)	XS	SM	MD	LG	XL
A. Effective Top Tube	550	570	600	625	650
B. Stand Over	631	669	731	770	809
C. Reach	389.8	401.3	419.9	433.5	447.4
D. Stack	523.9	551.8	589.0	626.2	662.6
E. Total Seat Tube Length	340	380	450	490	530
F. Headtube Length	90	120	160	200	240
G. Headtube Angle	68.5	68.5	68.5	68.5	68.5
H. Seat Tube Angle	73	73	73	73	73
I. BB Drop	70	70	70	70	70
J. BB Height	285	285	285	285	285
K. Chainstay Length	440	440	440	440	440
L. Fork Length Axle to Crown	417	417	417	417	417
M. Fork Offset	51	51	51	51	51
N. Wheelbase	1057.8	1080.3	1113.6	1141.9	1170.1
Component measurements (mm)
Crank Arm Length	170	170	170	175	175
Handlebar Width	700	700	700	700	700
Stem Length	60	70	70	80	90

* All dimensions are preliminary and subject to change

Frameset

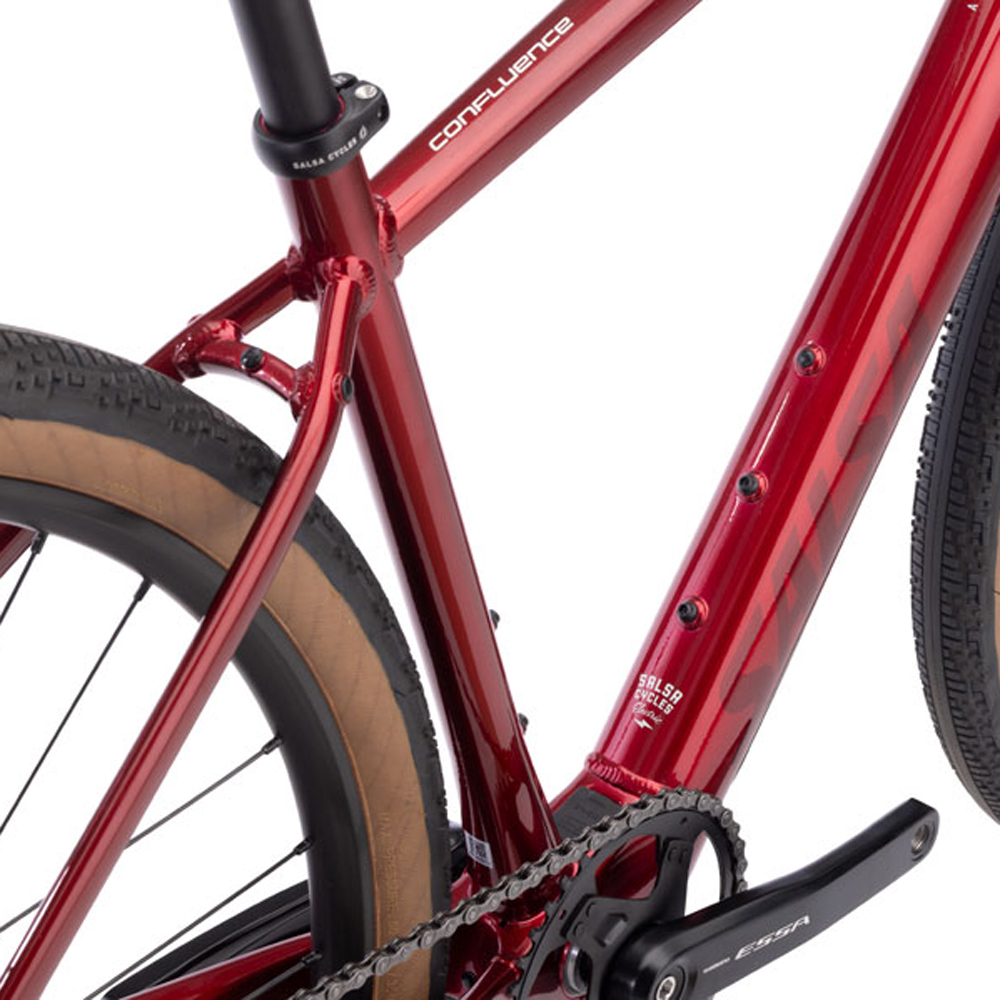

Frame: Confluence 2.0
Fork: Confluence Carbon 2.0

Drivetrain & E-Assist

Drive Unit: MAHLE X30
E-Bike Classification: Class 1
Drive Type: Hub-Drive
Max Assist Speed: 20 mph / 32 kph
Motor Torque: 45 Nm
Assist Levels: 3
Walk Assist: Yes
Throttle: No

Battery & Electronics

Battery Capacity: 250 Wh
Battery Type: Li-ion
Removable Battery: No
Estimated Charge Time: 3.5 hours
Charger Included: Yes
Lights Included: No

Drivetrain Components

Front Derailleur: N/A
Rear Derailleur: Shimano ESSA U2000
Cassette: Shimano HG300, 11–45t, 8-speed
Chain: KMC 8-speed

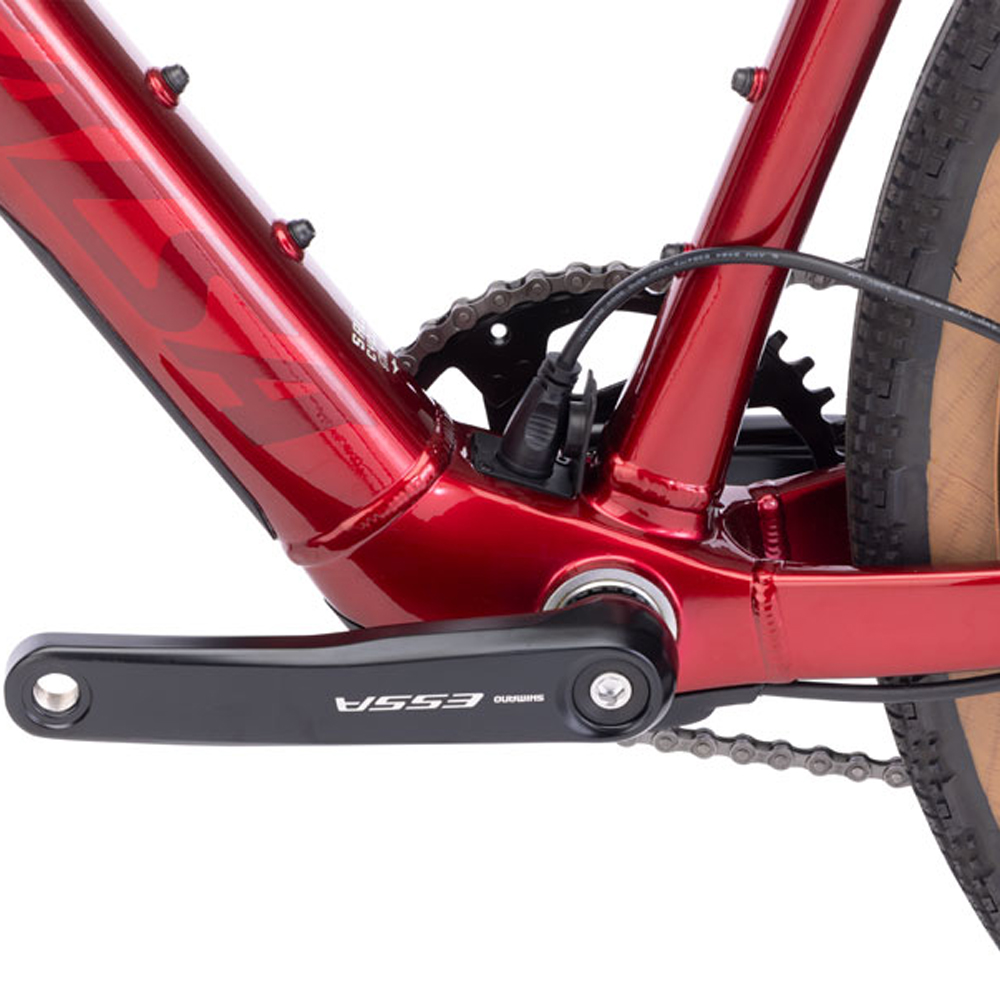

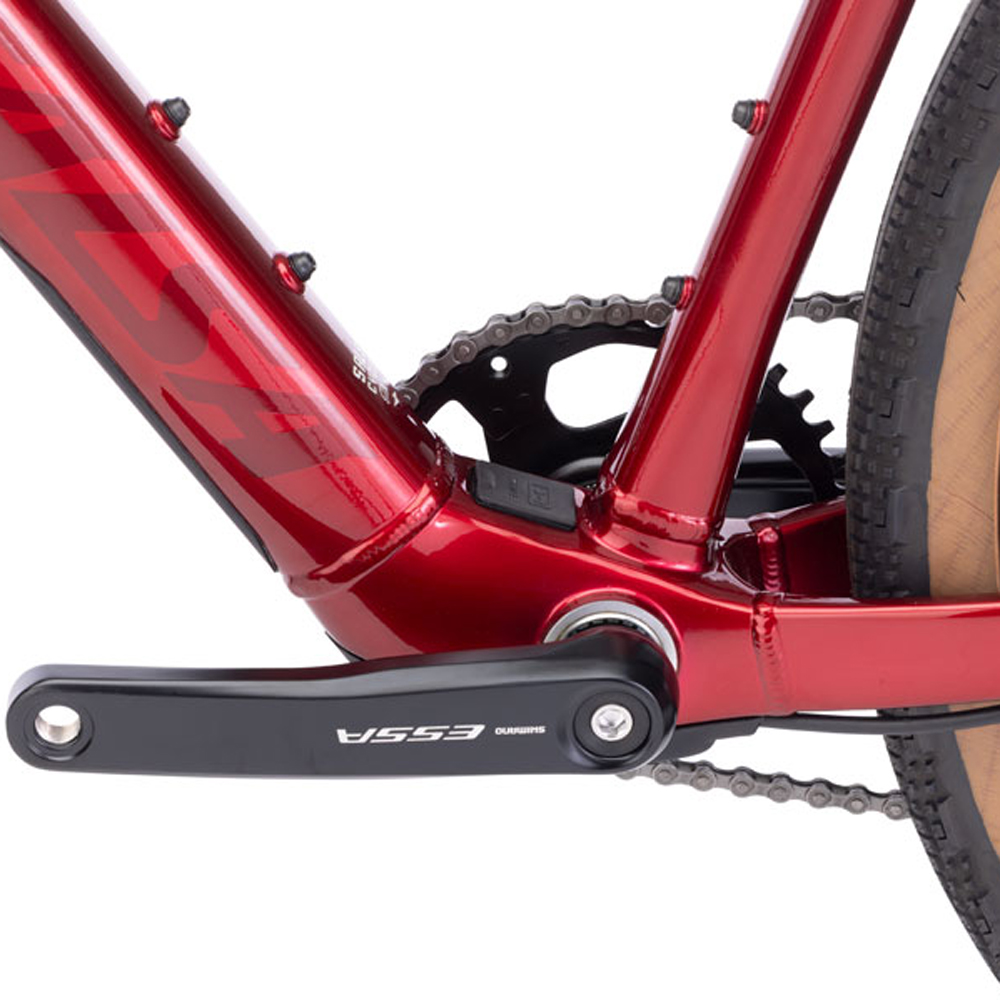

Crankset: Shimano ESSA U2000, 40t
Shifter: Shimano ESSA M315-8R

Brakes

Brake Levers: Shimano MT200
Brake Calipers: Shimano MT201
Rotors: Shimano RT26, 6-bolt
– 180 mm front
– 160 mm rear

Components

Headset: FSA
Stem: Salsa Guide
Handlebar: Salsa Salt Flat
Grips / Bar Tape: Velo
Seatpost: Promax, 12 mm setback
Saddle: WTB Volt

Wheels & Tires

Front Hub: WTB

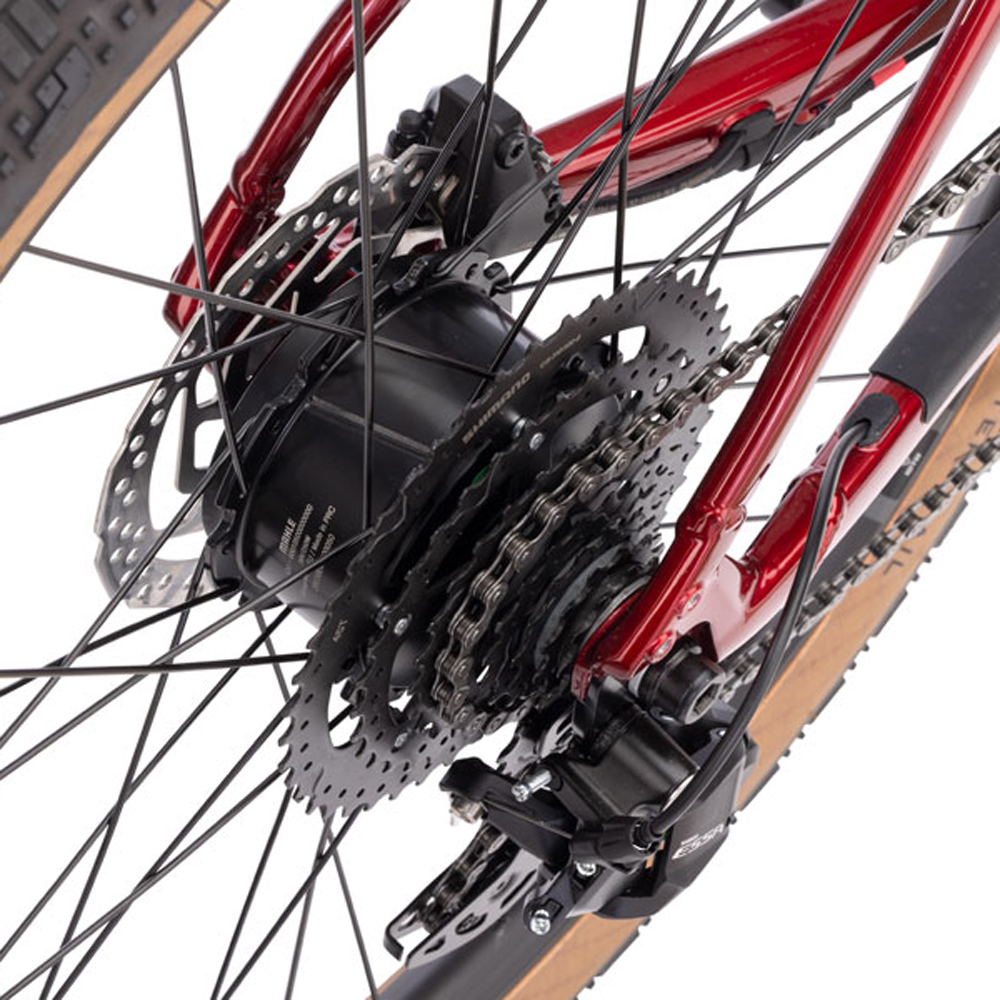

Rear Hub: MAHLE X30
Rims: WTB ST i25
Tires: Teravail Washburn, 700c × 50 mm, wire bead

Other

Misc: —

Specifications are subject to change without notice.

Warranty

LIMITED WARRANTY

Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.

NOTE:
All warranty periods below apply to the original owner only

ONE YEAR WARRANTY

All apparel
All frame bags

Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.

Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.

This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.

TWO YEAR WARRANTY

Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)

THREE YEAR WARRANTY

Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components

FIVE YEAR WARRANTY

Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames

THE WARRANTY DOES NOT COVER THE FOLLOWING

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble

Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer

Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use

Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components

Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer

Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt

Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty

Internal rust perforation on all steel frames

Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components

Bent or broken derailleur hangers or Alternator plates

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds

Damage to carbon fiber caused by any carbon assembly paste

Normal wear and tear

LEGAL DISCLAIMER

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
