Overview

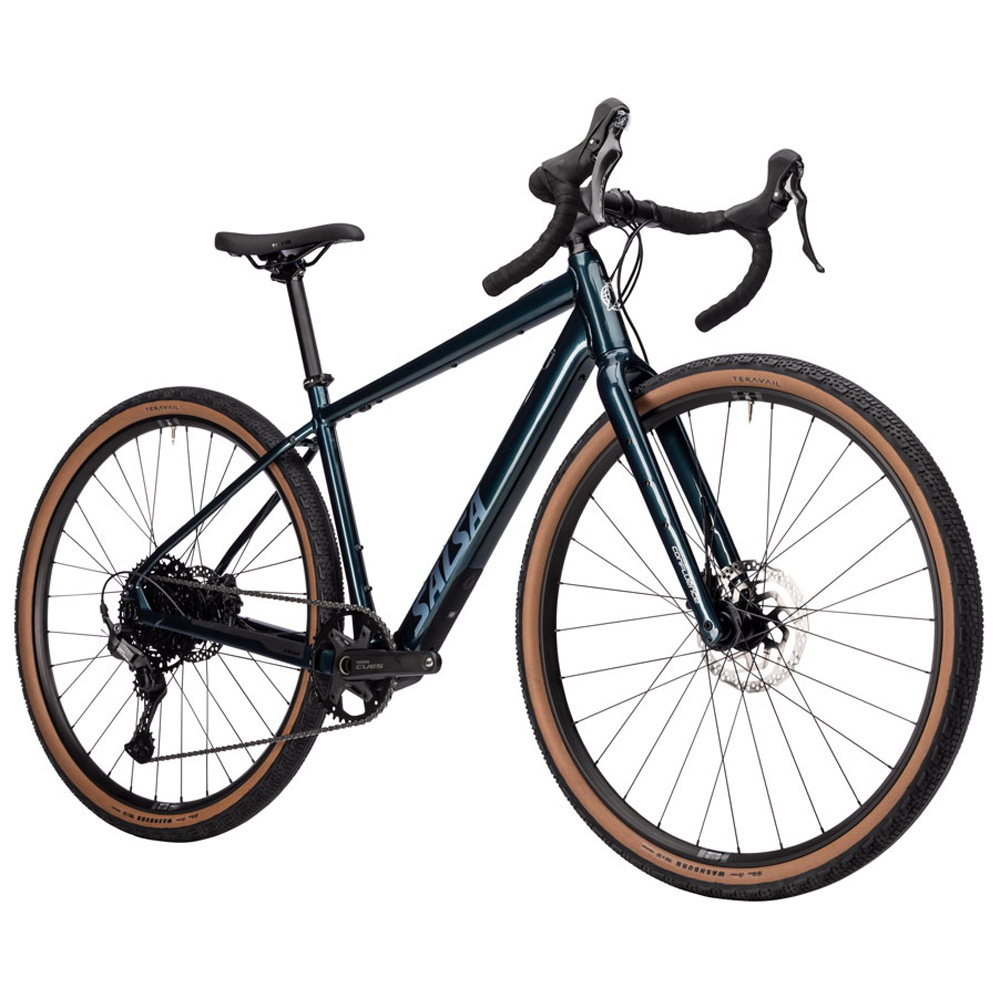

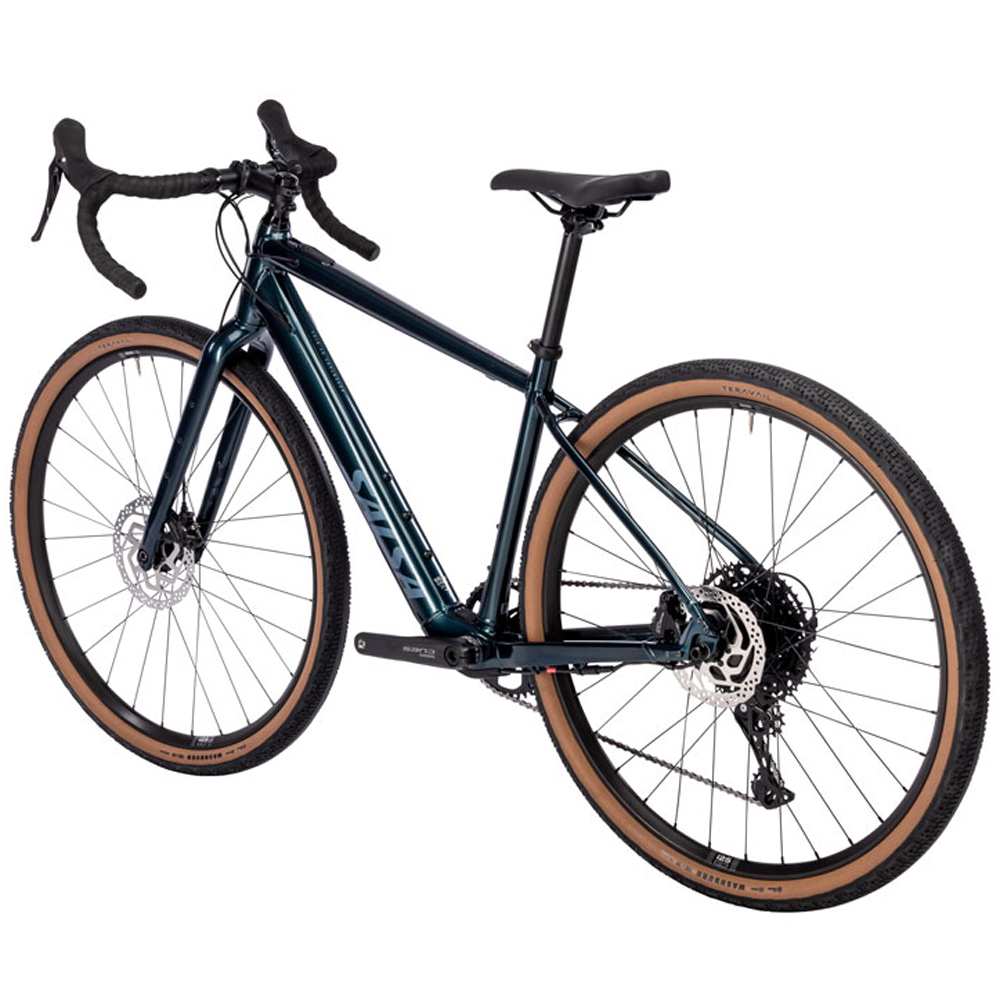

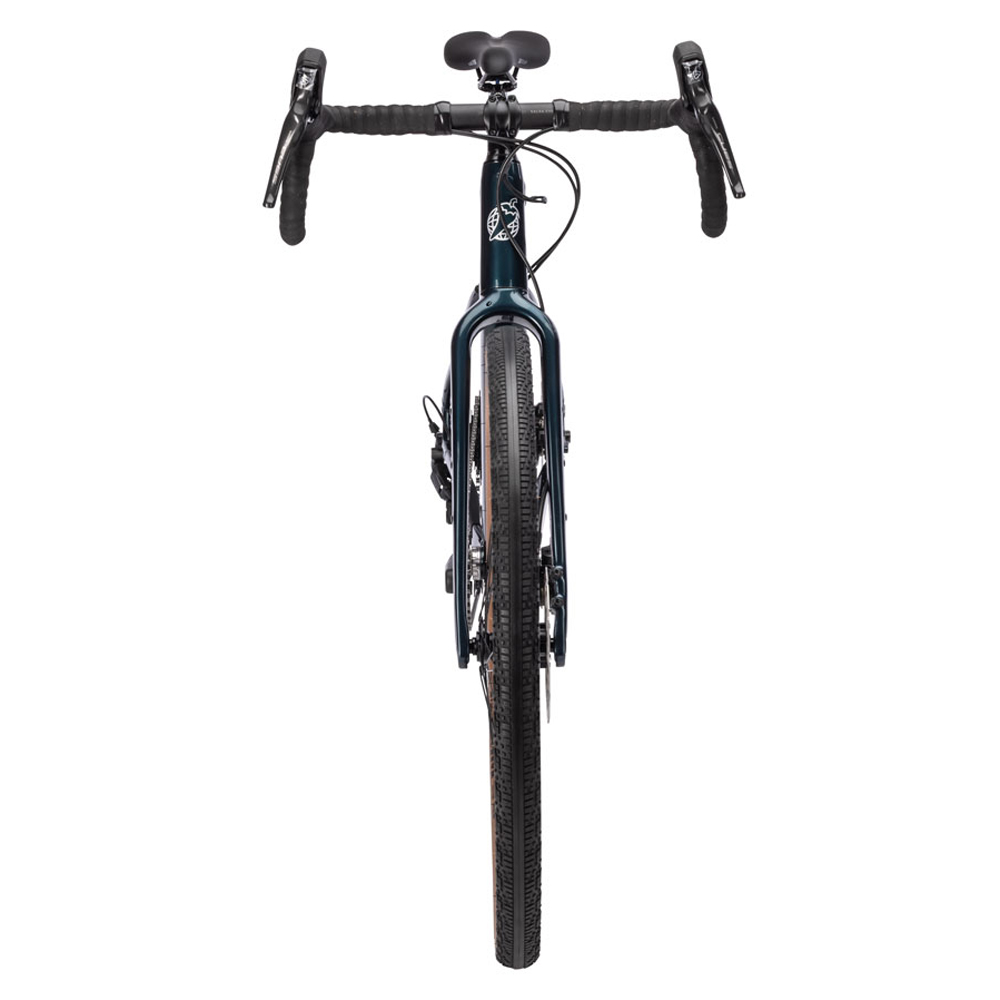

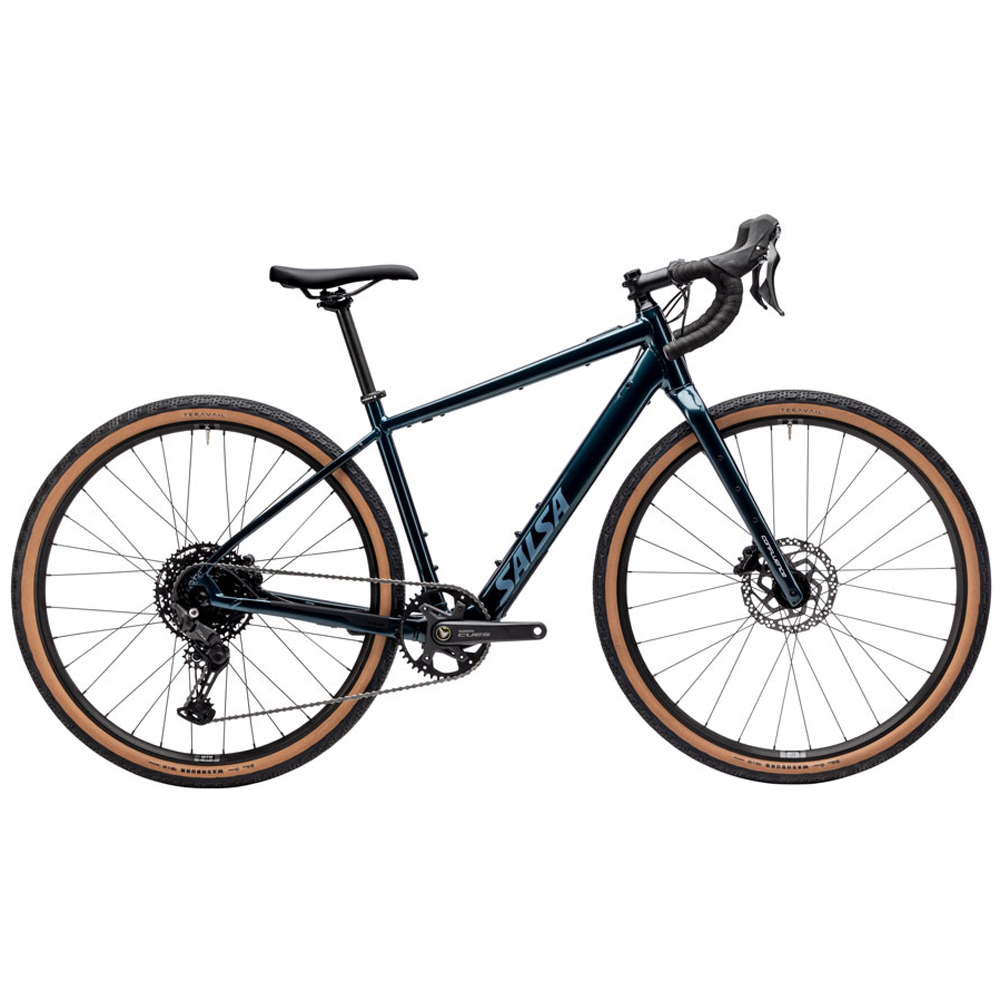

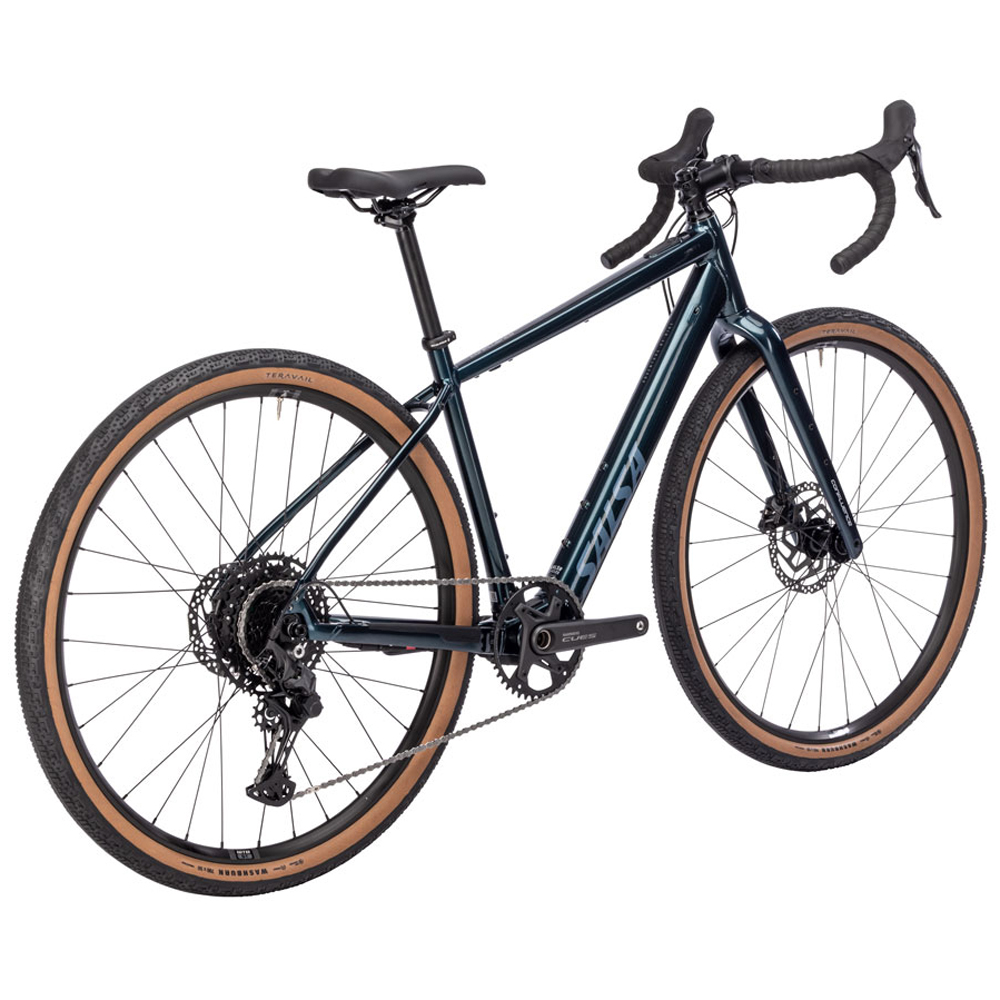

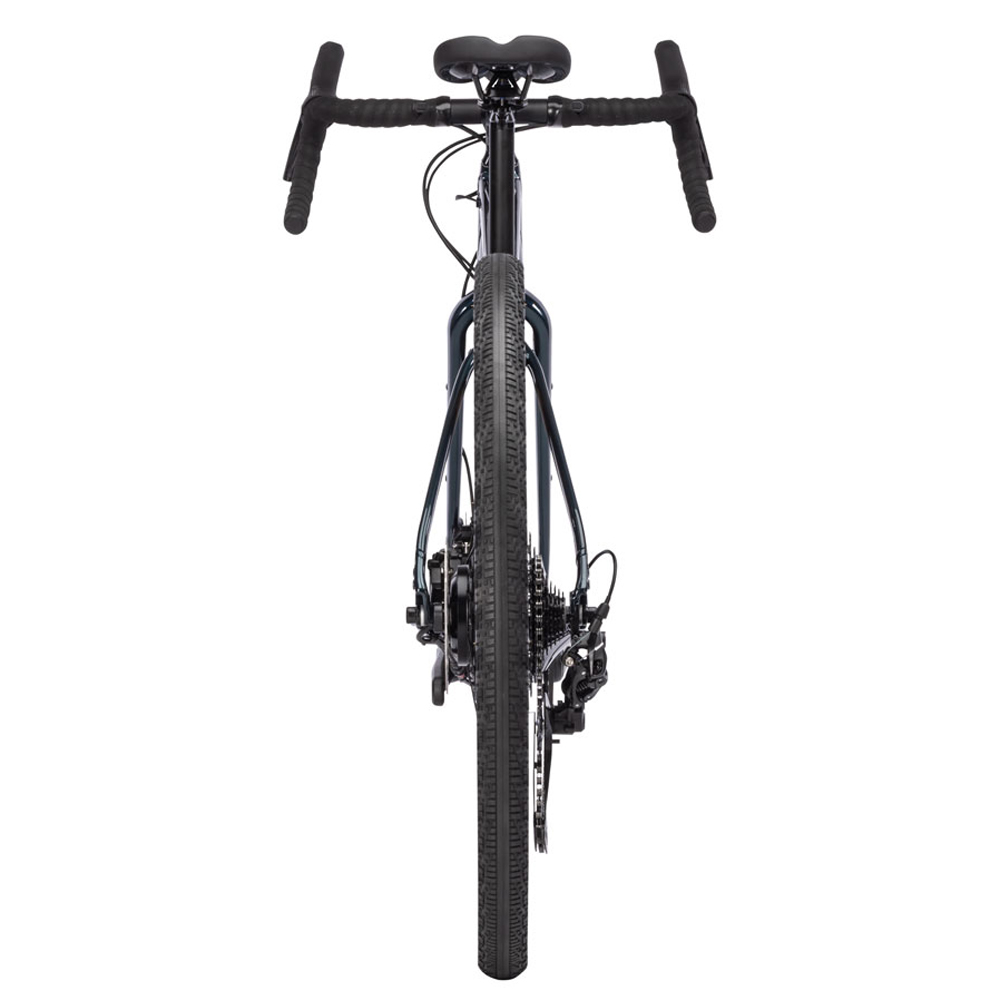

Can’t get enough gravel? Confluence Drop Bar CUES 10 gets it. Our light gravel ebike enables more rides, more miles, and more fun on a wide range of terrain. It starts with a MAHLE X30 hub-drive motor that’s lightweight and discreet, yet packs 45Nm of torque — think of it as a tailwind everywhere you go.
Confluence’s geometry keeps you comfortable and stable on all those extra miles at higher speeds. And it’s equipped with all the mounts for supplying bigger rides or if you want to take the long, gravel-strewn route to work.
If your favorite routes include especially rowdy roads, Confluence accommodates a 40mm suspension fork, dropper post, and 700c x 50mm tires for confident control.
The Shimano CUES 1 x 10 drivetrain delivers smooth, accurate shifts and is durable enough to deal with your new daily gravel habit.
Features
6061-T6 alloy frame with Confluence 2.0 carbon fork
Suspension corrected for 40mm gravel suspension forks
Mahle X30 Class 1 (2
0mph/32kph assist) hub-drive system
45Nm max torque
237Wh MAHLE iX2 internal battery in downtube
Capable of up to 421Wh with MAHLE’S External Battery Ex1 171Wh range extender (sold separately)
HMI compact remote top tube controller
MAHLE eShifters handlebar-mounted controllers allow rider to cycle through assist modes and more without taking hands off handlebar
On-bike cargo features including rack mounts and Three-Pack mounts on fork
Massive 700c x 50mm tire clearance (max 42mm tire clearance with fenders)
Fender mounts
MAHLE X30 system certified to UL 2849:2020 standards, MAHLE battery certified to UL 2271 standards
Specs
| Frame measurements (mm) | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| A. Effective Top Tube | 502 | 517 | 530 | 550 | 570 | 600 |
| B. Stand Over | 634 | 667 | 698 | 733 | 769 | 797 |
| C. Reach | 371.4 | 372.9 | 369.1 | 372.8 | 384.2 | 405.7 |
| D. Stack | 523.9 | 537.8 | 561.1 | 579.7 | 607.6 | 635.5 |
| E. Total Seat Tube Length | 345 | 380 | 410 | 450 | 490 | 520 |
| F. Headtube Length | 90 | 105 | 130 | 150 | 180 | 210 |
| G. Headtube Angle | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| H. Seat Tube Angle | 76.0 | 75.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| I. BB Drop | 70 | 70 | 70 | 70 | 70 | 70 |
| K. Chainstay Length | 440 | 440 | 440 | 440 | 440 | 440 |
| L. Fork Length Axle to Crown | 417 | 417 | 417 | 417 | 417 | 417 |
| M. Fork Offset | 51 | 51 | 51 | 51 | 51 | 51 |
| N. Wheelbase | 1039 | 1046 | 1052 | 1063 | 1085 | 1118 |
| Component measurements (mm) | ||||||
| Crank Arm Length | 165 | 165 | 170 | 170 | 172.5 | 175 |
| Handlebar Width | 380 | 400 | 420 | 440 | 460 | 460 |
| Stem Length | 50 | 60 | 80 | 80 | 90 | 100 |
* All dimensions are preliminary and subject to change
Frameset
Frame: Confluence 2.0
Fork: Confluence Carbon 2.0
Drivetrain & E-Assist
Drive Unit: MAHLE X30
E-Bike Classification: Class 1
Drive Type: Hub-Drive
Max Assist Speed: 20 mph / 32 kph
Motor Torque: 45 Nm
Assist Levels: 3
Walk Assist: Yes
Throttle: No
Battery & Electronics
Battery Capacity: 237 Wh
Battery Type: Li-ion
Removable Battery: No
Estimated Charge Time: 3.5 hours
Charger Included: Yes
Lights Included: No
Drivetrain Components
Front Derailleur: N/A
Rear Derailleur: Shimano CUES U6000
Cassette: Shimano CUES LG300, 11–50t, 10-speed
Chain: Shimano LG500
Crankset: Shimano CUES U6030, 42t
Shifter: Shimano CUES U6030
Brakes
Brake Levers: Shimano CUES U6030
Brake Calipers: Shimano CUES U6030
Rotors: Shimano RT26, 6-bolt
– 180 mm front
– 160 mm rear
Components
Headset: FSA
Stem: Salsa Guide
Handlebar: Salsa Cowbell
Grips / Bar Tape: Velo cork
Seatpost: Promax, 12 mm setback
Saddle: WTB Volt
Wheels & Tires
Front Hub: WTB
Rear Hub: MAHLE X30
Rims: WTB ST i25
Tires: Teravail Washburn, 700c × 50 mm
Other
Misc: —
Specifications are subject to change without notice.
Warranty
Register your purchase at Salsa’s Warranty Registration.
LIMITED WARRANTY
Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:
All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.
NOTE:
All warranty periods below apply to the original owner only
ONE YEAR WARRANTY
All apparel
All frame bags
Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.
Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.
This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.
TWO YEAR WARRANTY
Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)
THREE YEAR WARRANTY
Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components
FIVE YEAR WARRANTY
Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames
THE WARRANTY DOES NOT COVER THE FOLLOWING
Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble
Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer
Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use
Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components
Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer
Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt
Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty
Internal rust perforation on all steel frames
Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components
Bent or broken derailleur hangers or Alternator plates
Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds
Damage to carbon fiber caused by any carbon assembly paste
Normal wear and tear
LEGAL DISCLAIMER
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
