Overview

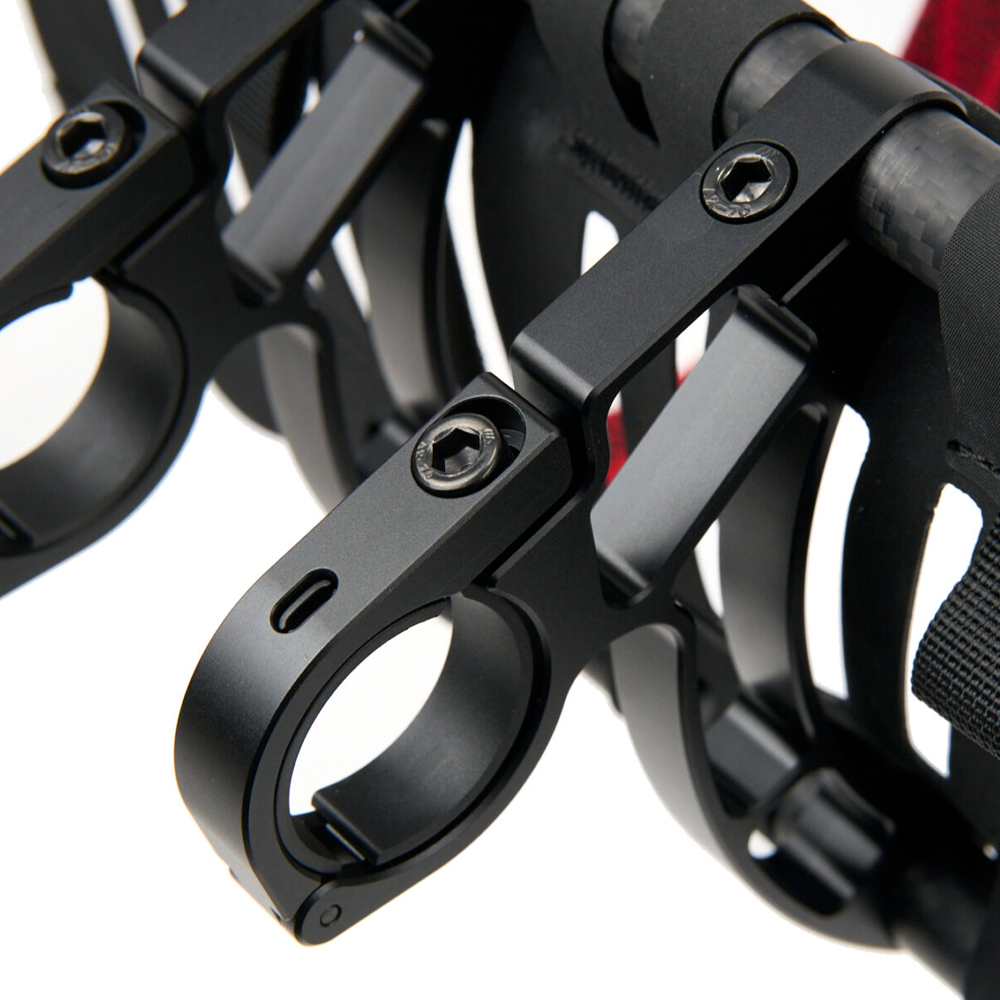

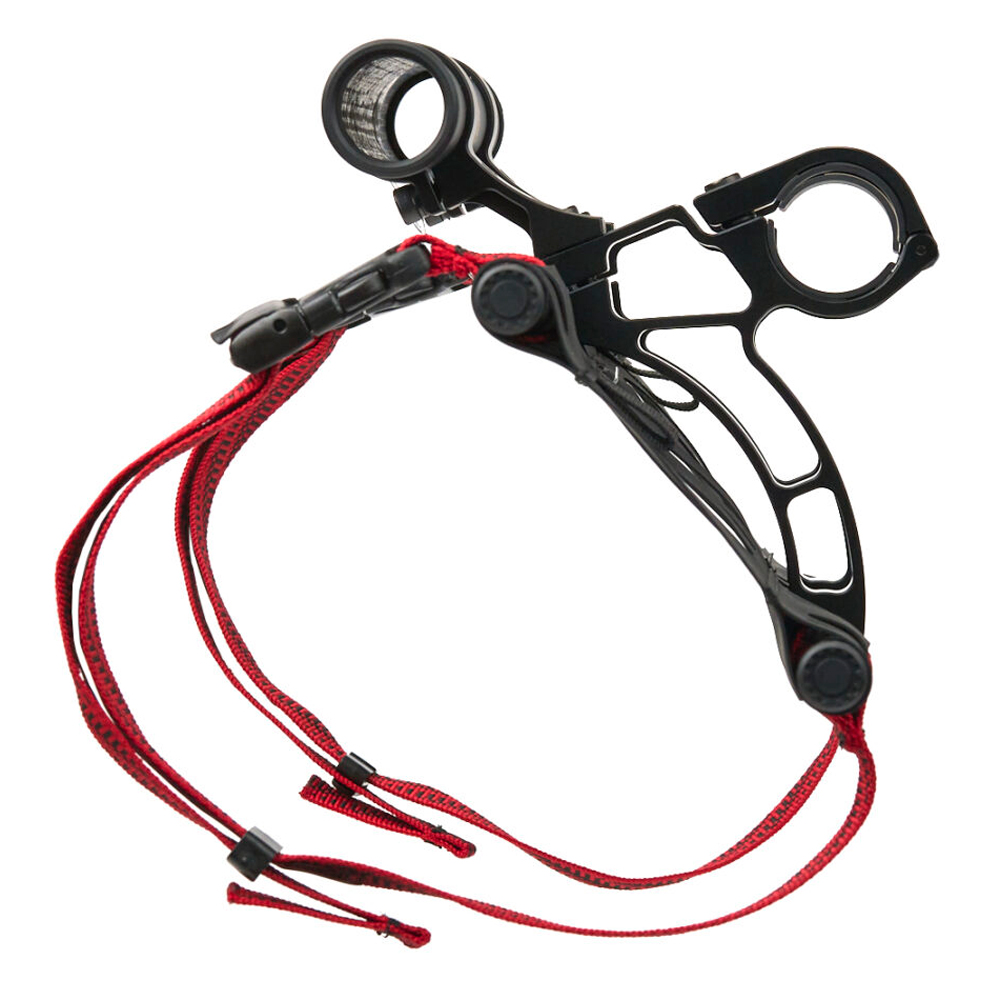

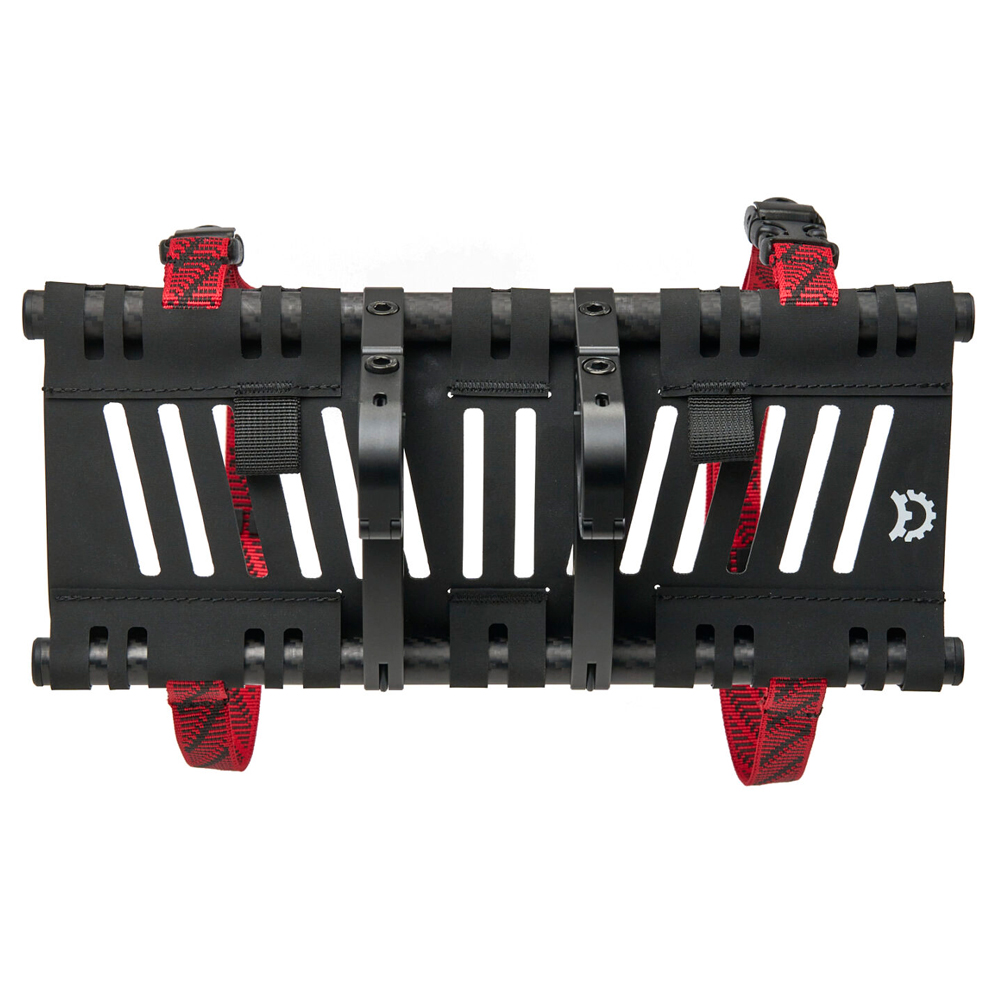

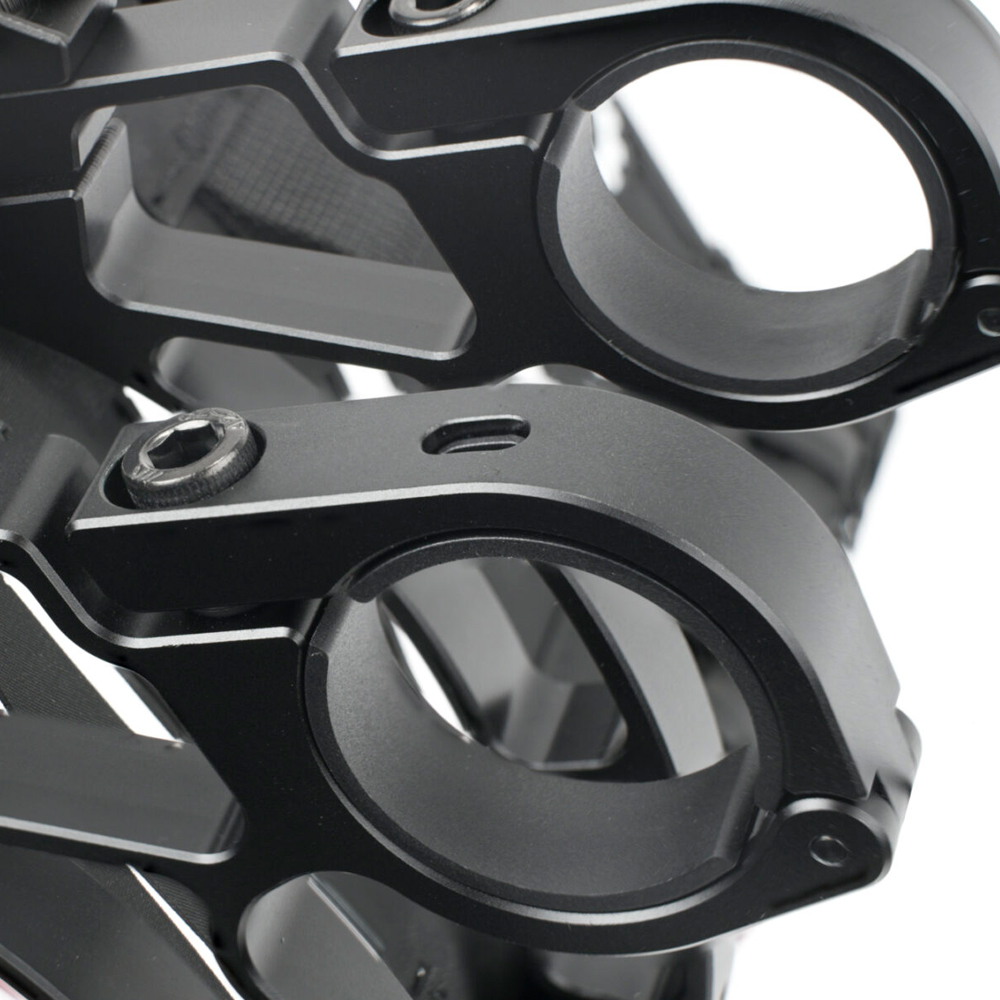

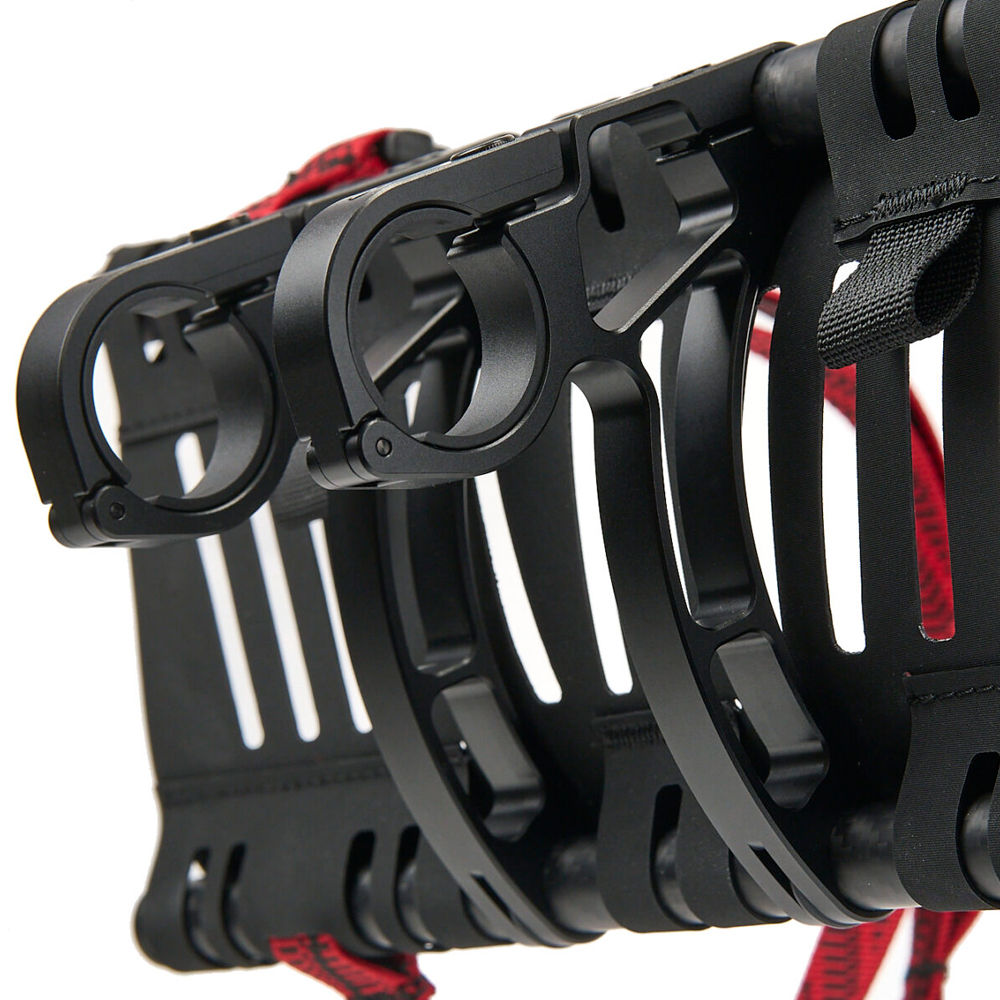

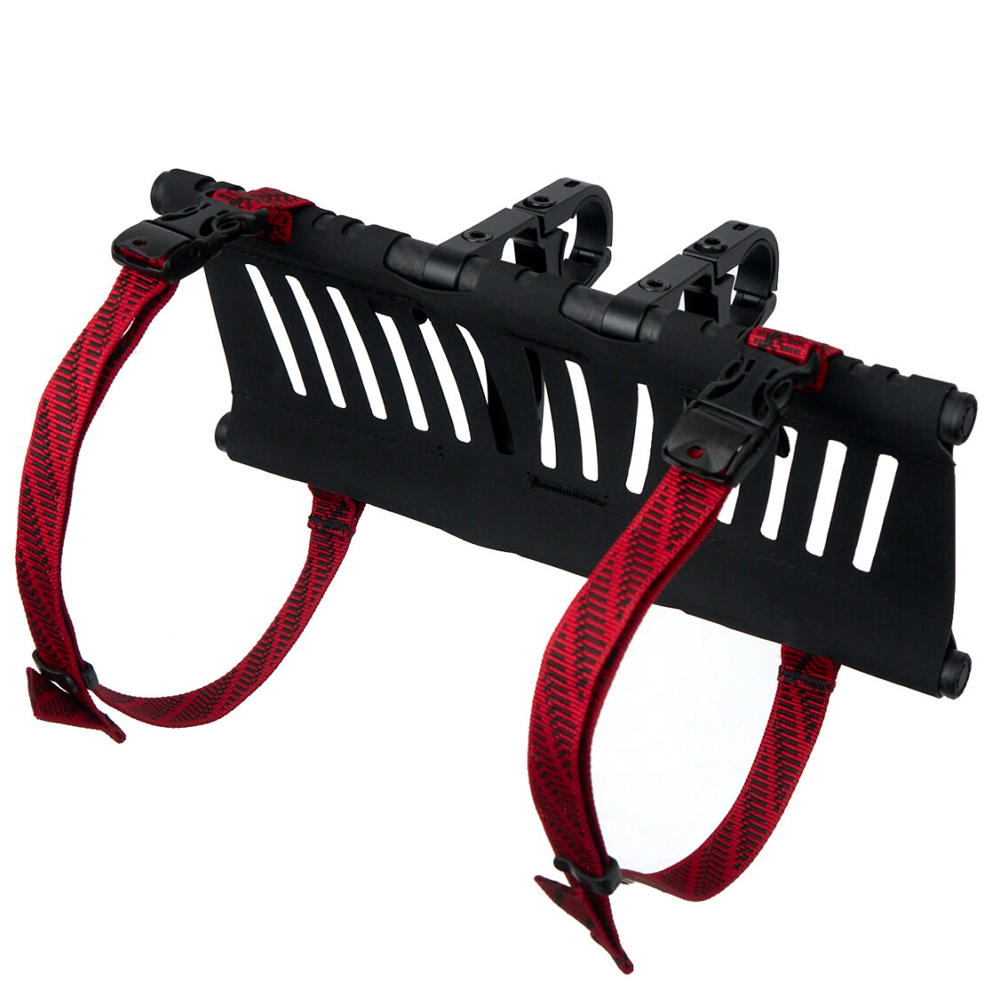

The Hammerhead Harness is a high-performance rigid-mount handlebar harness system. Machined aluminum brackets connect to high-strength carbon fiber tubes to offset your gear from the handlebars and head tube of your bike. The hinged clamp provides width adjustability on the handlebars, and the included shims fit 31.8mm or 35mm handlebars.

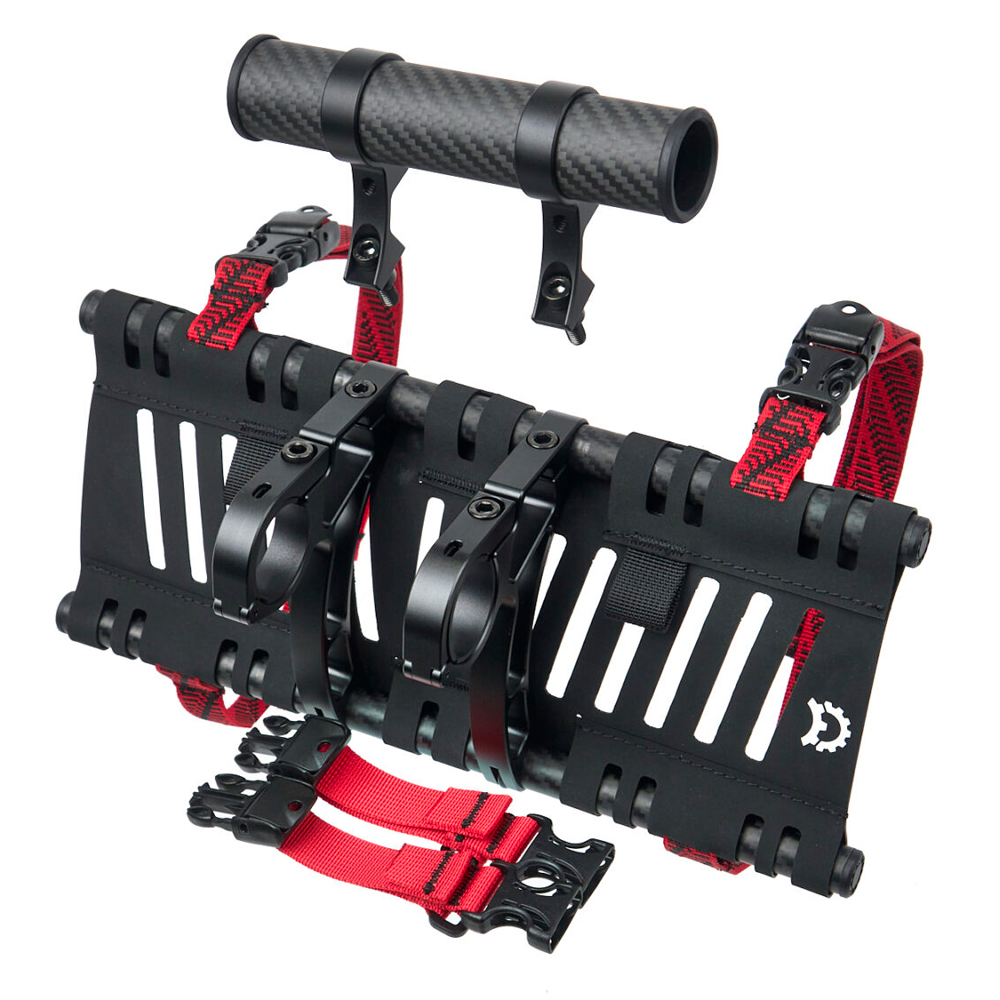

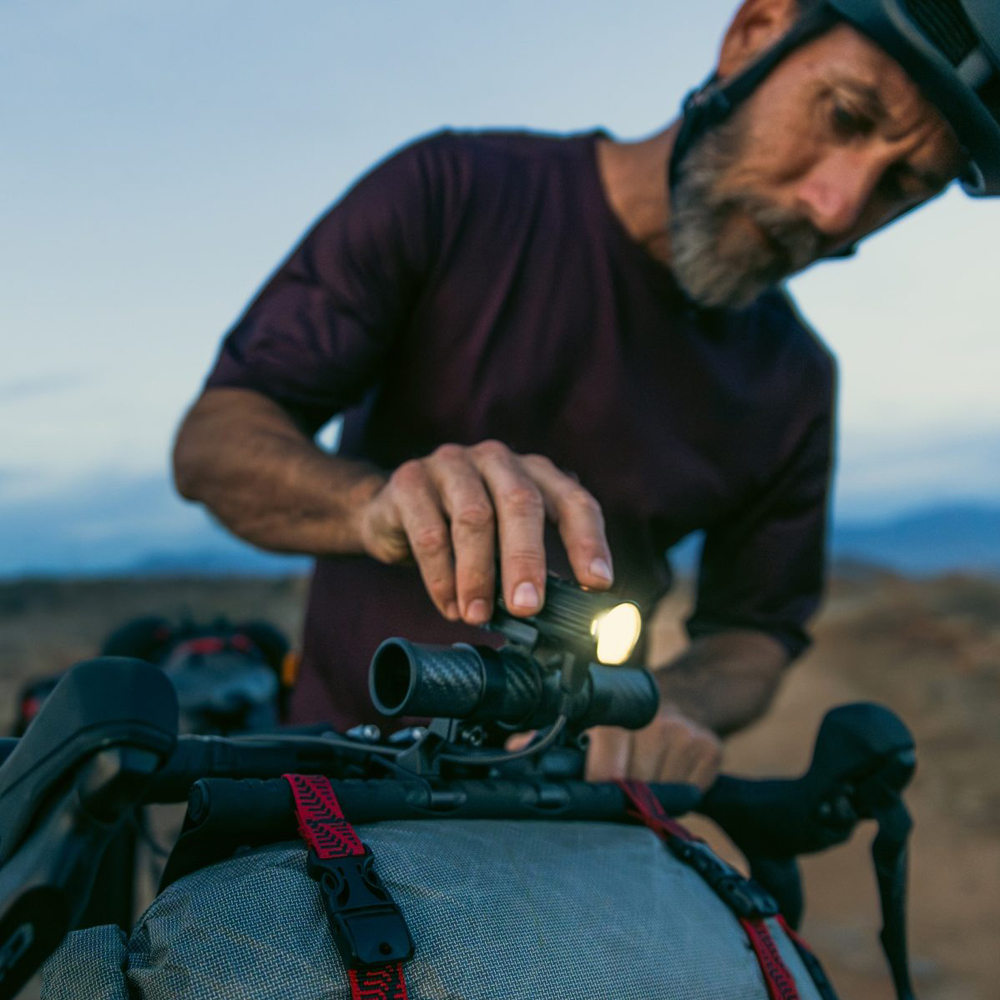

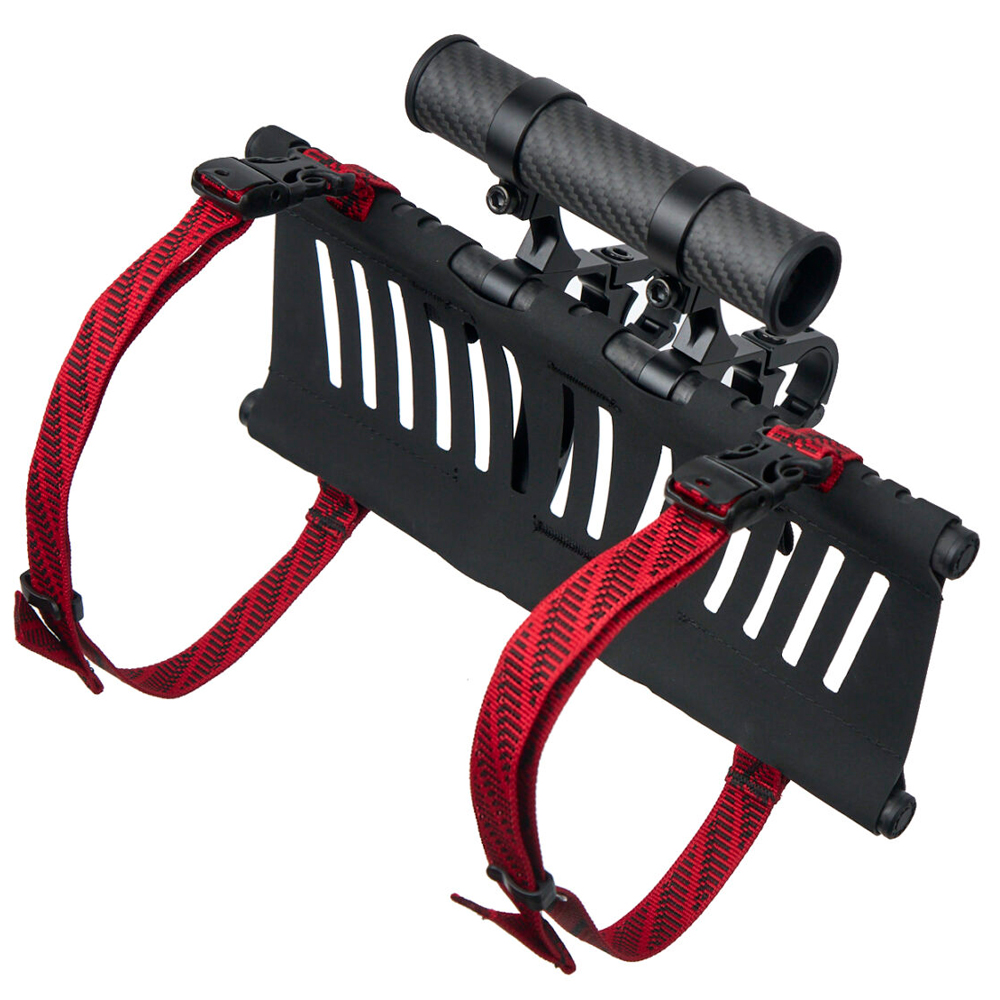

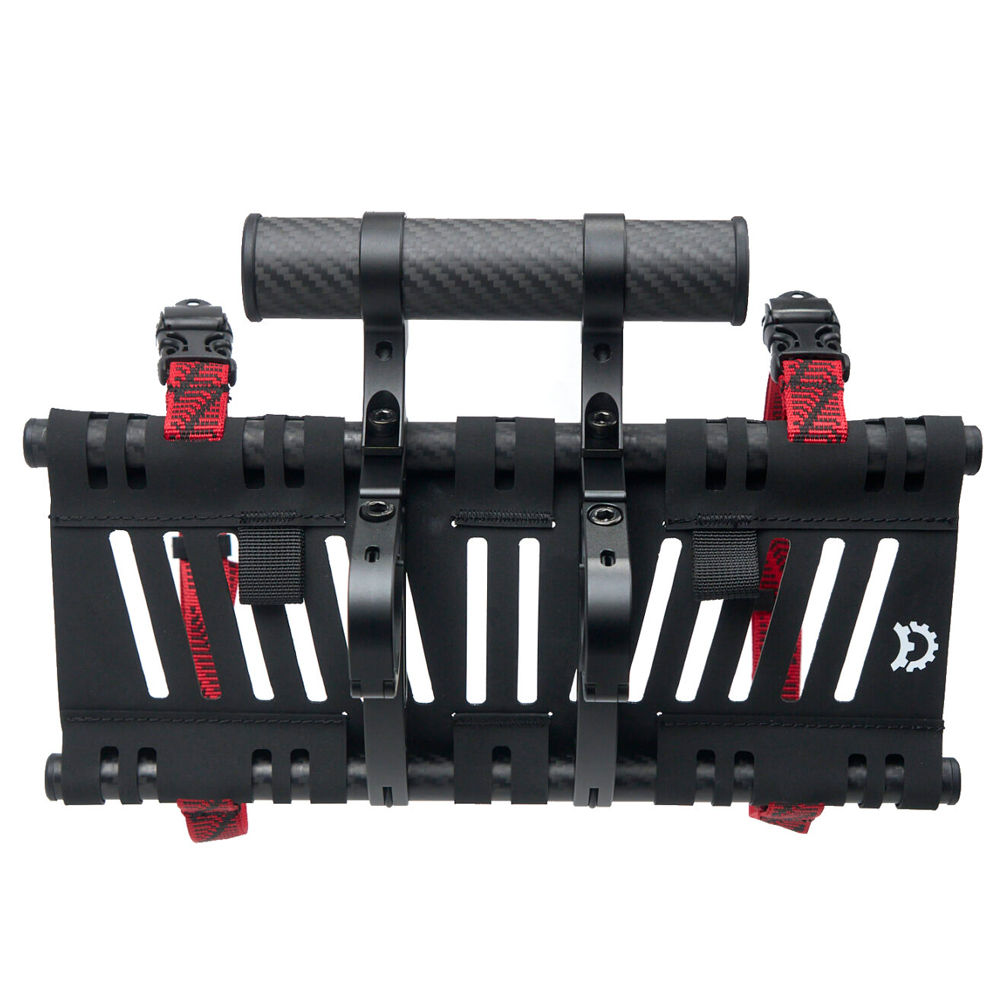

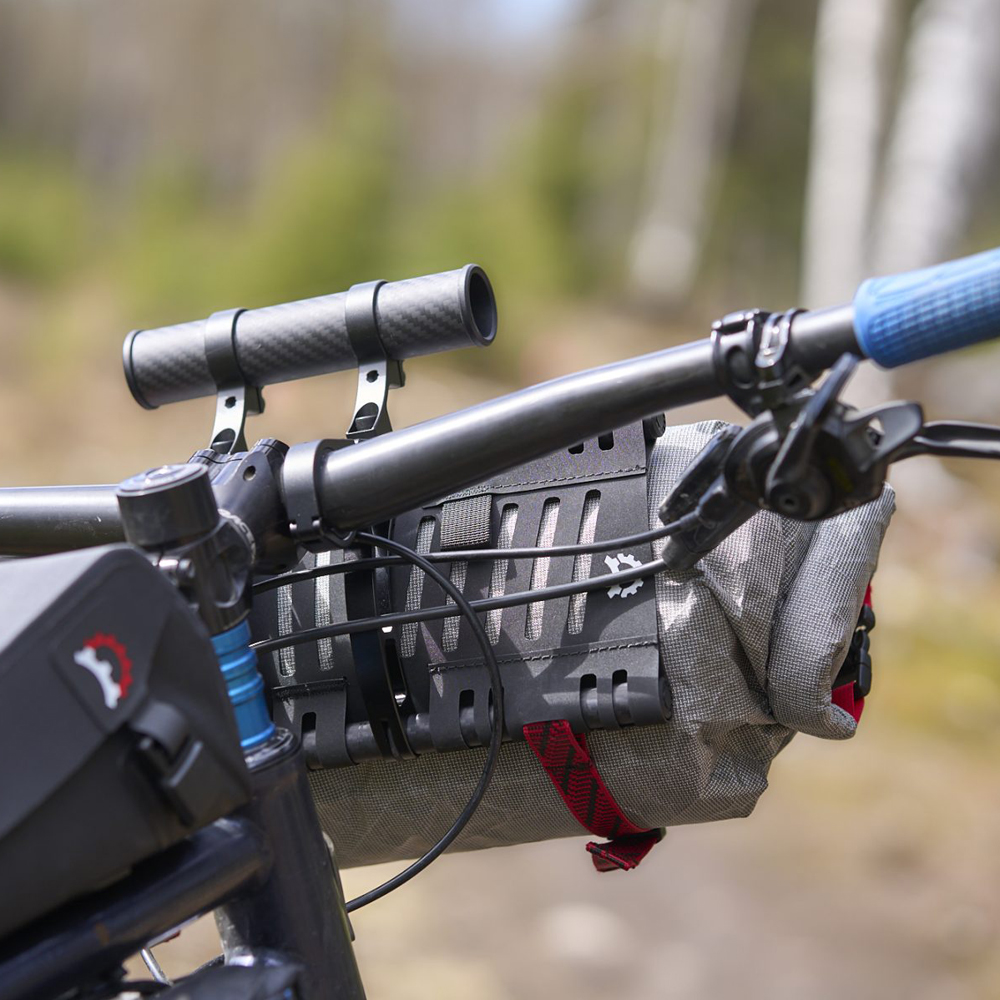

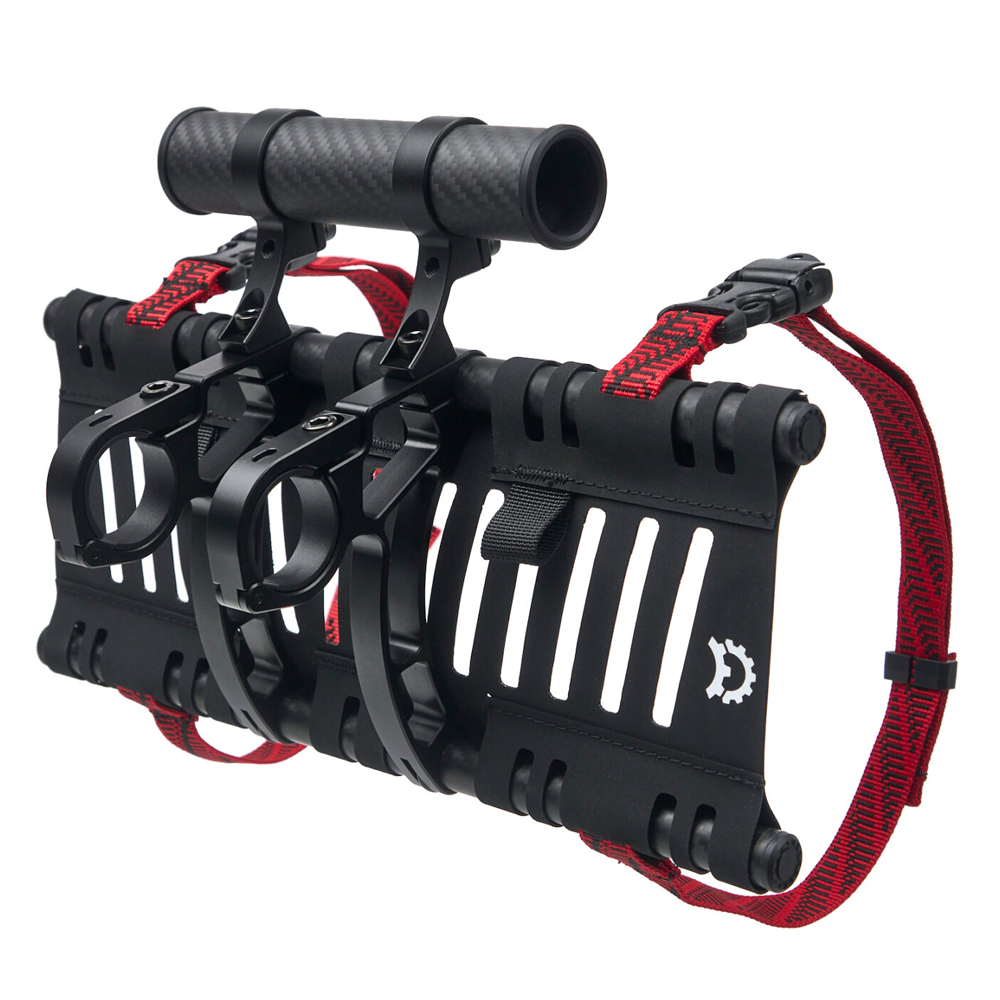

The system comes complete with straps and a robust elevated accessory mount with a 31.8mm clamp diameter. The large diameter accessory mount provides extra grip to light and computer mounts and extends lighting reach over a dry bag. The fabric sling of the harness protects lightweight bags and allows for packing versatility.
Features
Fits 35mm bars, and 31.8mm with included shims
Materials: Machined 6061 aluminum clamps and accessory risers, carbon fiber support tubes and accessory mount, Hypalon sling. Imported.
Specs
Weight Without Accessory Mount: 11.9 oz
Weight With Accessory Mount: 14.5 oz
Support tubes width: 12”
Light mount height: 3” from top of sling to top of mount tube
Max bracket spacing: 80mm

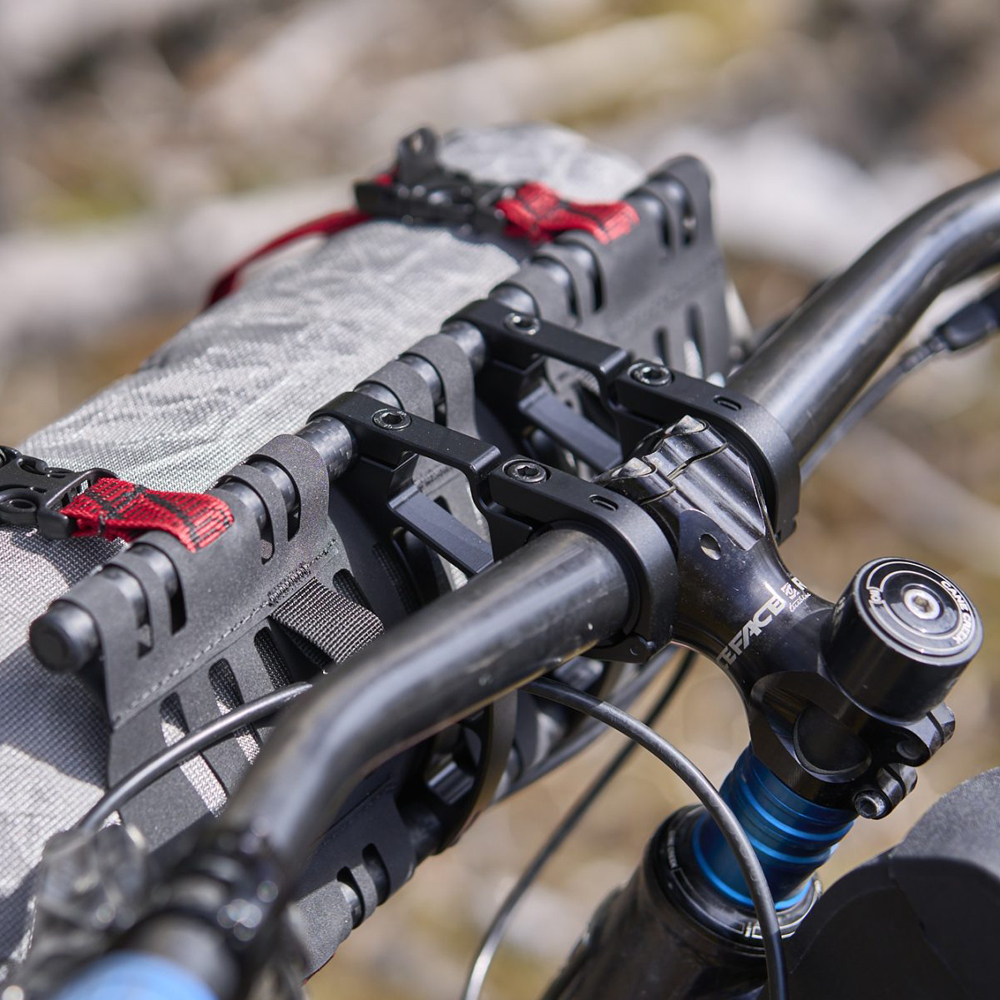

Bracket clamp width: 13mm of straight bar adjacent to stem (each side) is required for mounting
Holds cargo about 1.5” from bars
Load limit 8 pounds
Torque clamp bolts to 3NM
Warranty
All Revelate Designs Bags are backed by warranty against defects in material and manufacturing.
Revelate Designs warranty policy (we apply these same standards):
Revelate bags are made from high quality materials and will stand up to the use for which they are designed. In standing by this guarantee, Revelate Designs provides a warranty to the original owner on all products purchased through authorized sources against defects in materials and workmanship. If any issue arises regarding materials or workmanship please contact us (Revelate Designs) via email for evaluation and return instructions. If an item is found to be under warranty we(Revelate Designs) will repair or replace at our discretion, free of charge. We (Revelate Designs) require a dated proof of purchase.
What the Revelate Designs warranty doesn’t cover: damages involving zipper wear, general wear and tear, improper use & improper mounting (seat bag damage due to tire hits or tire-rub holes, handlebar damage), alterations made by owner, damages due to accident or caused by uses other than intended. Bikepacking gear is intended for off road use and ultimate adventures. Constant use or heavy intermittent use will cause your bags to develop character. If your bag needs extra love, we (Revelate Designs) will do our best to repair it at a reasonable cost (labor & materials) and put it back in service.
All items sent for repair assessment must be clean. Bags should be hand wash and hang dried (washer/dryer agitation can cause additional damage). Soiled bags will not be assessed and will be returned for cleaning.
Please see our Warranty page for the details of our warranty process.
