Overview
Wide Open Speed

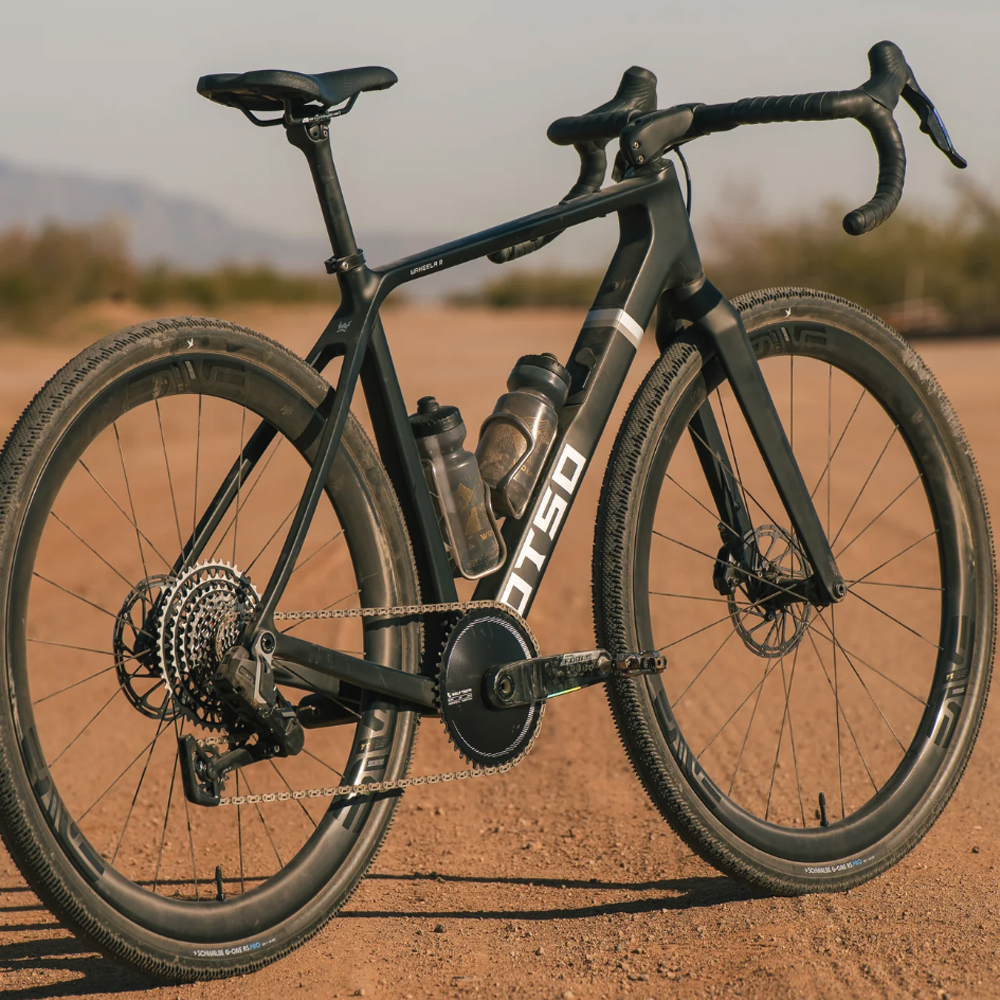

The Waheela R was made for racing on rough gravel roads at top speed. The geometry was developed for command and confidence, the tubing was shaped for proven aerodynamics, and the carbon layup was crafted with the perfect balance of comfort and power transfer. Simply put: it’s build to rip.
Features

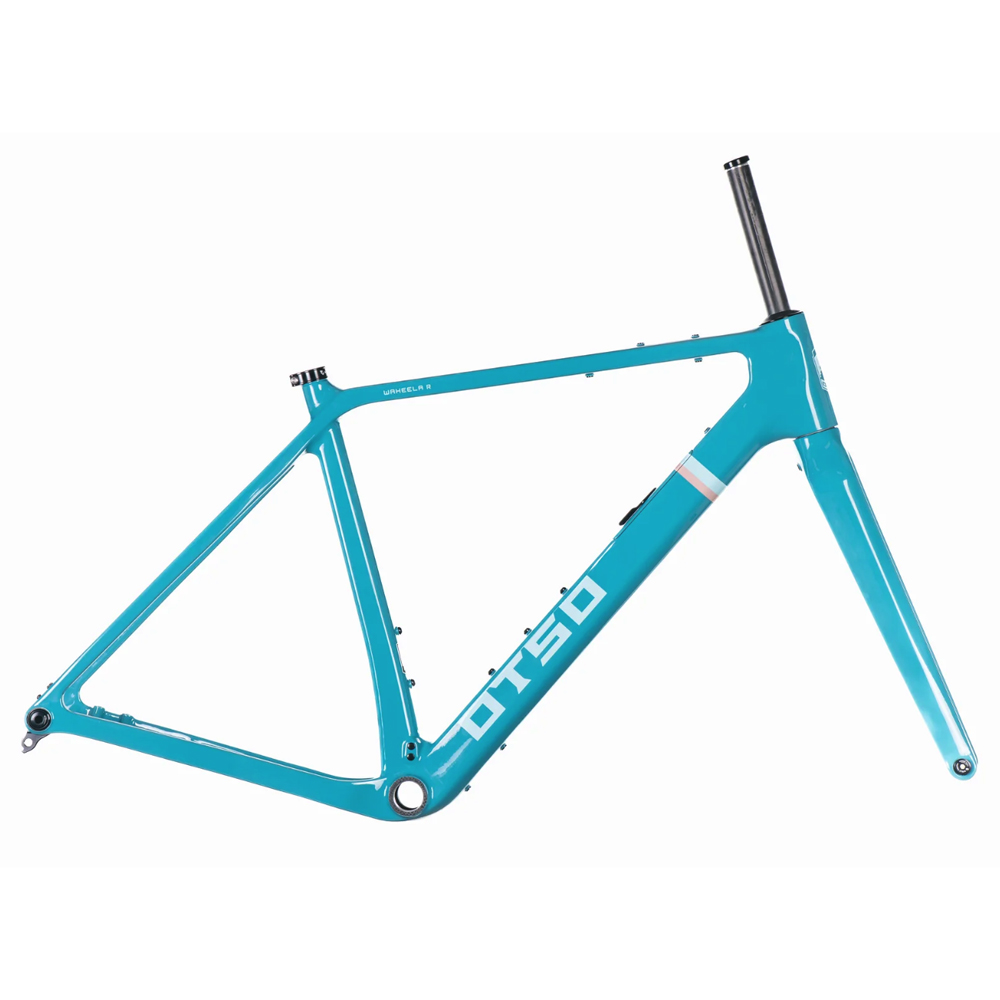

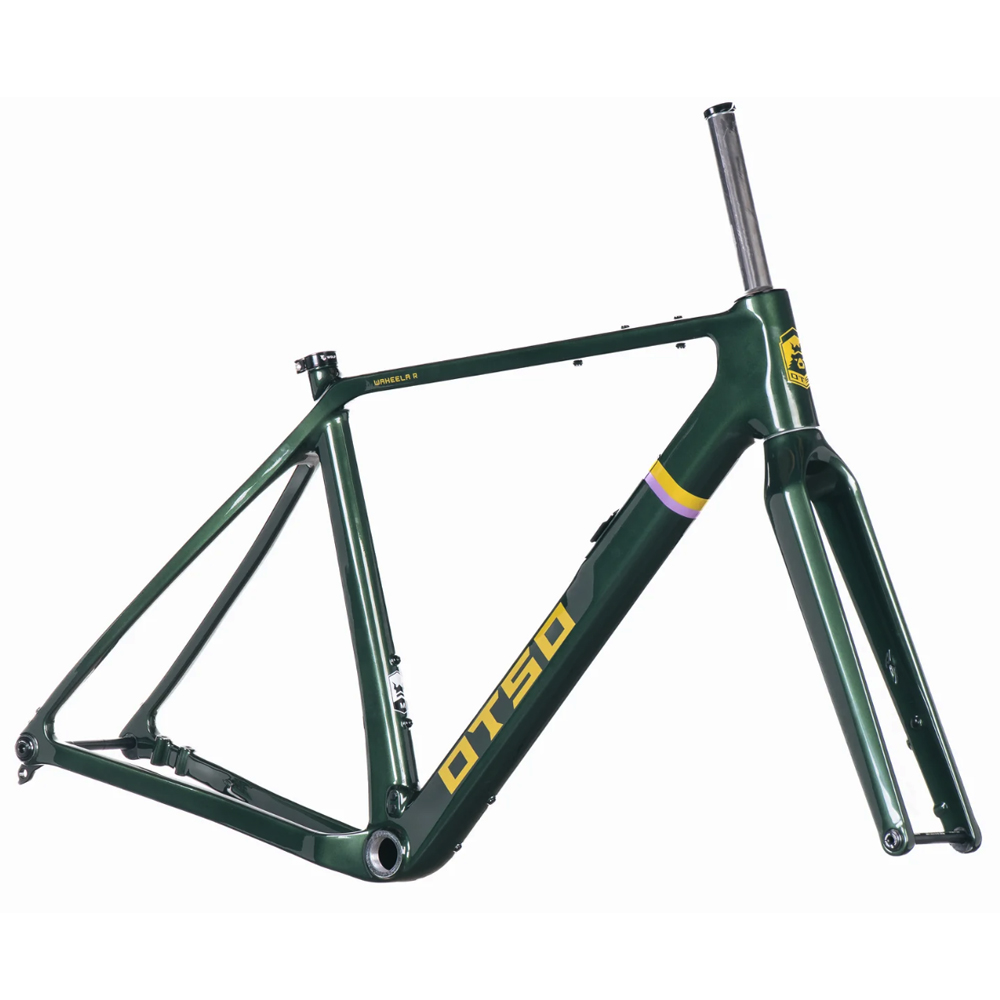

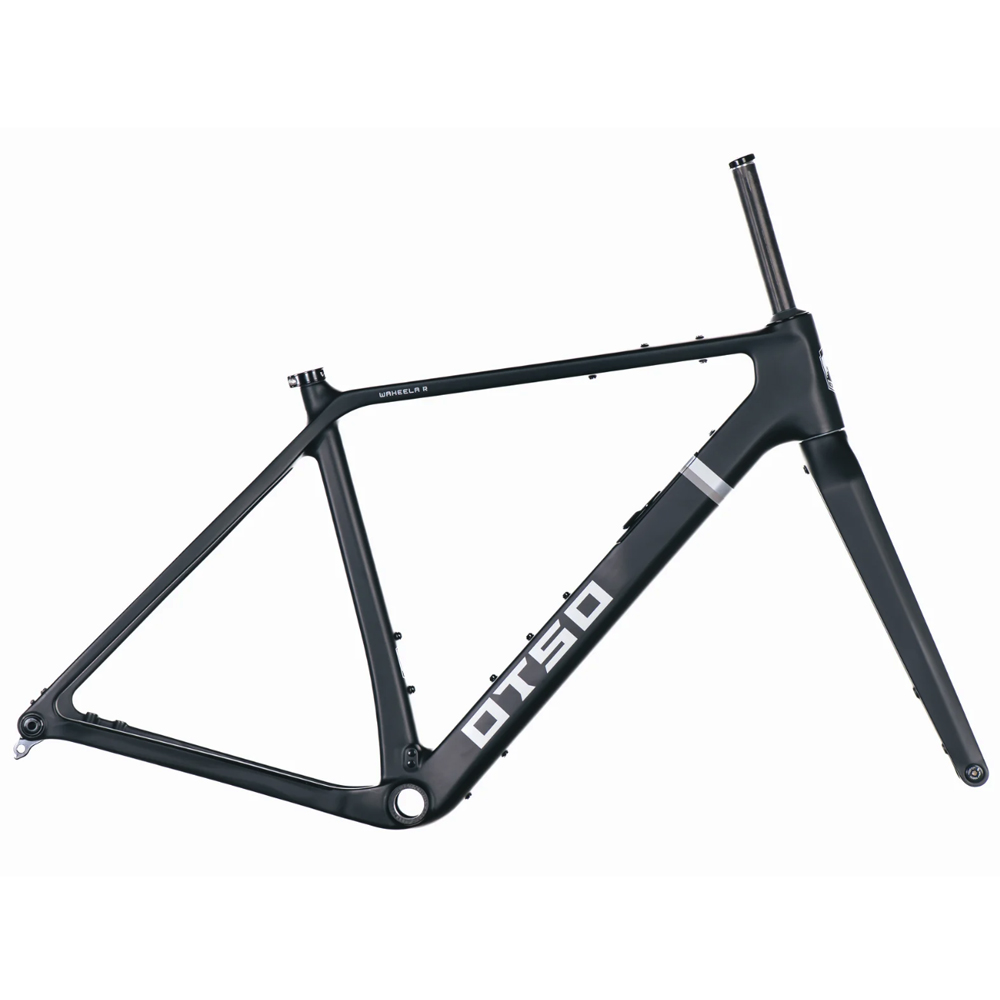

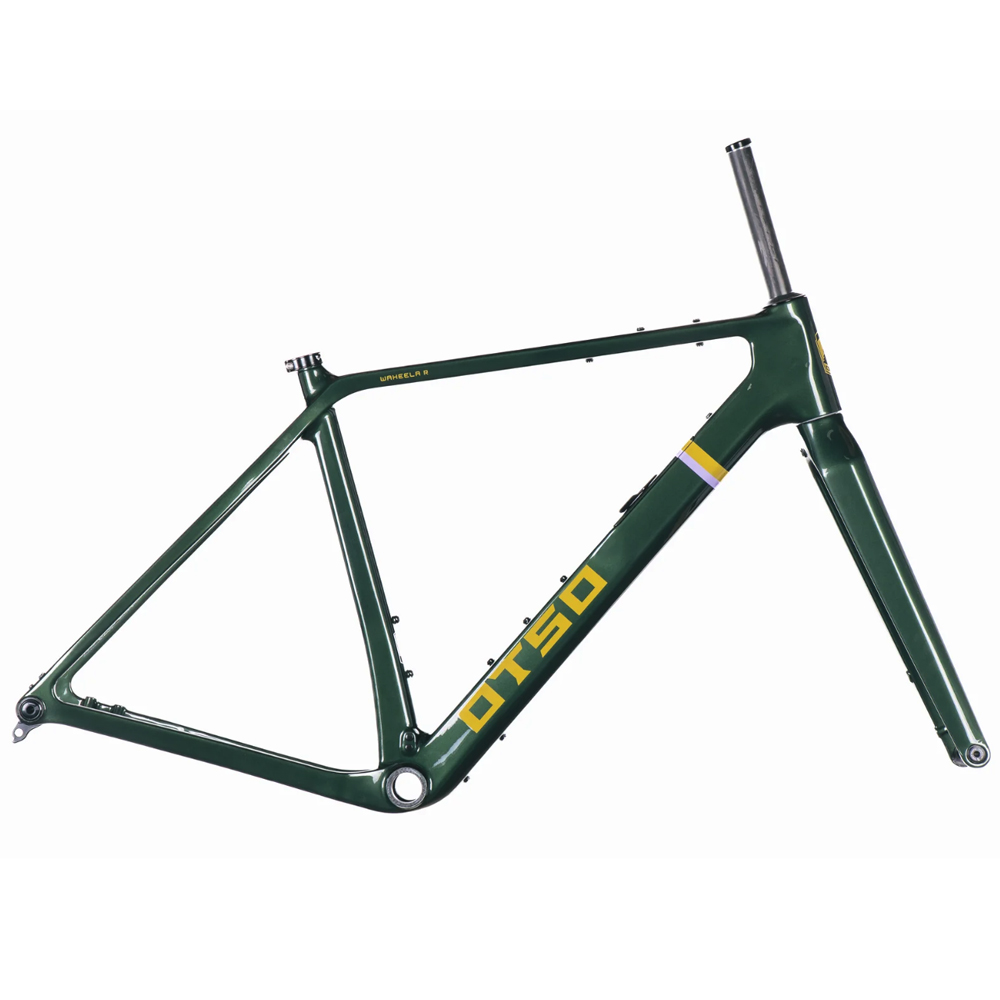

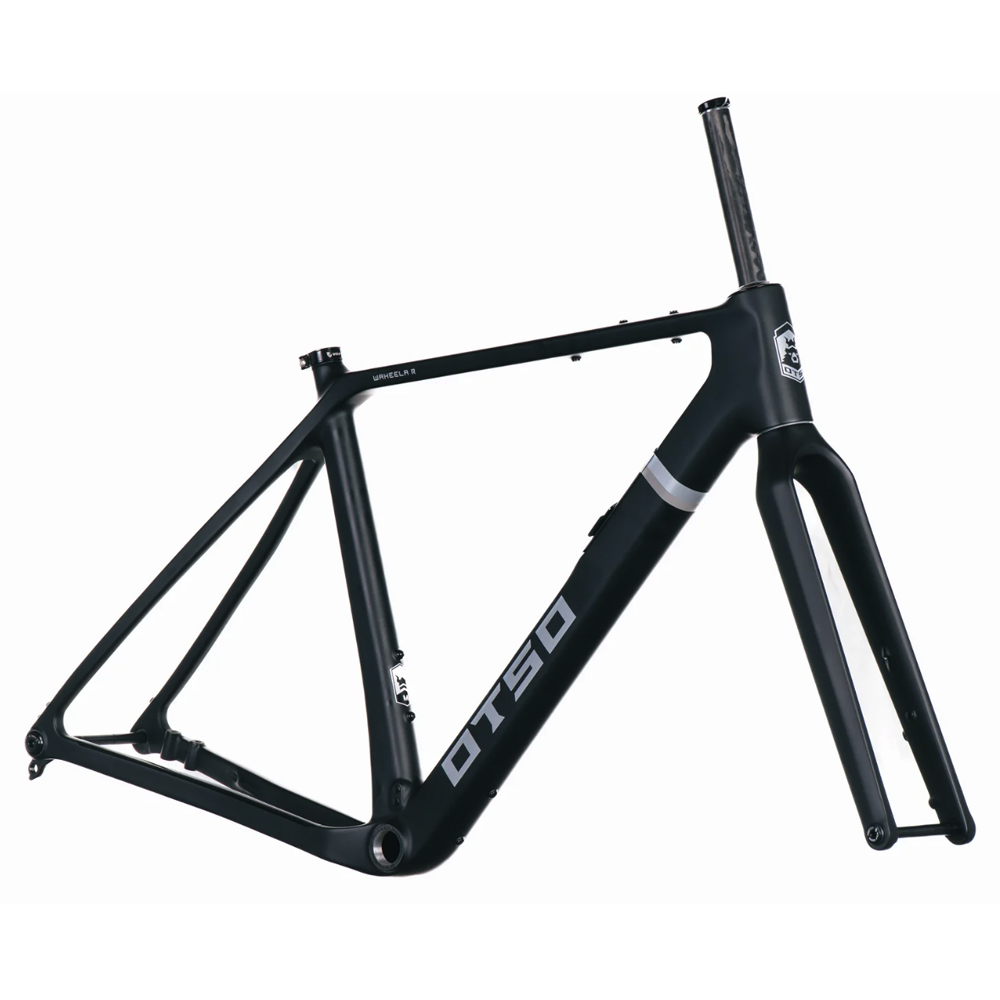

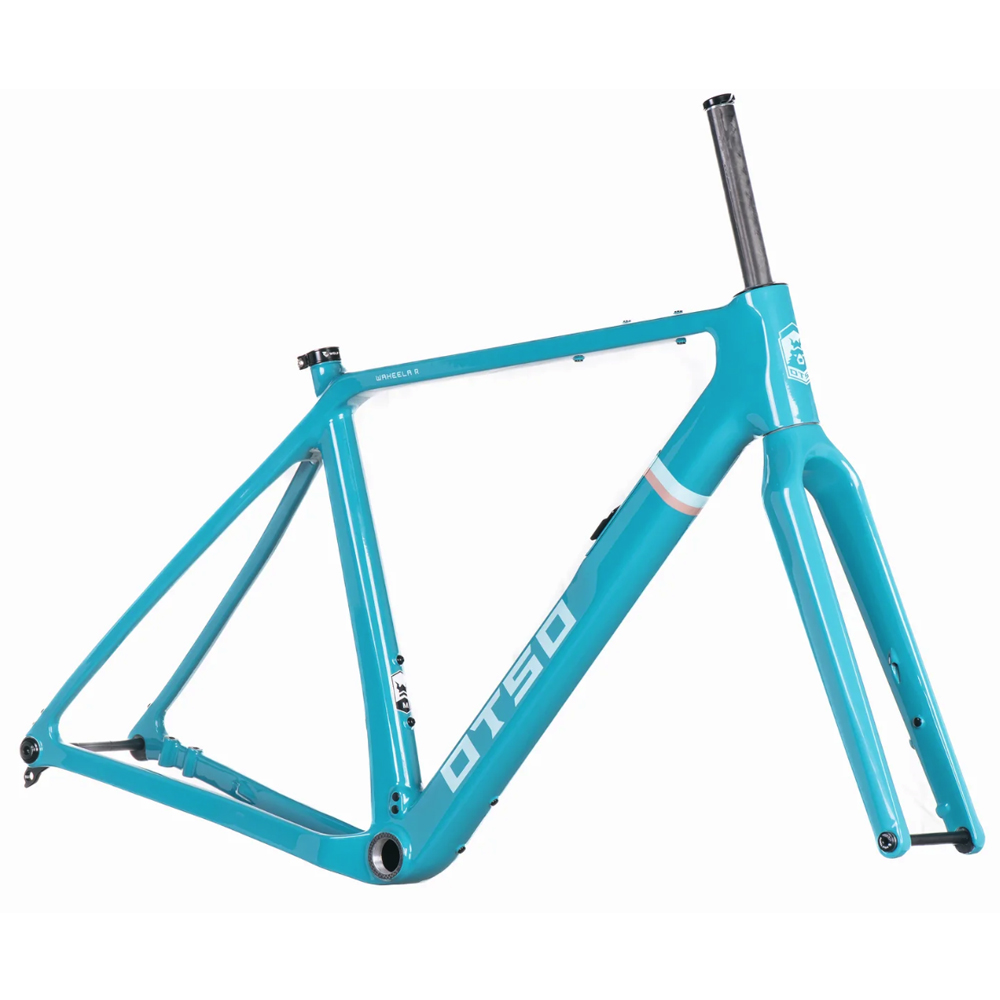

Aerodynamic Carbon Frame: Shaped tubing engineered specifically to reduce drag during fast gravel racing.
Wolf Tooth Tuning Chip: An adjustable rear dropout that lets you alter the wheelbase length and bottom bracket height to change how the bike handles.
Racing Geometry: A long top tube and short stem layout designed for high-speed stability on loose surfaces.
Massive Tire Clearance: Room for high-volume tires to maintain traction and mud clearance on technical trails.
Compliant Layup: A carbon construction tuned to absorb road buzz while keeping the bottom bracket stiff for efficient power transfer.
Specs
| Bottom bracket standard | 68mm BSA threaded |
| Q factor | ~150mm, depending on cranks |
| Maximum chainring size | 50T Round, 48T Oval |
| Front derailleur type | not compatible |
| Headset | IS52/IS52 |
| Seatpost diameter | Ø27.2mm |
| Seatpost clamp | Ø31.8mm |
| Front/rear hub standard | 100x12mm thru axle / 142x12mm thru axle |
| Front/rear axle | Ø12x125mm front, TP=1.5, TL=12mm / Ø12x167mm rear, TP=1.0, TL=16.5mm |
| Derailleur hanger | UDH |
| Rear brake (rotor) | flat mount (160mm) |
| Front brake (rotor) | flat mount (160/180mm) |
| Rear brake mount frame thickness | 30mm (this number will help determine the rear flat mount caliper bolt lengths if sourcing your own brake calipers) |
| Fork axle-to-crown | 410mm, suspension corrected up to 30mm travel |
| Fork offset | 47mm |
| Bare frame and fork weight (M) | 3.62 lbs / 1,645 g |
| Tire clearance | 700c x 50mm (M, L, XL), 700c x 45mm (XS,S), as measured at the widest part of the tire or tread |
| Tire clearance (fork) | 700c x 50mm, as measured at the widest part of the tire or tread |
| Frame Bag Dimensions | X-Small   Small   Medium   Large   X-Large |
| Seatpost Insertion Depth | 250mm (XS, S), 310mm (M), 340mm (L), 370mm (XL) |
| Max weight (rider + gear) | 275 lbs |
| Max spacer stack under stem | 40mm |
| Max spacer stack above stem | 10mm |
| Max stem bolt torque | 6 Nm |
| XS | S | M | L | XL | |
| Recommended rider height | 5′-5’5″ | 5’4″-5’8″ | 5’7″-5’11” | 5’10-6’1 | 6’0-6’6 |
| Recommended rider inseam | 30″-33″ | 31″-34″ | 32″-35″ | 33″-36″ | 34.5″-37″ |
| Standover | 736mm | 746mm | 787mm | 812mm | 845mm |
| Stack | 535mm | 550mm | 575mm | 595mm | 635mm |
| Reach | 372mm | 387mm | 405mm | 422mm | 438mm |
| Effective top tube | 525mm | 545mm | 570mm | 595mm | 620mm |
| Nominal head tube angle | 69.5º | 70.5º | 70.5º | 70.5º | 70.5º |
| Head tube length | 99mm | 111mm | 137mm | 169mm | 201mm |
| Nominal seat tube angle | 74º | 74º | 74º | 74º | 74º |
| Seat tube length | 450mm | 460mm | 510mm | 540mm | 570mm |
| Bottom bracket drop | 75mm | 75mm | 75mm | 75mm | 75mm |
| Wheelbase | 1,014mm | 1,028mm | 1,058mm | 1,088mm | 1,118mm |
| Chainstay length/Rear center | 420mm | 423mm | 426mm | 429mm | 432mm |
| Front Center | 594mm | 605mm | 632mm | 659mm | 686mm |
| Trail | 84mm | 78mm | 78mm | 78mm | 78mm |
| Fork offset | 47mm | 47mm | 47mm | 47mm | 47mm |
| Rigid fork axle to crown length | 410mm | 410mm | 410mm | 410mm | 410mm |
Warranty
- All Otso frames are warranted against defects in materials and workmanship for 5 years from the date of retail purchase.
- This warranty applies to the original owner only and is not transferable.
- Please keep your sales receipt or order number for any warranty claims to ensure a quick resolution.
What’s Not Covered:
- Damage from improper assembly, maintenance, or user/assembler inexperience.
- Modifications, neglect, misuse, competition, commercial use, or accidents.
- Installation of incompatible components, parts, or accessories.
- Normal wear and tear, or damage to paint, surface finish, or aesthetics.
- Compatibility of original components with a replacement frame is not guaranteed.
- Costs for labor, parts removal, refitting, or re-adjustment, including wheel rebuilds.
Claim Process:
- Warranty claims are limited to the repair or replacement of the defective frame, at Otso’s discretion.
- This warranty does not cover incidental or consequential damages.
Legal Information:
- This warranty gives you specific legal rights, which may vary based on location. It does not affect your statutory rights.
