Overview

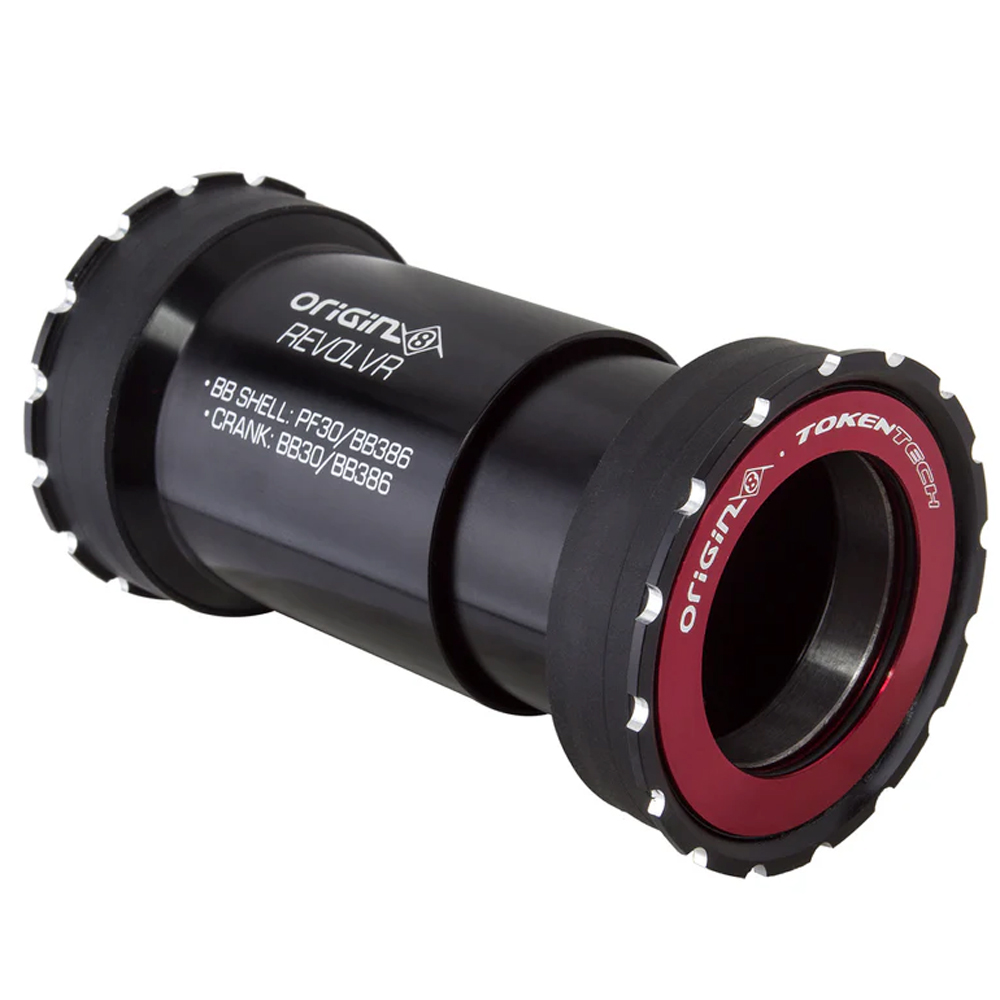

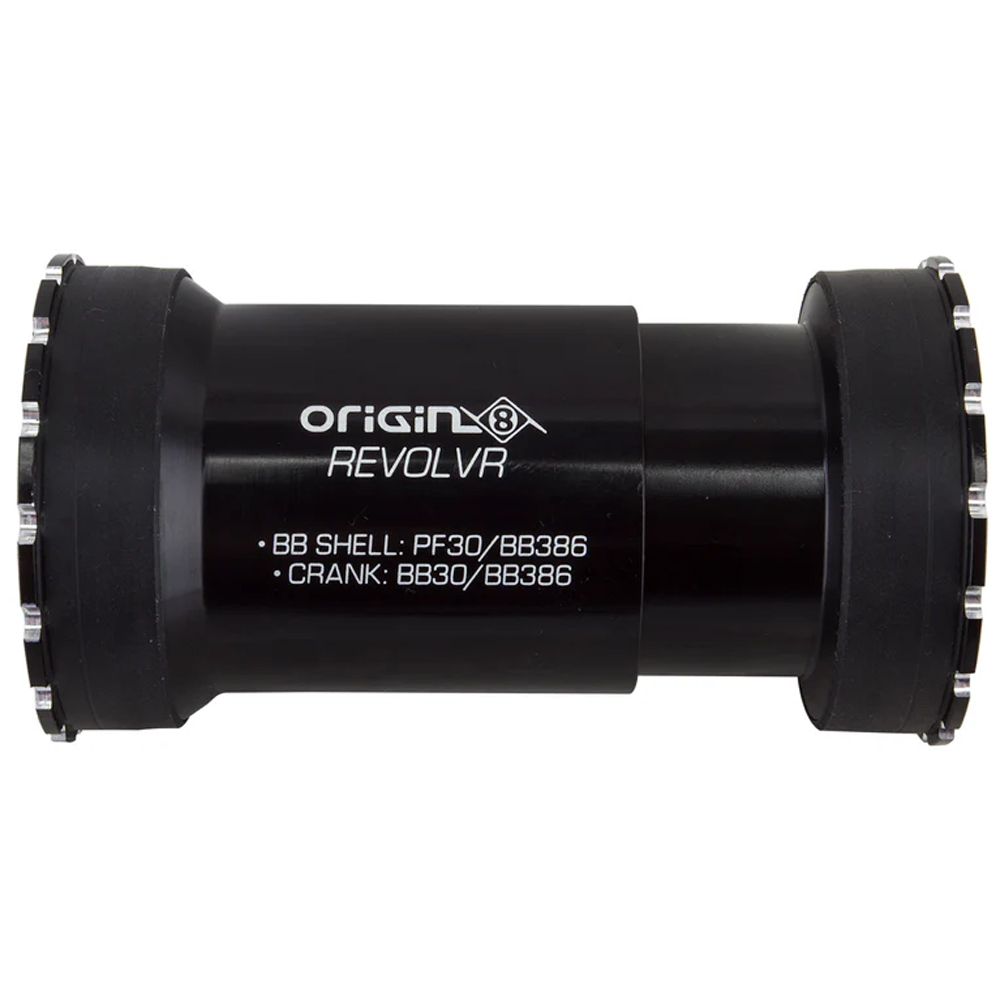

This thread-together bottom bracket creates a solid, creak-free interface in press-fit frames by pulling the cups together across the shell for better alignment and longer bearing life. Hybrid AL6061 and nylon fiber cups improve fit and reduce noise, while low-friction dual seals protect the premium sealed bearings from dirt and moisture. The bearings are serviceable and replaceable for long-term use, and the design allows BB30 Wide or BB386 30 mm spindle cranks to be installed in PF30 or BB386 frames (minimum spindle length: 104 mm for 68 mm shells, 108 mm for 73 mm shells). Nylon composite bottom bracket tools are recommended during installation to avoid cup damage.
Features
Thread-together bottom brackets provide a secure and stable shell interface for smoother operation and extended bearing life
Hybrid AL6061/Nylon fiber cups for a superior fit and noise-free operation
Low-friction dual seals protect the bearings from harmful contaminants
Sealed premium bearings are both serviceable and replaceable
Designed for installing BB30 Wide or BB386 30mm spindle cranks into PF30 or BB386 frames
Note: Spindle length must be 104mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell
Origin8 Nylon composite BB tools are recommended to avoid the possibility of damaging the cups
Specs
Shell:Â 68-92mm x 46mm
Interface:Â PF30/BB386/BB392
Spindle Type:Â BB30 Wide/BB386/BB392 30mm
Cup Material:Â AL6061/Nylon Fiber
Weight:Â 120g
