2023 Bombtrack Cale AL


This 20% off Bombtracks gets Free Shipping within the contiguous United States.

  • 20% off Bombtracks are first shipped to Campfire where we build, test-ride and tune the bicycle before repacking and shipping it out.
  • Your bike will be ready to ship out to you within 7 to 10 days of your order.

Free shipping on bicycles priced over $1500 (within the lower 48).

SKU: BOMCLAL Categories: , Tag:

With raucous off-road ability and a Sherpa-like carrying capacity, it’s ready for expeditions in the high mountains.


With raucous off-road ability and a Sherpa-like carrying capacity, it’s ready for expeditions in the high mountains.

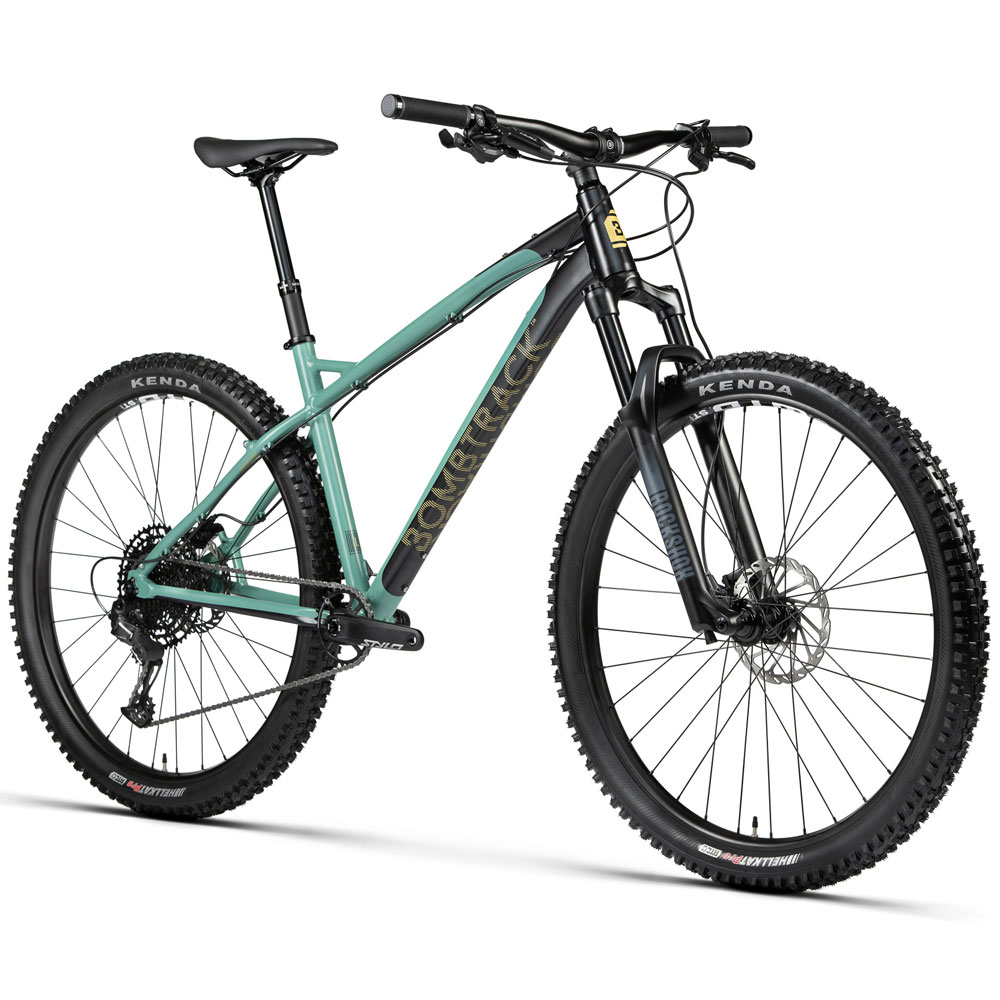

The Cale AL is the aluminium alternative to its steely Cale partner, ready to conquer the mountains as sold. Not scrimping on off-road potential nor cargo-carrying capability, this bike can handle your local trail centre or the high peaks in its stride with ease. Fast-rolling 29’’ wheels plus the chance of using oversized 27.5’’+ tyres give you the option to experiment with home-based modifications. As if these features were not already enough to hit the trails, the bike comes with a dropper post and suspension fork, avec plaisir.


  • Aluminum version of the Cale trail mtb with hydroformed triple butted tubing.
  • Rockshox 35 Gold RL 130 mm travel suspension fork with Boost spacing and 35 mm stanchions.
  • Bombtrack Illusion 35 mm oversized handlebar, 800 mm wide and Bombtrack Chase stem with 40 mm extension.
  • WTB ST i29 TCS 2.0” tubeless ready rims.
  • Bombtrack GRAD Boost disc brake hubs with 15 and 12 mm through axles.
  • Kenda Hellcat Pro ATC 29 x 2.4” tubeless ready tires.
  • Sram SX Eagle 12-speed drivetrain with 11 – 50 T cassette and 30 T direct mount chainring.
  • Sram Level hydraulic disc brakes.
  • KS E30i 30.9 mm dropper post with 150 mm travel.


  • Color: Matt Hazy Green
  • Frame: 6061-T6 hydro-formed Aluminium, TA,rack / fender mounts, boost spacing,stealth dropper ready, 73 mm BSA BB shell
  • Fork: ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2″ – 1.1/8″
  • Handlebar: BOMBTRACK ILLUSION flat bar, 6061-T6 aluminium, 35 mm clamping diameter, 8° backsweep, 6° upsweep, 18 mm rise
  • Grips: BOMBTRACK RETURN 135 mm grips
  • Stem: BOMBTRACK CHASE forged aluminium stem, 35 mm clamping diameter
  • Headset: Sealed integrated aheadset, 1.1/2” – 1.1/8”
  • Levers: SRAM LEVEL hydraulic
  • Shifter: SRAM SX-EAGLE 12-speed trigger shifter
  • Brakes: SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
  • Crankset: TRUVATIV STYLO 6K aluminium crank, Boost DUB
  • BB: SRAM DUB BSA 73 mm
  • Pedals –
  • Chain: SRAM NX EAGLE chain, 1/2” x 11/128”, 118L
  • Chainring: SRAM EAGLE X-SYNC 2, narrow-wide, 30 T
  • Cassette: SRAM PG-1210 EAGLE 12-speed, 11 – 50 T
  • Front derailleur: –
  • Rear derailleur: SRAM SX EAGLE, clutch, long cage
  • Front hub: BOMBTRACK GRAD sealed hub, 6-bolt disc, 15 x 110 mm thru-axle
  • Rear hub: BOMBTRACK GRAD sealed hub, XD driver, 6-bolt disc, 12 x 148 mm thru-axle
  • Front rim: WTB ST i29 double wall, TCS 2.0, 32h
  • Rear rim: WTB ST i29 double wall, TCS 2.0, 32h
  • Saddle: BOMBTRACK ORIGIN saddle
  • Seat post: KS E30i dropper seatpost, 30.9 mm, 150 mm travel, 485 mm length
  • Seat clamp: BOMBTRACK ORIGIN forged aluminium seat clamp, 34.9 mm
  • Front tire: KENDA HELLCAT PRO ATC 29 x 2.4″ TLR, tubeless ready
  • Rear tire: KENDA HELLCAT PRO ATC 29 x 2.4″ TLR, tubeless ready
  • Weight (size M): 13.8 kg (size M)
  • Weight frameset (size M): tba (size M, including TA, bolts, seatclamp, hanger)
  • Maximum rider weight: 140 kg incl. luggage
  • ASTM riding condition: 4


All Bombtrack bicycles are backed by warranty against defects in material and manufacturing.

Please see Bombtrack’s Warranty Page to review their limitations.
