Overview

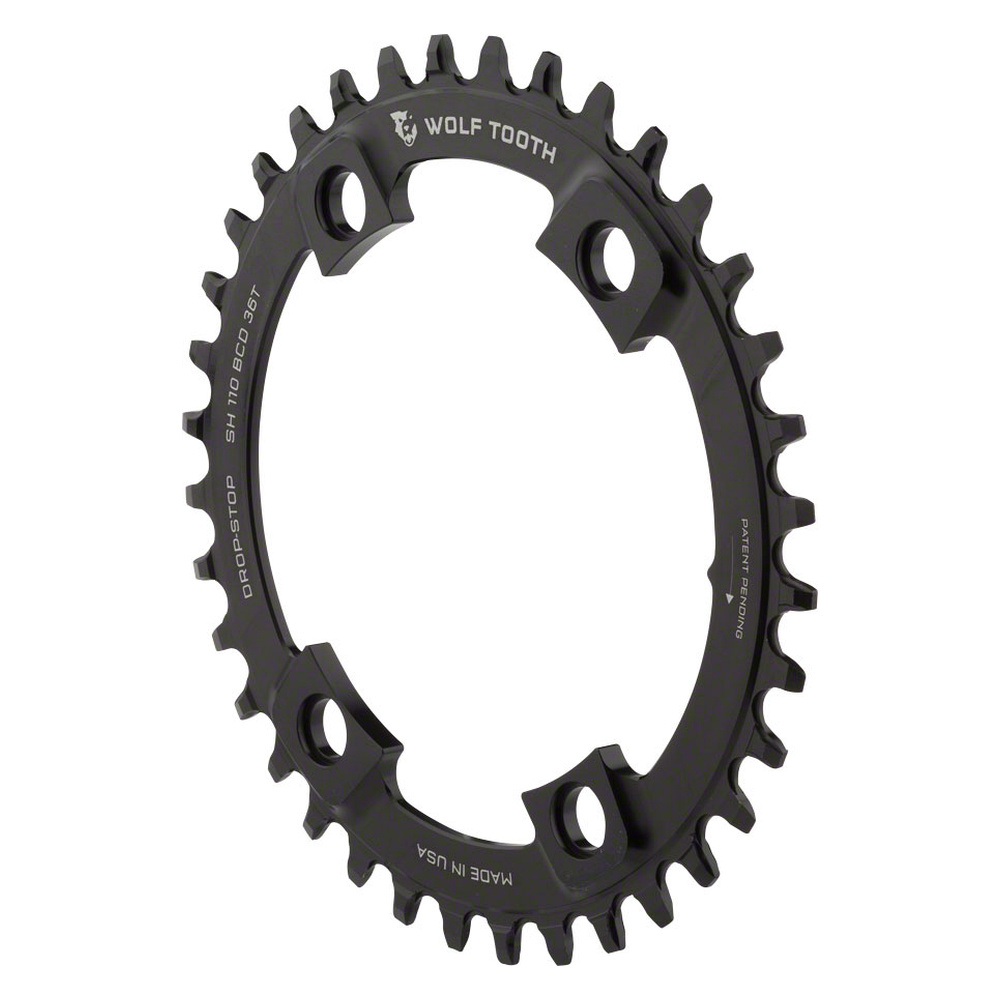

Designed to fit 4-arm 110 Asymmetric BCD Shimano Road Cranksets. These rings feature the patent pending Drop-Stop asymmetrical tooth design for the best in wear life, mud clearance, and chain retention.
Features
Drop-Stop chainrings are designed for use with 1×9, 1×10, 1×11 and 1×12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains, with the exception of Shimano 12-speed chains
Shimano 12-speed chains require the use of Wolf Tooth’s Shimano 12-speed specific chainrings
If using a 9-speed drivetrain, use a 10-speed chain, which will provide a tighter fit for better chain retention
Compatible with Dura Ace 9000, Ultegra 6800, 105 5800, Tiagra 4703, and Tiagra 4700
Made from 7075-T6 aluminum for long life
Use of a clutch-style rear derailleur is recommended
Specs

Tooth Count:Â 36
Ring Position/Type:Â Chain Retaining Single Ring
Drivetrain Speeds:Â 9 , 10 , 11 , 12
Defined Color:Â Black
Chainring BCD:Â 110 Shimano Asymmetric
Warranty
Wolf Tooth Components has a warranty on its products to be free from defects in materials or workmanship for a period of one (1) year from the original date of purchase.
WARRANTY LIMITATIONS
Any Wolf Tooth Components product that is found to be defective in materials or workmanship will be repaired or replaced at the sole discretion of Wolf Tooth Components provided it is returned to the factory freight prepaid. This warranty does not cover damage or failure resulting from misuse, abuse, alteration, neglect, normal and reasonable wear and tear, crash or impact, failure to perform routine maintenance as instructed, or use other than that for which the product was intended.
If a defect is found, our entire liability and your sole remedy shall be, at our option, free repair or replacement of the Wolf Tooth Components product. Wolf Tooth Components shall not be held liable for any indirect, special, or consequential damages. This written express warranty is in lieu of all other warranties, implied or expressed, and does not cover any representation or warranty made by dealers beyond the provisions of this warranty. For Warranty Issues, please contact Wolf Tooth using the Warranty Request Form.
