Overview

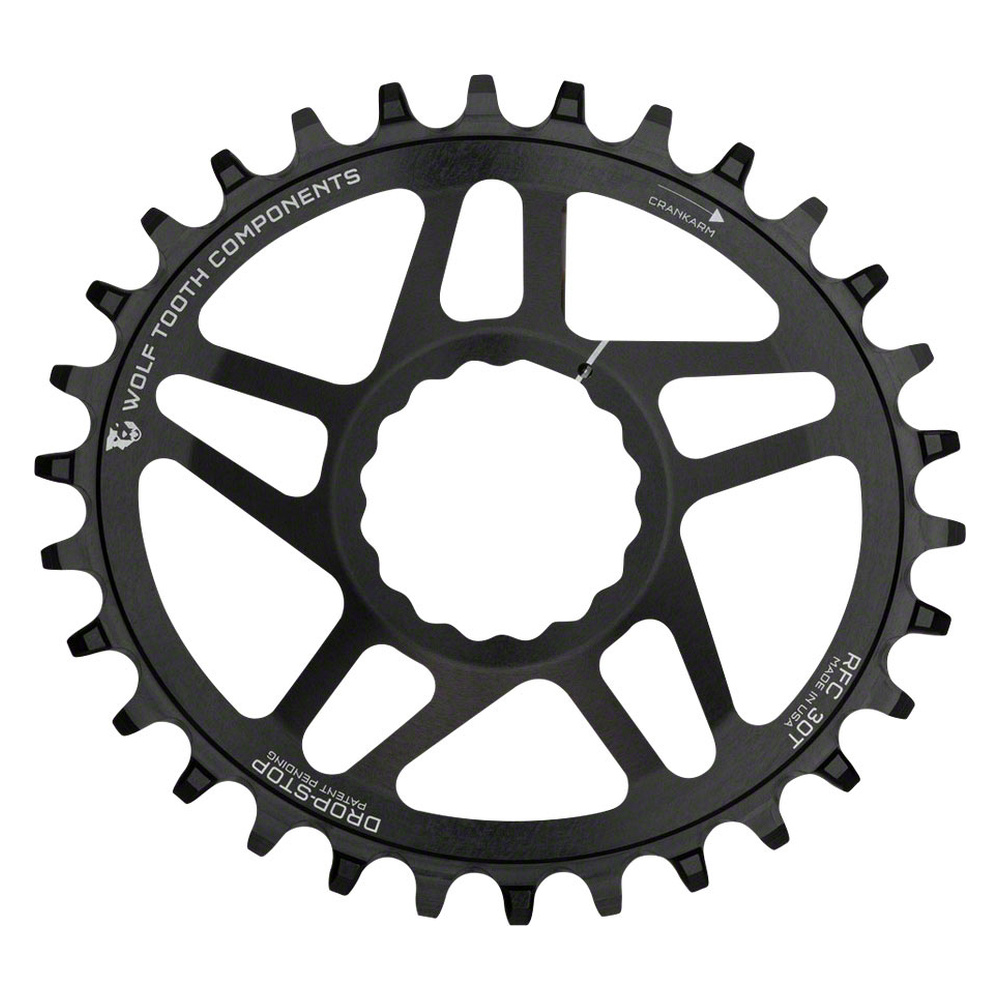

Designed for Race Face CINCH cranks with removable spiders. Its proprietary design has an ovality of 10% and a timing of 112 degrees after top dead center which provide the beneifits of an oval ring such as greater rear wheel traction without the traditional downsides of oval rings. This chainring features the patent pending asymmetrical Drop-Stop tooth design for the best in wear life, mud clearance, and chain retention.
Features
Elliptical chainring shape provides better efficiency in the recovery zone, as well as increased traction thanks to consistent torque
Drop-Stop chainrings are designed for use with 1×9, 1×10, 1×11 and 1×12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains, with the exception of Shimano 12-speed chains
Shimano 12-speed chains require the use of Wolf Tooth’s Shimano 12-speed specific chainrings
If using a 9-speed drivetrain, use a 10-speed chain, which will provide a tighter fit for better chain retention
Made from 7075-T6 aluminum for long life
Specs
Material:Â Aluminum
Round or Oval:Â Oval
Direct Mount Type:Â Direct Mount CINCH
Tooth Count:Â 30
Drivetrain Speeds:Â 9 , 10 , 11 , 12
Defined Color:Â Black
Offset:Â 3
Warranty
Wolf Tooth Components has a warranty on its products to be free from defects in materials or workmanship for a period of one (1) year from the original date of purchase.
WARRANTY LIMITATIONS
Any Wolf Tooth Components product that is found to be defective in materials or workmanship will be repaired or replaced at the sole discretion of Wolf Tooth Components provided it is returned to the factory freight prepaid. This warranty does not cover damage or failure resulting from misuse, abuse, alteration, neglect, normal and reasonable wear and tear, crash or impact, failure to perform routine maintenance as instructed, or use other than that for which the product was intended.
If a defect is found, our entire liability and your sole remedy shall be, at our option, free repair or replacement of the Wolf Tooth Components product. Wolf Tooth Components shall not be held liable for any indirect, special, or consequential damages. This written express warranty is in lieu of all other warranties, implied or expressed, and does not cover any representation or warranty made by dealers beyond the provisions of this warranty. For Warranty Issues, please contact Wolf Tooth using the Warranty Request Form.
