Overview

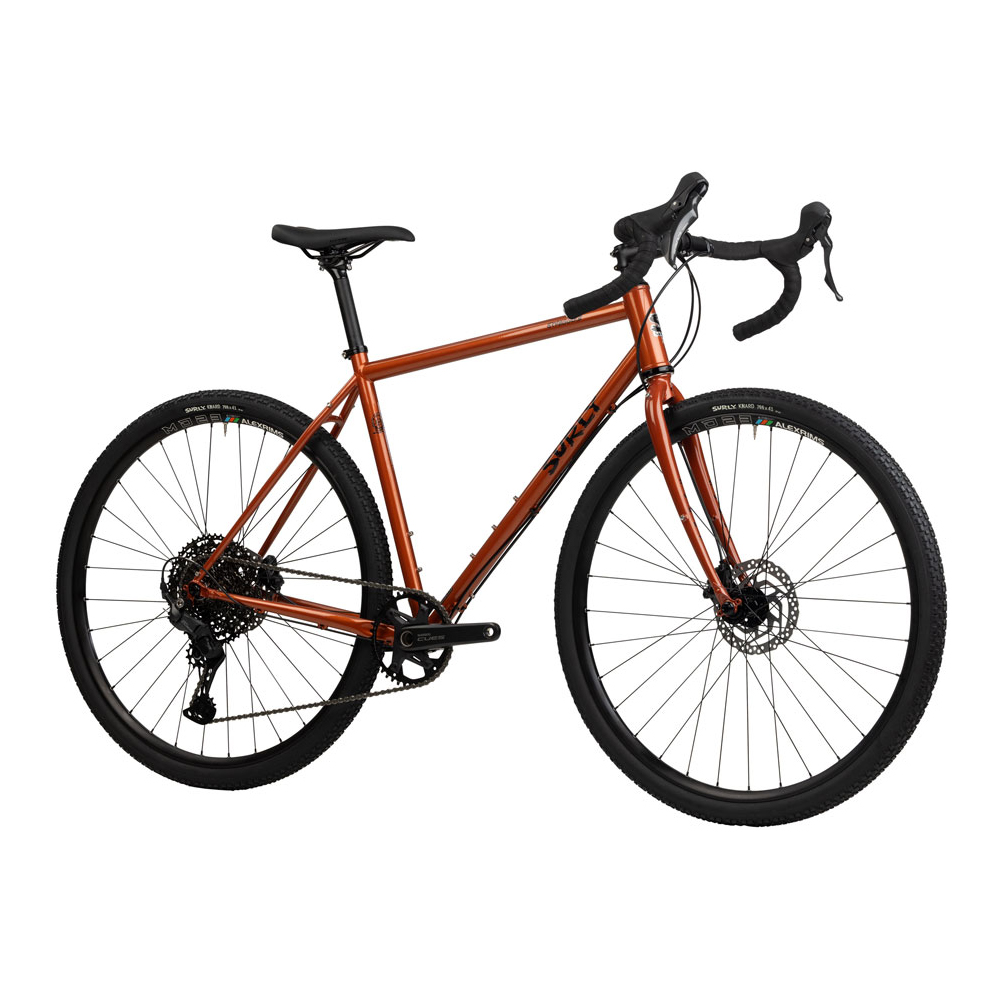

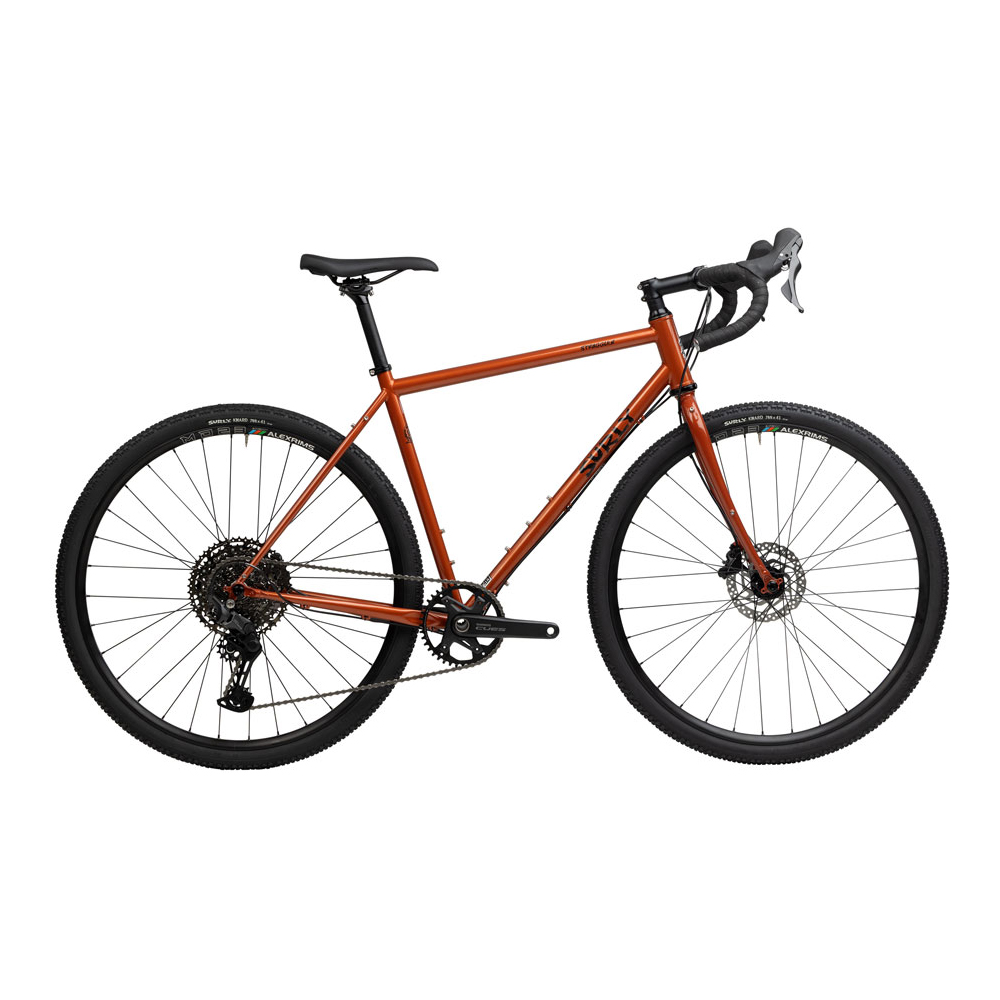

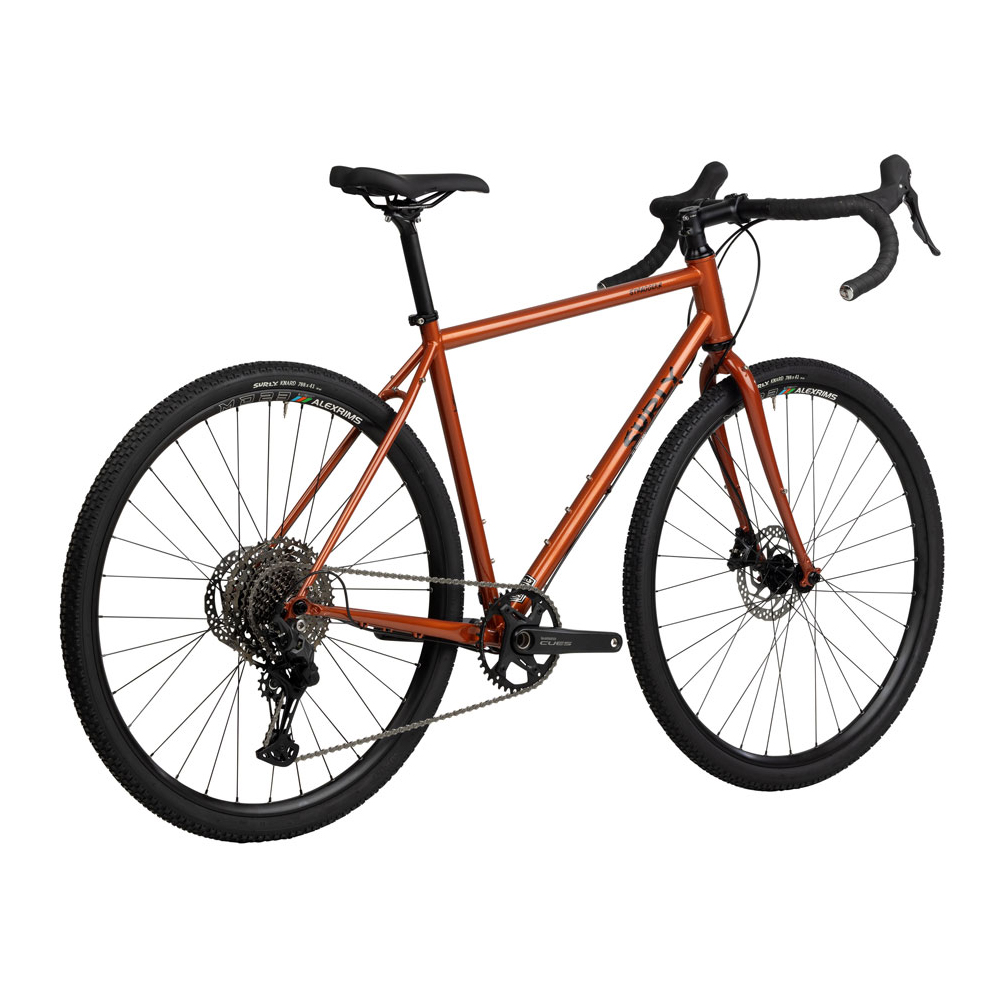

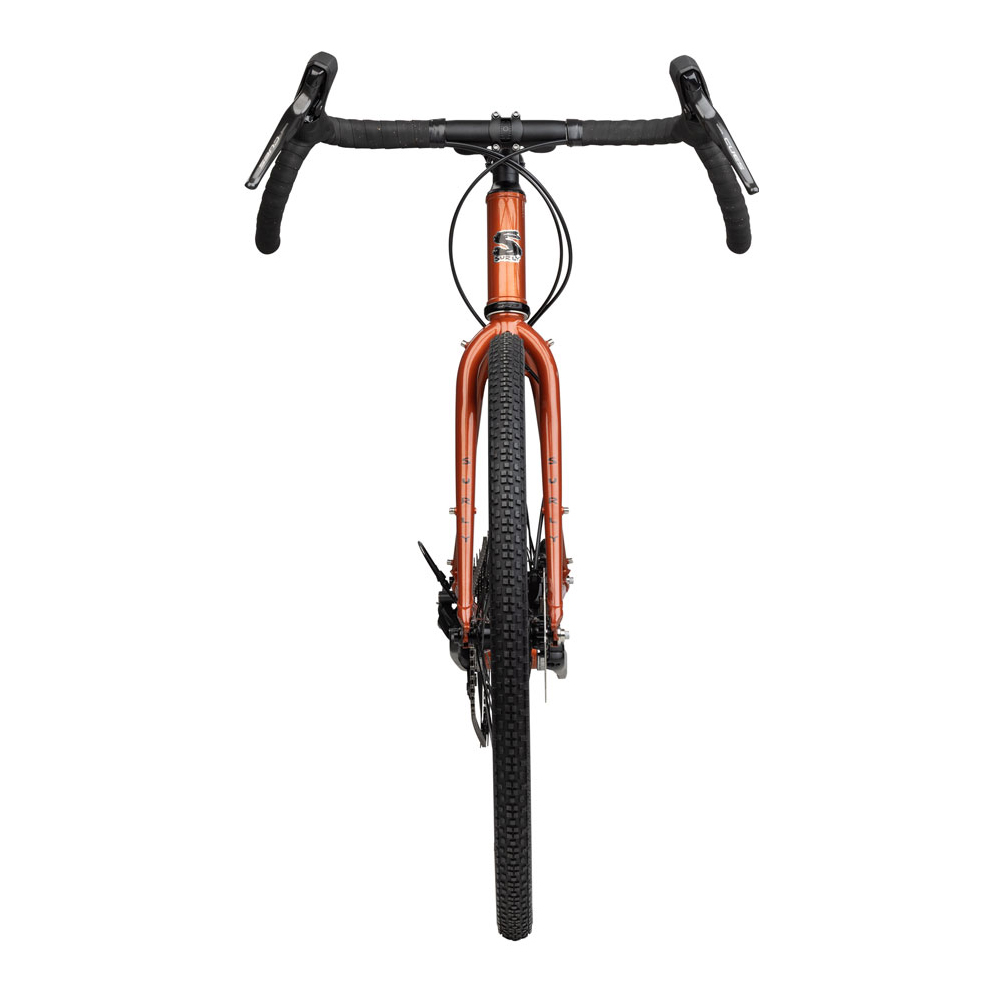

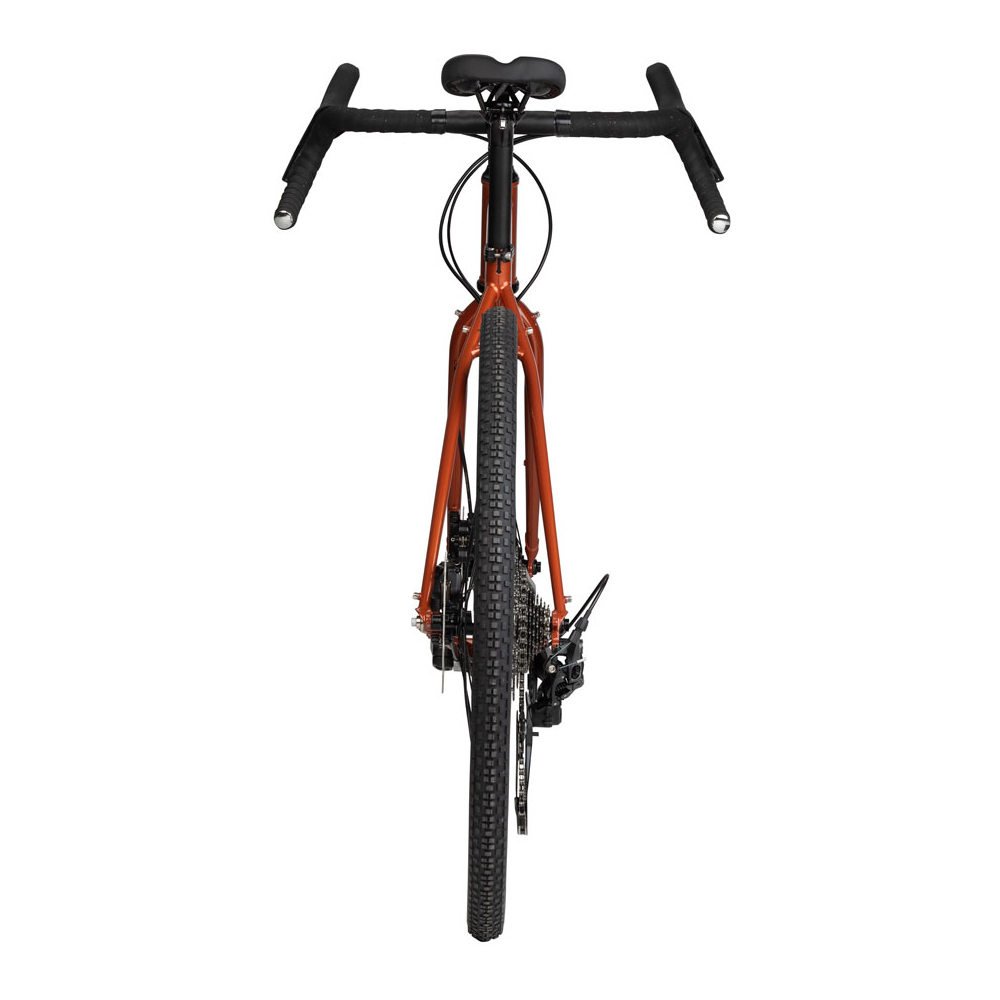

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego.
It’s a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready to plow through challenges, not obstacles. Straggler’s capabilities extend into some light cargo setups, so riders can do double-duty when hitting the trails and running around town.
Features
Available in 650b (46-52cm) and 700c (54-64cm) wheel diameters for optimum rider fit
Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames
Updated thru-axle dropouts for improved stiffness and handling
Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain
Specs
| Frame measurements (mm) | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| A. Effective Top Tube | 500 | 520 | 540 | 555 | 570 | 585 | 605 | 630 |
| B. Stand Over | 682 | 716 | 746 | 779 | 807 | 830 | 857 | 895 |
| C. Reach | 363.9 | 362.9 | 365.3 | 391.4 | 389.1 | 392.5 | 403.5 | 419.5 |
| D. Stack | 507.9 | 530.4 | 554.0 | 570.7 | 591.6 | 610.6 | 639.1 | 667.7 |
| E. Total Seat Tube Length | 390 | 430 | 460 | 490 | 520 | 545 | 570 | 620 |
| F. Headtube Length | 90 | 110 | 135 | 120 | 140 | 160 | 190 | 220 |
| G. Headtube Angle | 70 | 71 | 71 | 71.5 | 72 | 72 | 72 | 72 |
| H. Seat Tube Angle | 75 | 73.5 | 72.5 | 74 | 73 | 72.5 | 72.5 | 72.5 |
| I. BB Drop | 62 | 62 | 62 | 72 | 72 | 72 | 72 | 72 |
| J. BB Height | 277 | 277 | 277 | 285.5 | 285.5 | 285.5 | 285.5 | 285.5 |
| K. Chainstay Length | 416 | 416 | 416 | 435 | 435 | 435 | 435 | 435 |
| L. Fork Length Axle to Crown | 387.5 | 387.5 | 387.5 | 407.6 | 407.6 | 407.6 | 407.6 | 407.6 |
| M. Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| N. Wheelbase | 984.4 | 982.1 | 992.6 | 1033.6 | 1033.2 | 1042.7 | 1063 | 1088.3 |
| Component measurements (mm) | ||||||||
| Crank Arm Length | 165 | 165 | 165 | 170 | 170 | 170 | 170 | 170 |
| Handlebar Width | 400 | 420 | 440 | 440 | 460 | 480 | 500 | 520 |
| Stem Length | 70 | 80 | 90 | 90 | 100 | 100 | 100 | 110 |
* All dimensions are preliminary and subject to change
Frameset
Frame: Straggler, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork: Straggler thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated
-
-
Complete bikes include 6 spacers
-
Framesets ship with uncut steerer
-
Color: Shaggy Carpet
Drivetrain
Front Derailleur: N/A
Rear Derailleur: Shimano CUES U6000 GS
Cassette: Shimano CUES LG400, 11-50t, 11-speed
Chain: Shimano LG500
Crankset: Shimano CUES U6030, 40T
Bottom Bracket: Shimano RS501
Shifter: Shimano CUES U6030
Brakes and Rotors
Brakes: Shimano CUES U6030
Rotors: Shimano RT26, 160/160 mm, 6-Bolt
Components
Headset: FSA Orbit ITA
Stem: TranzX JD-ST123A
Handlebar: Salsa Cowchipper
Grips/Bar Tape: Black cork
Seatpost: Kalloy SP-DC2, 27.2 mm, 0 offset
Saddle: WTB Volt Medium
Wheels
-
Front Hub: Novatec 12×100 mm Thru-axle, 6-Bolt
-
Rear Hub: Novatec 12×142 mm Thru-axle, 6-Bolt
-
Spokes: 14G Black
-
Rims: Alex Adventurer 2, 23 mm, 32h, Tubeless Ready
-
Tires:
-
Surly Knard 650b x 41, 33tpi (sizes 46–52 cm)
-
Surly Knard 700c x 41, 33tpi (sizes 54 cm and up)
-
Other
-
Pedals: N/A
-
Complete Bike Weight: 27 lb 4 oz (56 cm)
Specifications subject to change without notice
Warranty
Register your purchase at Surly’s Warranty Registration.
LIMITED WARRANTY FOR THE SURLY STRAGGLER
This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.
This warranty does NOT cover the following:
- Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
- Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
- Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
- Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
- Normal wear and tear
- Labor required to remove and/or refit and re-adjust the product within the bicycle assembly
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.
This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
