Overview
A Trail-born Steel Shapeshifter

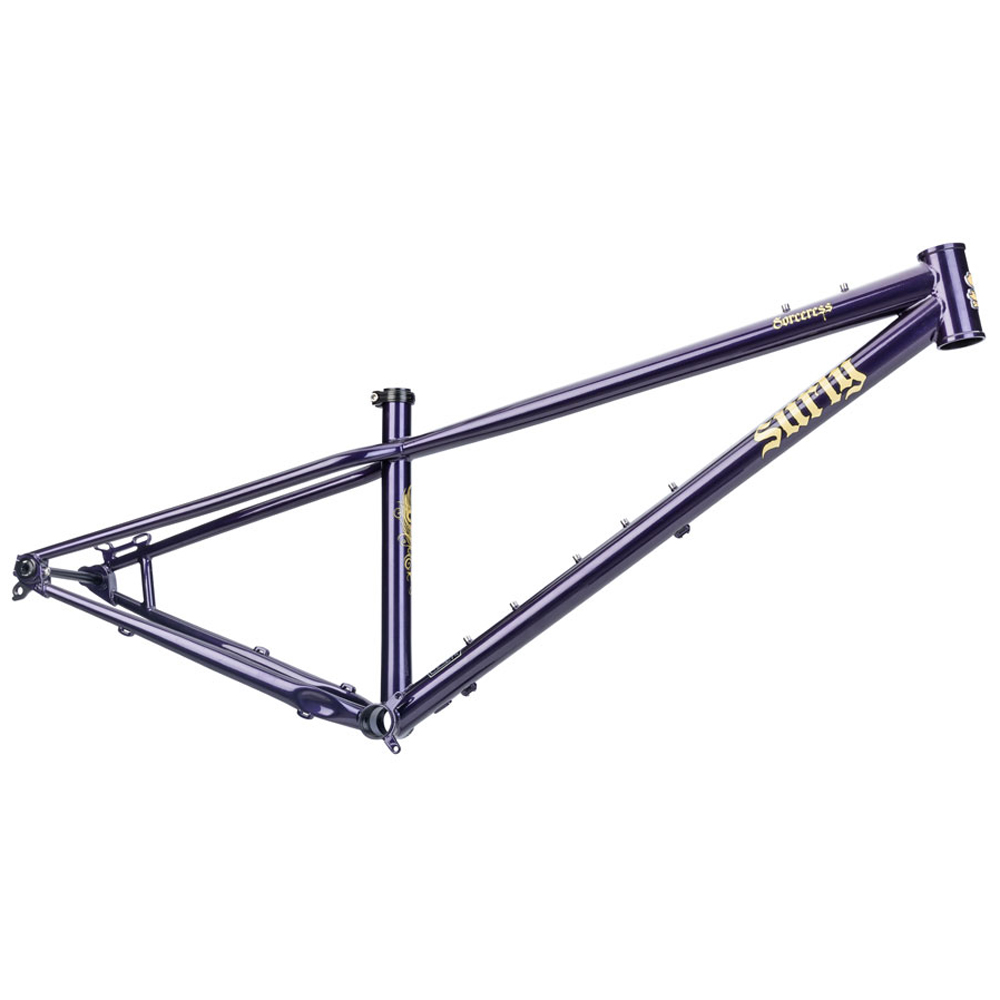

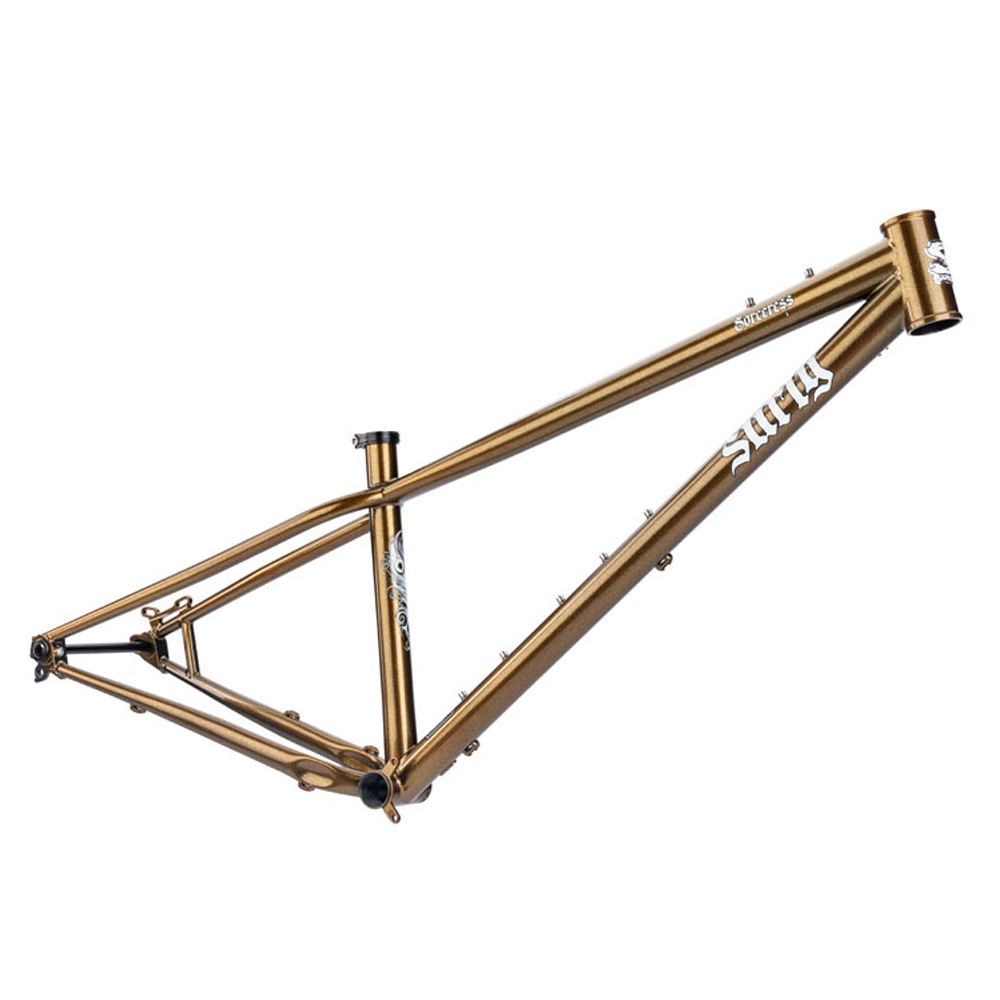

Our modern trail hardtail frame with geared and single-speed abilities, Sorceress conjures a spellbinding singletrack experience wherever and whenever you summon it.
Let Sorceress be your guide through steep and gnarly dirt realms; it thrives on flowy, feature-rich singletrack and techy descents.
Sorceress channels our modern trail geometry: a long front center, steep seat tube angle, and slack headtube angle conjure playful riding, stable footing, and efficient climbing (plus the power to levitate). And with maximized standover and room for longer dropper posts, you get less saddle interference and more space to send it.

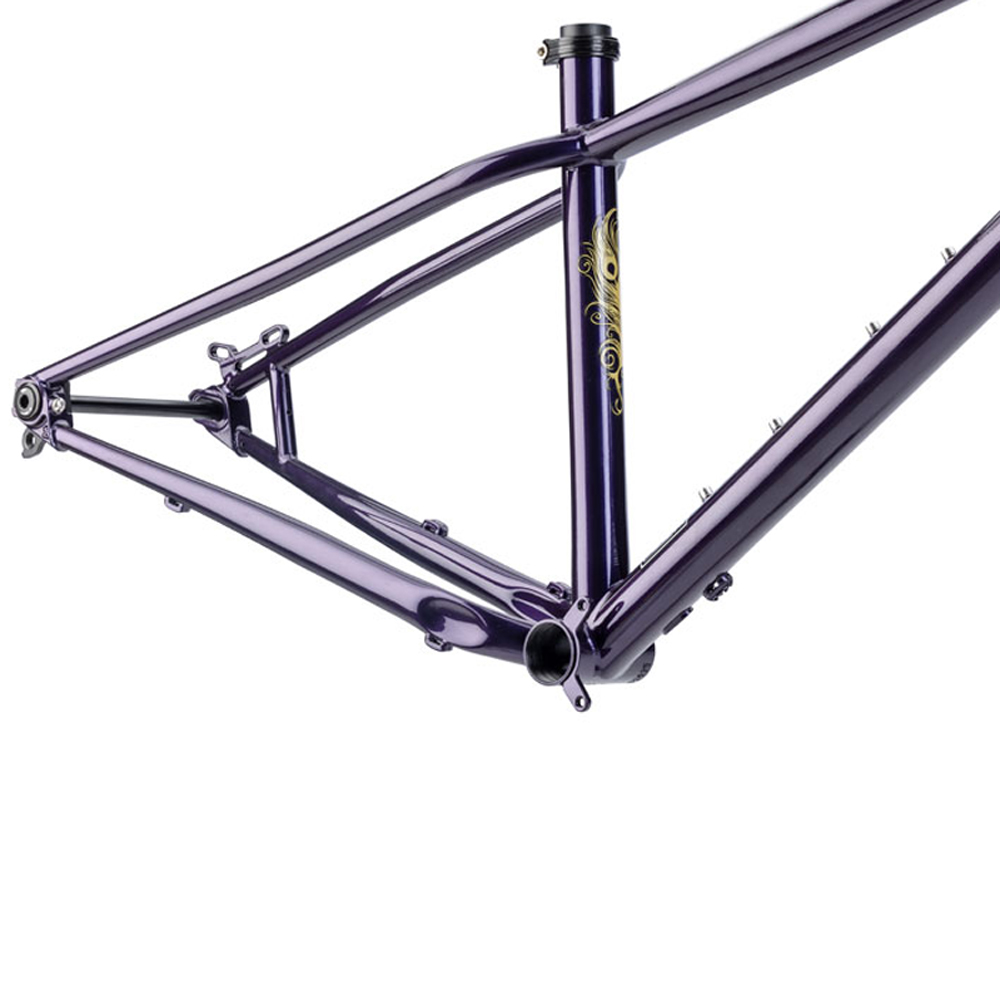

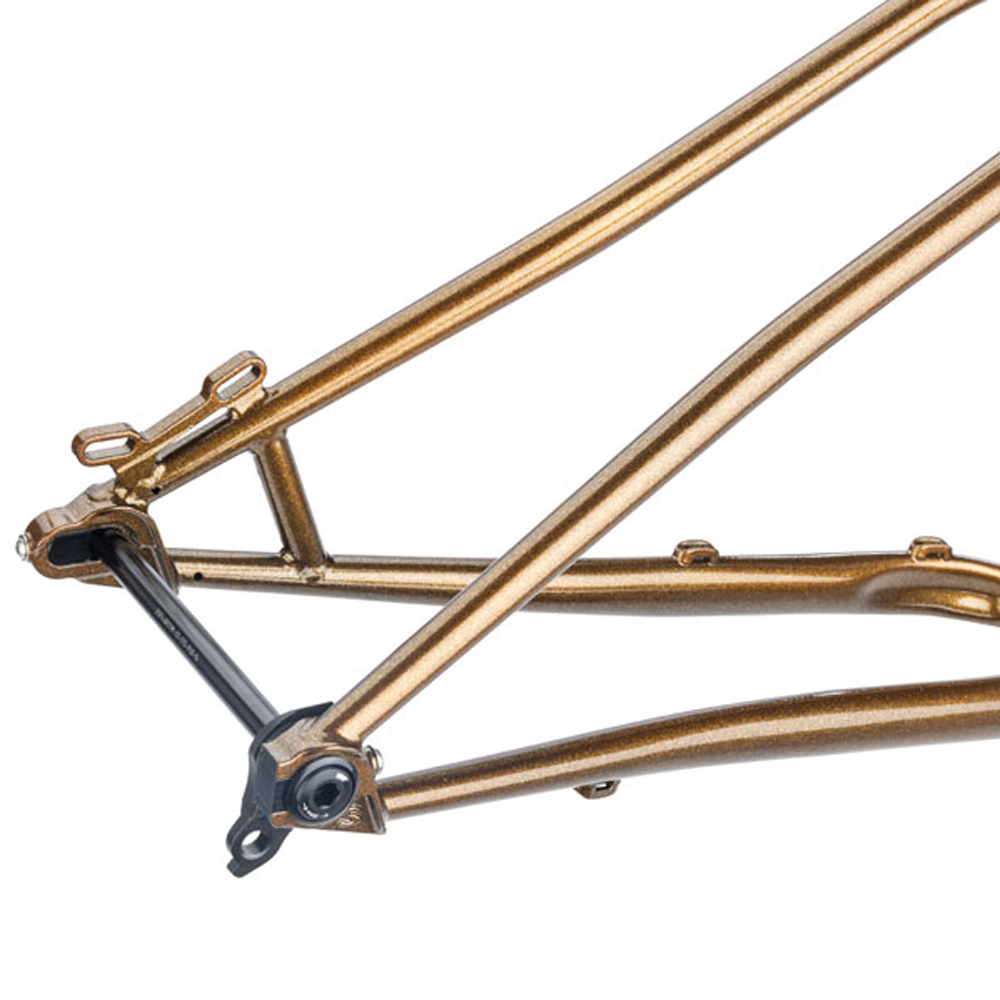

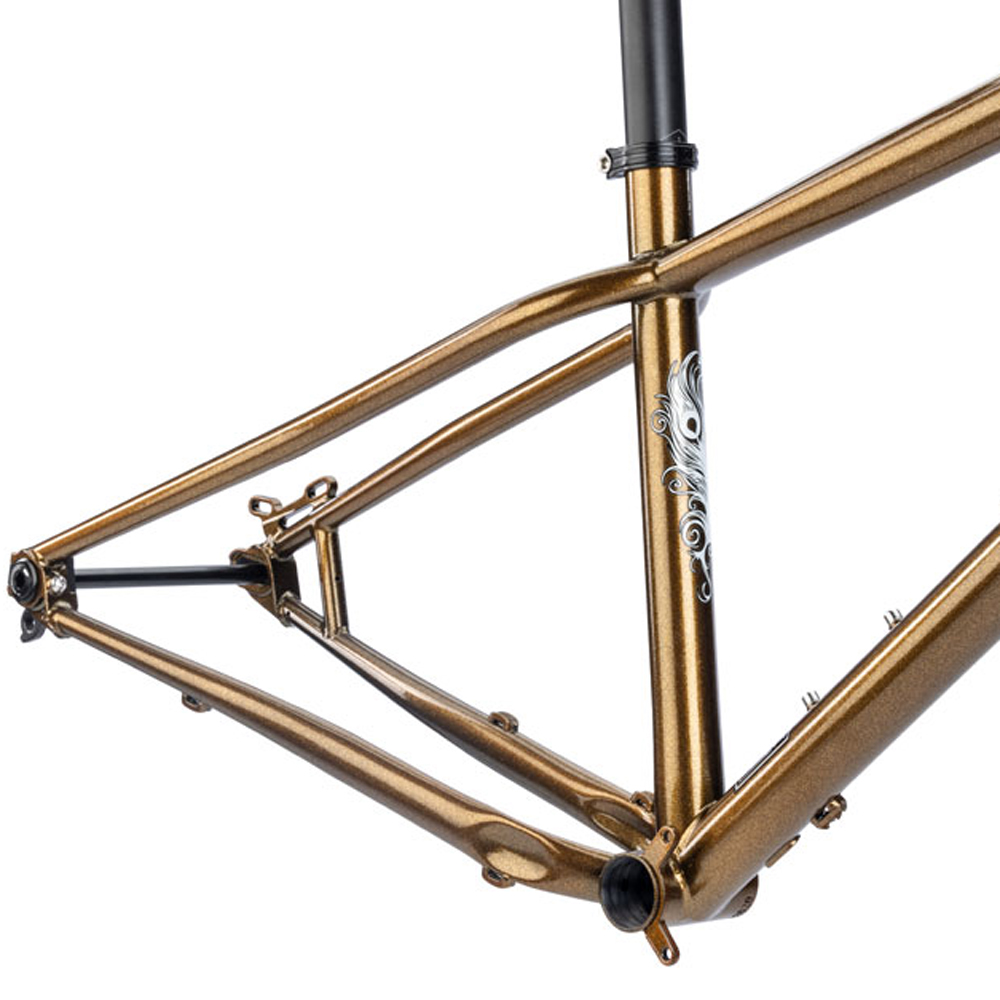

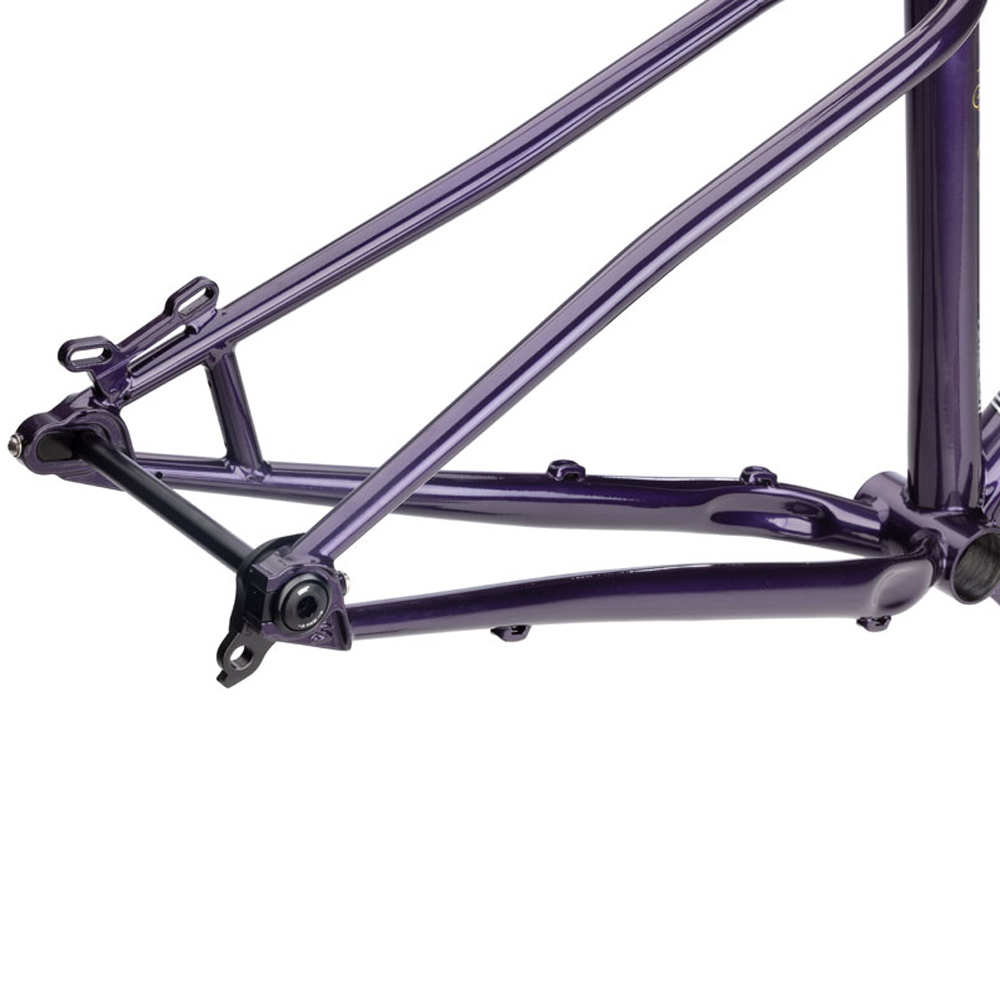

The alchemy of Surly Natch steel tubing, tuned specifically for Sorceress, gives it a lively yet smooth ride quality. True to form, Sorceress is a shapeshifter: we worked with the wizards at SRAM to develop our new patent-pending DUH dropout system. This grants you the power to run gears with a UDH hanger or Full-Mount drivetrain or swap in a single-speed chip.
Whatever trail magic you seek, Sorceress can summon it.
Features
Max Tire Outer Diameter: 27.5/29″ x 2.6″ w/o fender

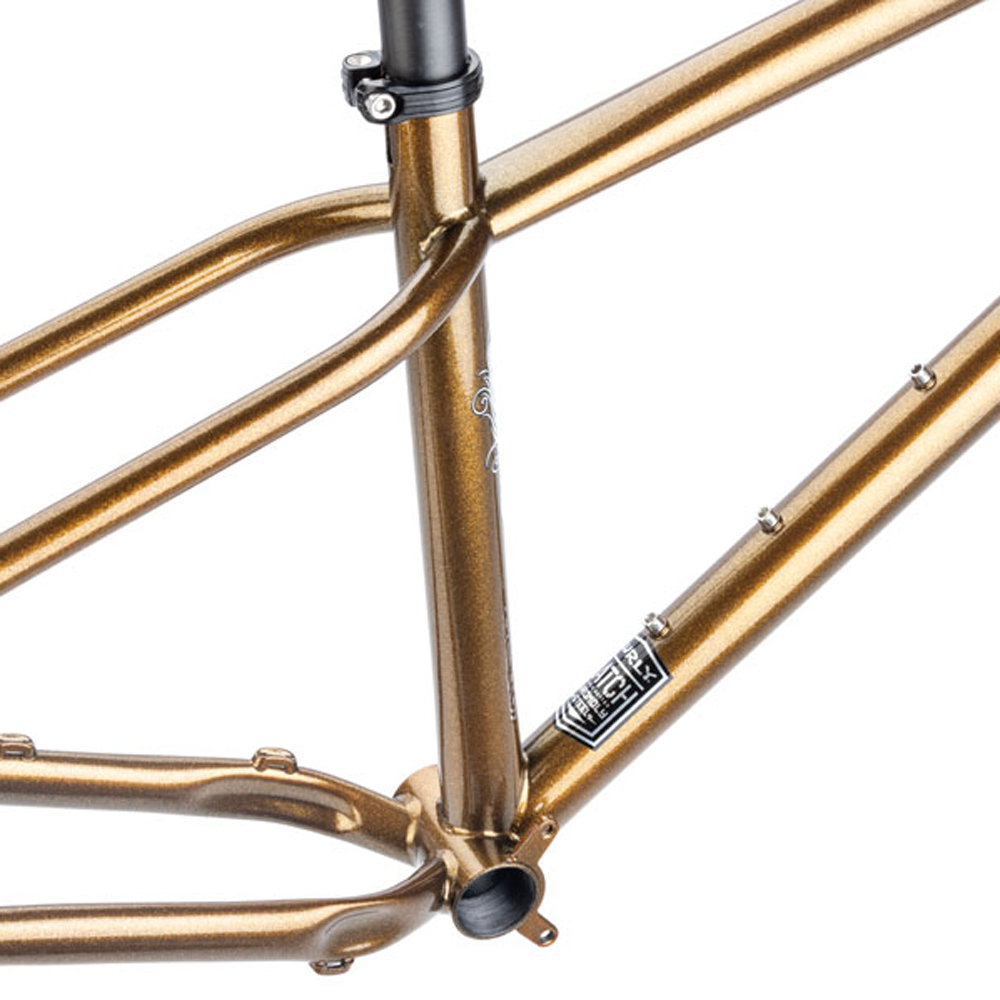

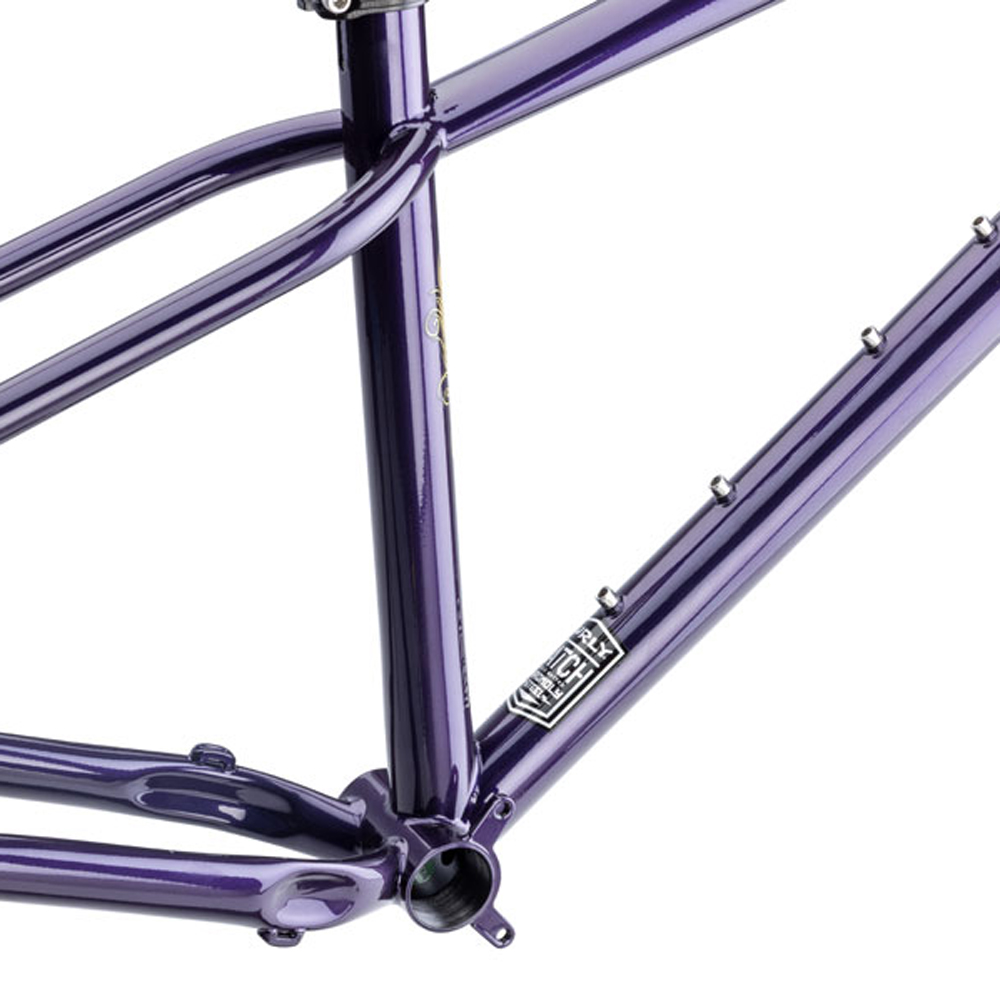

Frame Construction: 4131 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Suspension Fork Length: (Travel)572 X 44mm (29” 150mm)
Rear Axle Size: 12 x 148mm (Surly single speed axle included)
Rear Brake (Rotor)Disc: 51mm I.S. (203mm max rotor)

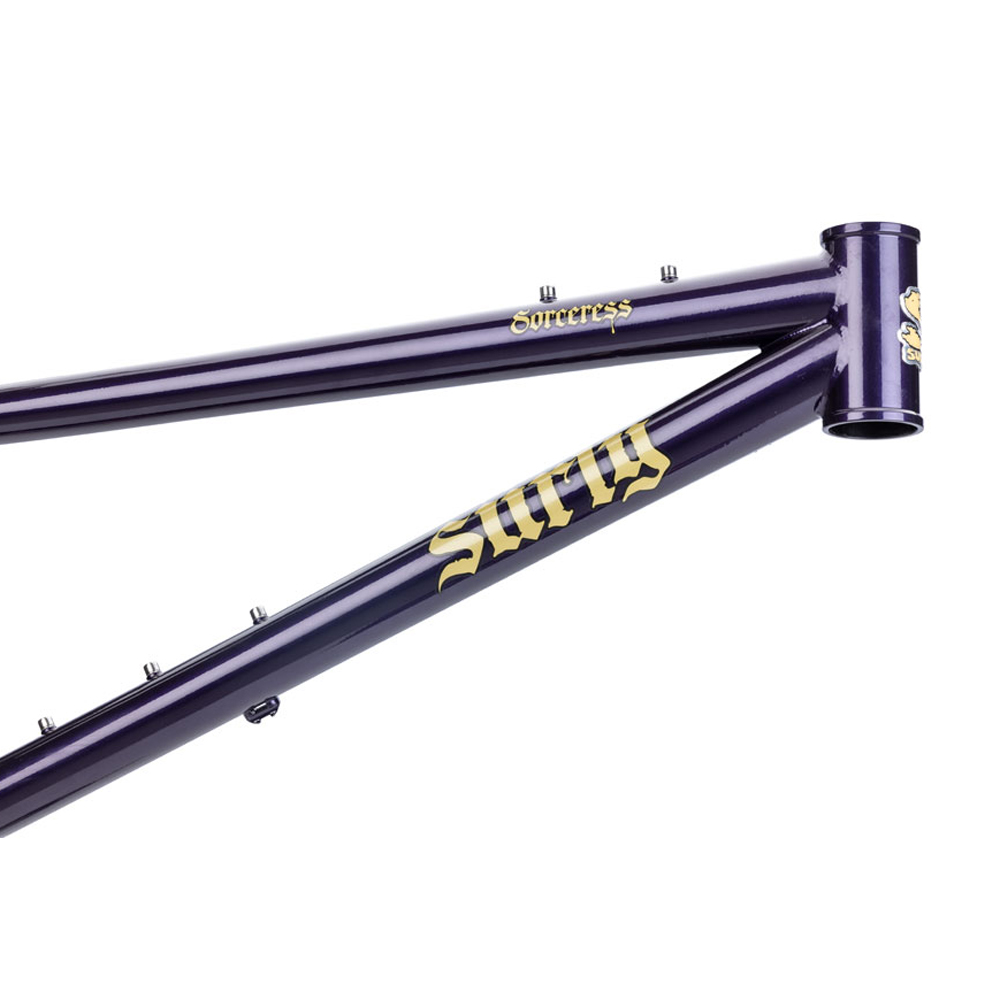

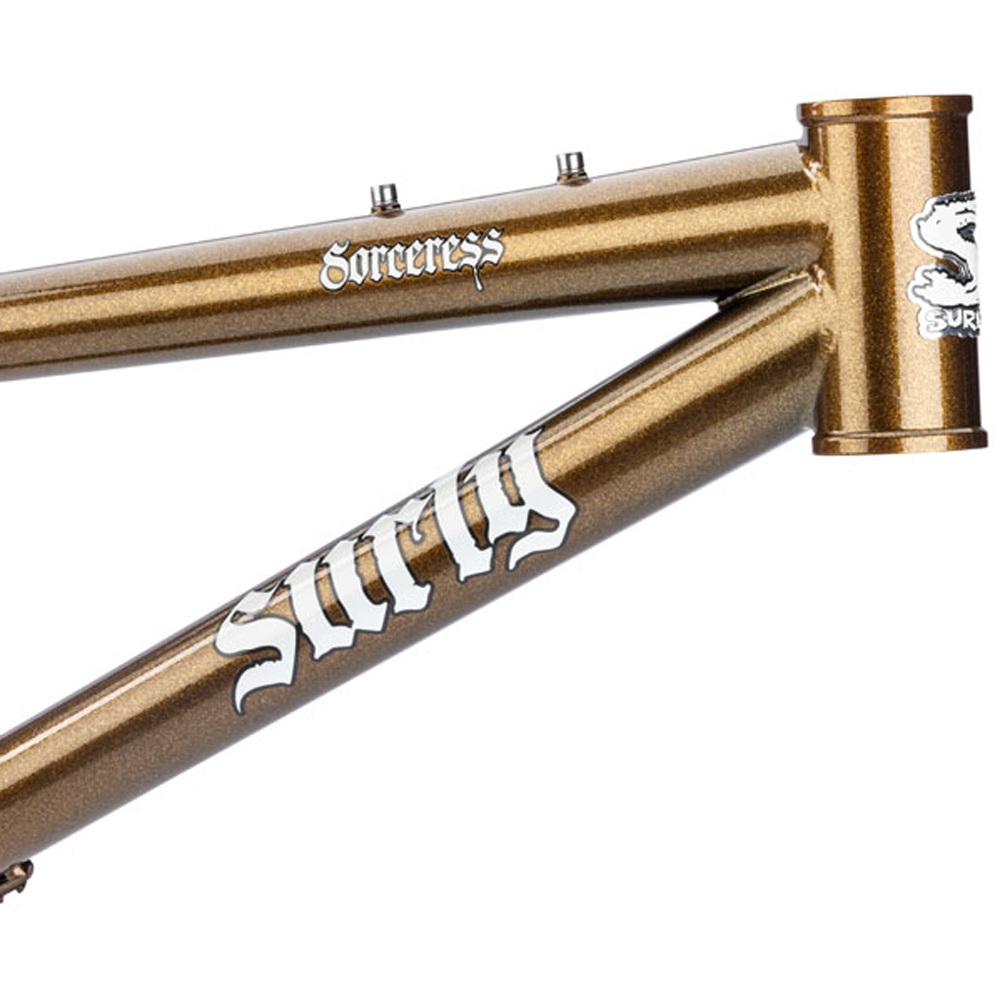

Headset Upper: ZS44/28.6
Headset Lower: EC44/40
Seatpost: Ø30.9mm
Dropper Post Compatible: Yes
Seatpost Clamp: Ø33.1mm
Max Post InsertionXS: 247mm | SM: 277mm | MD: 304mm | LG: 356mm | XL: 408mm
Front Derailleur Type: N/A
Bottom Bracket: 73mm threaded (1.37″ x 24TPI)
Crankset (Max Ring)1x (55CL): 32T
Bottle Mounts: 1 Three-Pack (XS – SM), 1 Standard + 1 Three-Pack (MD-XL)
Specs
| Frame measurements (mm) | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| A. Effective Top Tube | 560 | 590 | 617 | 645 | 675 |
| B. Stand Over | 730 | 763 | 782 | 796 | 809 |
| C. Reach | 415 | 437 | 463 | 484 | 507 |
| D. Stack | 580 | 614 | 618 | 646 | 673 |
| E. Total Seat Tube Length | 300 | 330 | 360 | 410 | 460 |
| F. Headtube Length | 95 | 95 | 100 | 130 | 160 |
| G. Headtube Angle | 64 | 65 | 65 | 65 | 65 |
| H. Seat Tube Angle | 76 | 76 | 76 | 76 | 76 |
| I. BB Drop | 55 | 65 | 65 | 65 | 65 |
| J. BB Height | 303 | 314 | 314 | 314 | 314 |
| K. Chainstay Length | 410 | 429 | 429 | 429 | 429 |
| L. Fork Length Axle to Crown | 498 | 518 | 518 | 518 | 518 |
| M. Fork Offset | 44 | 44 | 44 | 44 | 44 |
| N. Wheelbase | 1127 | 1166 | 1193 | 1227 | 1263 |
* All dimensions are preliminary and subject to change
Warranty
Register your purchase at Surly’s Warranty Registration.
LIMITED WARRANTY FOR THE SURLY SORCERESS FRAME
This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.
This warranty does NOT cover the following:
- Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
- Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
- Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
- Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
- Normal wear and tear
- Labor required to remove and/or refit and re-adjust the product within the bicycle assembly
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.
This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
