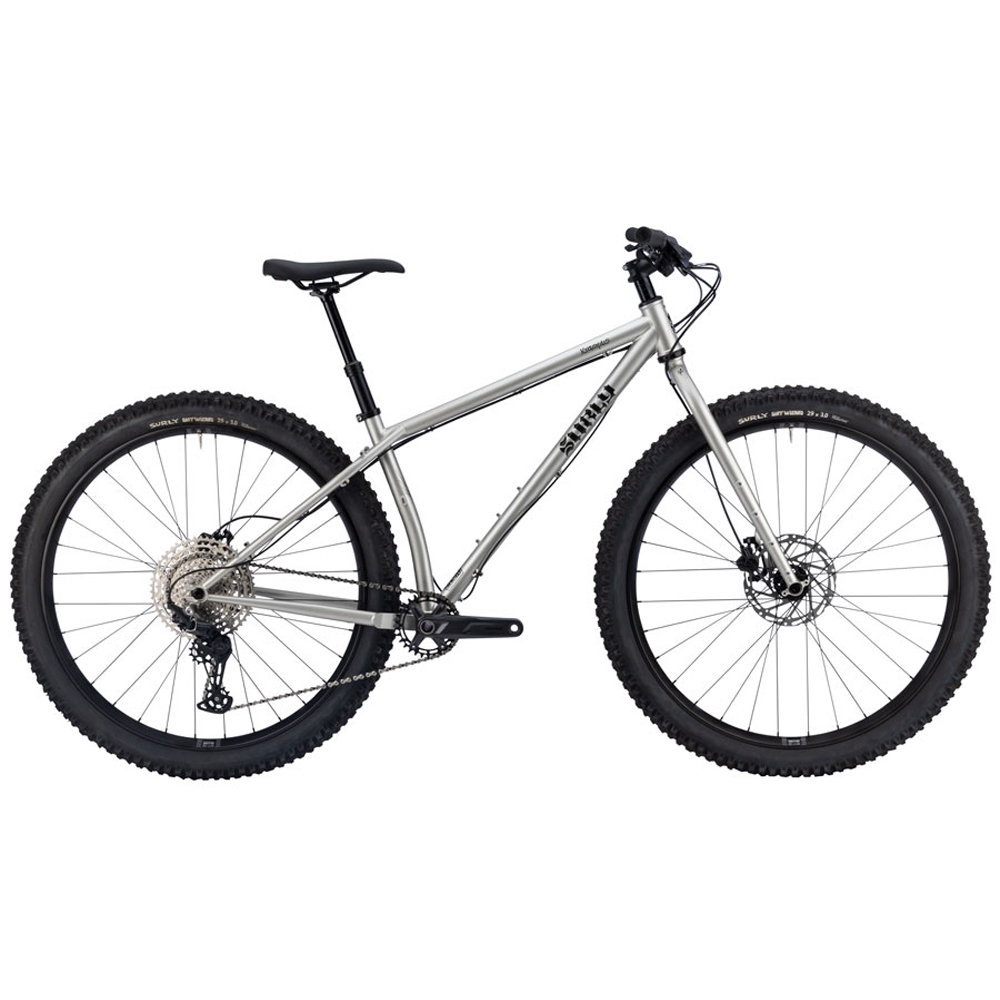

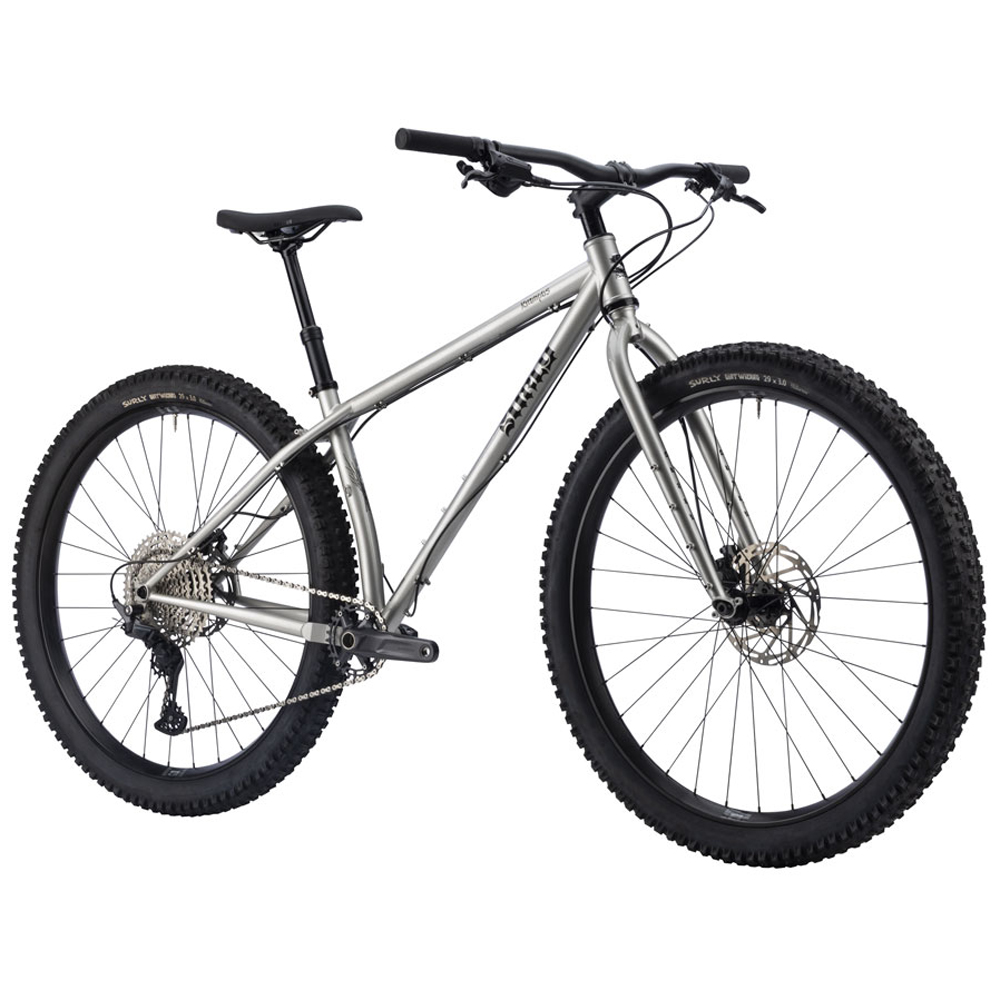

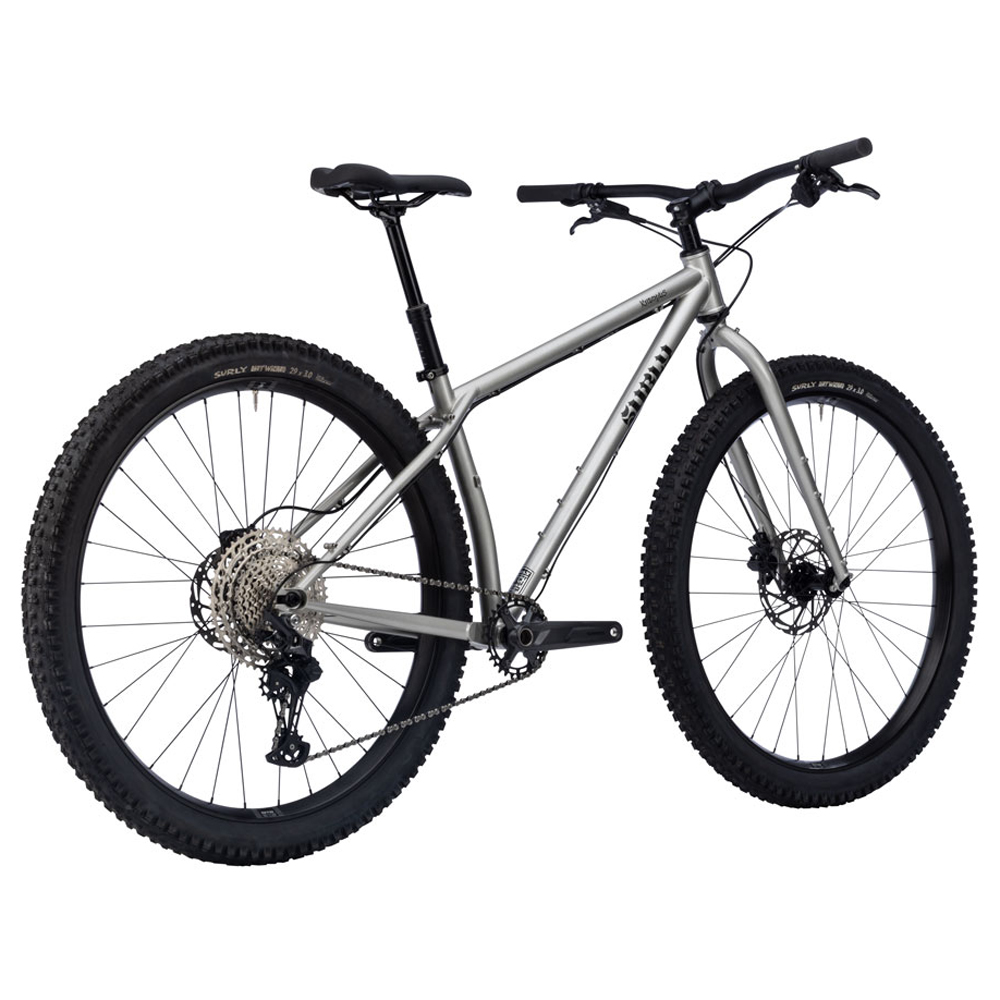

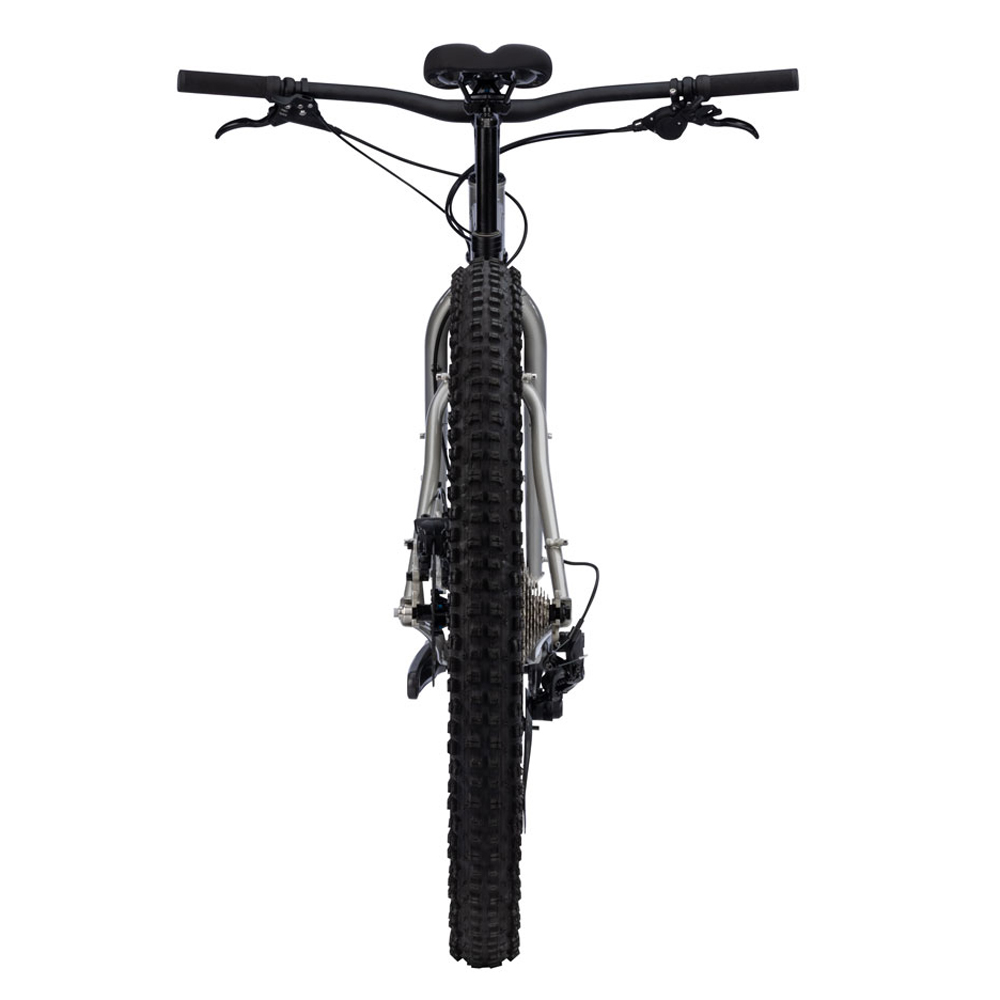

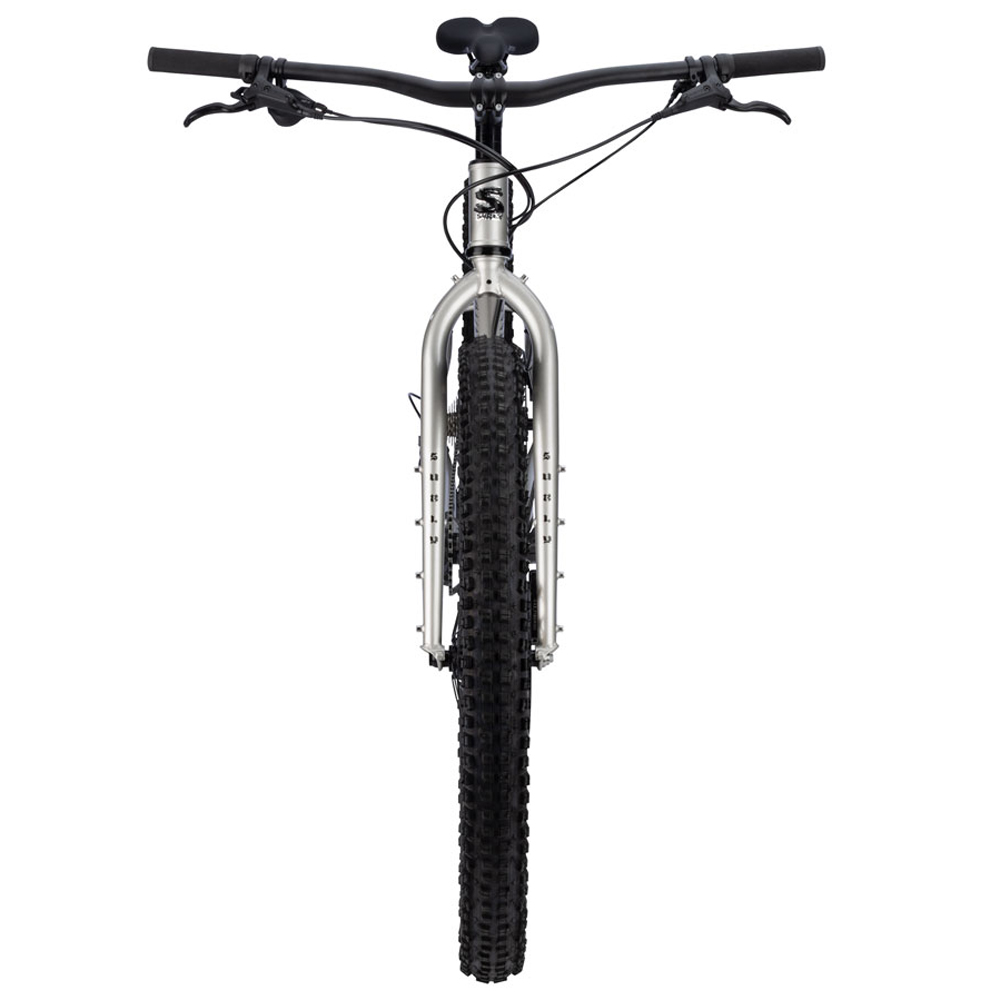

Surly Krampus Rigid – Salmon Skin Silver
Surly Krampus Rigid – Salmon Skin Silver - Image 2
Surly Krampus Rigid – Salmon Skin Silver - Image 3
Surly Krampus Rigid – Salmon Skin Silver - Image 4
Surly Krampus Rigid – Salmon Skin Silver - Image 5

Surly Krampus Rigid – Salmon Skin Silver

Original price was: $2,198.99.Current price is: $1,874.99.

Build your custom bike

$100 Shipping on Bicycles between $1500 and $2000 (within the lower 48).

SKU: SURGDSV Categories: , , Tag:

The Krampus is the bike that started it all — the plus-size movement that is. The Krampus features Surly’s Gnot-Boost rear hub spacing of 145mm; compatible with Boost 148 x 12mm thru-axle, 142 x 12mm thru-axle and 135mm quick-release hubs. Rolling on 29” x 3” tires, this bike can roll over just about anything you can point it at.


Overview

Breaking the Mold with a 29er Bike

Another summer, another hot new Surly color! The stalwart Krampus Rigid is now available in the delicious new Prickly Pear flavor, sure to pair perfectly with monsoon rain and your favorite margarita mix. It still has everything you want from a Krampus: plus sized 29ers, compact chainstays, cargo points galore, and a Natch steel frame that will outlast any desert bloom. Just be careful not to get chased by hungry Javelinas!

Features

100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube

Gnot-Boost adjustable rear dropouts

TranzX JD-YSP15 Dropper, 30.9mm, 120mm travel

30.9mm seat tube

Designed to fit up to 29 x 3.0” tires

Specs

frame geometry line drawing with letters

Frame measurements (mm) SM MD LG XL
A. Effective Top Tube 585 610 635 660
B. Stand Over 770 797 825 853
C. Reach 404 426 448 470
D. Stack 593 602 612 621
E. Total Seat Tube Length 368 419 470 521
F. Headtube Length 90 100 110 120
G. Headtube Angle 69 69 69 69
H. Seat Tube Angle 73 73 73 73
I. BB Drop 65 65 65 65
J. BB Height – – – –
K. Chainstay Length 435 435 435 435
L. Fork Length Axle to Crown 483 483 483 483
M. Fork Offset 47 47 47 47
N. Wheelbase 1087 1113 1138 1164
Component measurements (mm)
Crank Arm Length 165 170 170 170
Handlebar Width 750 800 800 800
Stem Length 70 70 70 80

* All dimensions are preliminary and subject to change

Frameset

Frame: Surly Krampus, 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet-flared tubes, TIG welded, E.D. coated

Fork: Surly Krampus, 100% Surly Chromoly steel, Natch tubing, double-butted tapered blades, TIG welded, E.D. coated

Drivetrain

Front Derailleur: N/A

Rear Derailleur: Shimano Deore M6100 SGS

Cassette: Shimano Deore M6100, 10–51t, 12-speed

Chain: KMC X12 Anti-Rust

Crankset: Shimano Deore M6100*

Bottom Bracket: Shimano MT501, BSA

Shifter: Shimano Deore M6100

Brakes: Tektro HD-M275 or HD-M3120, 2-piston

Rotors: Tektro, 160 mm front and rear, 6-bolt

Components

Headset: FSA Orbit ITA

Stem: Promax DA-296, 31.8 mm

Handlebar: Salsa Rustler

Grips: Velo, black

Seatpost: TransX JD-YSP15 dropper, 30.9 mm diameter, 120 mm travel

Saddle: WTB Volt Medium

Wheels

Front Hub: Novatec, 15 × 110 mm, 32-hole

Rear Hub: Novatec, 12 × 148 mm, 32-hole

Rims: WTB ST i40 TCS 2.0, 29″

Tires: Surly Dirt Wizard, 29 × 3″, 60 TPI, tubeless ready

Sealant: WTB TCS included

Spokes: 14G, black

Other

Pedals: Not included

Complete Bike Weight: 30 lb 14 oz, size Medium

The supplied crankset entry repeats the cassette’s 10–51t, 12-speed specifications; chainring size needs confirmation.

Specifications are subject to change without notice.

Warranty

Register your purchase at Surly’s Warranty Registration.

LIMITED WARRANTY FOR THE SURLY KRAMPUS RIGID

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
