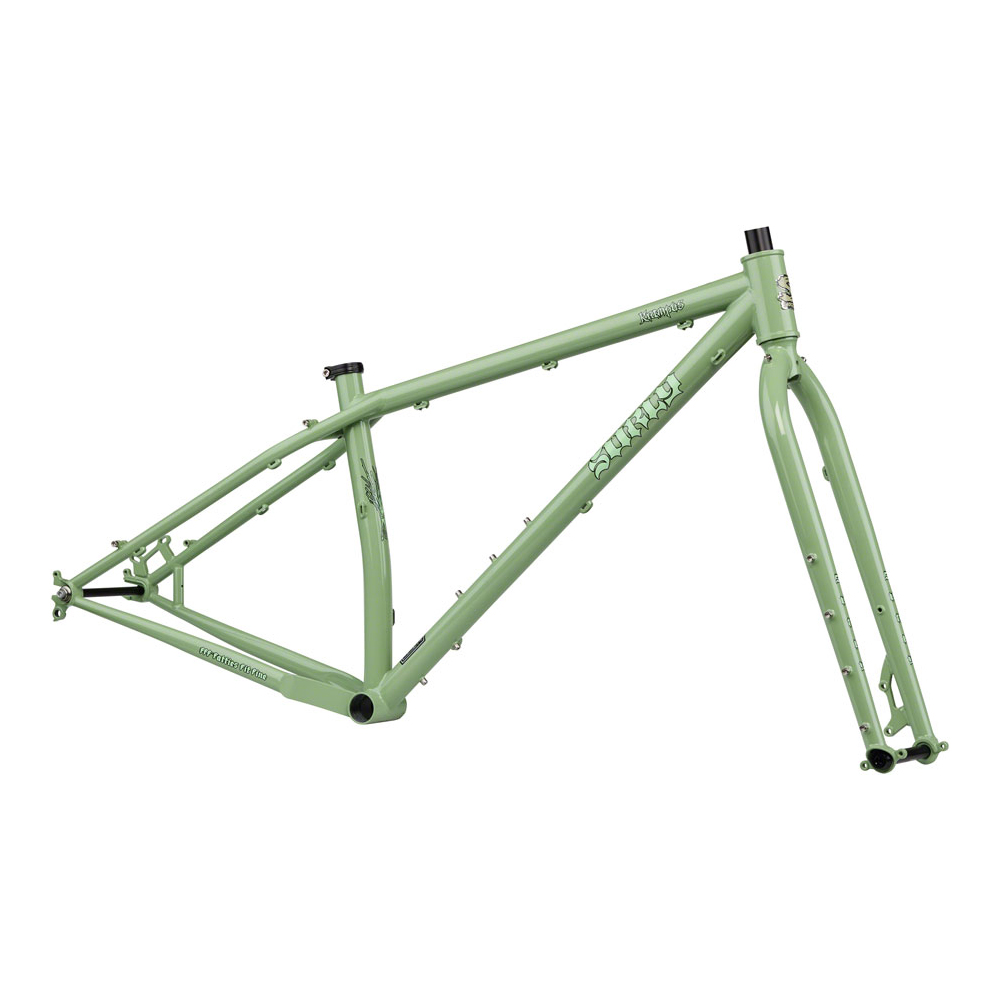

Surly Krampus Frameset – (Prickly Pear & Sage)

$1,098.99

Free Shipping on Bicycle Frames within the lower 48.
Ask us for a quote for International shipments!

SKU: SURMPPS Categories: , Tag:

The Krampus is the bike that started it all — the plus-size movement that is. The Krampus features Surly’s Gnot-Boost rear hub spacing of 145mm; compatible with Boost 148 x 12mm thru-axle, 142 x 12mm thru-axle and 135mm quick-release hubs.


Overview

Breaking the Mold with a 29er Bike

As the first “plus” bike to hit the market, Krampus changed the way many people approach trail riding. It’s shown people the light of how high volume, large diameter tires can vastly improve the ride experience. It’s also done a bang-up job dispelling the myth that big tires make you slow.

Krampus is kind of like the opposite of a mullet: long in the front and short in the rear. With a long toptube and compact chainstays, it takes trail-shredding abilities to the next level. A mullet may be business in the front, party in the back but Krampus makes partying its business.

For more info about the Surly Krampus frameset, see our detailed writeup of the complete bikes:

Features

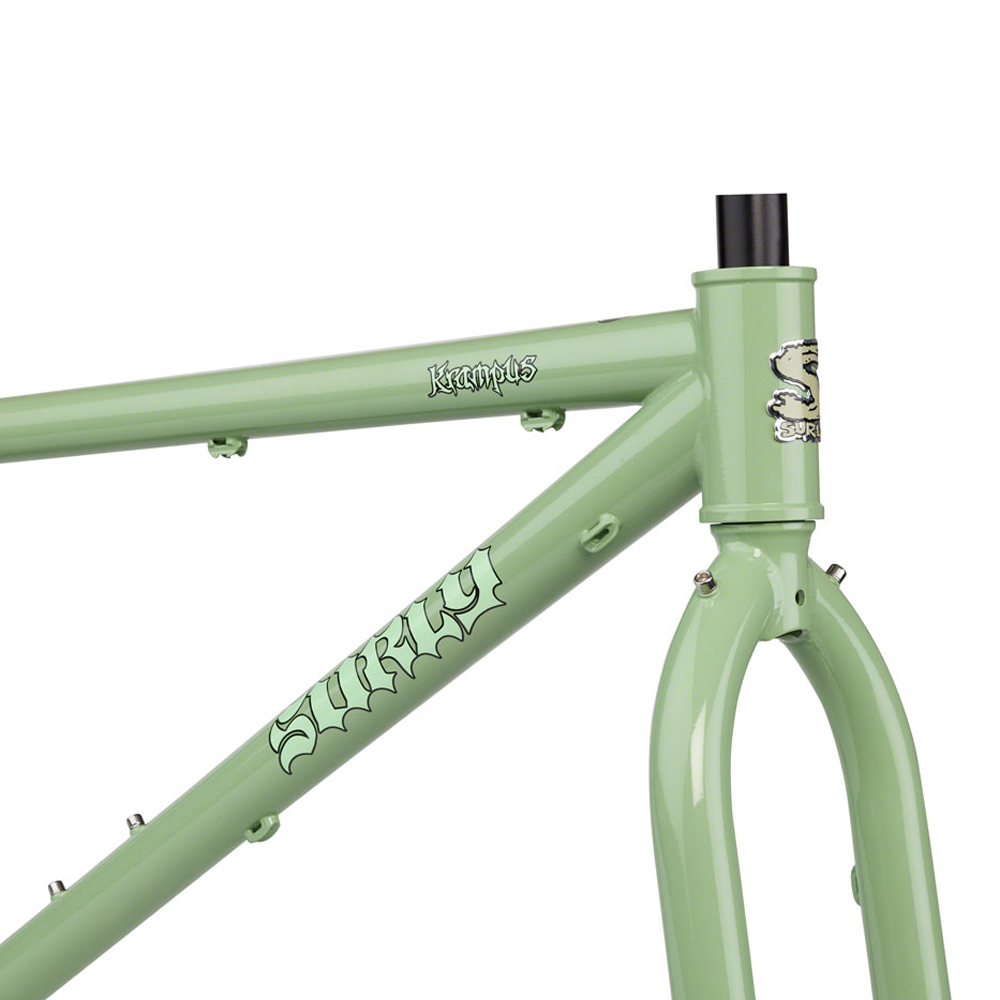

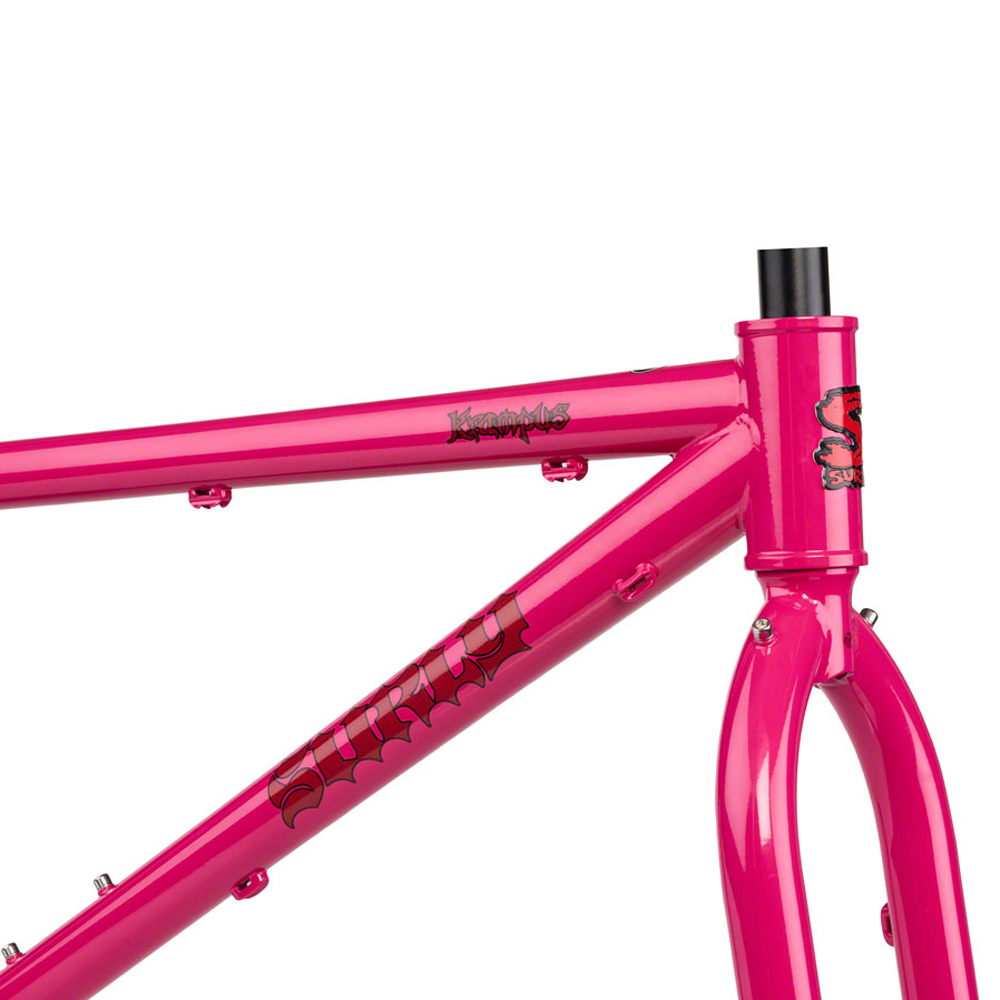

100% Surly 4130 CroMoly steel frame and fork; double-butted main triangle and 44mm headtube

New tube-set uses the same trumpet tubes found on 2017 Karate Monkey frame

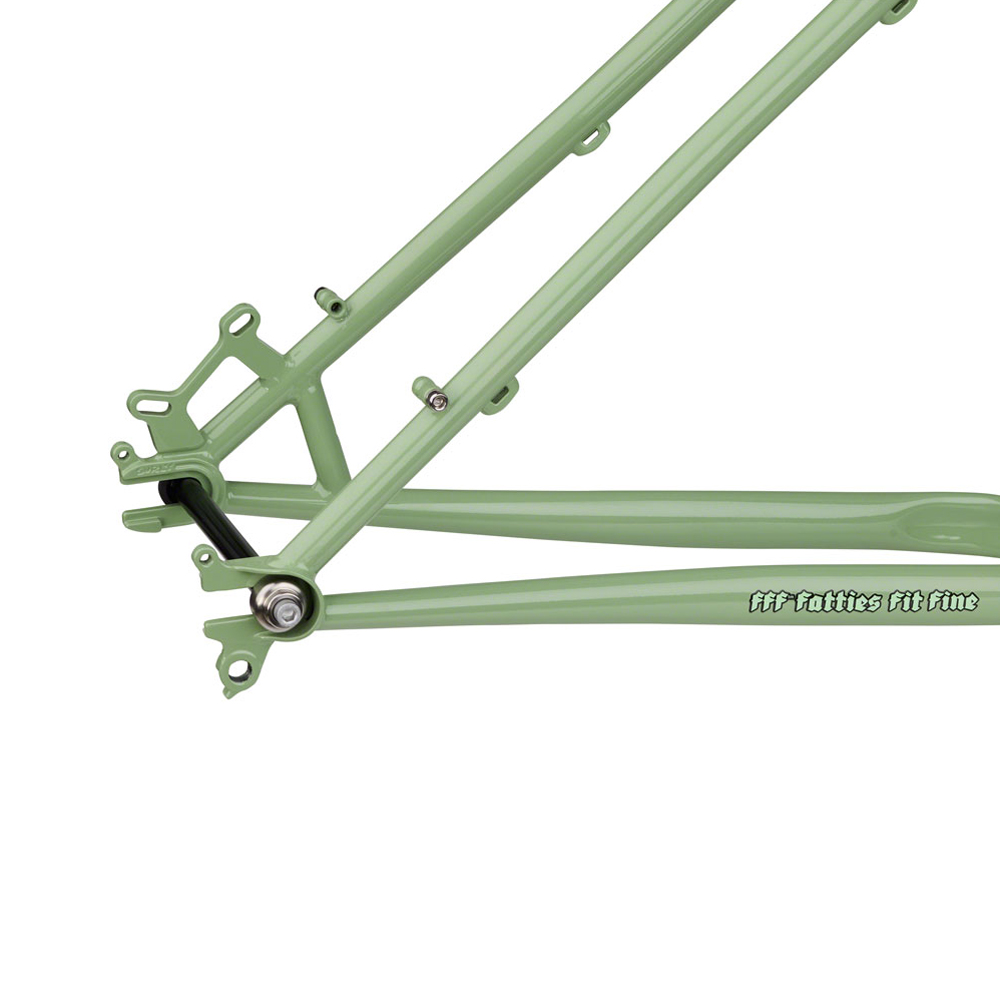

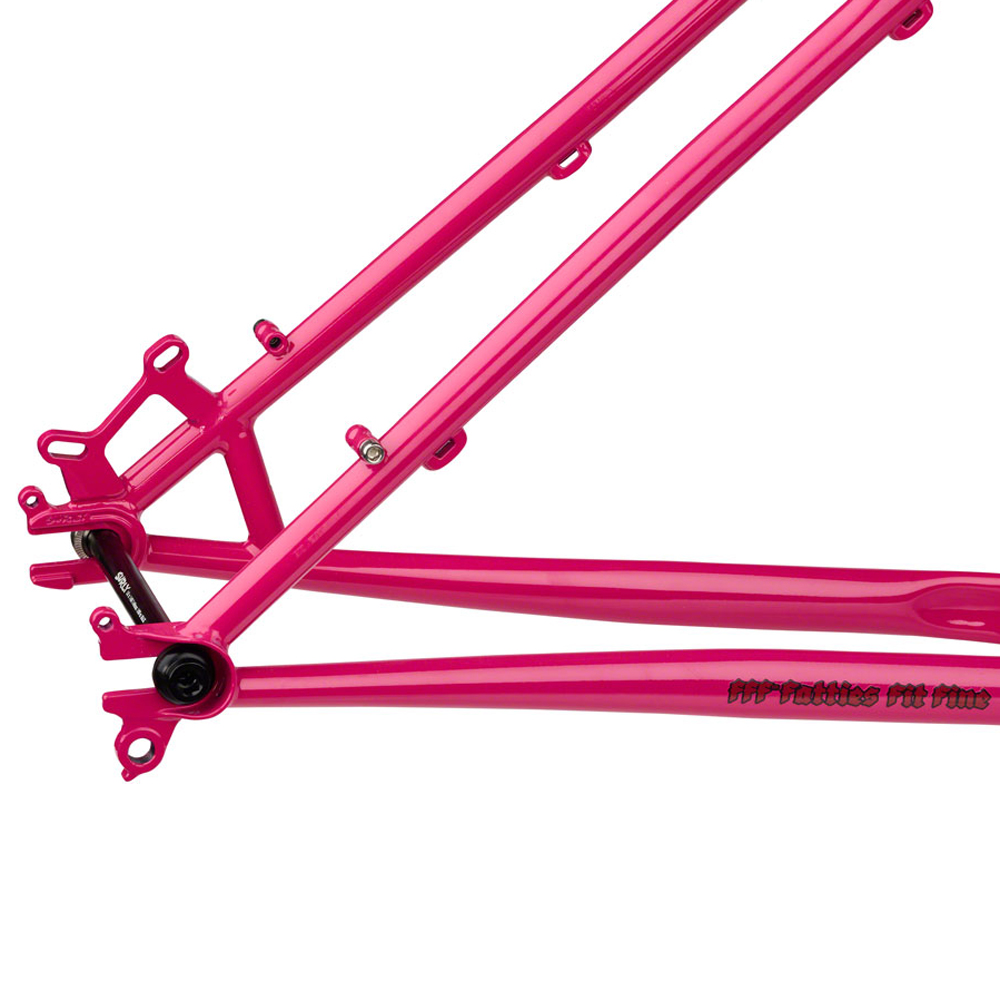

Gnot-Boost adjustable rear dropouts

Internal dropper seatpost routing

30.9mm seat tube

Designed to fit up to 29 x 3.0” tires

Specs

frame geometry line drawing with letters

Frame measurements (mm) SM MD LG XL
A. Effective Top Tube 585 610 635 660
B. Stand Over 770 797 825 853
C. Reach 404 426 448 470
D. Stack 593 602 612 621
E. Total Seat Tube Length 368 419 470 521
F. Headtube Length 90 100 110 120
G. Headtube Angle 69 69 69 69
H. Seat Tube Angle 73 73 73 73
I. BB Drop 65 65 65 65
J. BB Height – – – –
K. Chainstay Length 435 435 435 435
L. Fork Length Axle to Crown 483 483 483 483
M. Fork Offset 47 47 47 47
N. Wheelbase 1087 1113 1138 1164
Component measurements (mm)
Crank Arm Length 165 170 170 170
Handlebar Width 750 800 800 800
Stem Length 70 70 70 80

**All dimensions are preliminary and subject to change!**

Wheel Size: 29+

Brake Type: Disc

Platform: Krampus

Rear Axle: 12mm Thru x 145mm

Front Axle: 15mm Thru x 110mm

Fork Material: Steel

Fork Type: Rigid

Frame Material: Steel

Frame Type: Rigid

Warranty

Register your purchase at Surly’s Warranty Registration.

LIMITED WARRANTY FOR THE SURLY KRAMPUS RIGID

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
