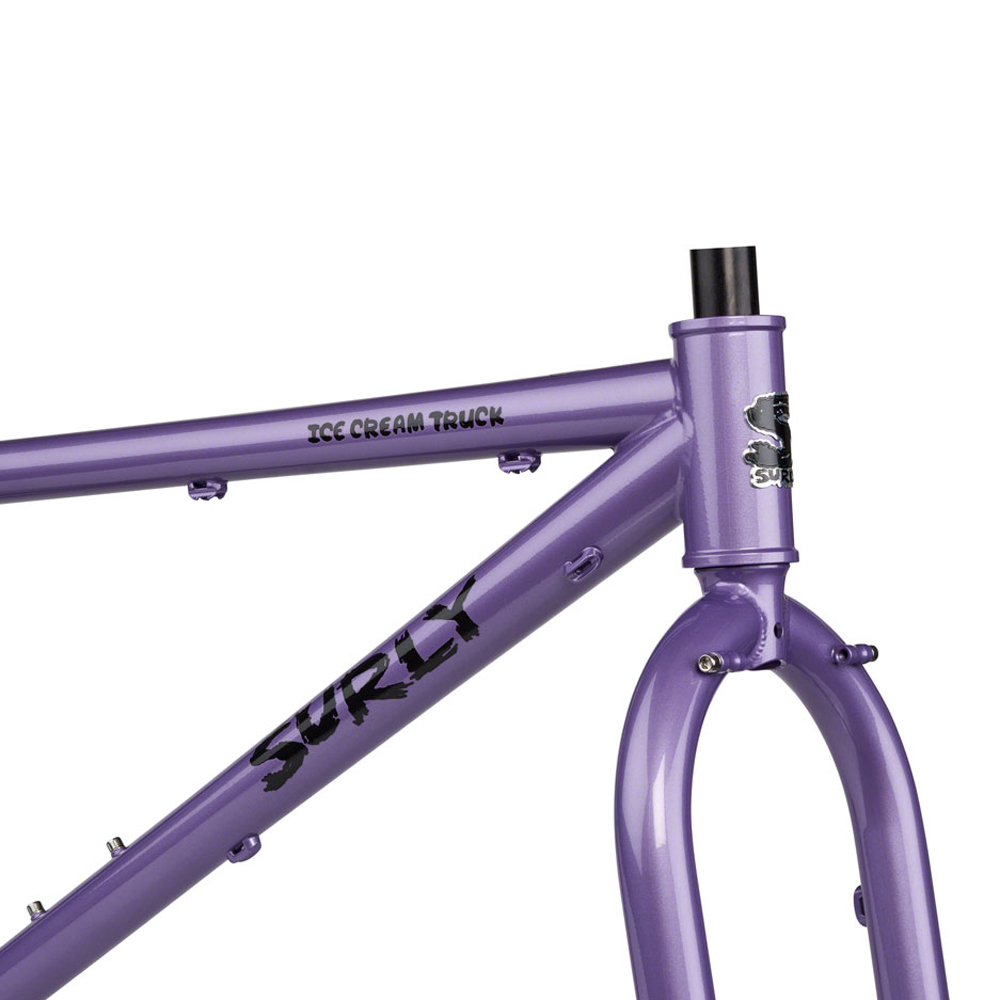

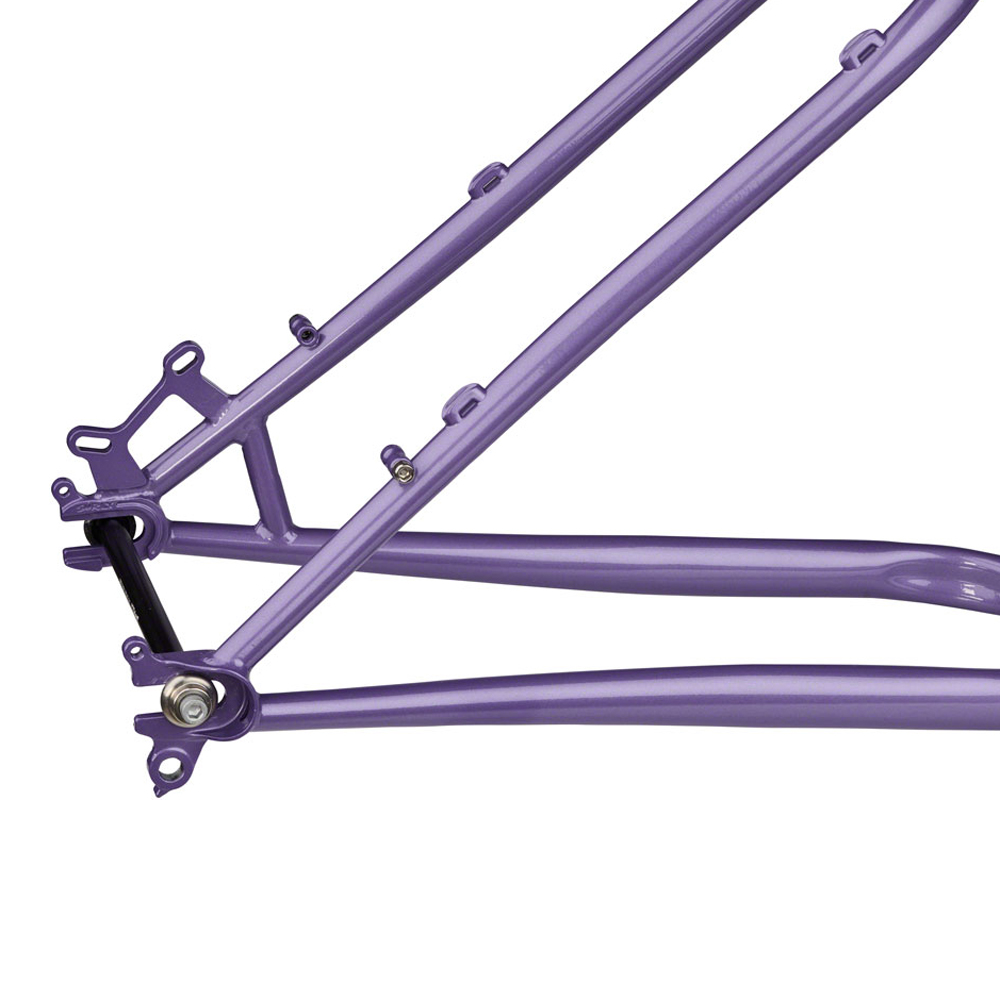

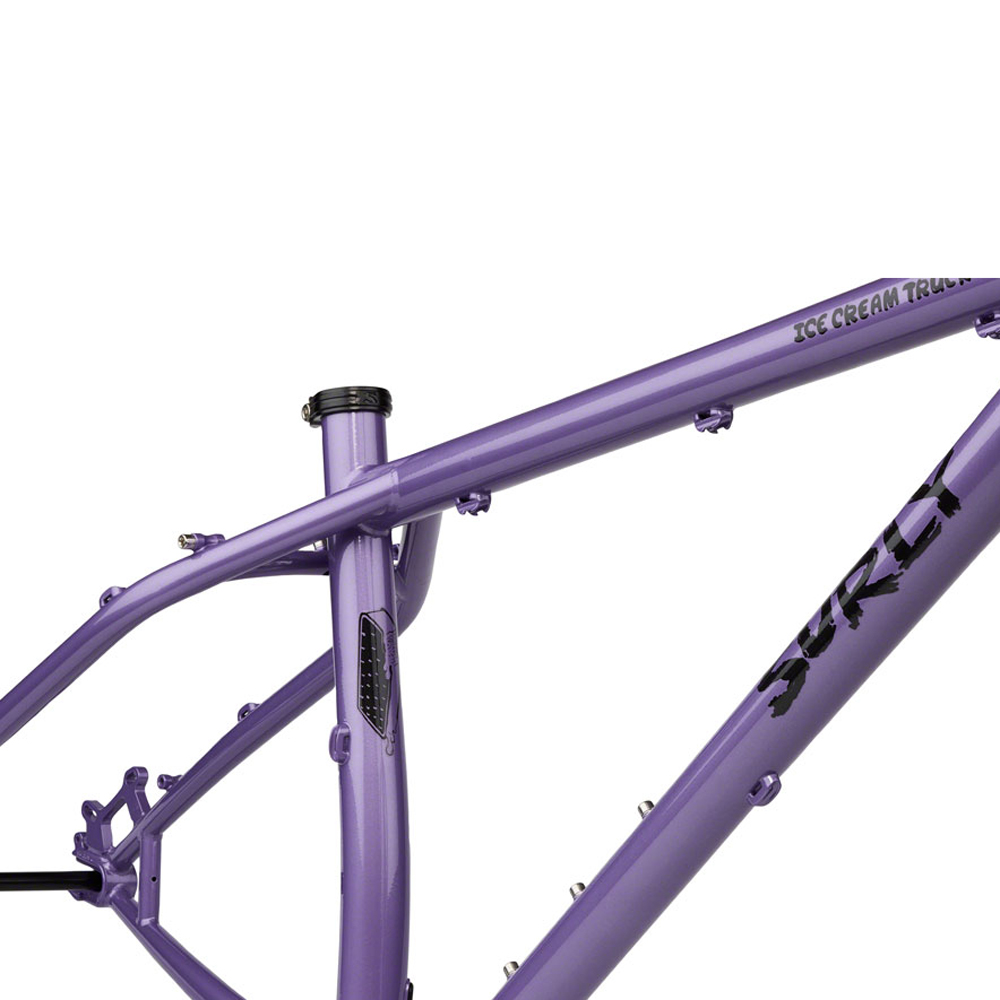

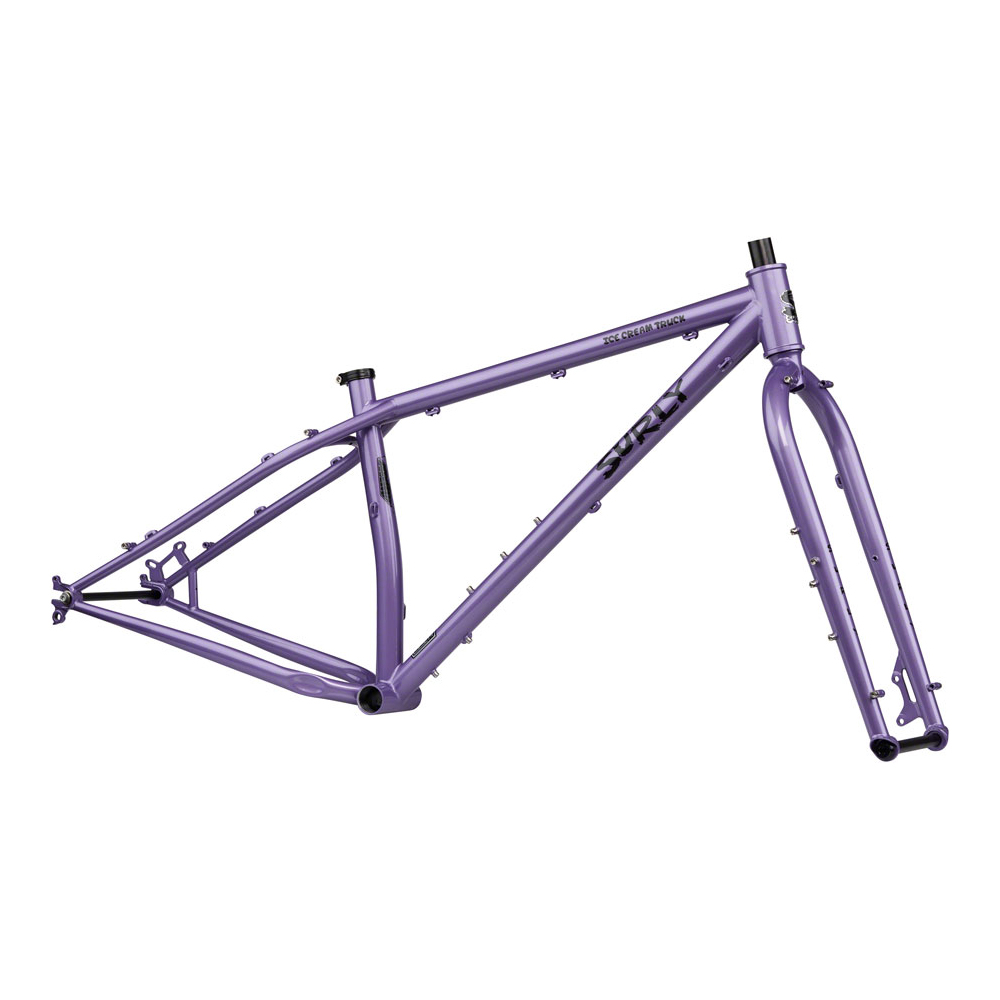

Surly Ice Cream Truck Frameset – Taro Milk Tea

$898.99

SKU: SURTARF Categories: , Tag:

From log and root covered ribbons of twisty singletrack to miles of powdery snow or sandy beaches, Ice Cream Truck can handle it all. Hell, you could probably even hop over a grizzly if the situation arises. Probably.


Overview

The Largest Tire Clearance on a Fat Bike Frame

While we could certainly throw out terms like “confidence-inspiring” and “traction-laden” to describe Ice Cream Truck, those phrases are mostly bullshit, so we’re not going to do that. We’re not here to inspire you, and we didn’t laden it with anything. What we did do was design a monolith of a trail bike that doesn’t give two shits about what’s in front of it.

Features

Long toptube, short seatstays, and a 68-degree headtube angle makes it tight and maneuverable on fast, technical terrain

Modern trail bike standards like stealth dropper post routing, 44mm headtube, and thru-axles

Clearance for a full 26” x 5” tire on 100mm rims

Specs

frame geometry line drawing with letters

Frame measurements (mm) SM MD LG XL
A. Effective Top Tube 585 610 635 660
B. Stand Over 777 803 831 812
C. Reach 405 427 449 472
D. Stack 588 598 607 616
E. Total Seat Tube Length 366 419 470 521
F. Headtube Length 95 105 115 125
G. Headtube Angle 68.0 68.0 68.0 68.0
H. Seat Tube Angle 73.0 73.0 73.0 73.0
I. BB Drop 60 60 60 60
J. BB Height – – – –
K. Chainstay Length 440 440 440 440
L. Fork Length Axle to Crown 483 483 483 483
M. Fork Offset 47 47 47 47
N. Wheelbase 1105 1131 1157 1182
Component measurements (mm)
Crank Arm Length 170 175 175 175
Handlebar Width 750 800 800 800
Stem Length 60 70 80 90

* All dimensions are preliminary and subject to change

Design & Wheel/Tire Sizes

  • Wheel/Tire Size: 26 × 4.8″

Frame

  • Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet-flared tubes, TIG welded, ED coated

Fork

  • Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

  • Suspension Fork Length (Travel): 571 × 51mm (Fatbike 140mm)

  • Rigid Fork Length: 483mm

  • Fork Offset: 47mm

  • Axle to Crown: 483mm

Axle Spacing & Brakes

  • Rear Spacing: 12 × 197mm (Surly axle included)

  • Front Spacing: 15 × 150mm (Surly axle included)

  • Front Brake Mount: Disc, 51mm I.S. (203mm max rotor)

Headset & Steerer Details

  • Headset (Upper): ZS44/28.6

  • Headset (Lower): EC44/30

  • Steerer Tube: Ø28.6mm (1-1/8″)

  • Crown Race: Ø30mm (1-1/8″)

  • Stem Clamp Diameter: Ø28.6mm (1-1/8″)

Seatpost & Drivetrain Compatibility

  • Seatpost Diameter: Ø30.9mm

  • Dropper Post Compatible: Yes

  • Seatpost Clamp: Ø33.1mm

  • Front Derailleur Clamp: Ø34.9mm

  • Front Derailleur Type: High direct mount, top-pull, 55mm offset adapter (not included)

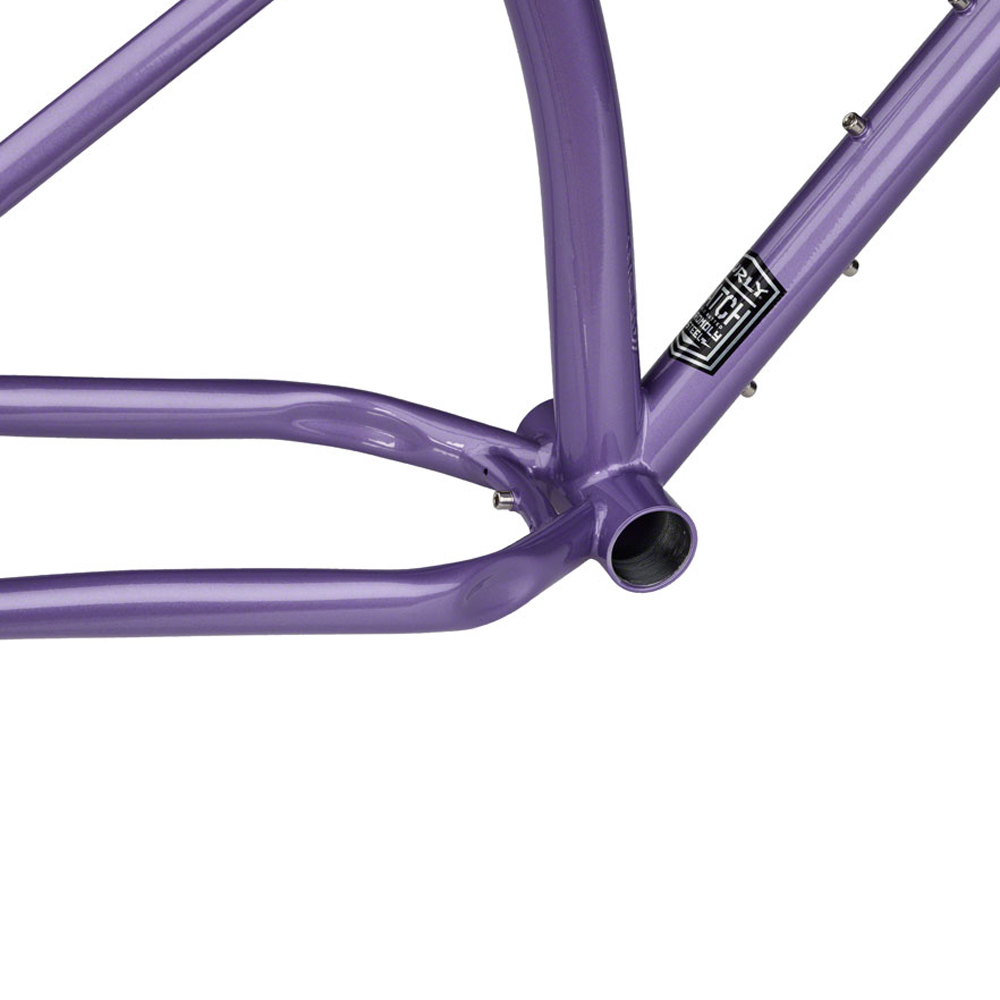

  • Bottom Bracket: 100mm threaded (1.37″ × 24 TPI)

  • Crankset (Max Ring):

    • 1x (Fat Bike 190): 34T

    • 2x (Surly OD): 22/36T

Mounting Points

  • Bottle Mounts:

    • 1 Standard (XS–M)

    • 2 Standard (L–XL)

  • Fork Mounts: 2 Three-Pack, plus rack mounts (upper, lower, and mid-blade threaded)

  • Front Fender Mounts: N/A

  • Rear Fender Mounts: Yes

Warranty

Register your purchase at Surly’s Warranty Registration.

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
