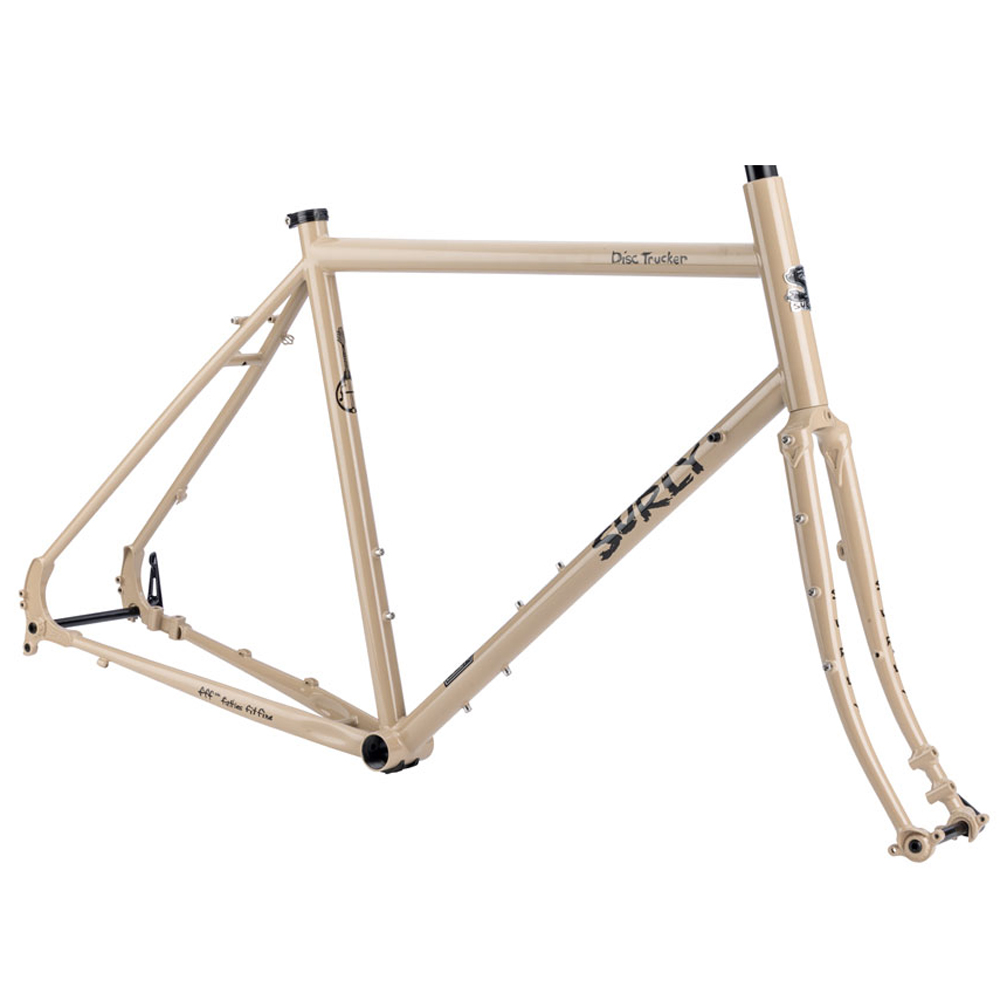

Surly Disc Trucker 700c Frameset (Grandpa’s Khakis)

$998.99

Free Shipping on Bicycle Frames within the lower 48.
Ask us for a quote for International shipments!

SKU: SURFRGR Categories: , , Tag:

Why Disc Brake Touring Bikes?

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.


Overview

A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion.

Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.

Features

100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life

Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough

Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs

Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes

Clearance for 700c x 47mm with or without fenders

Specs

Frame measurements (mm) 56cm 58cm 60cm 62cm 64cm
A. BB Drop 80 80 80 80 80
B. Chainstay Length 450 450 450 450 450
C. Fork Length – Axle to Crown 390 390 390 390 390
D. Fork Offset 45 45 45 45 45
E. Head Tube Angle (deg) 72 72 72 72 72
F. Headtube Length 175 195 215 235 250
G. Reach 387.5 391 400 402 412.5
H. Seat Tube Angle (deg) 73.0 72.5 72.5 72.0 72.0
I. Seat Tube Length – Center to Top 560 580 600 620 640
J. Stack 613 632 651.5 670.5 685
K. Standover 813 832 851 869 885.5
L. Top Tube Length (Effective) 575 590 605 620 635
M. Wheelbase 1051 1060 1075.5 1084 1090
Component measurements (mm)
Crank Arm Length 170 170 170 170 170
Handlebar Width 480 480 480 480 480
Handlebar Rise / Drop 30 30 30 30 30
Stem Length 100 100 110 120 120
Stem Angle (deg) 6 6 6 6 6

Wheel Size: 700c

Brake Type: Disc

Platform: Disc Trucker

Fork Type: Rigid

Rear Axle: 12mm Thru x 142mm

Frame Material: Steel

TT (Effective): 575

Mfg Size: 56

Front Axle: 12mm Thru x 100mm

Frame Type: Rigid

Warranty

All Surly frames are backed by a 3-year warranty against defects in material and manufacturing.  Please see Surly’s frame warranty page to review their limitations.
