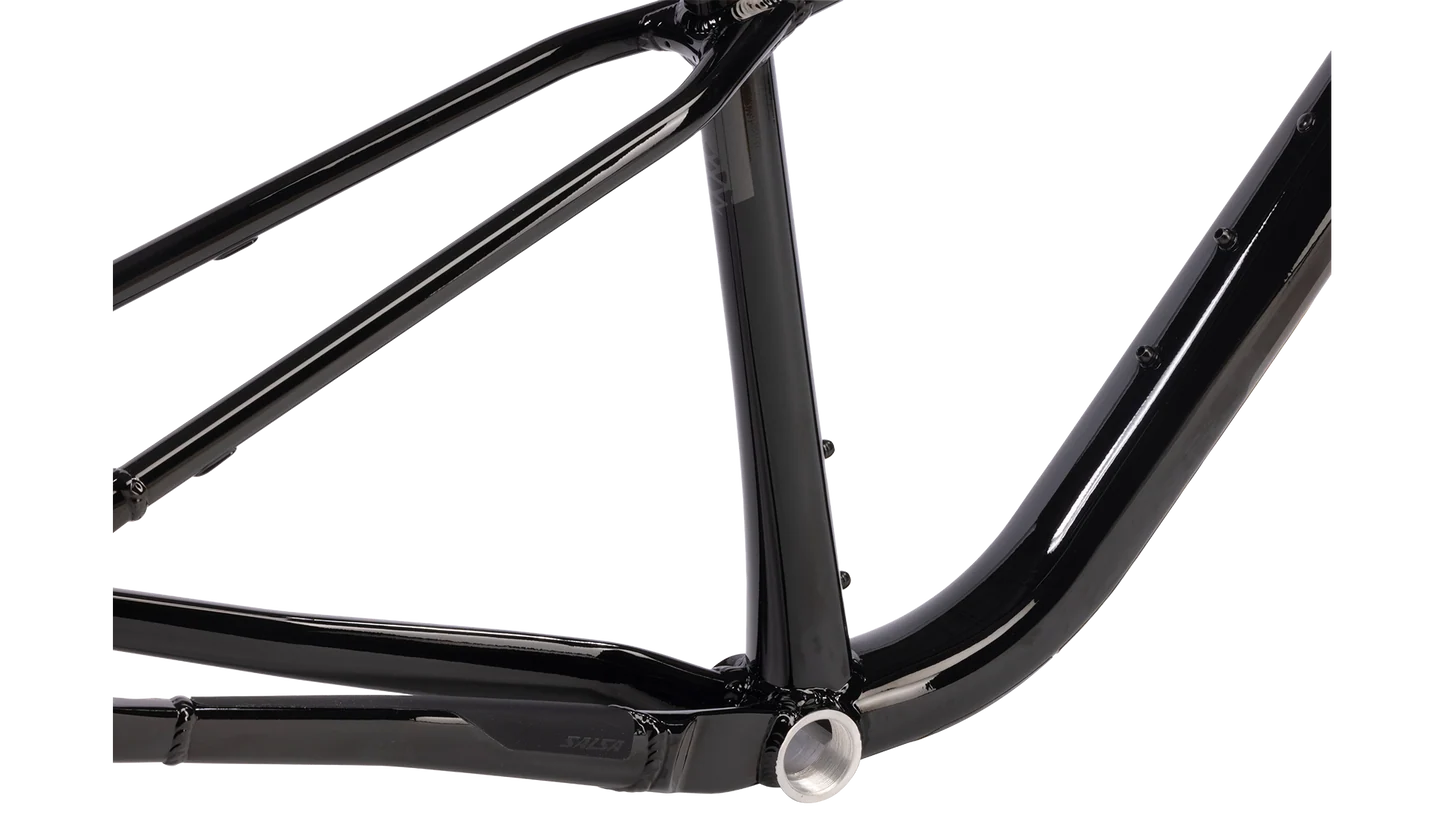

Salsa Timberjack Frame
Salsa Timberjack Frame - Image 2
Salsa Timberjack Frame - Image 3
Salsa Timberjack Frame - Image 4
Salsa Timberjack Frame - Image 5

Salsa Timberjack Frame

$698.99

Free Shipping on Bicycle Frames within the lower 48.
Ask us for a quote for International shipments!

SKU: SAL25TM Categories: , , Tag:

The Timberjack is Salsa’s aggressive trail hardtail. Its progressive trail geometry is stable on descents and technical sections. The Alternator 2.0 dropouts are SRAM UDH-ready and offer future drivetrain flexibility. Ample accessory mounts and dual wheel size compatibility add more versatility to the package, making Timberjack a well-rounded ripper that likes to party.


Overview

The Salsa Timberjack frame is full of potential. Build it into a high-end trail toy or a fun parts-bin bikepacking rig. The aluminum frame’s progressive trail geometry rewards downhill skill but is plenty capable of climbing with finesse. On-bike storage keeps the weight of your ride essentials down low on your frame rather than on your back.

Features

Compatible with 130–150mm forks and dropper posts for confidence and capability on technical terrain

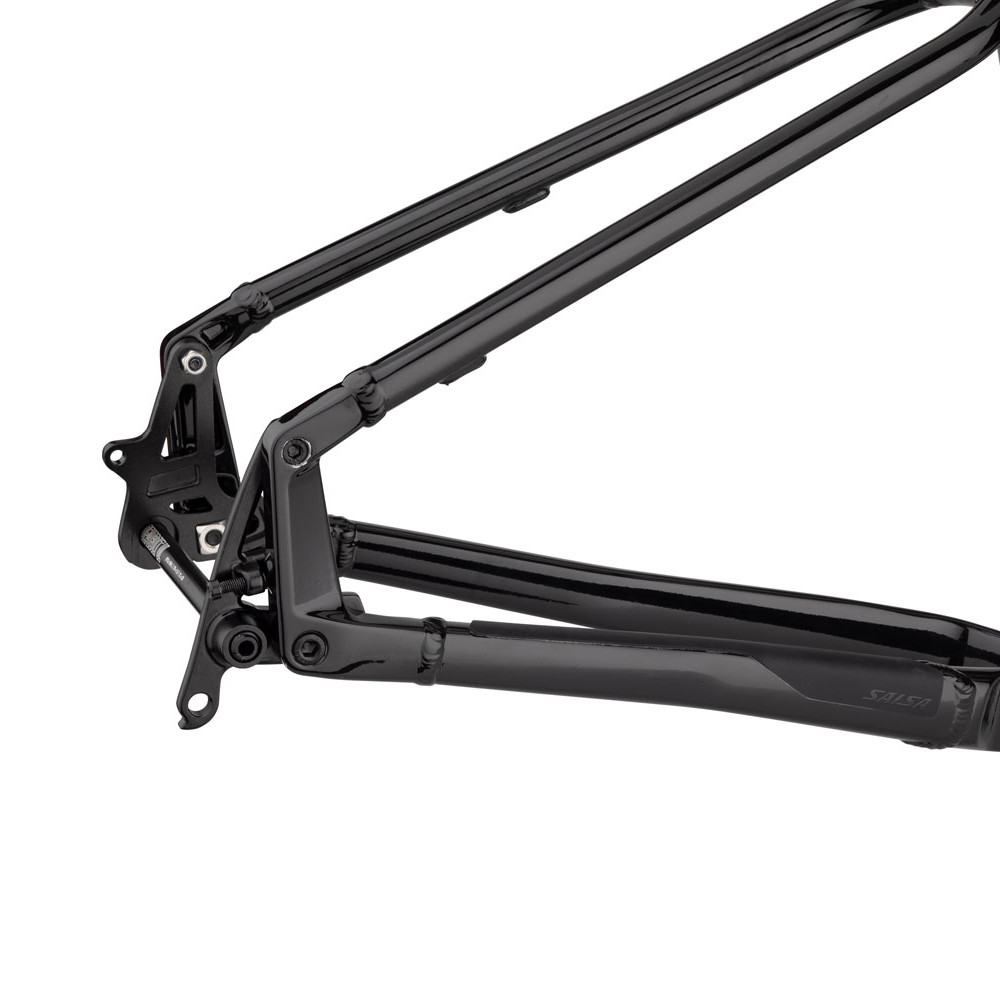

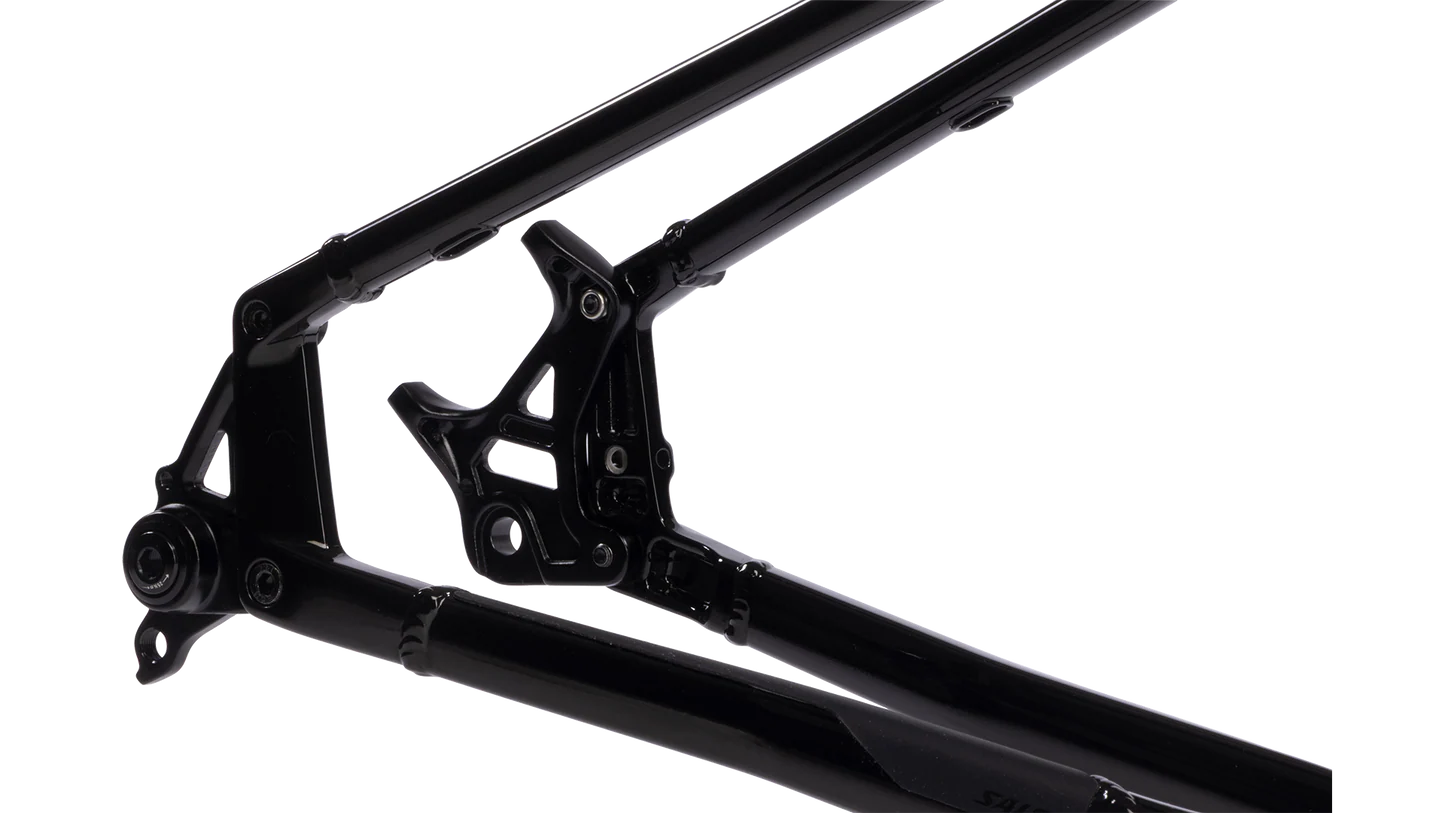

Alternator 2.0 dropouts equipped with SRAM UDH-compatible dropout plates; other Alternator 2.0 plates expand drivetrain and setup options.

Aggressive trail geometry with short chainstays and long front-center provide agility and stability on the trail

Front triangle space is maximized for frame bag use

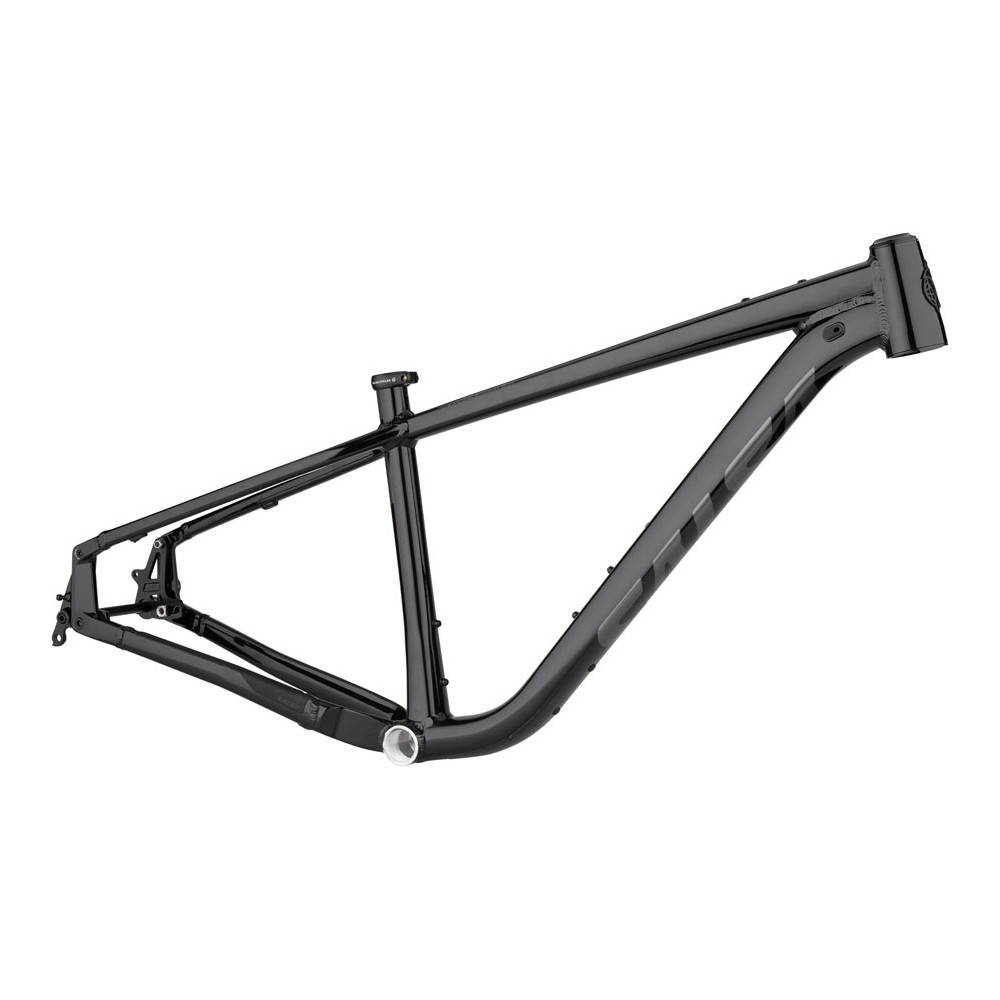

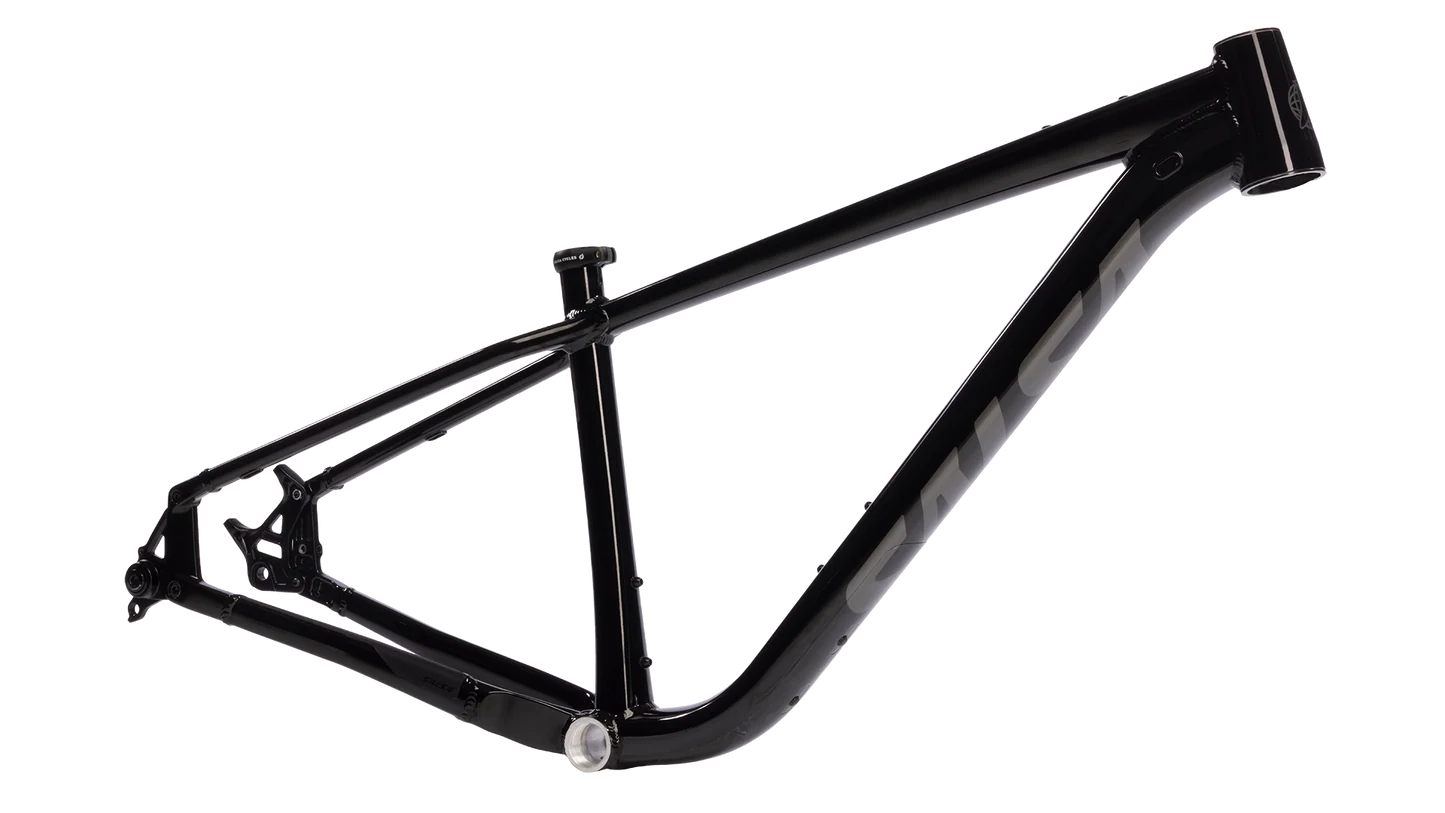

6061-T6 alloy frame

Compatible with up to 27.5 x 2.8″ or 29 x 21.–2.6″ wheels and tires

Internal cable routing

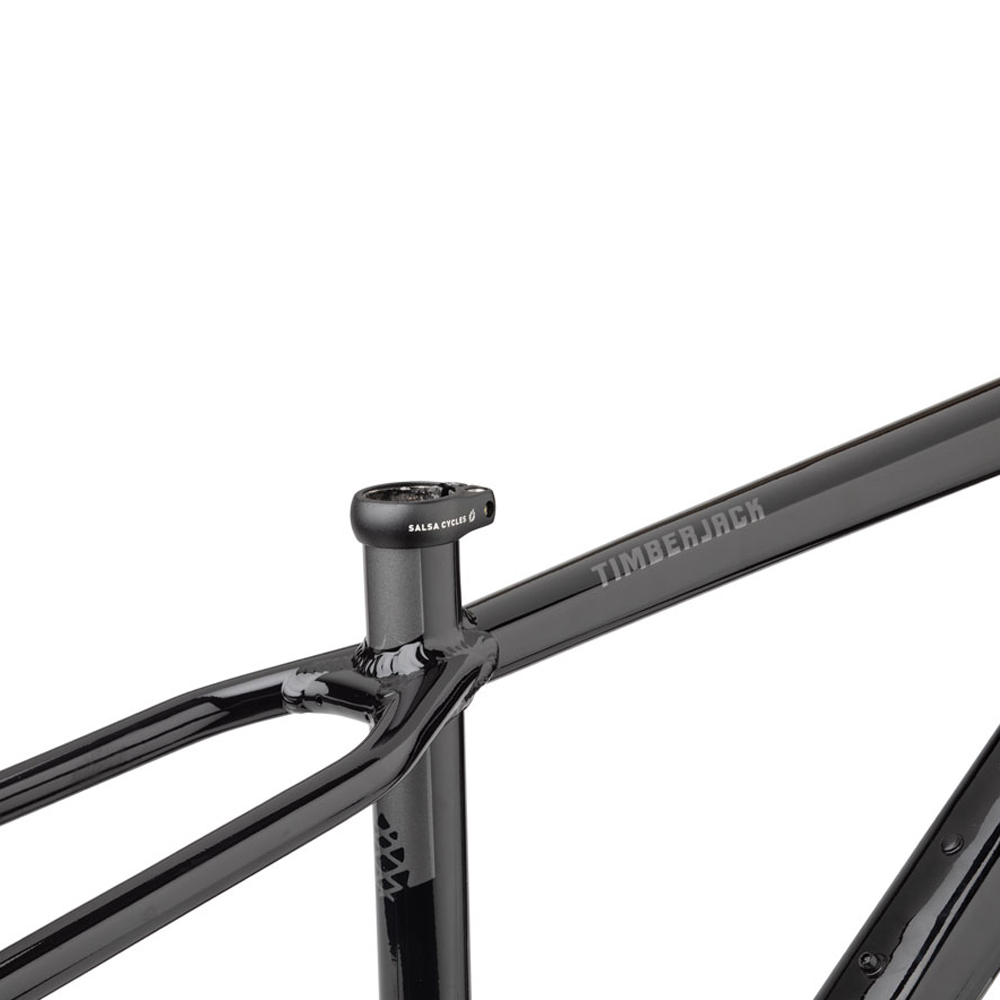

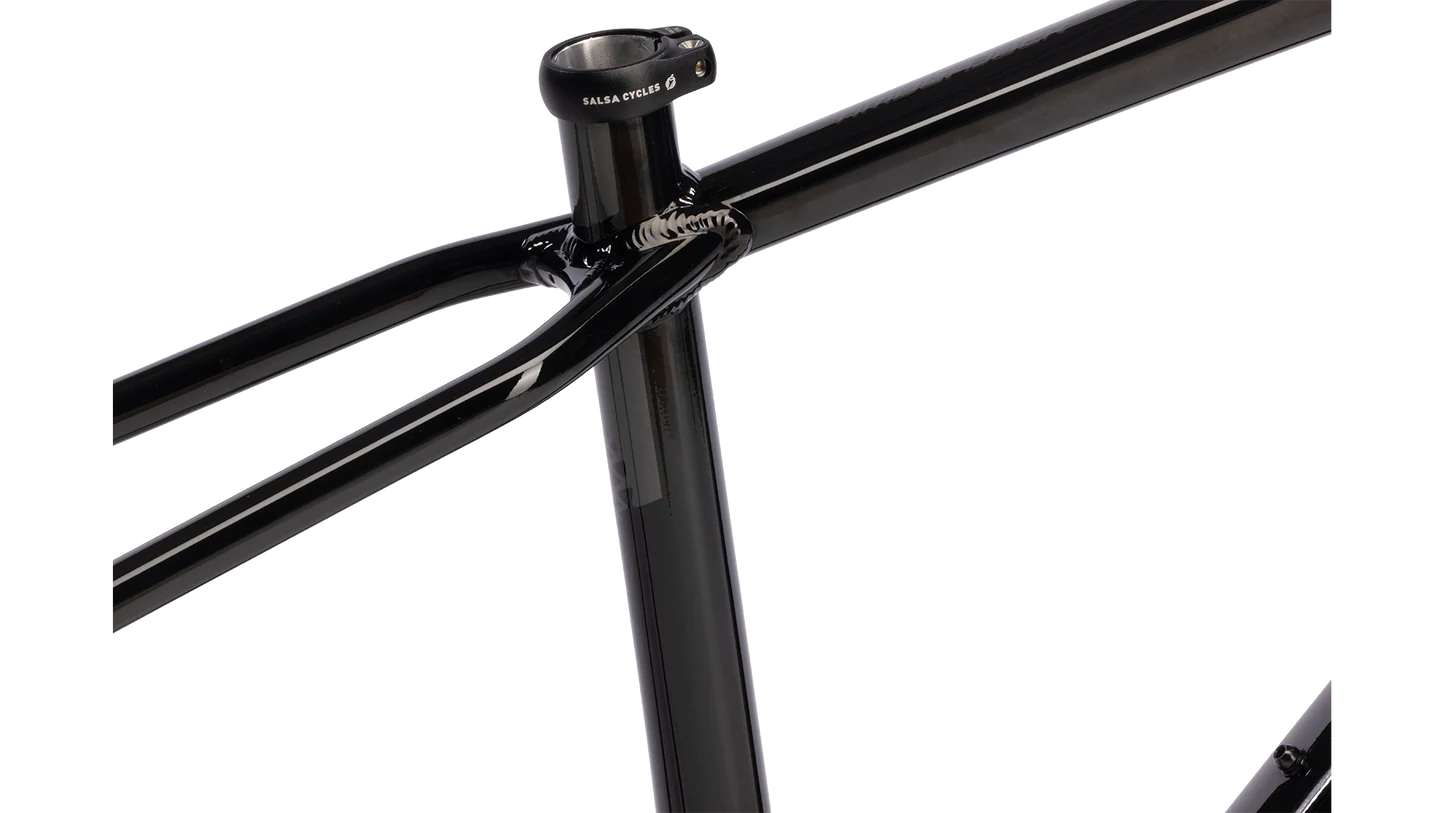

Includes FSA headset, Salsa Deadbolt UL thru-axle, and Salsa Lip-Lock seatpost collar

Specs

frame geometry line drawing with letters

Frame measurements (mm) XS SM MD LG XL
A. Effective Top Tube 570 594 615 639 659
B. Stand Over 684 701 721 748 768
C. Reach 402 426 446 467 485
D. Stack 632 632 637 646 655
E. Total Seat Tube Length 343 370 395 432 457
F. Headtube Length 100 100 105 115 125
G. Headtube Angle 66.4 66.4 66.4 66.4 66.4
H. Seat Tube Angle 75.1 75.1 75.1 75.1 75.1
I. BB Drop 57 57 57 57 57
J. BB Height – – – – –
K. Chainstay Length 420–437 420–437 420–437 420–437 420–437
L. Fork Length Axle to Crown 510.5 510.5 510.5 510.5 510.5
M. Fork Offset 44 44 44 44 44
N. Wheelbase 1120 1143 1165 1181 1212

* All dimensions are preliminary and subject to change

Wheel Size: 29″ , 27.5+

Brake Type: Disc

Platform: Timberjack

Rear Axle: 12mm Thru x 148mm

Frame Material: Aluminum

TT (Effective): 570

Defined Color: Black

Mfg Size: X-Small

Frame Type: Rigid

Warranty

Salsa’s bicycles fall between a 2 and 5 year warranty. Please see Salsa’s extensive warranty details to review their limitations.
