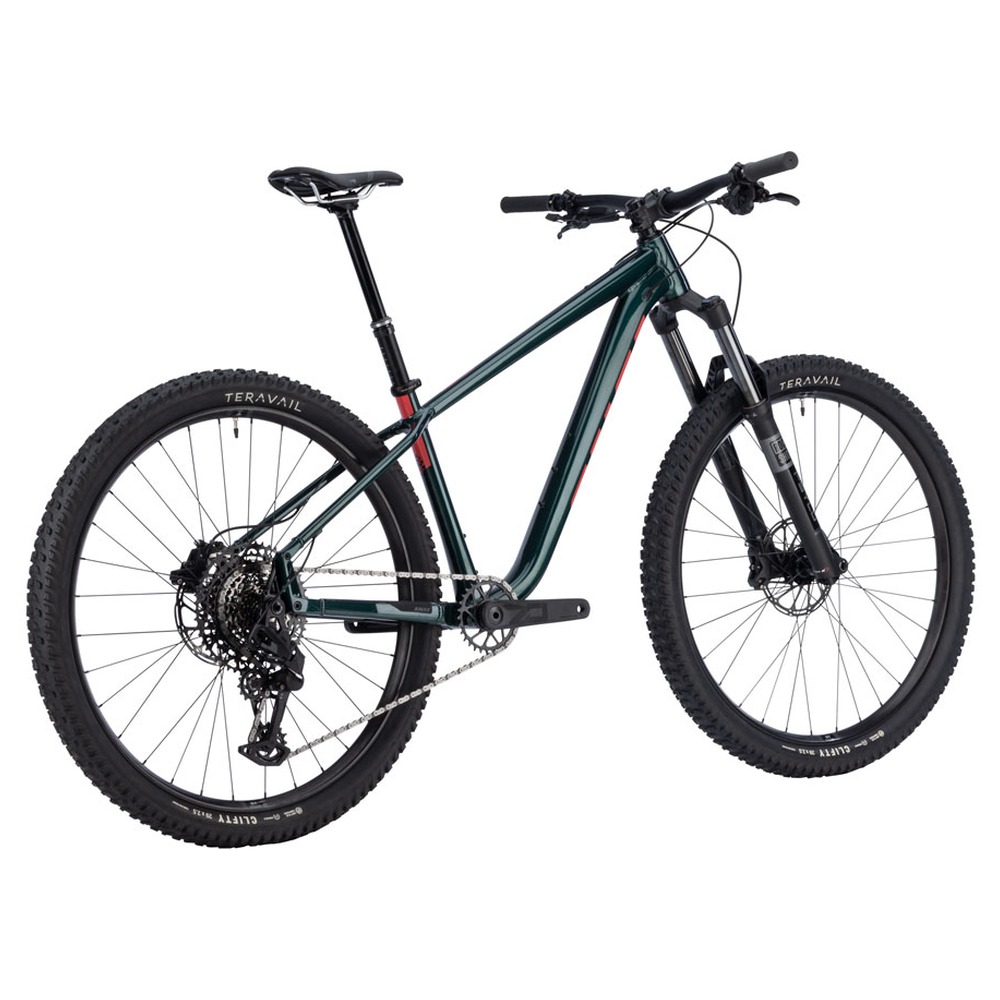

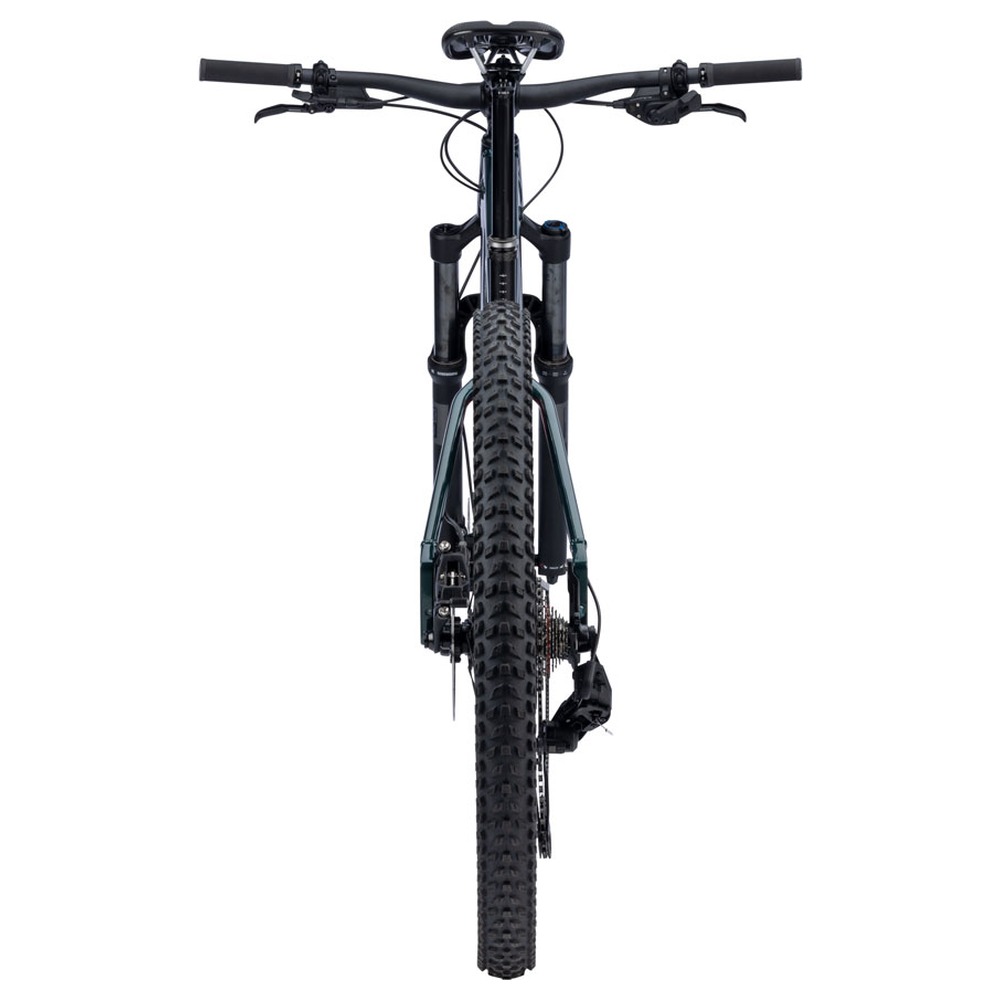

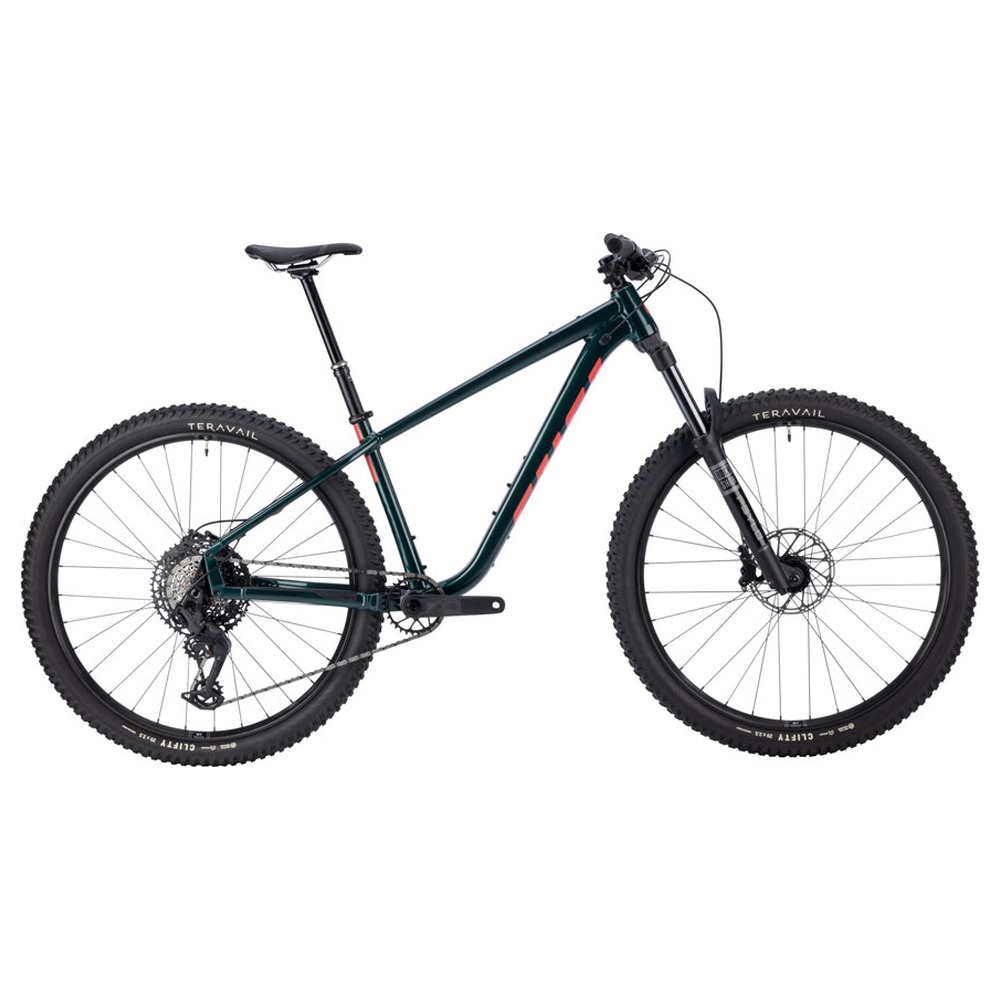

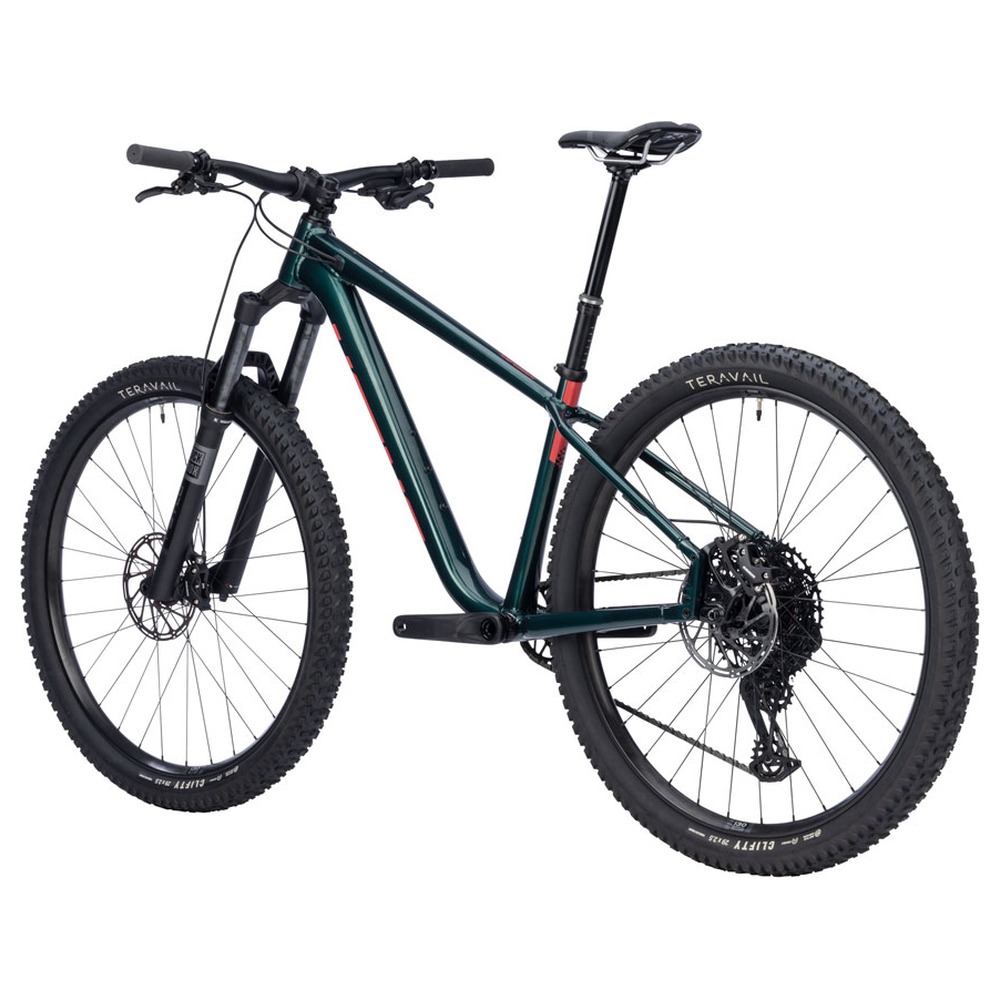

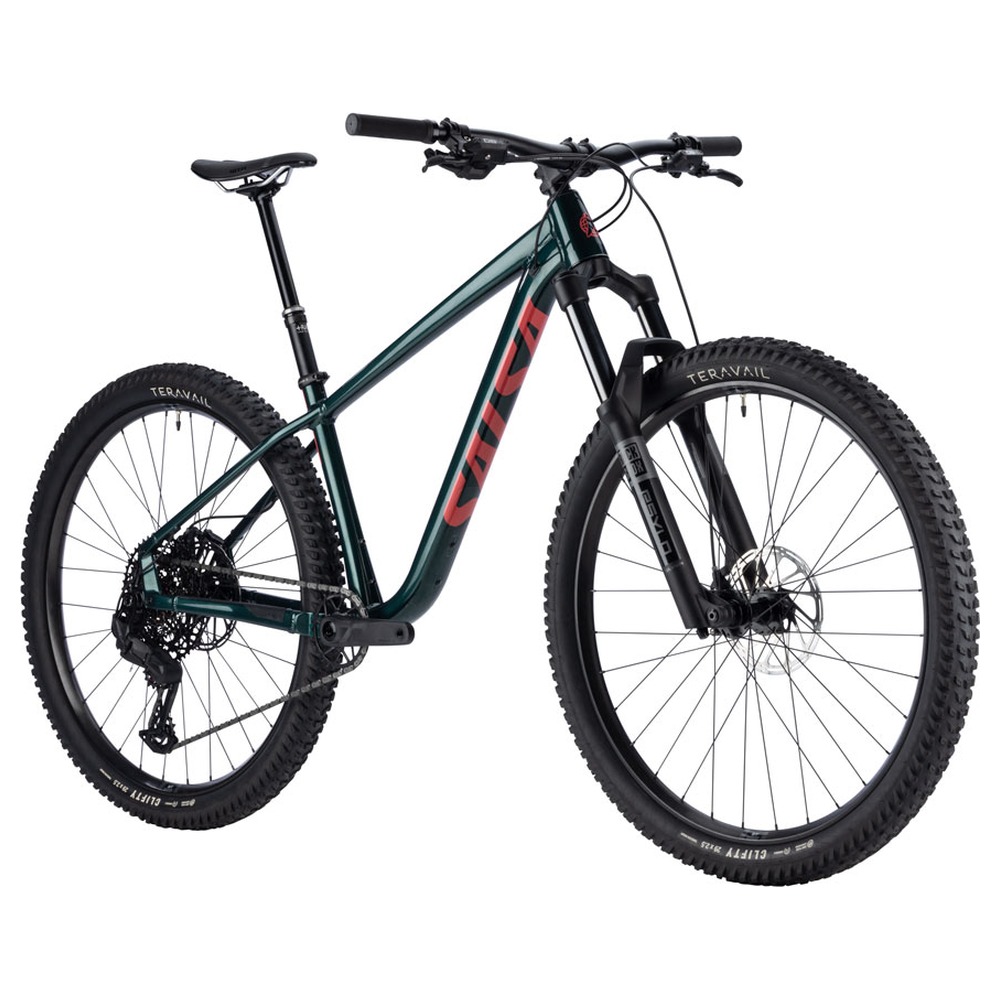

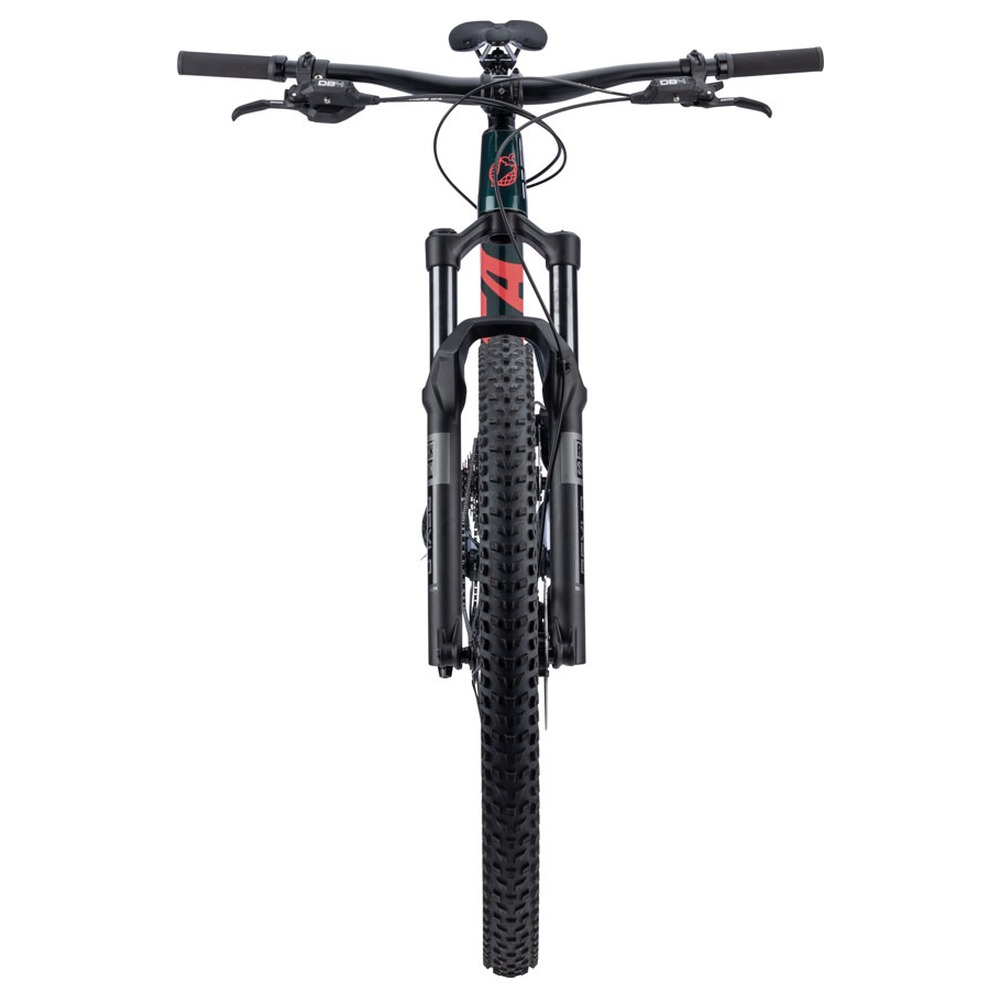

Salsa Timberjack Eagle 70

Features

140mm fork and dropper post provide confidence and capability on technical terrain

The Alternator 2.0 dropout system on this Timberjack comes equipped with SRAM UDH-compatible, fixed-position dropout plates. Other Alternator 2.0 dropout plates (sold separately) allow for single-speed adjustability and accommodate different hub standards.

Aggressive trail geometry with short chainstays and long front-center provide agility and stability on the trail

Front triangle space is maximized for frame bag use

6061-T6 alloy frame

Compatible with up to 27.5 x 2.8″ or 29 x 21.–2.6″ wheels and tires

Internal cable routing

Specs

Frame measurements (mm)	XS	SM	MD	LG	XL
A. Effective Top Tube	570	594	615	639	659
B. Stand Over	674	691	710	738	759
C. Reach	407	431	451	472	490
D. Stack	603	603	607	616	625
E. Total Seat Tube Length	343	370	395	432	457
F. Headtube Length	100	100	105	115	125
G. Headtube Angle	66	66	66	66	66
H. Seat Tube Angle	74.8	74.8	74.8	74.8	74.8
I. BB Drop	54	54	54	54	54
J. BB Height	319	319	319	319	319
K. Chainstay Length	437	437	437	437	437
L. Fork Length Axle to Crown	551	551	551	551	551
M. Fork Offset	44	44	44	44	44
N. Wheelbase	1137	1160	1182	1198	1229
Component measurements (mm)
Crank Arm Length	165	165	165	165	165
Handlebar Width	760	760	780	780	800
Stem Length	50	50	50	50	50

* All dimensions are preliminary and subject to change

Frameset

Frame: Timberjack 2.0 Aluminum

Fork: RockShox Psylo Silver RC, 140mm travel

Color: Black Spruce

Drivetrain

Front Derailleur: N/A

Rear Derailleur: SRAM Eagle 70 Transmission

Cassette: SRAM XS-1270, 10–52t, 12-speed

Chain: SRAM Eagle 70 Transmission Flattopp

Crankset: SRAM Eagle 70 Transmission, 30t

Shifter: SRAM Eagle 70 Transmission

Brakes

Brakes and Rotors: SRAM DB4 levers, SRAM DB4 4-piston calipers, SRAM CenterLine Rotors 2.0 (6-bolt, 180mm front and rear)

Components

Headset: FSA Orbit

Stem: Salsa Guide Trail 35.0

Handlebar: TranzX alloy, 35.0

Grips / Bar Tape: Salsa File Tread

Seatpost: TranzX YSI05 RAD+ travel adjustable dropper, GL stealth lever

Saddle: WTB Solano, Steel Fusion Hybrid, medium

Wheels

Front Wheel: WTB Frequency 3X 15 x 110mm hub, WTB ST Tough i30 rim, 32h, 29″ (taped, TCS sealant and valves included)

Rear Wheel: WTB Frequency 3X 12 x 148mm hub, WTB ST Tough i30 rim, 32h, 29″ (taped, TCS sealant and valves included)

Tires: Teravail Clifty 29 x 2.5″, Durable casing, Grip Plus compound

Other

Complete Bike Weight: 32 lb. 13 oz.

Specifications are subject to change without notice.

Warranty

LIMITED WARRANTY

Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.

NOTE:
All warranty periods below apply to the original owner only

ONE YEAR WARRANTY

All apparel
All frame bags

Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.

Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.

This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.

TWO YEAR WARRANTY

Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)

THREE YEAR WARRANTY

Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components

FIVE YEAR WARRANTY

Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames

THE WARRANTY DOES NOT COVER THE FOLLOWING

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble

Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer

Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use

Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components

Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer

Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt

Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty

Internal rust perforation on all steel frames

Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components

Bent or broken derailleur hangers or Alternator plates

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds

Damage to carbon fiber caused by any carbon assembly paste

Normal wear and tear

LEGAL DISCLAIMER

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
