Overview

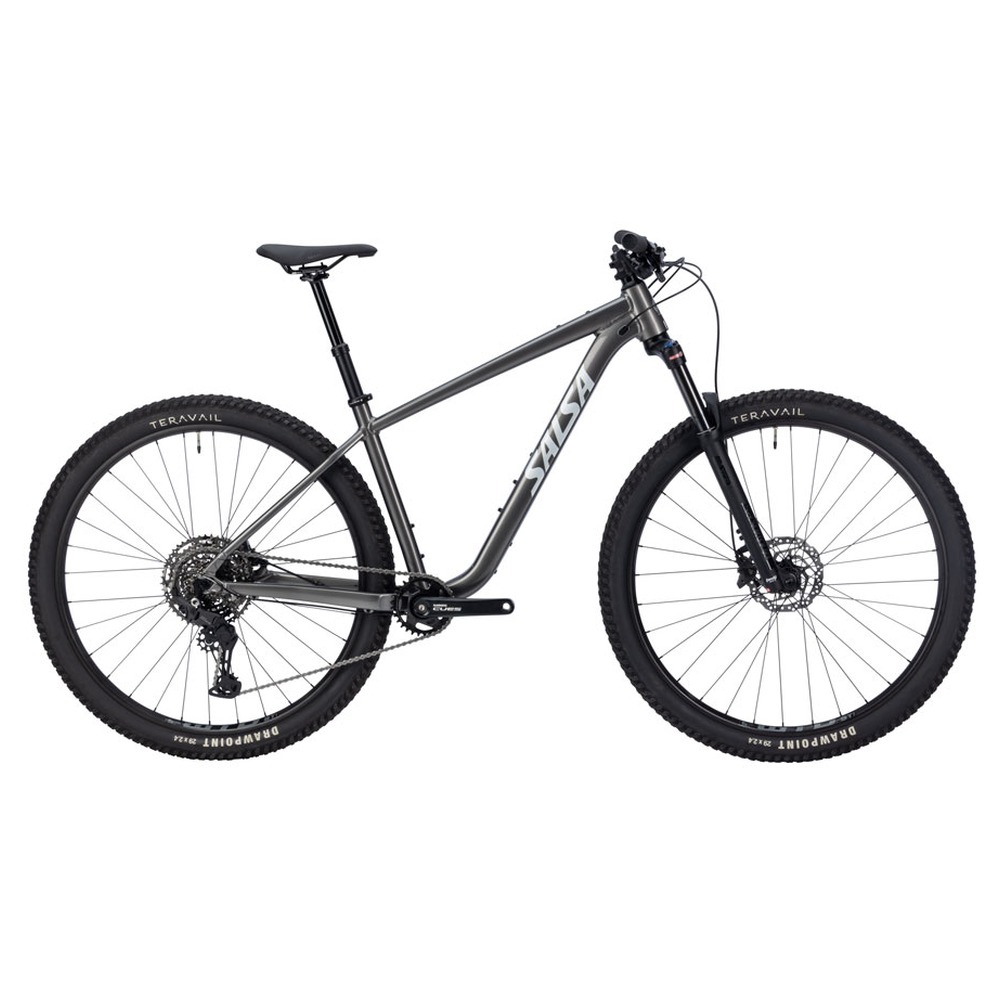

The Rangefinder CUES 10 is a hardtail trail bike that welcomes you to the world of mountain biking with a responsive, durable aluminum frame and geometry that puts you in a confident position for navigating the ups and downs of your local trails. Cargo mounts on the frame let you load up plenty of water, snacks, tools, and other ride essentials so you can spend more time riding or even explore bikepacking.
Rangefinder’s 120mm-travel fork absorbs trail bumps for a more comfortable, controlled ride, and 29 x 2.4″ tires grant you the traction you’ll want for rock gardens, loose surfaces, and other terrain. A Shimano CUES 10-speed drivetrain is simple and reliable, with a wide-range cassette for easier climbing.
Features
6061-T6 alloy frame
Internally-routed shift, brake and dropper post housing
120 mm suspension fork
Dropper post ( 100mm travel XS–SM; 125mm travel MD–XL)
1x drivetrain keeps shifting simple with plenty of gear range
Hydraulic disc brakes offer confident stopping power
Compatible with 29″ or 27.5 plus wheels and tires
Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
Geometry that grants confidence to newer mountain bikers
Specs
| Frame measurements (mm) | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| A. Effective Top Tube | 567 | 589 | 613 | 642 | 669 |
| B. Stand Over | 689 | 708 | 747 | 779 | 809 |
| C. Reach | 401 | 422 | 444 | 470 | 494 |
| D. Stack | 602 | 606 | 611 | 620 | 629 |
| E. Total Seat Tube Length | 355 | 381 | 431 | 470 | 508 |
| F. Headtube Length | 95 | 100 | 105 | 115 | 125 |
| G. Headtube Angle | 68.6 | 68.6 | 68.6 | 68.6 | 68.6 |
| H. Seat Tube Angle | 74.6 | 74.6 | 74.6 | 74.6 | 74.6 |
| I. BB Drop | 62 | 62 | 62 | 62 | 62 |
| J. BB Height | – | – | – | – | – |
| K. Chainstay Length | 439 | 439 | 439 | 439 | 439 |
| L. Fork Length Axle to Crown | 501 | 501 | 501 | 501 | 501 |
| M. Fork Offset | 51 | 51 | 51 | 51 | 51 |
| N. Wheelbase | 1102 | 1125 | 1150 | 1179 | 1207 |
| Component measurements (mm) | |||||
| Crank Arm Length | 170 | 170 | 170 | 170 | 170 |
| Handlebar Width | 760 | 760 | 780 | 780 | 800 |
| Stem Length | 50 | 50 | 50 | 50 | 50 |
* All dimensions are preliminary and subject to change
Frameset
Frame: Salsa Rangefinder, 6061-T6 alloy
Fork: SR Suntour XCR32, 120mm travel

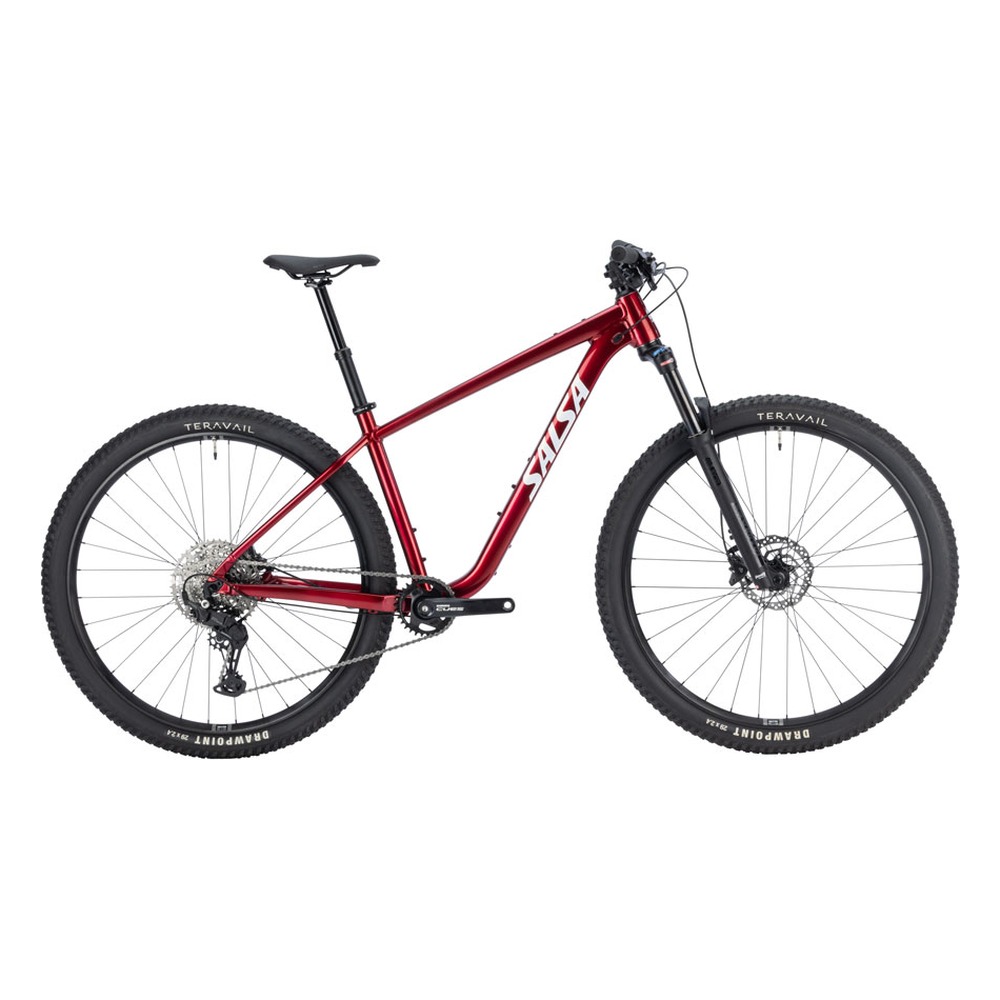

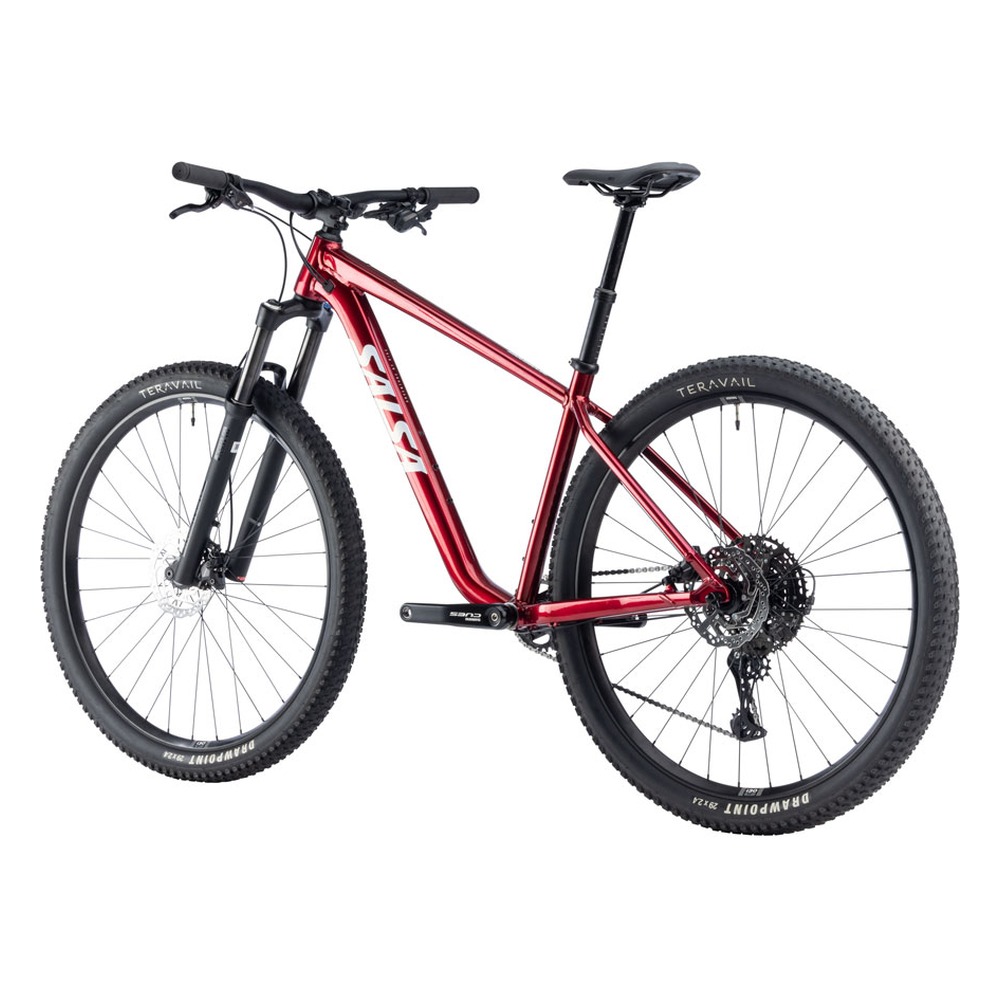

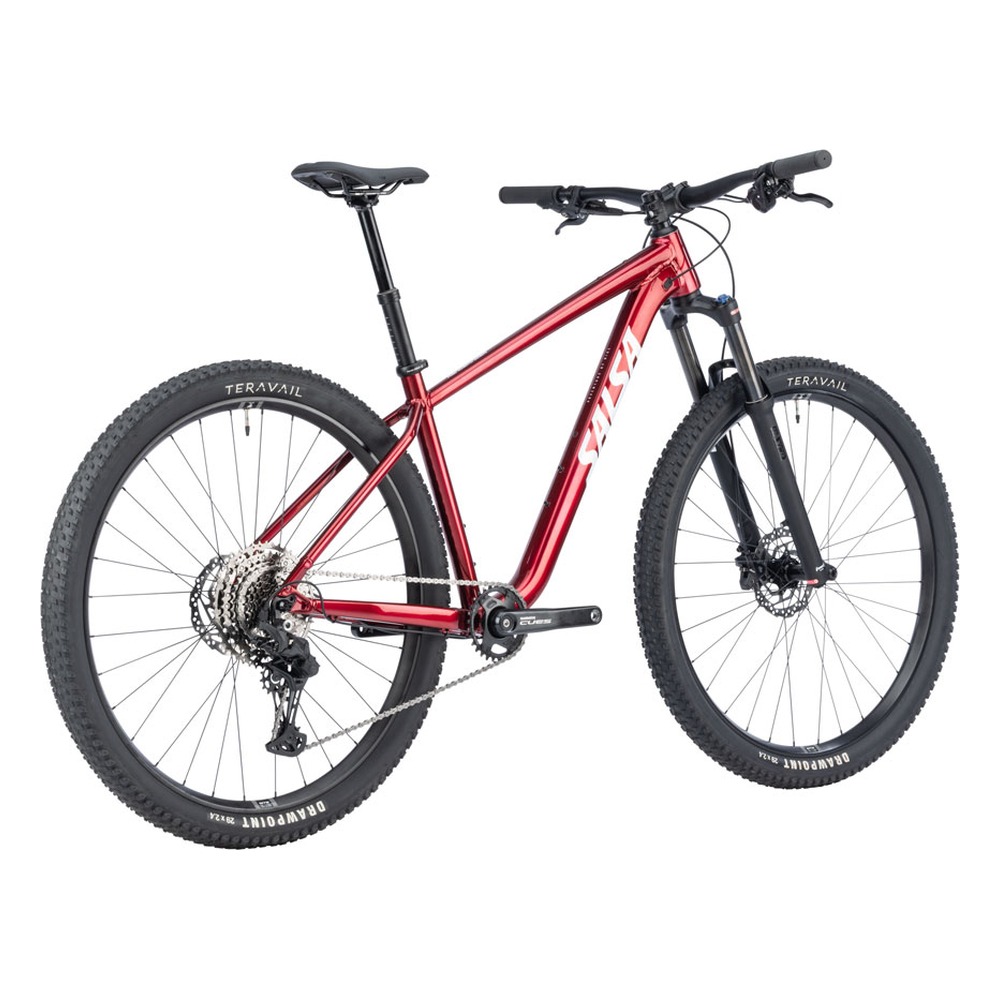

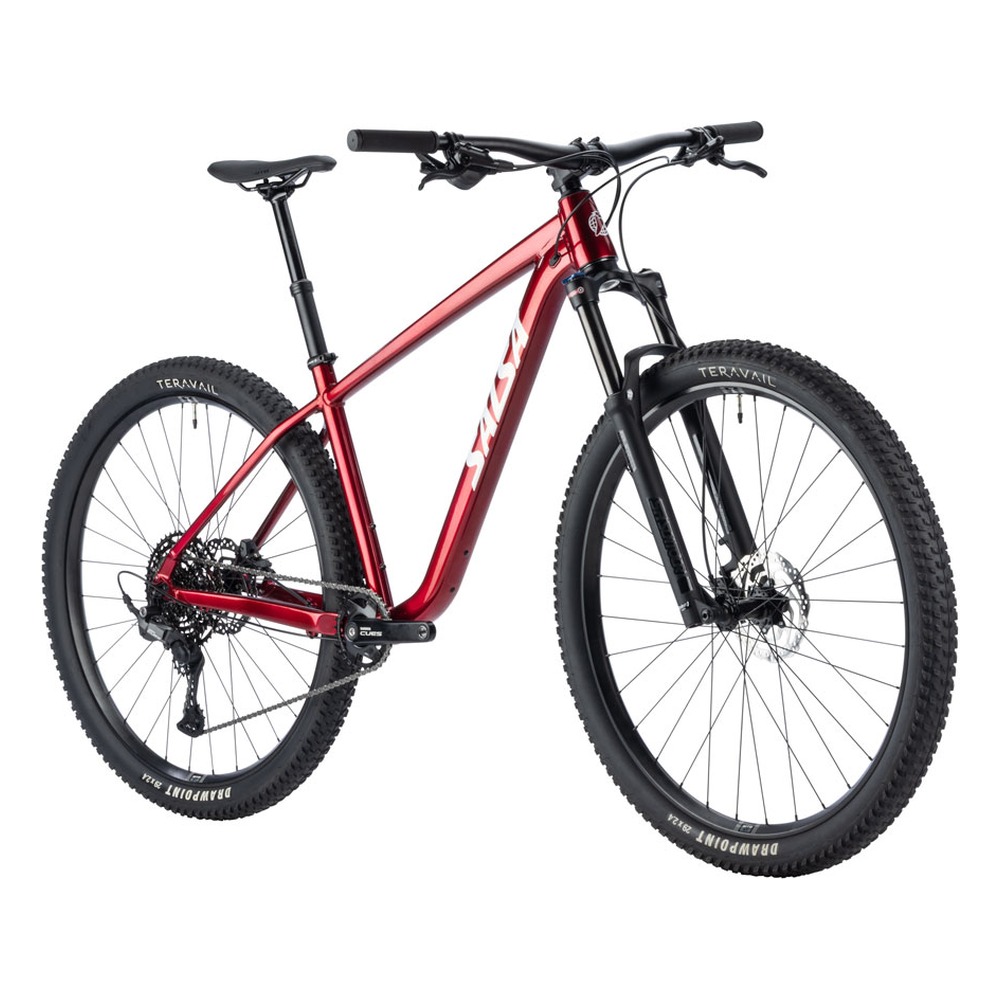

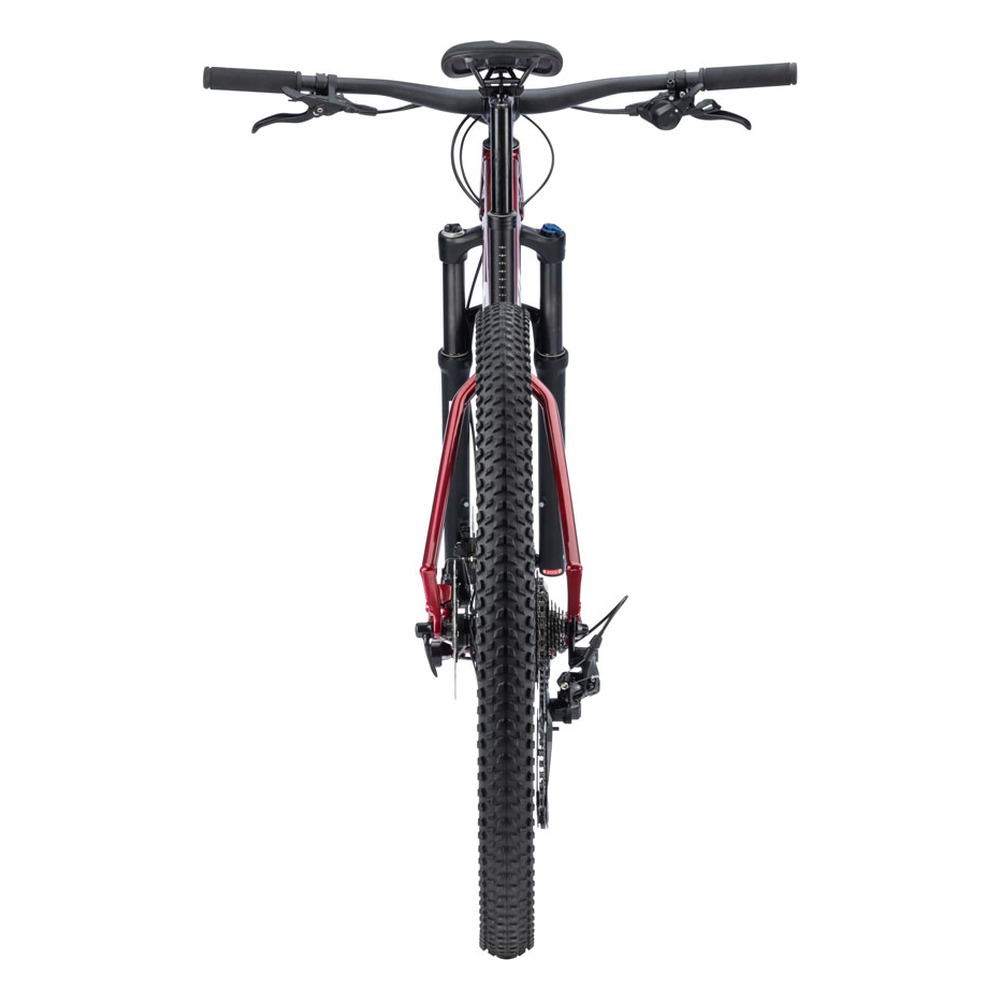

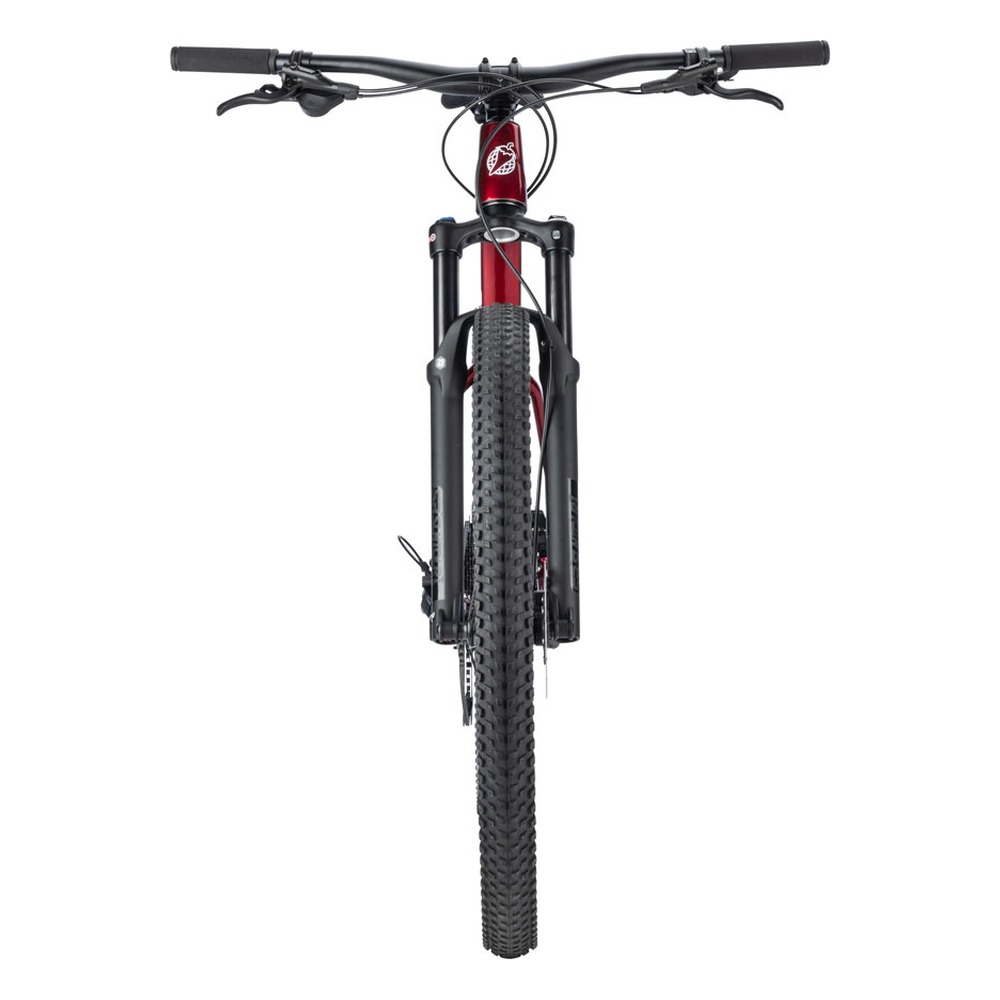

Color: Canyon Red
Drivetrain
Front Derailleur: N/A
Rear Derailleur: Shimano CUES U6000
Cassette: Shimano CUES LG400, 11–48t, 10-speed
Chain: Shimano LG500
Crankset: Shimano CUES U4000, 30t
Shifter: Shimano CUES U6000
Brakes
Brakes and Rotors: Shimano MT401 levers, Shimano MT410 calipers, Shimano RT10 rotors (Center Lock, 160mm front and rear)
Components
Headset: FSA Orbit B
Stem: Salsa Guide 35.0
Handlebar: TranzX alloy
Grips / Bar Tape: Salsa File Tread
Seatpost: TranzX YSI34, 100mm travel XS–SM; 125mm travel MD–XL
Saddle: WTB Solano, medium, steel hybrid fusion
Wheels
Front Wheel: Shimano TC500 15 x 110mm hub, WTB ST i30, 32h, 29″ rim
Rear Wheel: Shimano MT2000 10 x 141mm hub, WTB ST i30, 32h, 29″ rim
Tires: Teravail Drawpoint 29 x 2.4″
Other
Complete Bike Weight: 31 lbs 10 oz
Specifications are subject to change without notice.
Warranty
Register your purchase at Salsa’s Warranty Registration.
LIMITED WARRANTY
Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:
All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.
NOTE:
All warranty periods below apply to the original owner only
ONE YEAR WARRANTY
All apparel
All frame bags
Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.
Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.
This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.
TWO YEAR WARRANTY
Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)
THREE YEAR WARRANTY
Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components
FIVE YEAR WARRANTY
Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames
THE WARRANTY DOES NOT COVER THE FOLLOWING
Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble
Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer
Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use
Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components
Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer
Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt
Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty
Internal rust perforation on all steel frames
Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components
Bent or broken derailleur hangers or Alternator plates
Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds
Damage to carbon fiber caused by any carbon assembly paste
Normal wear and tear
LEGAL DISCLAIMER
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
