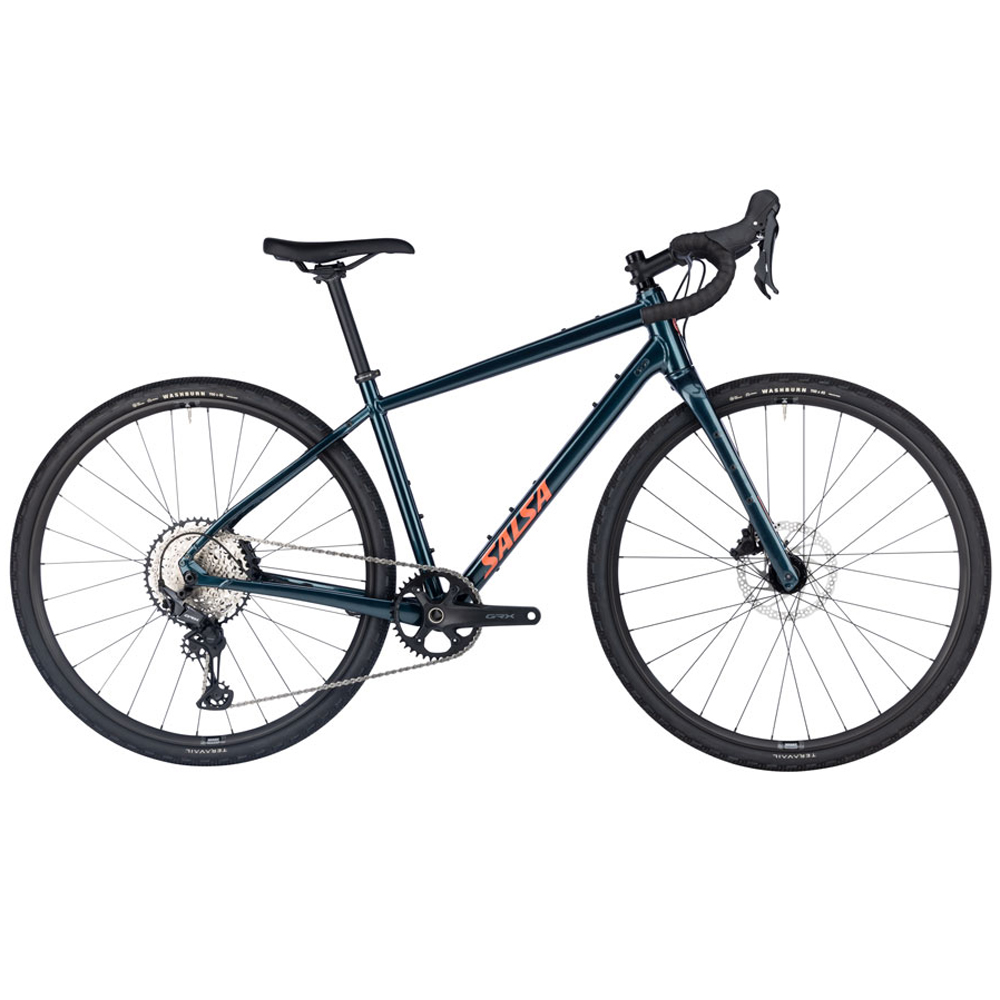

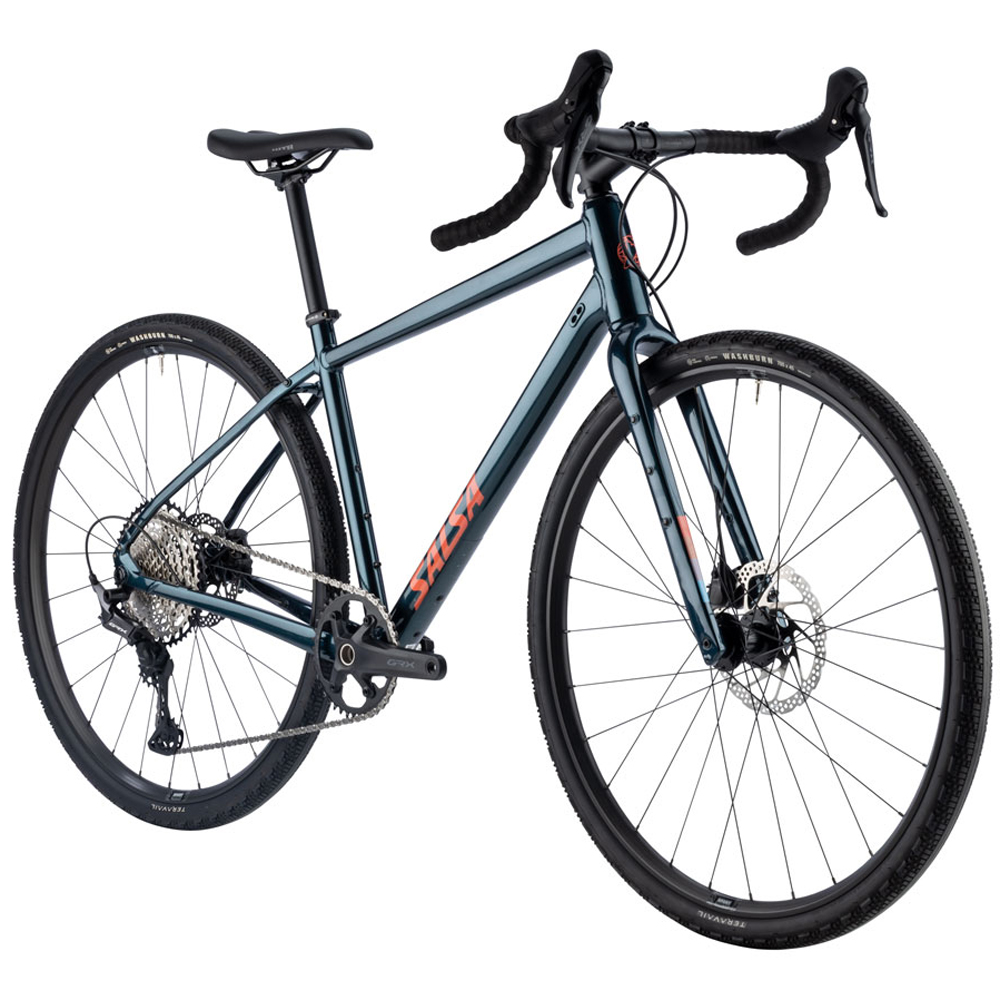

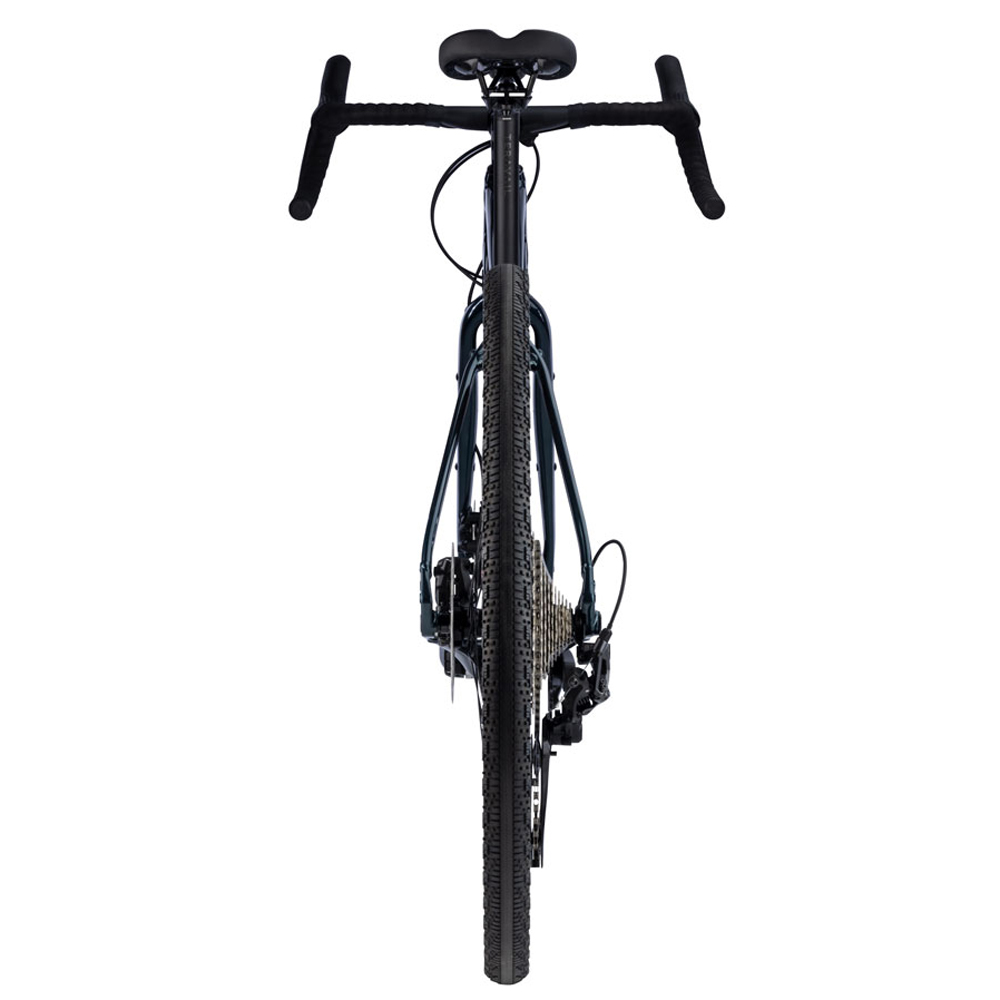

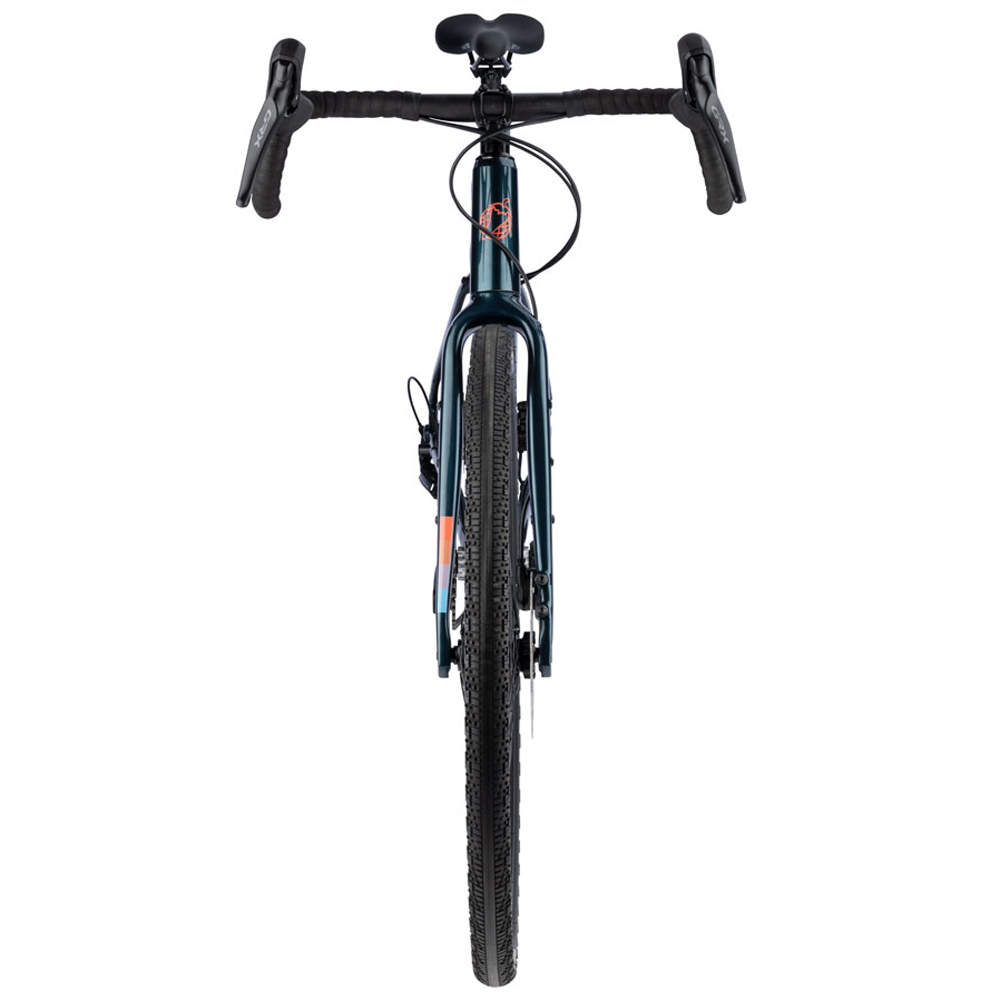

Salsa Journeyer GRX 610 1×12 700c – Midnight Blue

Features

6061-T6 alloy frame

Salsa Waxwing V2 carbon fork – includes fender mounts, Three-Pack mounts, mid-blade rack mounts, and abrasion-resistant plate.

Flat-mount brakes

Internal routing for brakes, shifters, and dropper post

Top tube and down tube accessory mounts on frame hold ride essentials

Compatible with 700c and 650b wheels and tires

Frame fits tires up to 700c x 50 mm or 650b x 55 mm (27.5 x 2.1″)

Waxwing fork fits tires up to 700c x 45mm or 650b x 56.5mm

12 x 100mm thru-axle front, 12 x 142mm thru-axle rear

Specs

Frame measurements (mm)	49cm	51cm	53cm	55cm	57cm	60cm
A. Effective Top Tube	493	510	530	550	570	600
B. Stand Over	617	652	688	724	760	807
C. Reach	366	369	372	376	387	409
D. Stack	510	528	552	570	599	627
E. Total Seat Tube Length	340	380	410	450	490	520
F. Headtube Length	90	105	130	150	180	210
G. Headtube Angle	68.5	69.5	69.5	69.5	69.5	69.5
H. Seat Tube Angle	76	75	74	73	73	73
I. BB Drop	70	70	70	70	70	70
J. BB Height	283	283	283	283	283	283
K. Chainstay Length	440	440	440	440	440	440
L. Fork Length Axle to Crown	402	402	402	402	402	402
M. Fork Offset	50	50	50	50	50	50
N. Wheelbase	1027	1028	1040	1051	1072	1104
Component measurements (mm)
Crank Arm Length	165	165	170	170	172.5	172.5
Handlebar Width	400	420	440	440	460	460
Stem Length	60	70	80	80	90	100

* All dimensions are preliminary and subject to change

Frameset

Frame: Journeyer

Color: Midnight Blue

Fork: Waxwing Carbon

Components

Headset: FSA

Seatpost: Teravail Stratum, 0-degree offset

Stem: Teravail Radia

Grips/Bar Tape: Cork

Saddle: WTB Volt, medium

Handlebar: Teravail Feldspar

Drivetrain

Front Derailleur: N/A

Rear Derailleur: Shimano GRX RX822

Cassette: Shimano SLX M7100, 10–51t, 12-speed

Chain: Shimano SLX M7100

Crankset: Shimano GRX RX610, 40t

Shifter: Shimano GRX RX610

Brake Levers: Shimano RX400

Brake Calipers: Shimano RX400

Bottom Bracket: Shimano RS501

Rotors: Shimano RT56, 6-bolt, 180mm front / 160mm rear

Wheels

Front Tire: Teravail Washburn, 700c x 45mm, Durable casing, tubeless-ready

Rear Tire: Teravail Washburn, 700c x 45mm, Durable casing, tubeless-ready

Front Hub: WTB Frequency, 12 x 100mm

Rear Hub: WTB Frequency, 12 x 142mm, Microspline

Spokes: Straight-gauge

Rim: WTB i25, 28h

Weight

Complete Bike: 23 lbs. 2 oz.

Specifications are subject to change without notice.

Warranty

LIMITED WARRANTY

Salsa Cycles ( “Salsa ” ) makes the following limited Warranty:

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below. Every Salsa frame, component, and apparel has a useful product life cycle. The length of that useful product life cycle will vary depending on the construction and the materials of the product, maintenance and care the product receives, and the amount and type of use the product is subjected to over its life. Your bike has an intended level of use as defined by the ASTM Riding Condition Classification Chart. Failure to adhere to the use cases identified in this chart will void your warranty. Save your dated receipt for proof of purchase.

NOTE:
All warranty periods below apply to the original owner only

ONE YEAR WARRANTY

All apparel
All frame bags

Salsa Cycles does not guarantee the compatibility of original components with a warranty replacement frame. Salsa Cycles is not responsible for parts or labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds.

Salsa Cycles cannot guarantee a color match to the original frame, component, or apparel in the event of a replacement.

This warranty applies to 2014 and newer model bicycles and covers only Salsa Cycles branded product. Any other original part or component shall be covered by the stated warranty of the original manufacturer. Any products not specifically included above are hereby excluded.

TWO YEAR WARRANTY

Aluminum chainstays of suspension frames
Aluminum seatstays of suspension frames
Carbon seatstays of suspension frames
All other suspension frame parts (excludes hanger, pivot hardware, bearings)

THREE YEAR WARRANTY

Aluminum frames
Aluminum front triangles of suspension frames
All Salsa forks
All Salsa components

FIVE YEAR WARRANTY

Steel frames
Titanium frames
Carbon frames
Carbon front triangle of suspension frames

THE WARRANTY DOES NOT COVER THE FOLLOWING

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assemble

Bicycles that were not assembled or serviced by an authorized Salsa Cycles dealer

Products that have been modified, neglected, used in competition, or for commercial purposes such as rental, courier, police, security, etc, misused or abused, involved in accidents or anything other than normal use

Installation of components, parts, or accessories not originally intended for use with or compatible with Salsa frames and components

Salsa Cycles bicycles, frames, components or softgoods purchased from an unauthorized dealer

Salsa Cycles bicycles, frames, components or softgoods purchased from third-party internet sites, including auction websites, and regional trading websites (examples: Amazon, eBay, and Craigslist) are not covered under this warranty, even if you have a receipt

Sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodizing, refinishing, powder coating, or chrome plating the bicycle, frame, or component will void the warranty

Internal rust perforation on all steel frames

Wear, scratches, chips and cracks to paint, finish, or coating on all Salsa frames and components

Bent or broken derailleur hangers or Alternator plates

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly, including wheel rebuilds

Damage to carbon fiber caused by any carbon assembly paste

Normal wear and tear

LEGAL DISCLAIMER

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Salsa Cycles, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Salsa Cycles product and is not transferable. This warranty applies only to Salsa Cycles products purchased through an authorized dealer or distributor. In no event shall Salsa Cycles be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein. This warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

For 2013 and older model bicycles and products, please consult your Owner’s Manual, Salsa Cycles product instructions, or contact Salsa Cycles or your authorized Salsa dealer for the applicable warranty information.
