Overview

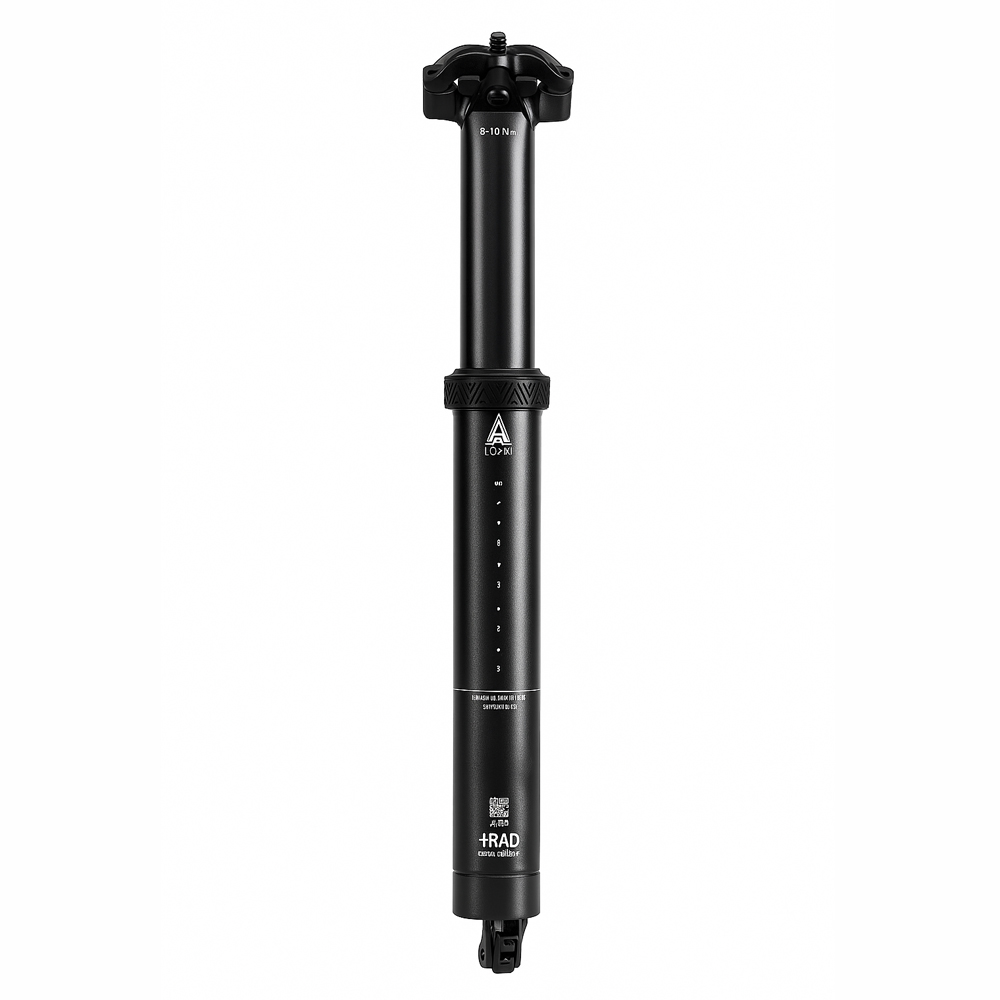

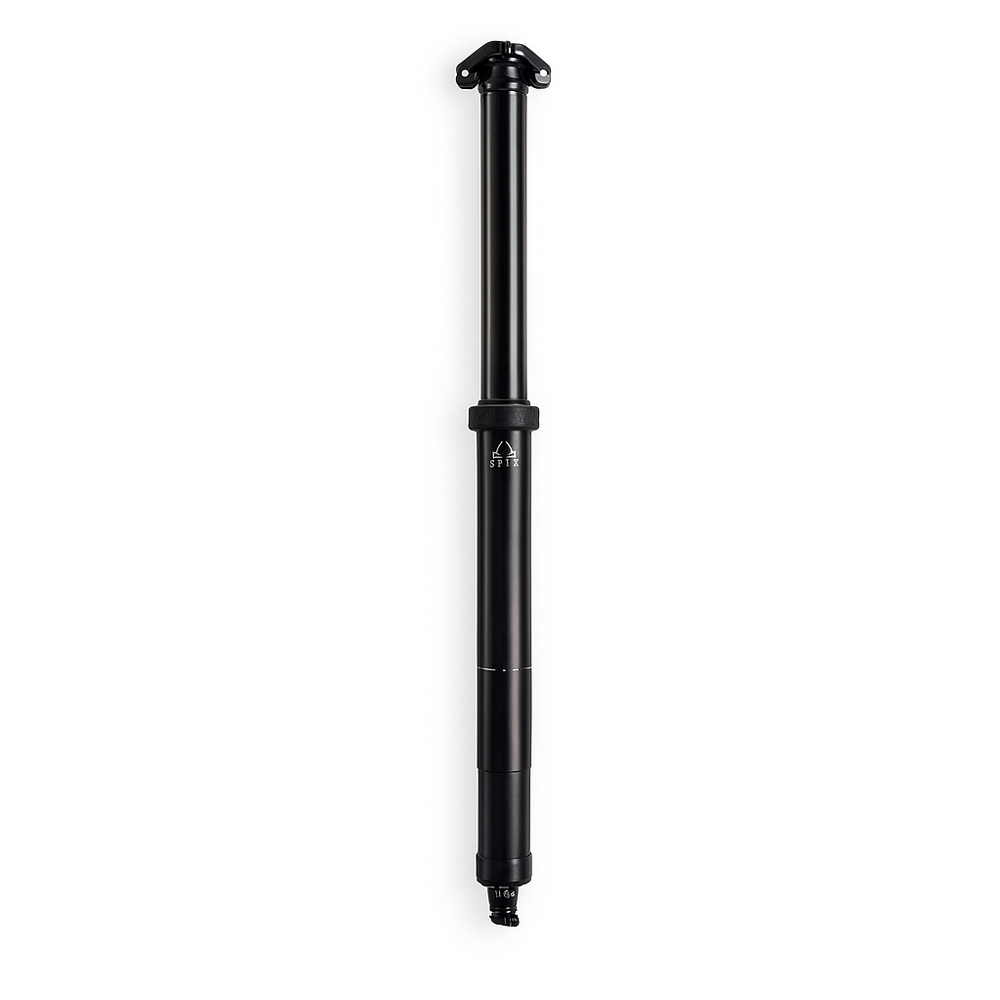

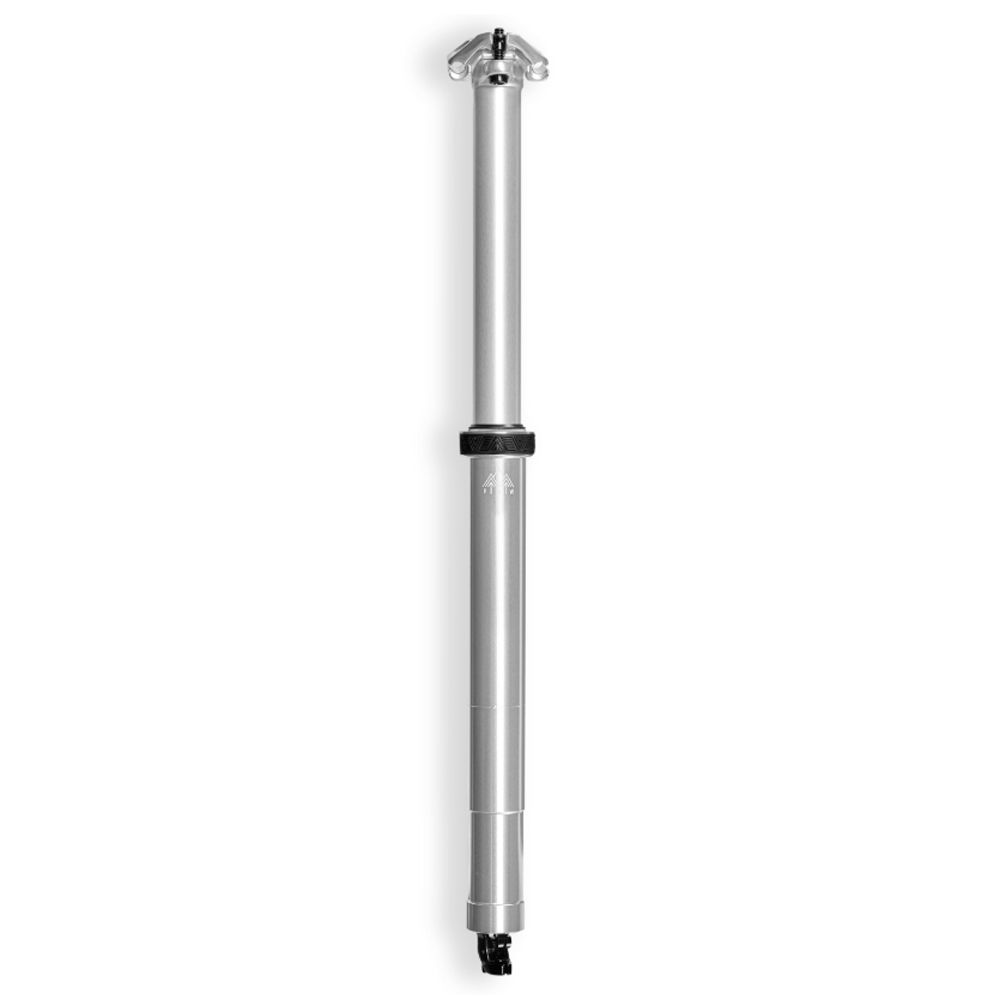

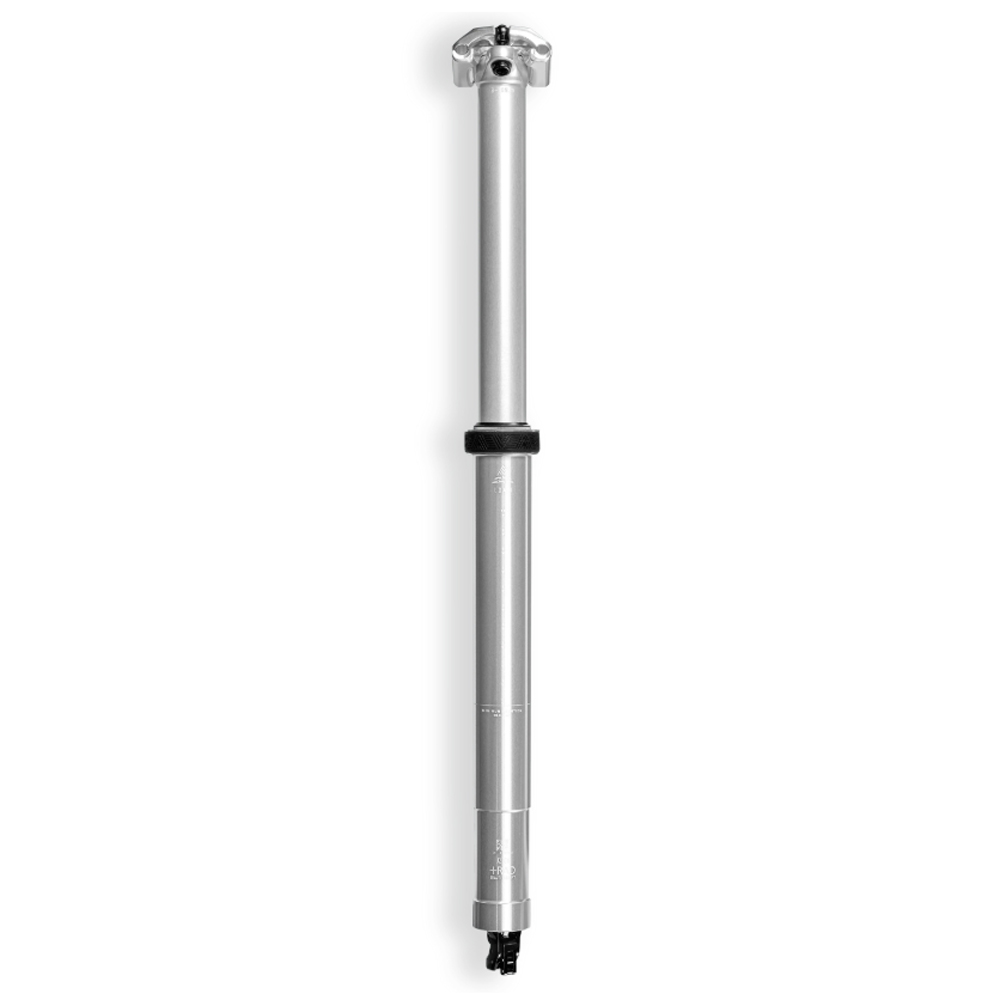

Reengineered for rugged climbs and technical descents, the next-generation of the Loam Dropper takes our renowned reliability to new highs… and lows.
Additional sizes and a lower stack height provide a modern fit for your frame, and more room to move with less saddle in your business. A sealed dual-chamber PNW Cartridge delivers quiet and smooth fast action with a rock-solid, simple-to-service design. No matter what ups and downs the trail throws at you, you can shred easy knowing the Loam is backed by the PNW Lifetime Warranty.
Features

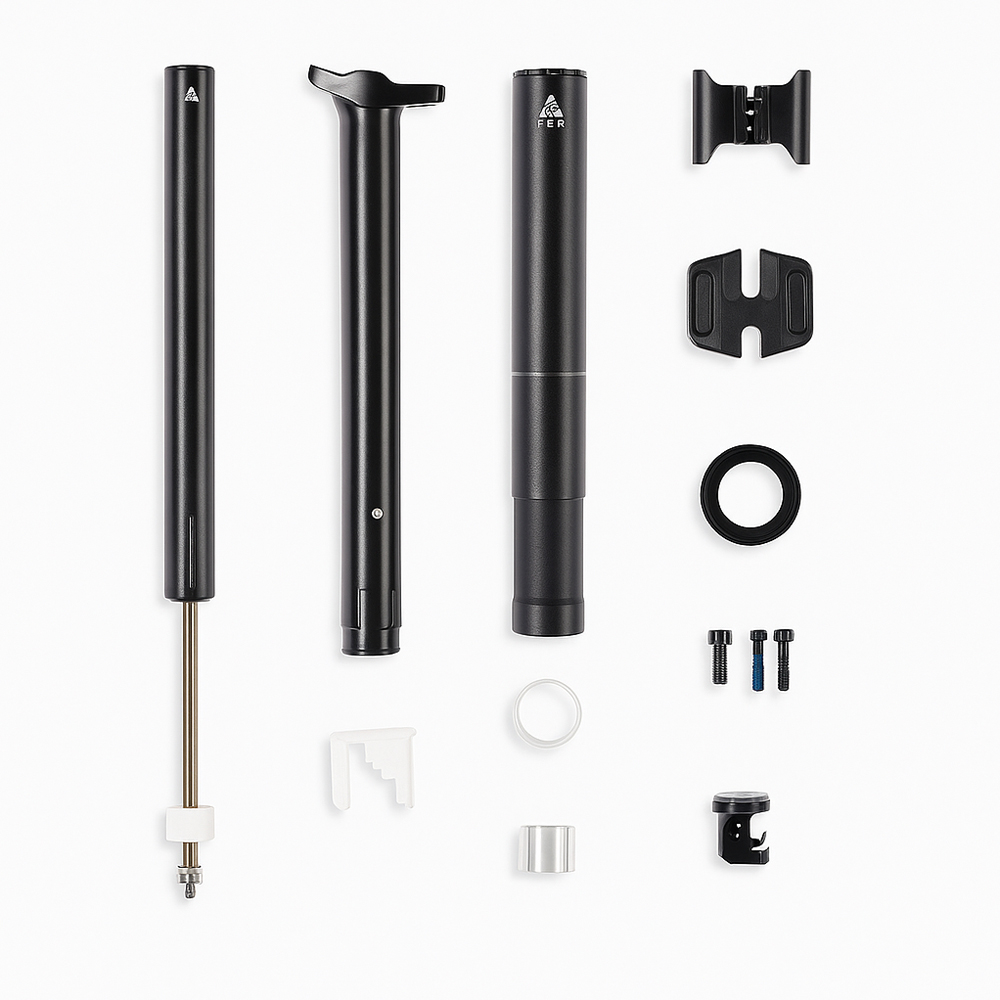

PNW Dual-Chamber Sealed Cartridge
Tool-Less Travel Adjust
Internal Routing
Specs
| A | Travel | 125mm | 150mm | 175mm | 200mm | 225mm |
| B | Seat Collar to Center of Rails | 156mm | 181mm | 206mm | 231mm | 256mm |
| C | Total Length | 382mm | 435mm | 485mm | 537mm | 600mm |
| D | Min. Insertion Length | 90mm | 120mm | 120mm | 150mm | 190mm |
| E | Full Insertion Length | 226mm | 254mm | 279mm | 306mm | 344mm |
| * | 30.9 Weight | 452g | 490g | 524g | 560g | 614g |
| * | 31.6 Weight | 470g | 510g | 544g | 580g | 636g |
| * | 34.9 Weight | 516g | 556g | 596g | 636g | 700g |
Warranty
All PNW Components products are backed by warranty against defects in material and manufacturing.
Please see our Warranty page for the details of our warranty process as well as additional information regarding the PNW Components warranty policy.
