Overview
Come for the Party. Stay for the ride.

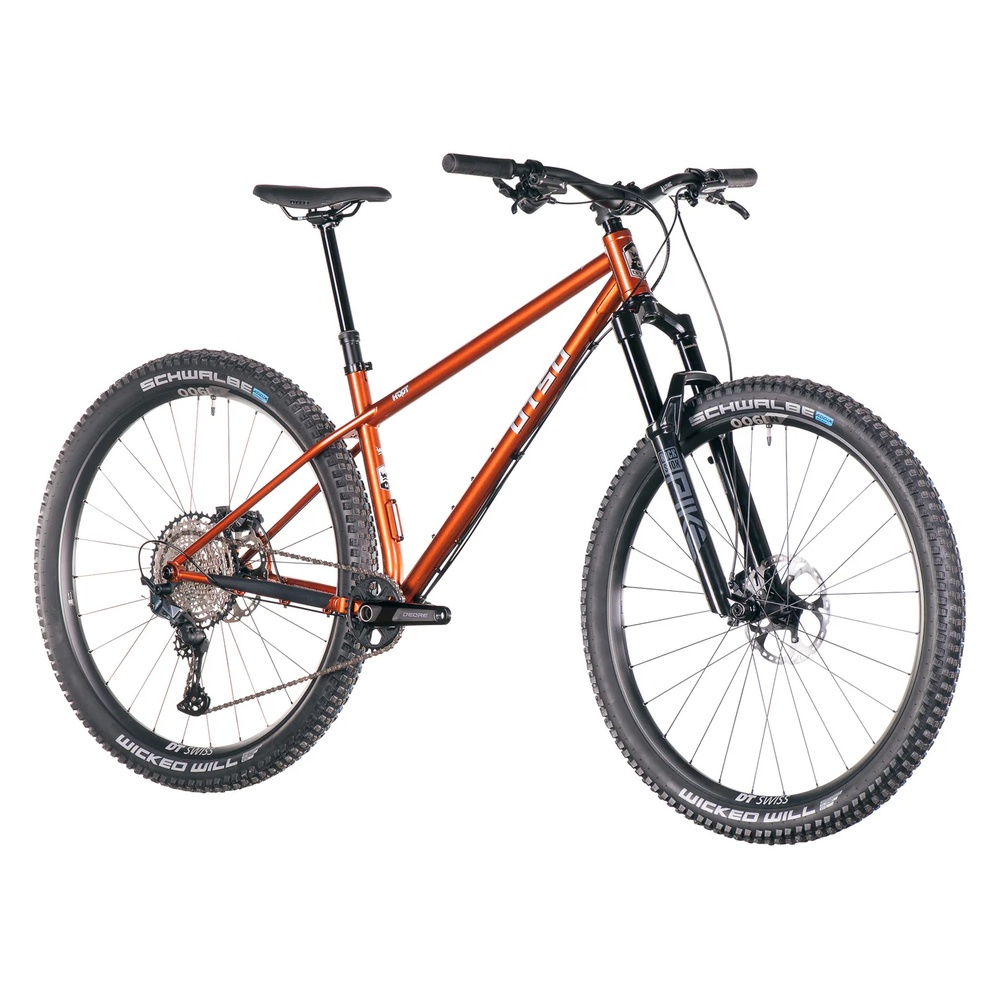

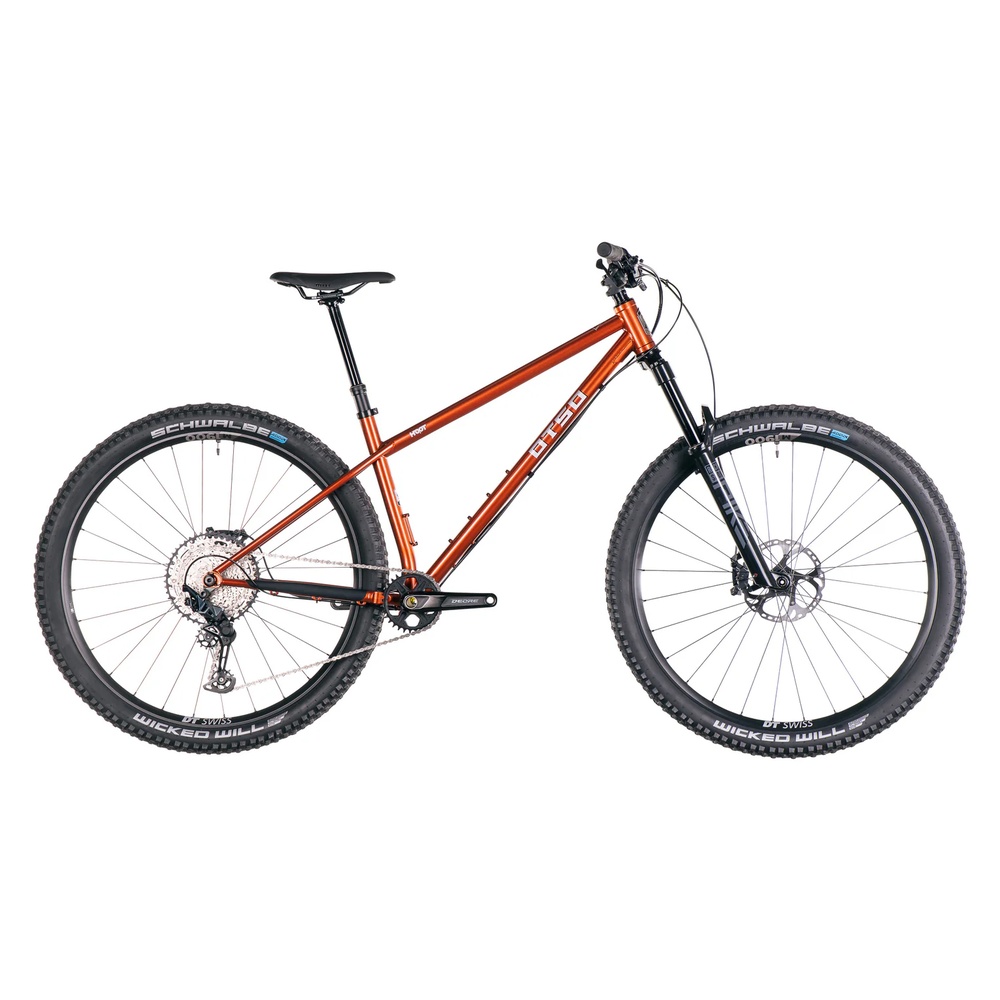

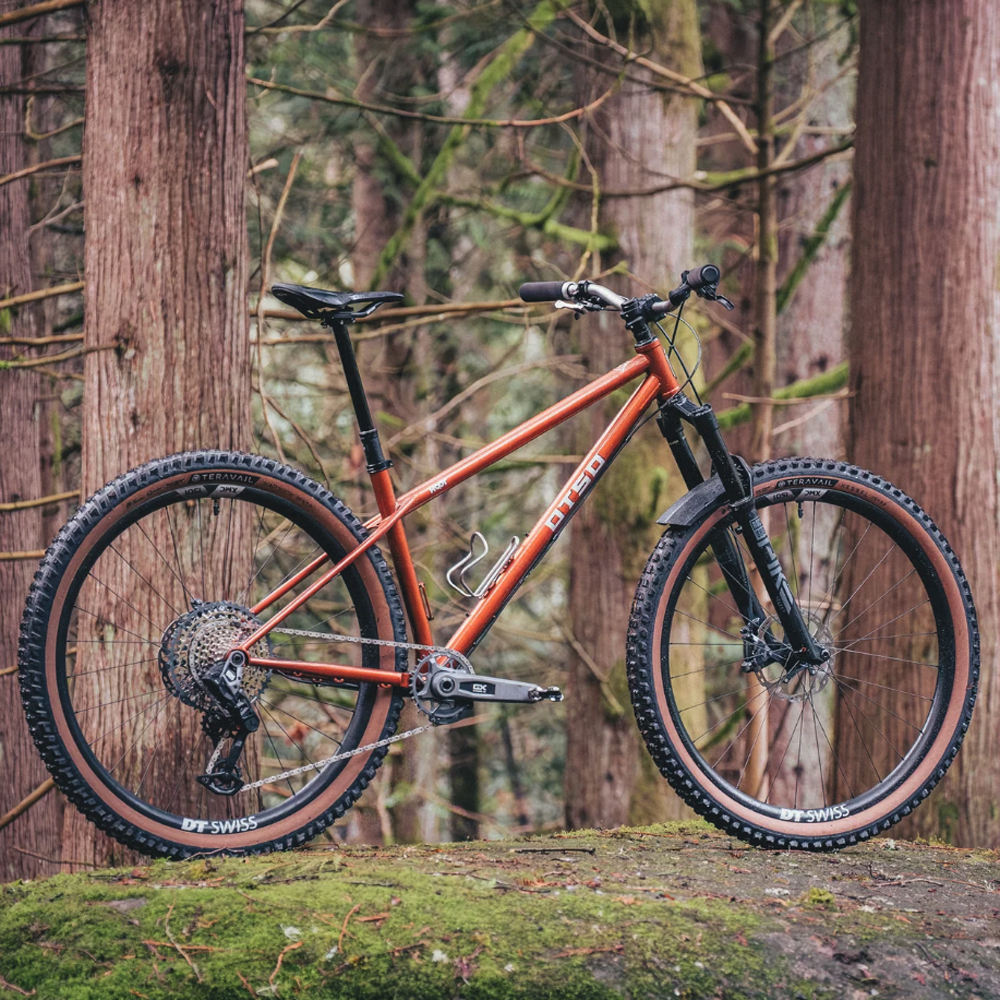

The Hoot Steel was designed with one goal in mind: Fun. Yes, with a capital F. This is a 140mm travel hardtail that brings the party to every line on the trail. The frame is the classic 4130 chromoly steel with custom tubing based on size to ensure the same smooth, comfortable, fun ride quality regardless of size. The Hoot Steel has fun engrained into the geometry, with a slack head tube angle, steep seat tube angle, low bottom bracket drop, and short chain stays. The result is a hardtail that balances the rider for confident riding on the steepest descents, while mixing in nimble handling for the trails that keep you on your toes. When everyone at the trailhead calls it a day, the Hoot Steel is ready for another lap.
Features
Custom 4130 chromoly steel frame with UDH-compatible dropouts for a tough, modern hardtail platform.
140mm RockShox Pike fork for a more capable trail feel than a basic XC hardtail.
Balanced, playful geometry made for confident descents, quick handling, and repeat laps.
Wide 29” trail setup with DT Swiss M 1900 wheels and Schwalbe Wicked Will 29 x 2.4” tires.
Dropper-ready build with a TranzX 31.6mm dropper and custom travel options.
Specs
Most components can be customized at time of order, contact us!
Shared Frame & Finishing Kit
Frame: Otso custom butted 4130 Chromoly tubing with UDH-compatible dropouts
Headset: Wolf Tooth Performance Headset, ZS44/EC44, black
Headset upgrade option: Wolf Tooth Premium Headset with multiple color choices
Brakes: Shimano Deore BR-MT410, with upgrade options
Handlebar: Lithic MTB, 35.0 x 780mm, 35mm rise
Grips: Wolf Tooth Echo Lock-On grips, black/black
Stem: Aluminum, 40mm, 0° rise
Seatpost: TranzX, 31.6mm, custom travel options
Seatpost Clamp: Wolf Tooth 34.9mm, black
Saddle: WTB Silverado Medium, steel rails, 142 x 265mm
Wheels: DT Swiss M 1900, 29″, 30mm inner width
Front Hub: 110 x 15mm thru-axle
Rear Hub: 148 x 12mm thru-axle
Wheel upgrade options: Available
Tires: Schwalbe Wicked Will Super Ground, 29 x 2.4″, black
Shimano SLX Build
Fork: RockShox Pike Base Rush RC 29″ Boost, 15 x 110mm, 140mm travel, 44mm offset, Gloss Black
Rear Derailleur: Shimano SLX M7100
Shifter: Shimano SLX M7100
Cassette: Shimano SLX M7100, 10–51T, 12-speed
Cranks: Shimano Deore FC-M6120-1, 170mm, 32T chainring
Bottom Bracket: Shimano English threaded BSA, 73mm
Chain: Shimano SLX 12-speed
SRAM GX AXS Transmission Build
Fork: RockShox Pike Base Rush RC 29″ Boost, 15 x 110mm, 140mm travel, 44mm offset, Gloss Black
Fork upgrade option: Fox 36 available
Rear Derailleur: SRAM GX T-Type Eagle Transmission
Shifter: SRAM AXS Pod Controller
Cassette: SRAM XS-1275 T-Type, 10–52T
Cranks: SRAM Eagle 70, custom length, 32T chainring
Crank upgrade options: Available
Bottom Bracket: SRAM DUB English threaded BSA, 73mm
Chain: SRAM GX T-Type, 12-speed
| **Geometry is measured with the fork at 20% sag** | Small | Medium | Large | X-Large |
| Recommended rider height | 5’3″-5’7″ | 5’7″-5’11” | 5’11”-6’3″ | 6’3″-6’6″ |
| Inseam | 28″-29″ | 29″-30″ | 30″-31″ | 31″-33″ |
| Standover | 708mm | 716mm | 737mm | 755mm |
| Stack | 617mm | 626mm | 644mm | 662mm |
| Reach | 441mm | 464mm | 479mm | 500mm |
| Effective top tube | 595mm | 620mm | 640mm | 665mm |
| Head tube angle (140mm suspension fork) | 65° | 65° | 65° | 65° |
| Head tube length | 100mm | 110mm | 130 | 150 |
| Seat tube angle | 76° | 76° | 76° | 76° |
| Seat tube length | 380mm | 420mm | 440mm | 480mm |
| Bottom bracket drop | 60mm | 60mm | 60mm | 60mm |
| Chainstay length | 429mm | 429mm | 429mm | 429mm |
| Rear center | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1174mm | 1201mm | 1225mm | 1254mm |
| Trail | 129mm | 129mm | 129mm | 129mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| 140mm suspension fork axle to crown length | 523mm | 523mm | 523mm | 523mm |
| Seatpost insertion depth | 296mm | 336mm | 376mm | 416mm |
Warranty
- All Otso frames are warranted against defects in materials and workmanship for 5 years from the date of retail purchase.
- This warranty applies to the original owner only and is not transferable.
- Please keep your sales receipt or order number for any warranty claims to ensure a quick resolution.
What’s Not Covered:
- Damage from improper assembly, maintenance, or user/assembler inexperience.
- Modifications, neglect, misuse, competition, commercial use, or accidents.
- Installation of incompatible components, parts, or accessories.
- Normal wear and tear, or damage to paint, surface finish, or aesthetics.
- Compatibility of original components with a replacement frame is not guaranteed.
- Costs for labor, parts removal, refitting, or re-adjustment, including wheel rebuilds.
Claim Process:
- Warranty claims are limited to the repair or replacement of the defective frame, at Otso’s discretion.
- This warranty does not cover incidental or consequential damages.
Legal Information:
- This warranty gives you specific legal rights, which may vary based on location. It does not affect your statutory rights.
