Overview

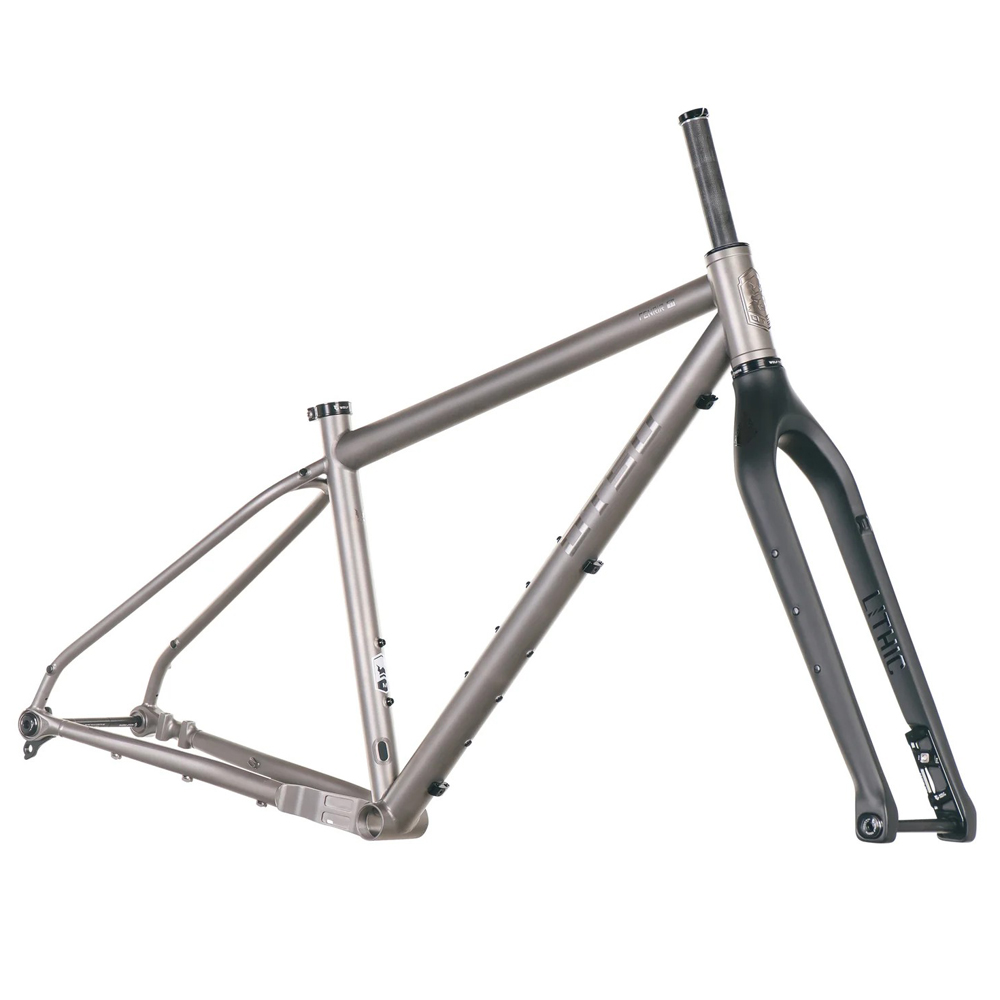

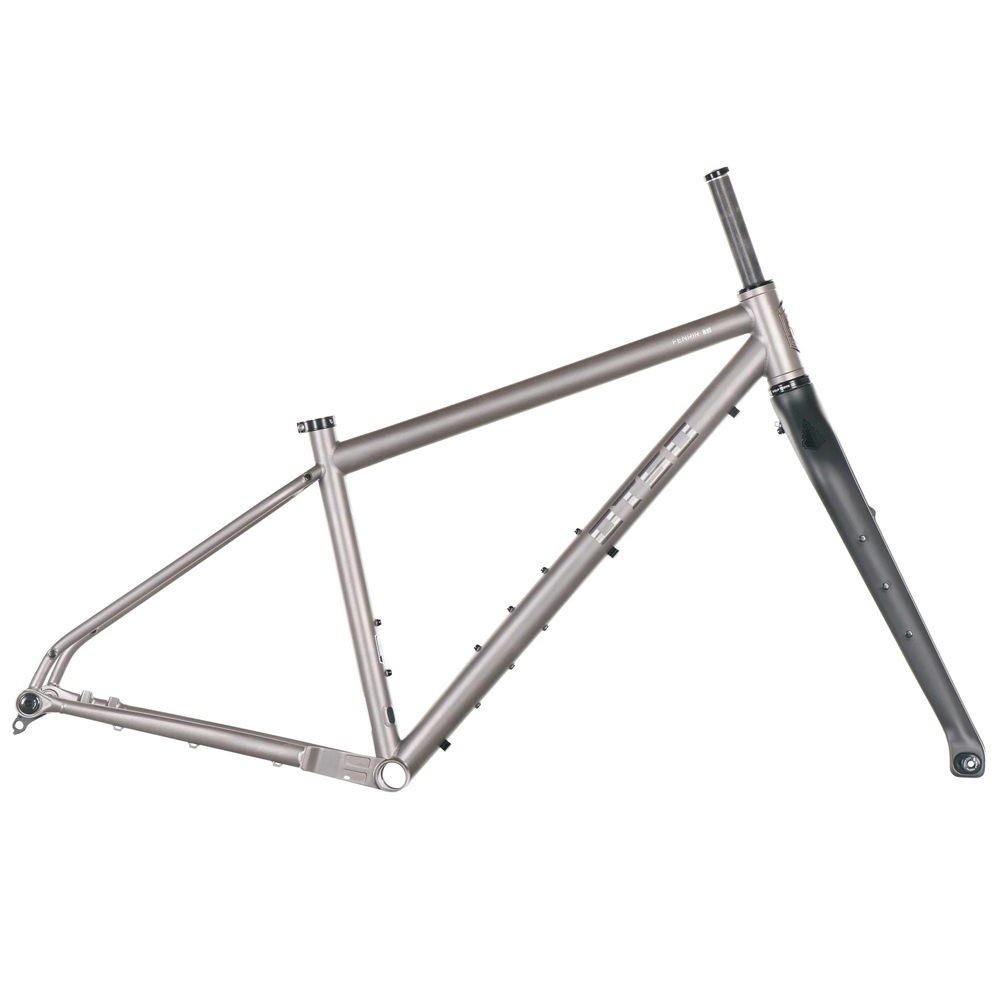

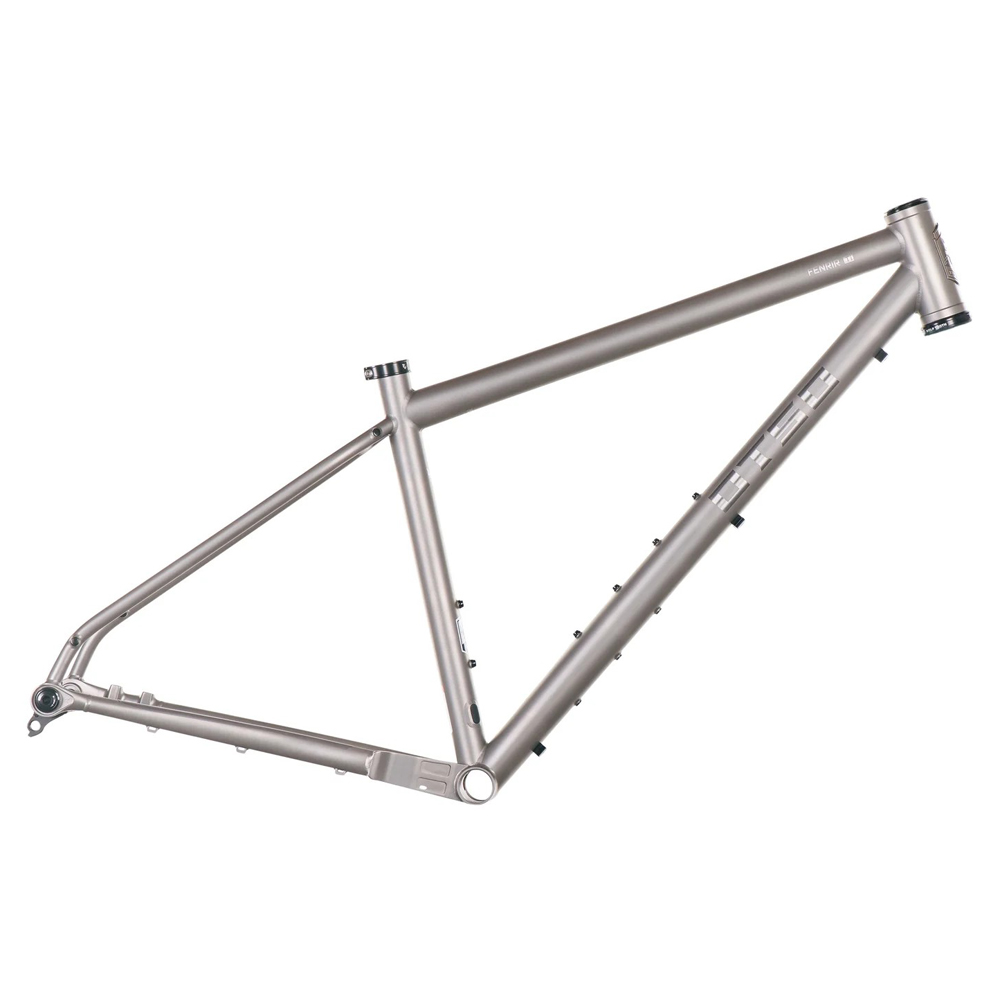

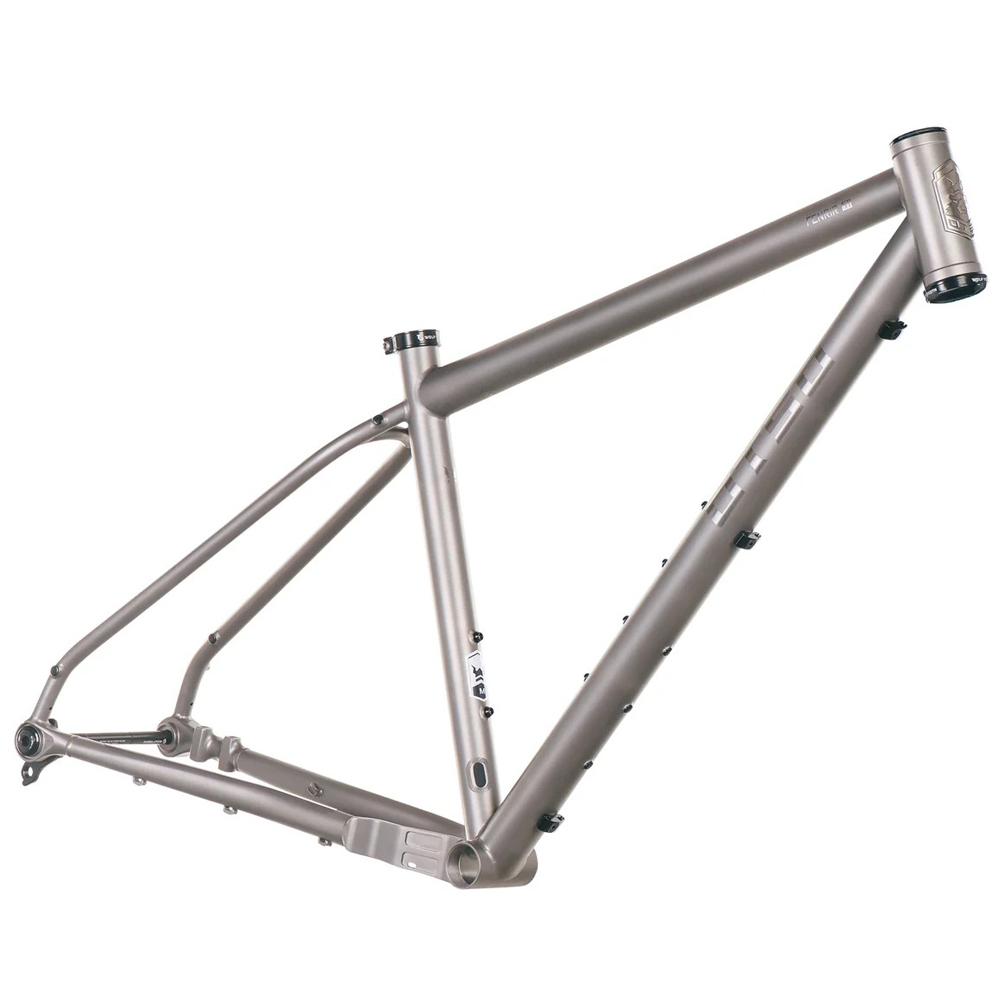

The Otso Fenrir Ti Frameset is perfect for adventurers looking for a durable and versatile setup. Built with 3Al-2.5V titanium, it’s lightweight, strong, and resistant to corrosion. The Tuning Chip™ dropout system lets you tweak the geometry for the best handling on any terrain. It supports tires up to 29” x 2.6” or 27.5” x 2.8” and has multiple mounts for all your bikepacking gear.
Features
| Bottom bracket standard | Shimano english thread BSA, Ø73mm |
| Maximum chainring size | 1x: 40T round or 38T oval |
| Front derailleur type | N/A |
| Headset | ZS44/28.6 upper, EC44/40.0 lower |
| Seatpost diameter | Ø31.6mm |
| Internal dropper post routing | Yes. Exit port on bottom of seat tube |
| Seatpost clamp | Ø34.9mm |
| Front/rear hub standard | 110x15mm thru axle / 148x12mm thru axle |
| Front/rear axle | Ø15x110mm front, TP=1.5, TL=15mm / Ø12x187mm rear, TP=1.5, TL=12mm |
| Derailleur hanger | Wolf Tooth Tuning Chip Right Dropout |
| Rear brake (rotor) | Flat mount, 74mm post mount available(160mm) |
| Front brake (rotor) | Post mount native, (160mm post mount or 180mm flat mount) |
| Fork axle-to-crown | 490mm (suspension corrected for 100mm suspension fork) |
| Fork offset | 44mm or 52mm |
| Bare frame weight (L) | 3.9lbs (1814g) |
| Fork weight (Enve rigid fork) | 676g |
| Tire clearance (frame) | 2.3″ at 420mm chainstay position, 2.8″ (for 27.5″ wheels) or 2.6″ (for 29″ wheels) at 430/440mm chainstay positions |
| Tire clearance (fork) | Max clearance 29″ x 3.0″ |
| Braze-ons | Three bottle frame mounts, fender, rack, cable clamps, two three-pack mounts on fork |
| Frame Bag Dimensions | X-Small Small Medium Large X-Large |
| Seatpost Insertion Depth | X-Small 180mm; Small 200mm; Medium 250mm; Large 280mm; X-Large 320mm |
| Max weight (rider + gear) | 275 lbs |
| Max spacer stack under stem | 40mm |
| Max spacer stack above stem | 10mm |
| Max stem bolt torque | 6 Nm |
Specs
| XS | S | M | L | XL | |
| Recommended rider height | 4’10”-5’4″ | 5’3″-5’7″ | 5’7″-5’11” | 5’11”-6’3″ | 6’3″-6’6″ |
| Inseam | 29″-30″ | 30″-31″ | 31″-32″ | 32″-33″ | 33″-34″ |
| Standover | 754mm | 777mm | 810mm | 838mm | 866mm |
| Effective top tube | 547mm | 565mm | 583mm | 600mm | 618mm |
| Nominal head tube angle | 68° | 68° | 68° | 68° | 68° |
| Tuning Chip-induced head/seat tube angle change from middle position | ±0.25° | ±0.25° | ±0.25° | ±0.25° | ±0.25° |
| Head tube length | 90mm | 100mm | 120mm | 140mm | 160mm |
| Nominal seat tube angle | 75° | 75° | 75° | 75° | 75° |
| Seat tube length | 360mm | 400mm | 450mm | 490mm | 530mm |
| Bottom bracket drop | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm |
| Chainstay length | 430-450mm | 430-450mm | 430-450mm | 430-450mm | 430-450mm |
| Wheelbase | 1090-1110mm | 1110-1120mm | 1130-1150mm | 1150-1170mm | 1170-1190mm |
| Trail | 88mm | 88mm | 88mm | 88mm | 88mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| Rigid fork axle to crown length | 495mm | 495mm | 495mm | 495mm | 495mm |
| Stack | 595mm | 605mm | 623mm | 642mm | 660mm |
| Reach | 387mm | 403mm | 416mm | 428mm | 441mm |
Warranty
Warranty Coverage:
- All Otso frames are warranted against defects in materials and workmanship for 5 years from the date of retail purchase.
- This warranty applies to the original owner only and is not transferable.
- Please keep your sales receipt or order number for any warranty claims to ensure a quick resolution.
What’s Not Covered:
- Damage from improper assembly, maintenance, or user/assembler inexperience.
- Modifications, neglect, misuse, competition, commercial use, or accidents.
- Installation of incompatible components, parts, or accessories.
- Normal wear and tear, or damage to paint, surface finish, or aesthetics.
- Compatibility of original components with a replacement frame is not guaranteed.
- Costs for labor, parts removal, refitting, or re-adjustment, including wheel rebuilds.
Claim Process:
- Warranty claims are limited to the repair or replacement of the defective frame, at Otso’s discretion.
- This warranty does not cover incidental or consequential damages.
Legal Information:
- This warranty gives you specific legal rights, which may vary based on location. It does not affect your statutory rights.
