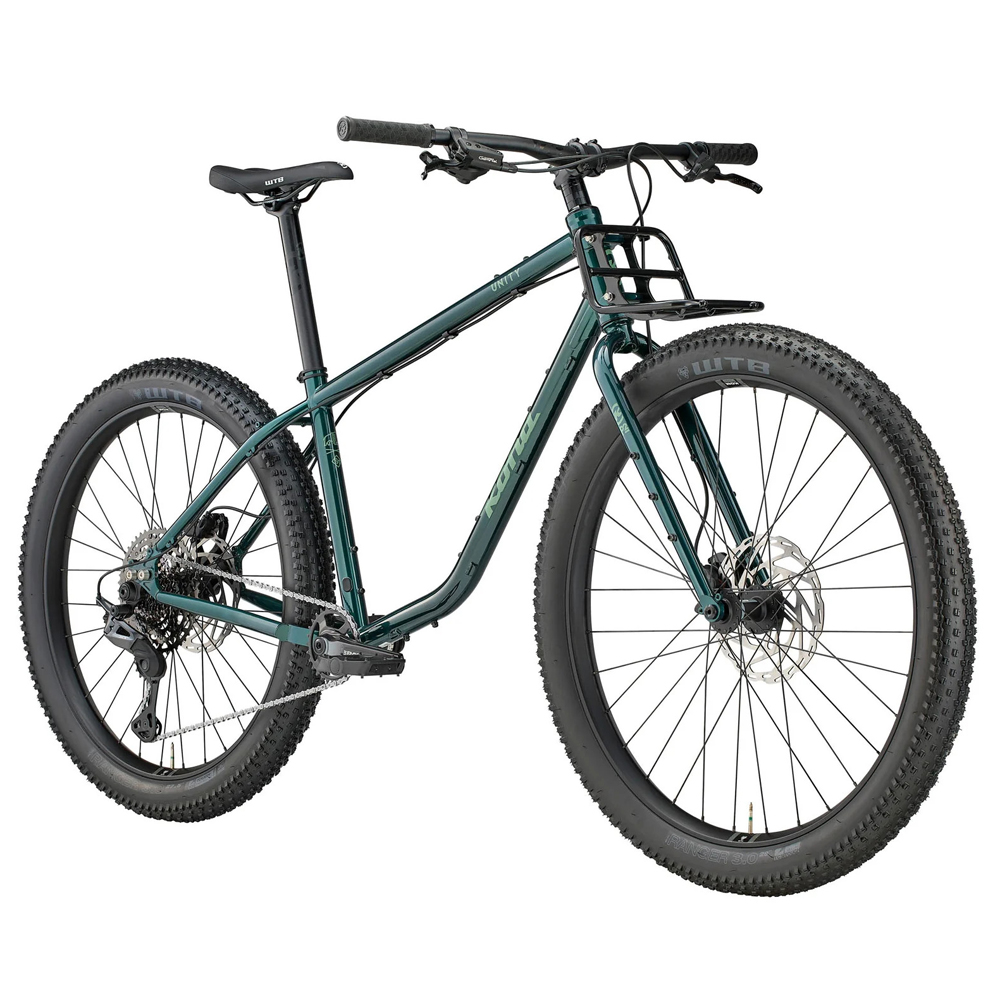

Kona Unity

$2,698.99

Free shipping on bicycles priced over $2000 (within the lower 48).

SKU: KONTY26 Categories: , Tag:

Call it an adventure bike, an off-grid battle cruiser, or proof that the wrong bike can be exactly right. The Unity has cargo to carry and categories to ignore.


Overview

The Unity is a mixed-wheel mountain bike, gravel bike, and rugged bikepacking machine built to carry bigger loads farther off the grid. It’s what happens when Kona’s mountain-bike brain gets a cargo rack, a blank sheet of paper, and very little adult supervision. Its MX setup combines big tires with a lower center of gravity, a stronger rear wheel, and extra clearance for racks and seat bags, while carefully tuned geometry and fork offset keep the handling stable and predictable when fully loaded. A custom integrated front cargo rack and spacious front triangle give your gear plenty of room without turning the ride into a barge.

Features

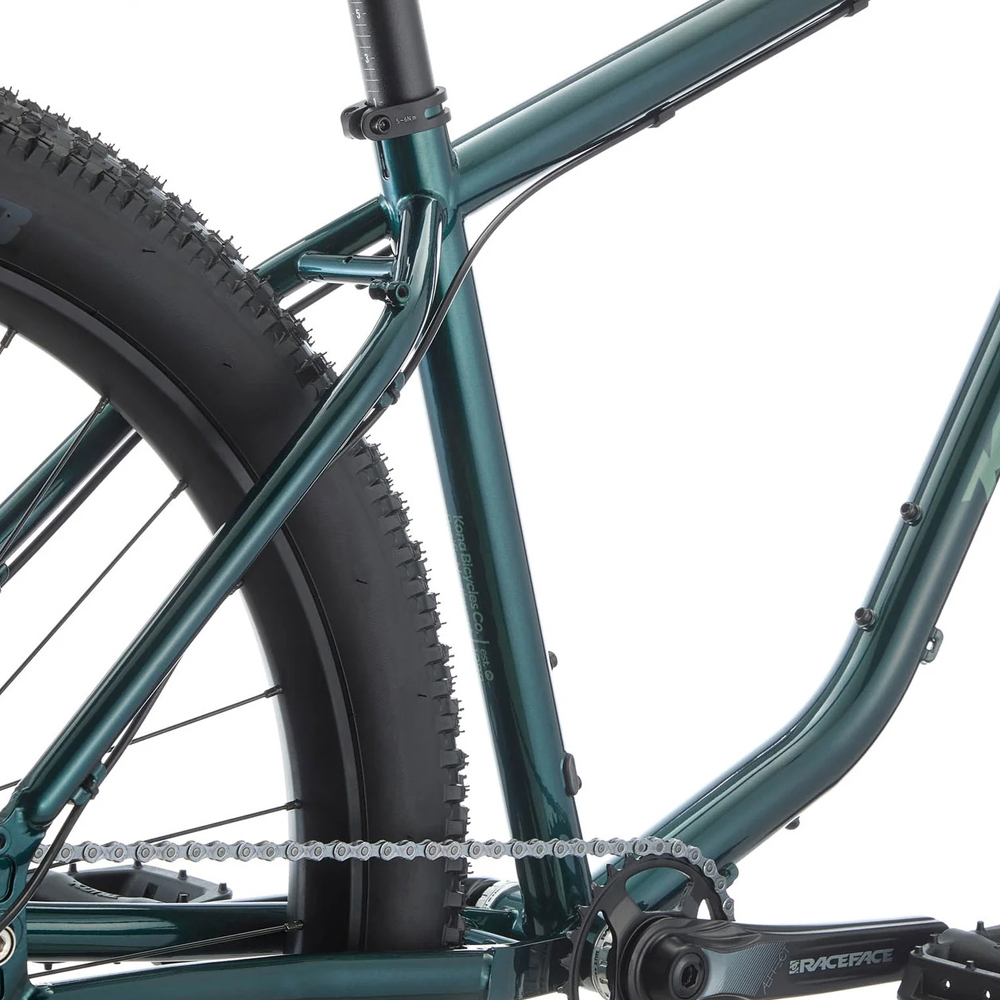

Durable Cromoly Frame
The steel frame offers a smooth ride with the strength to handle rough roads, trail use, and loaded miles.

Reliable Cromoly Fork
The rigid fork keeps things simple and predictable, with sharp handling and less maintenance.

Mixed-Wheel Design
A 29″ front wheel and 27.5″ rear blend stable rollover up front with a more compact, responsive rear end.

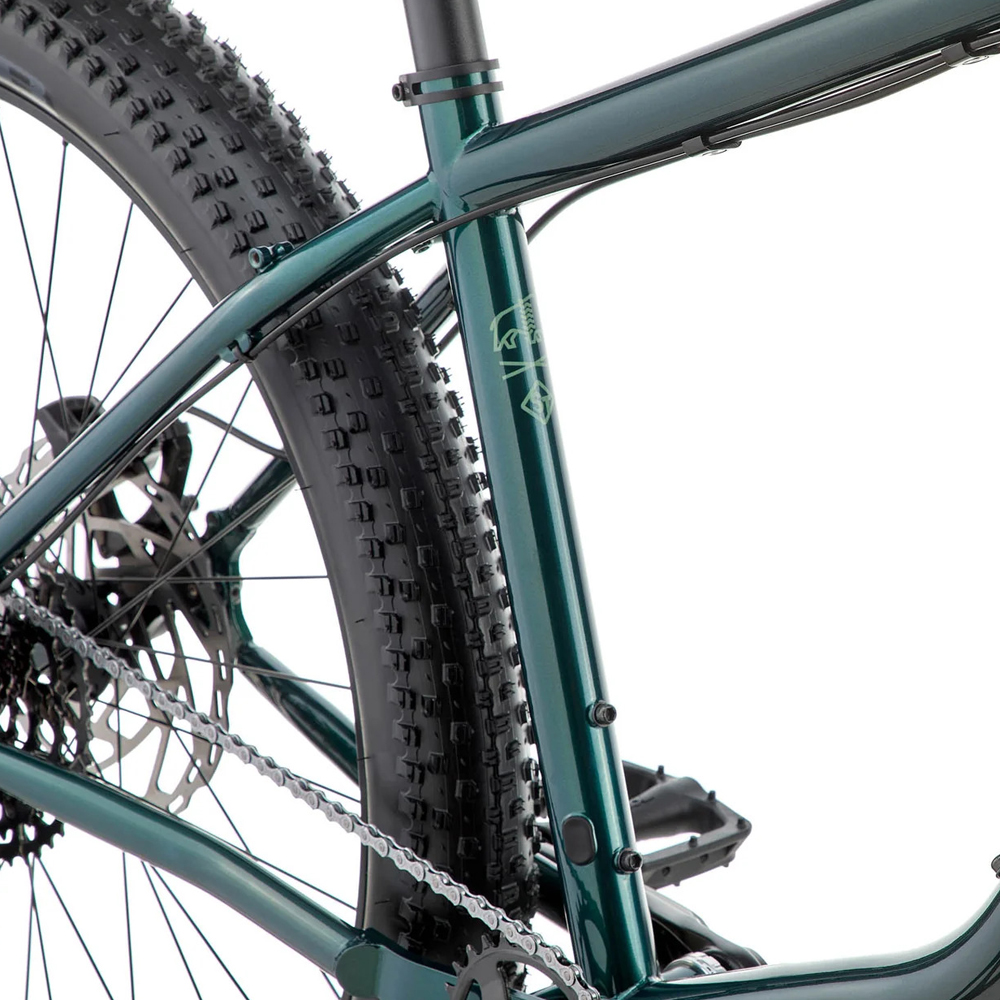

High-Volume 3.0″ Tires
Wide WTB Ranger tires bring added grip, comfort, and control on loose surfaces and rough ground.

Shimano XT 1×11 Drivetrain
Wide-range gearing and dependable shifting make it easier to climb steep pitches and keep the setup straightforward.

Powerful 4-Piston Brakes
Tektro Gemini brakes with 203mm rotors front and rear deliver strong stopping power and confident control.

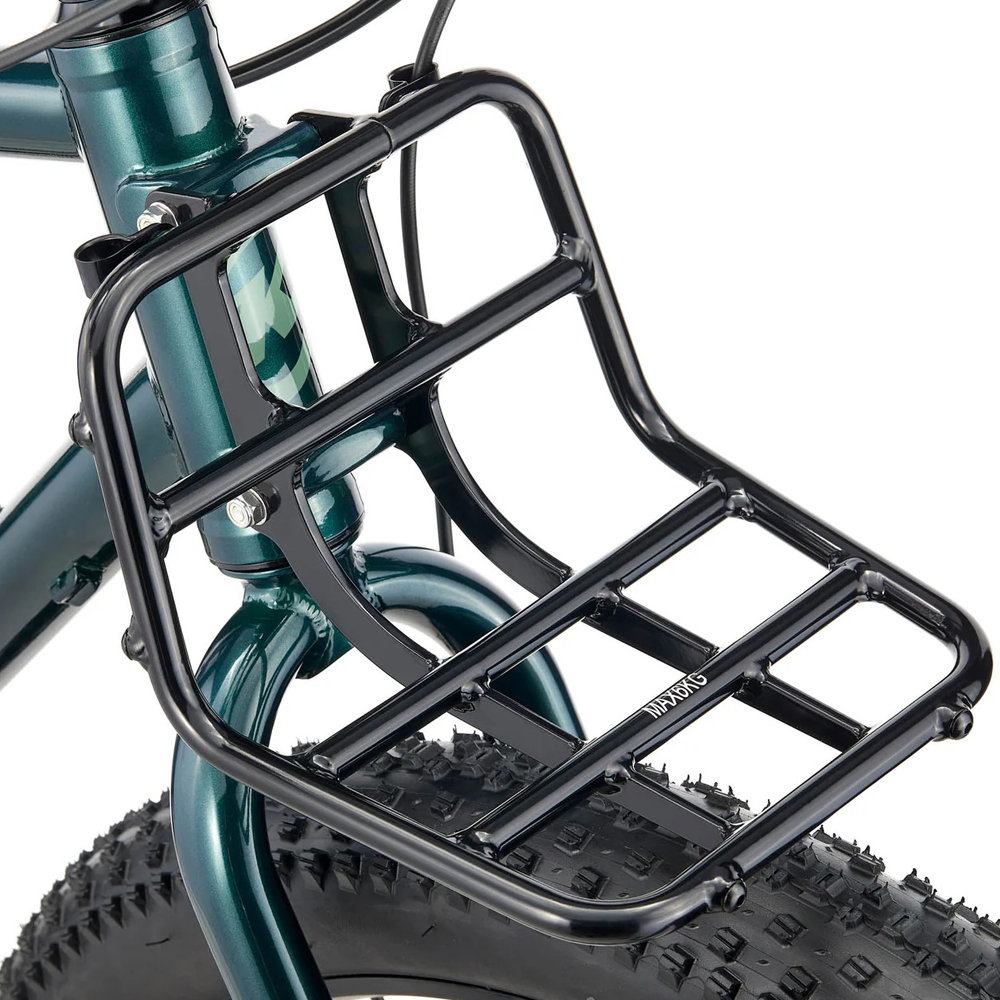

Front Rack Included
The Kona Unity front rack comes stock, giving you a sturdy platform for carrying gear right away.

Specs

Size S M L XL
1 ST Length 370 420 470 530
2 TT Length 591 623 656 691
3 Reach 435 460 485 510
4 Stack 615 620 629 643
5 Standover 725 760 816 849
6 HT Angle 65.8 65.8 65.8 65.8
7 HT Length 160 165 175 190
8 ST Angle 75.8 75.3 74.8 74.3
9 CS Length 440-456 440-456 440-456 440-456
10 BB Drop 70 70 70 70
11 BB Height 311 311 311 311
12 Wheelbase 1176-1191 1203-1219 1232-1248 1263-1279
13 Front Center 745 772 796 831
14 Fork Length 450 450 450 450
15 Fork Offset 59 59 59 59
Bike Geometry

Frameset

  • Frame: Kona Butted Cromoly
  • Fork: Kona Cromoly
  • Paint Color: Gloss Metallic Everglade w/ Aspen Decals
  • Sizes: S, M, L, XL

Drivetrain

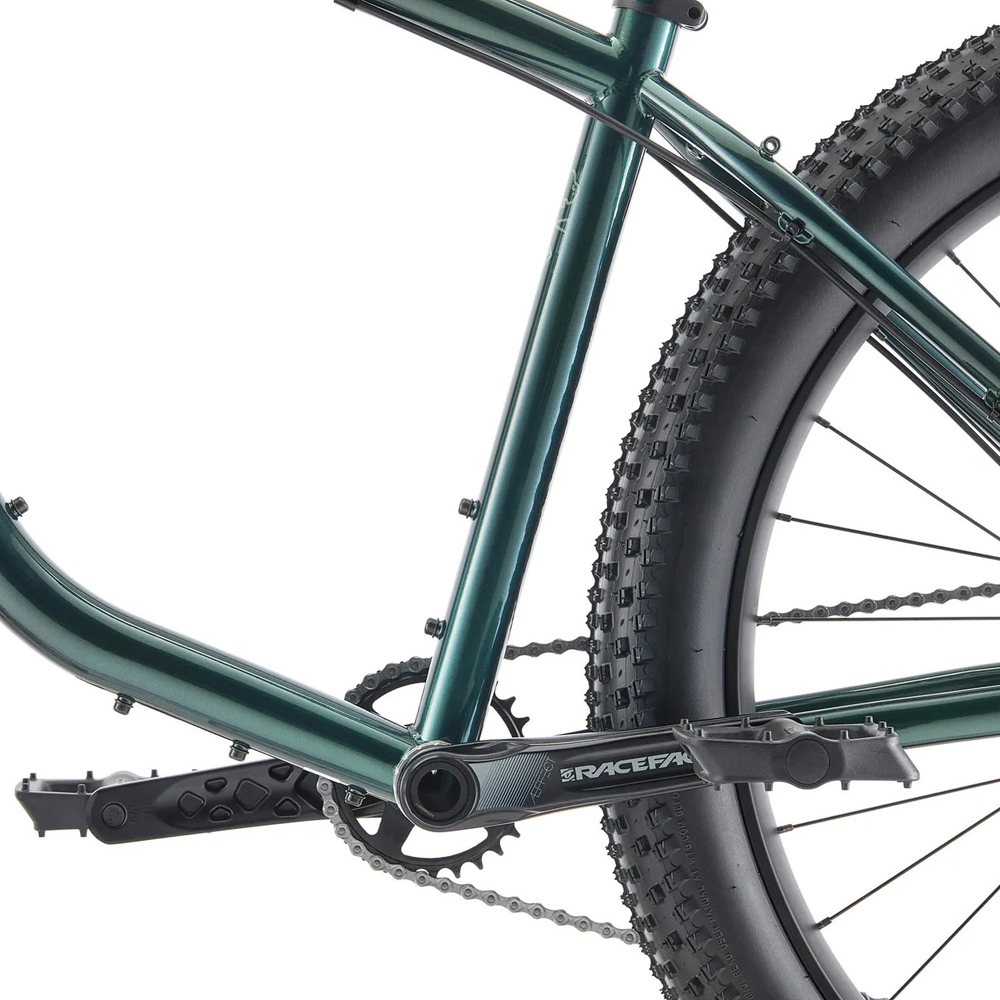

  • Crankset: RaceFace Aeffect Cinch, 28t
    • S: 165mm
    • M–L: 170mm
    • XL: 175mm
  • Bottom Bracket: RaceFace BSA 73
  • Chain: KMC eGlide Turbo
  • Cassette: Shimano XT, 11–50t, 11-speed LG
  • Rear Derailleur: Shimano XT
  • Shifter: Shimano XT
  • Front Derailleur: N/A
  • Chainguide: N/A
  • Pedals: Kona JS2

Brakes

  • Brake Calipers: Tektro Gemini M535, 4-piston
  • Brake Levers: Tektro Gemini M535
  • Front Rotor: Tektro 203mm, 6-bolt, 2.3mm
  • Rear Rotor: Tektro 203mm, 6-bolt, 2.3mm

Components

  • Headset: FSA No.10 ZS44/ZS44

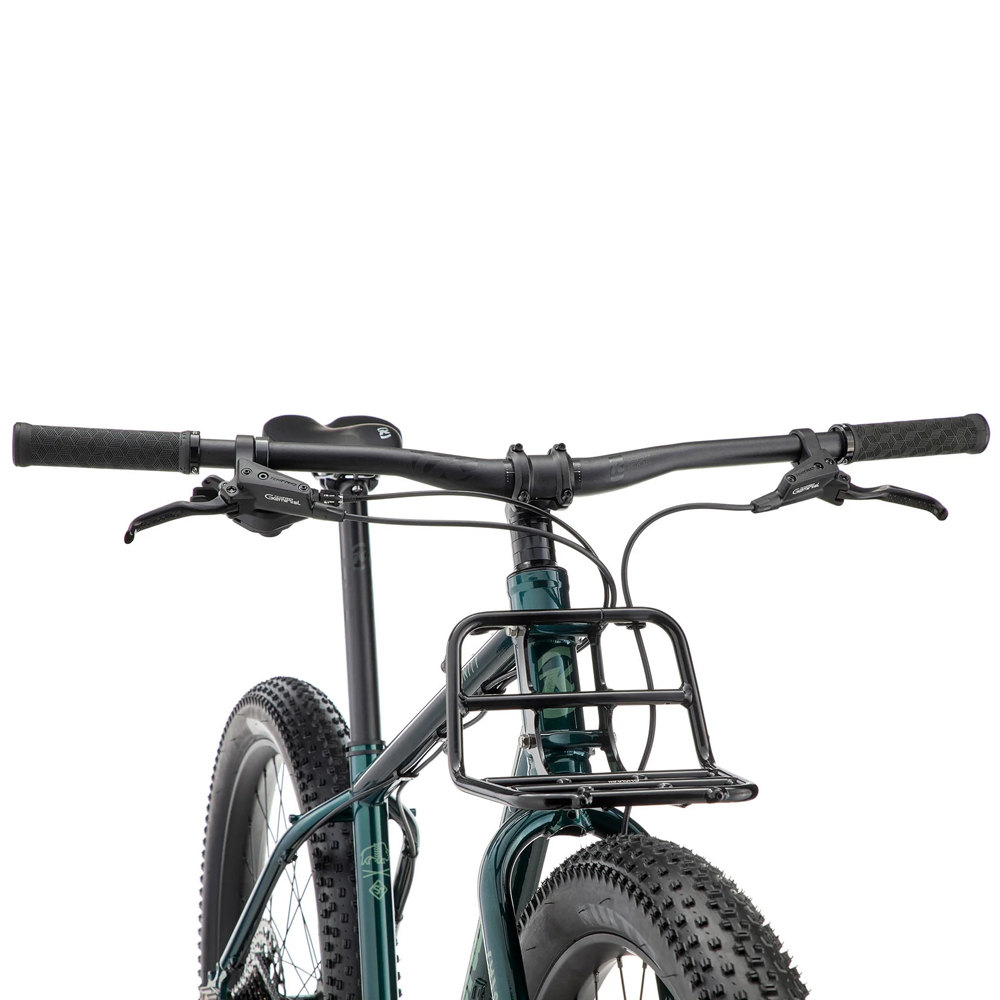

  • Handlebar: Kona 31.8mm
    • 9º backsweep
    • 5º upsweep
    • 15mm rise
    • 780mm width
  • Stem: Kona 31.8mm, 0º rise
    • S–M: 35mm
    • M–L: 45mm
  • Seatpost: Kona Thumb w/ Offset, 31.6mm, 375mm
  • Seat Clamp: Kona Clamp, 34.9mm
  • Grips: Kona Key Grip Lock-on
  • Saddle: WTB Volt Medium

Wheels

  • Front Hub: DT Swiss 370, 15x110mm
  • Rear Hub: DT Swiss 370, 12x148mm HG, 36t Ratchet
  • Spokes: Stainless 2.0mm Black
  • Front Rim: WTB KOM i40 Tough, 29″
  • Rear Rim: WTB KOM i40 Tough, 27.5″
  • Front Tire: WTB Ranger TCS Tough, 29×3.0″
  • Rear Tire: WTB Ranger TCS Tough, 27.5×3.0″

Extras

  • Front Rack: Kona Unity Front Rack, 6061 Aluminum

Warranty

Kona’s bicycles fall between a 1 and 2 year warranty. Please see Kona’s extensive warranty details to review their limitations.
