Overview

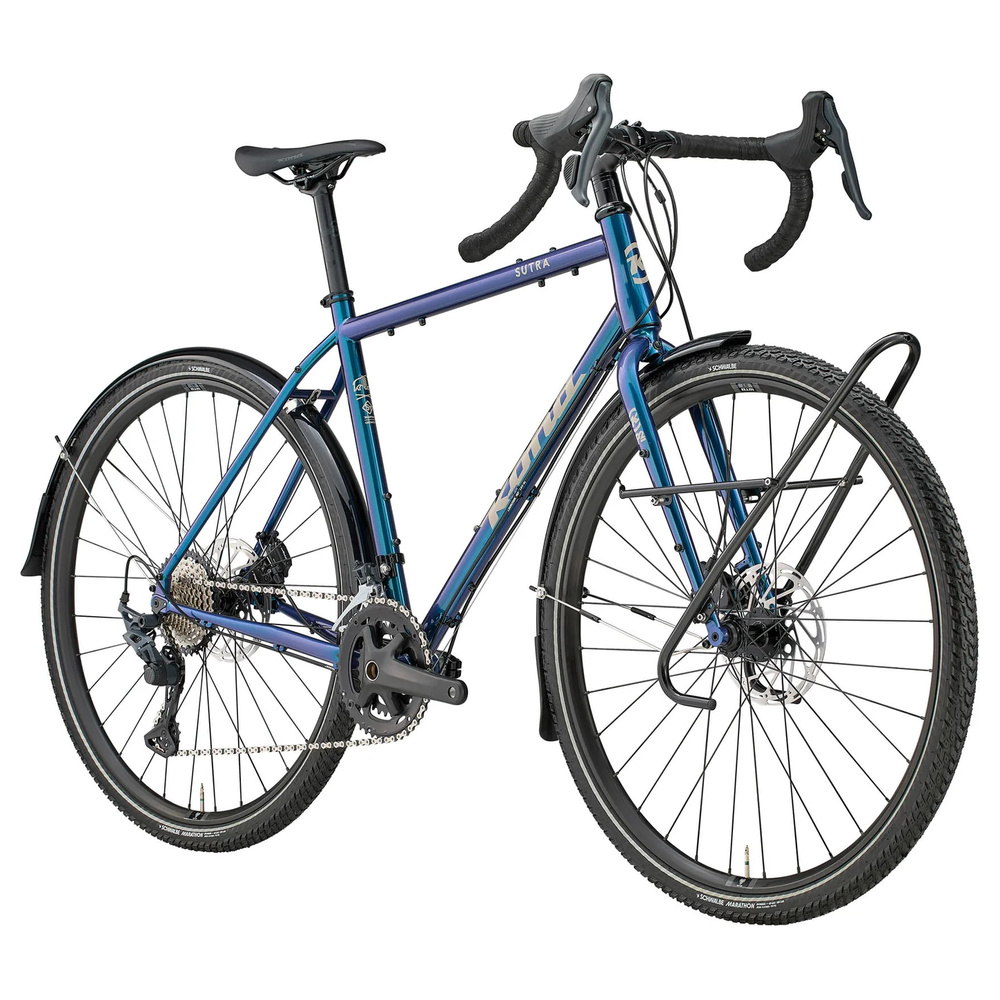

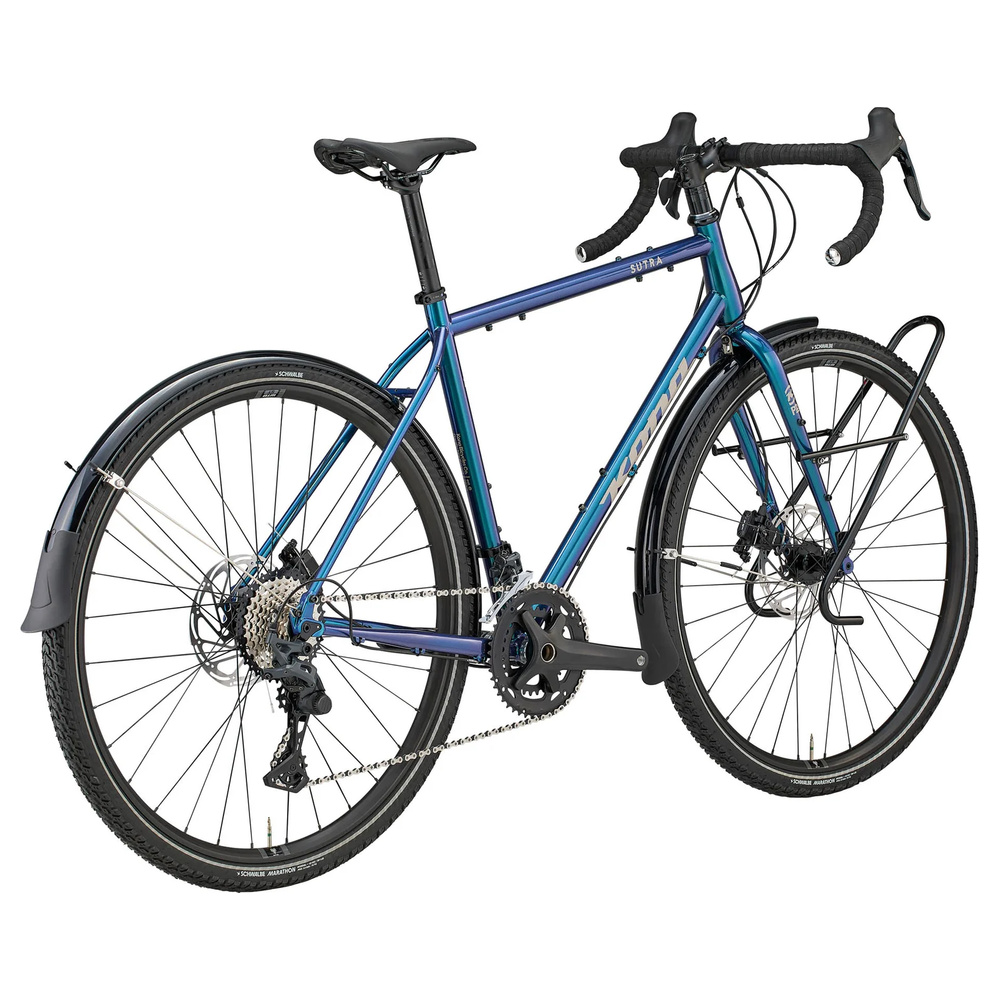

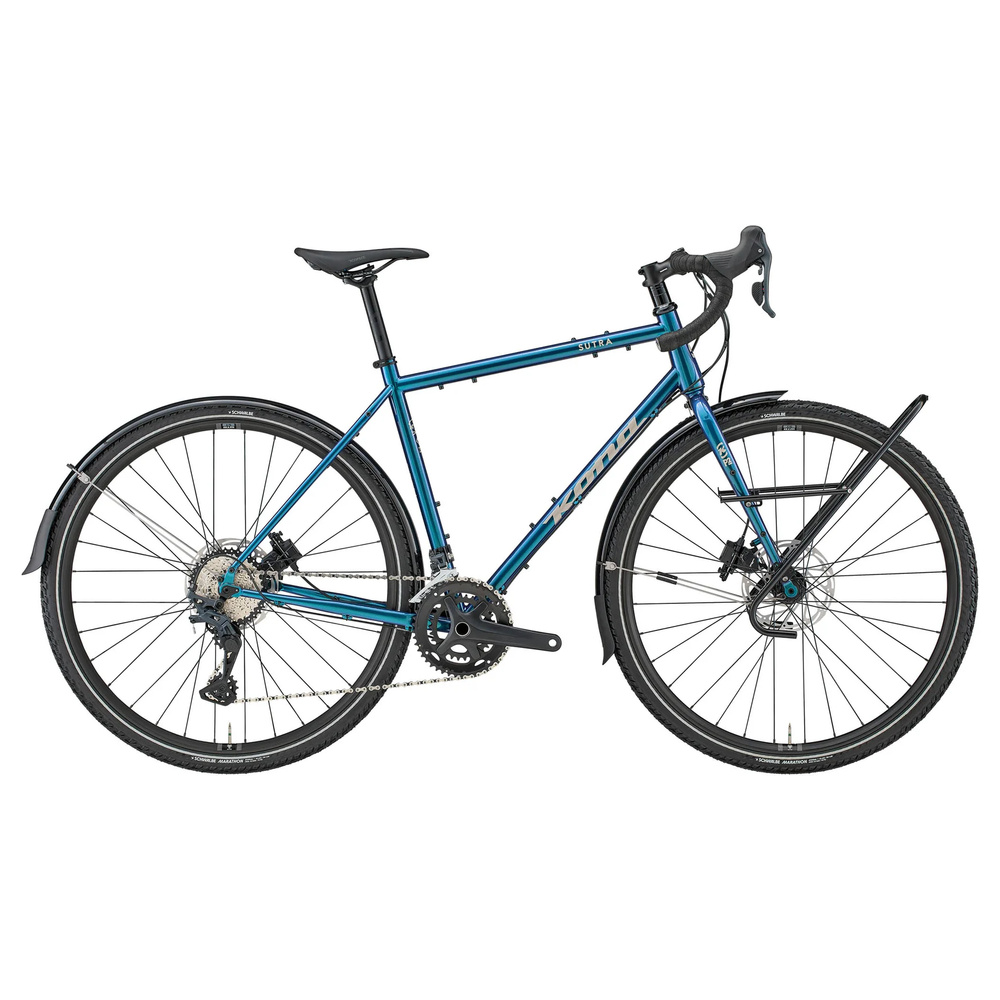

The Sutra SE has a Kona Cromoly frame delivers the smooth, steady ride that keeps loaded trips comfortable, while PNW-proven mountain bike DNA brings confident handling and burly reliability when the road gets rough or the weather turns ugly. This is the full album, not the single—built for riders who measure routes in days and know the best tours rarely stick to the setlist. Pack the bags, press play, and enjoy the ride front to back.
Features
Cromoly Frameset: The butted steel frame and touring fork provide durability, comfort, and stability when carrying gear.
Microshift Sword Drivetrain: The 2×10 drivetrain combines a 30/46t crankset with an 11–38t cassette for climbing and road-speed efficiency.
TRP Spyre Disc Brakes: Mechanical disc brakes with 180mm rotors deliver dependable stopping power and straightforward maintenance.
Touring Wheels and Tires: WTB i25 rims and Schwalbe Marathon Mondial 700 × 40c tires support long-distance pavement and dirt-road riding.
Included Touring Equipment: Full-coverage fenders, mudflaps, and a Tubus Tara Big Apple front rack come installed.
Thru-Axle Hubs: The 12 × 100mm front and 12 × 142mm rear hubs improve wheel security and handling.
Size-Specific Components: Crank, handlebar, stem, and seatpost dimensions change by frame size for a more proportional fit.
Specs
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 523 | 538 | 555 | 571 | 588 | 605 |
| 3 | Reach | 375 | 380 | 385 | 390 | 395 | 400 |
| 4 | Stack | 551 | 570 | 591 | 610 | 632 | 651 |
| 5 | Standover | 752 | 770 | 794 | 817 | 835 | 854 |
| 6 | HT Angle | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT Length | 105 | 125 | 150 | 170 | 195 | 215 |
| 8 | ST Angle | 75.0 | 74.5 | 74.0 | 73.5 | 73.0 | 72.5 |
| 9 | CS Length | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | Wheelbase | 1036 | 1047 | 1061 | 1073 | 1086 | 1098 |
| 13 | Front Center | 602 | 613 | 626 | 638 | 651 | 662 |
| 14 | Fork Length | 415 | 415 | 415 | 415 | 415 | 415 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
Frameset
Frame: Kona Butted Cromoly
Fork: Kona Project Two Cromoly Disc Touring
Sizes: 48, 50, 52, 54, 56, 58
Color: Gloss Prism Dragonfly with Putty decals
Drivetrain
Crankset: Prowheel, 30/46t
Crank Length: 165mm (48–50), 170mm (52), 172.5mm (54–56), 175mm (58)
Bottom Bracket: Prowheel BSA 68
Front Derailleur: Microshift Sword
Rear Derailleur: Microshift Sword
Shifters: Microshift Sword
Cassette: Microshift Sword, 11–38t, 10-speed
Chain: KMC X10
Brakes
Brake Levers: Microshift Sword
Brake Calipers: TRP Spyre mechanical disc
Front Rotor: TRP, 180mm, 6-bolt
Rear Rotor: TRP, 180mm, 6-bolt
Components
Headset: FSA No. 1/No. 10, EC44/ZS56
Handlebar: Kona Gravel Drop Bar, 31.8mm
Handlebar Width: 42cm (48), 44cm (50–52), 46cm (54), 48cm (56–58)
Stem: Kona, 31.8mm, 6° rise
Stem Length: 60mm (48–52), 70mm (54–56), 80mm (58)
Seatpost: Kona with offset, 27.2mm
Seatpost Length: 350mm (48–52), 375mm (54–58)
Seat Clamp: Kona Clamp, 31.8mm
Handlebar Tape: Kona Cork Tape
Saddle: Kona Gravel
Pedals: Not included
Wheels and Tires
Front Hub: Formula, 12 × 100mm
Rear Hub: Formula, 12 × 142mm, HG
Rims: WTB i25
Spokes: 2.0mm stainless steel, black
Front Tire: Schwalbe Marathon Mondial, 700 × 40c
Rear Tire: Schwalbe Marathon Mondial, 700 × 40c
Included Accessories
Fenders: Full coverage with mudflaps
Front Rack: Tubus Tara Big Apple
All specifications are subject to change without notice. Prerelease products may be shown as graphic representations.
Warranty
Kona’s bicycles fall between a 1 and 2 year warranty. Please see Kona’s extensive warranty details to review their limitations.
