Kona Sutra

$2,298.99

Free shipping on bicycles priced over $2000 (within the lower 48).

SKU: KONTR26 Categories: , Tag:

Load the bags, drop the needle, and take the long way around. No algorithm required.


Overview

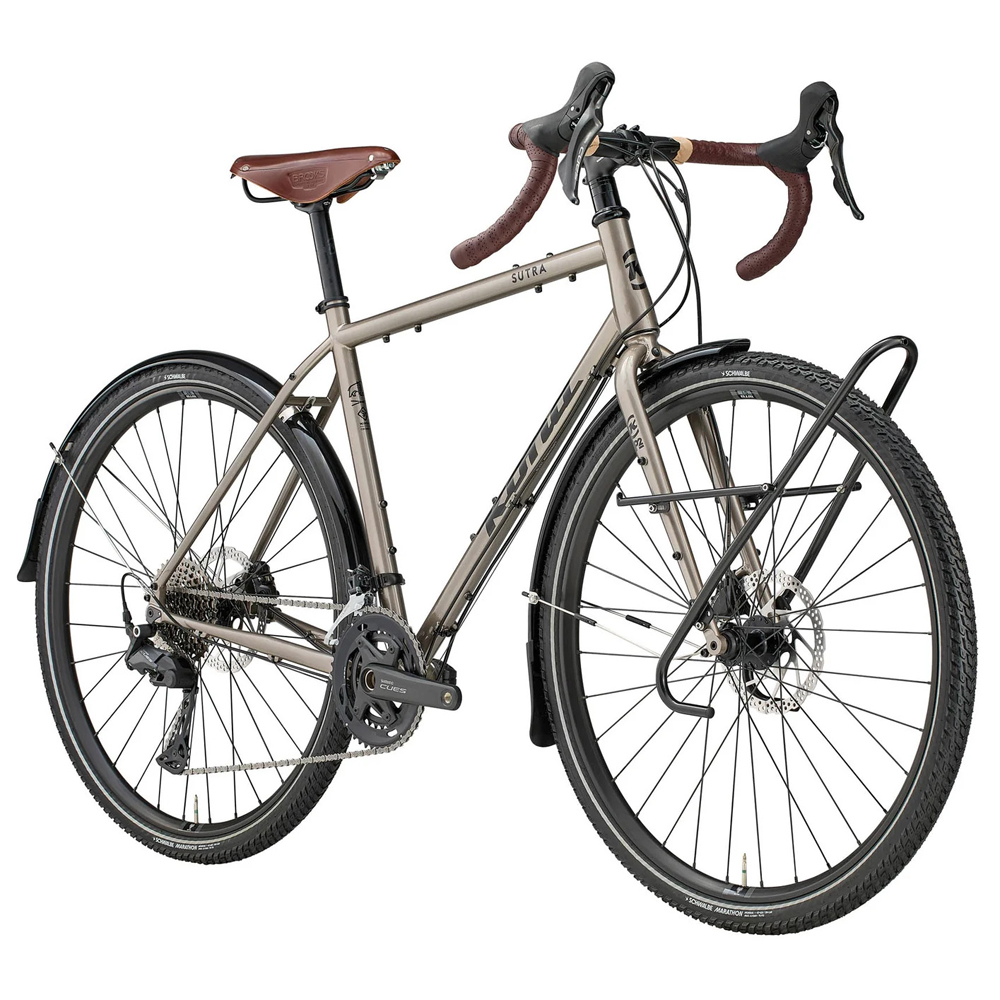

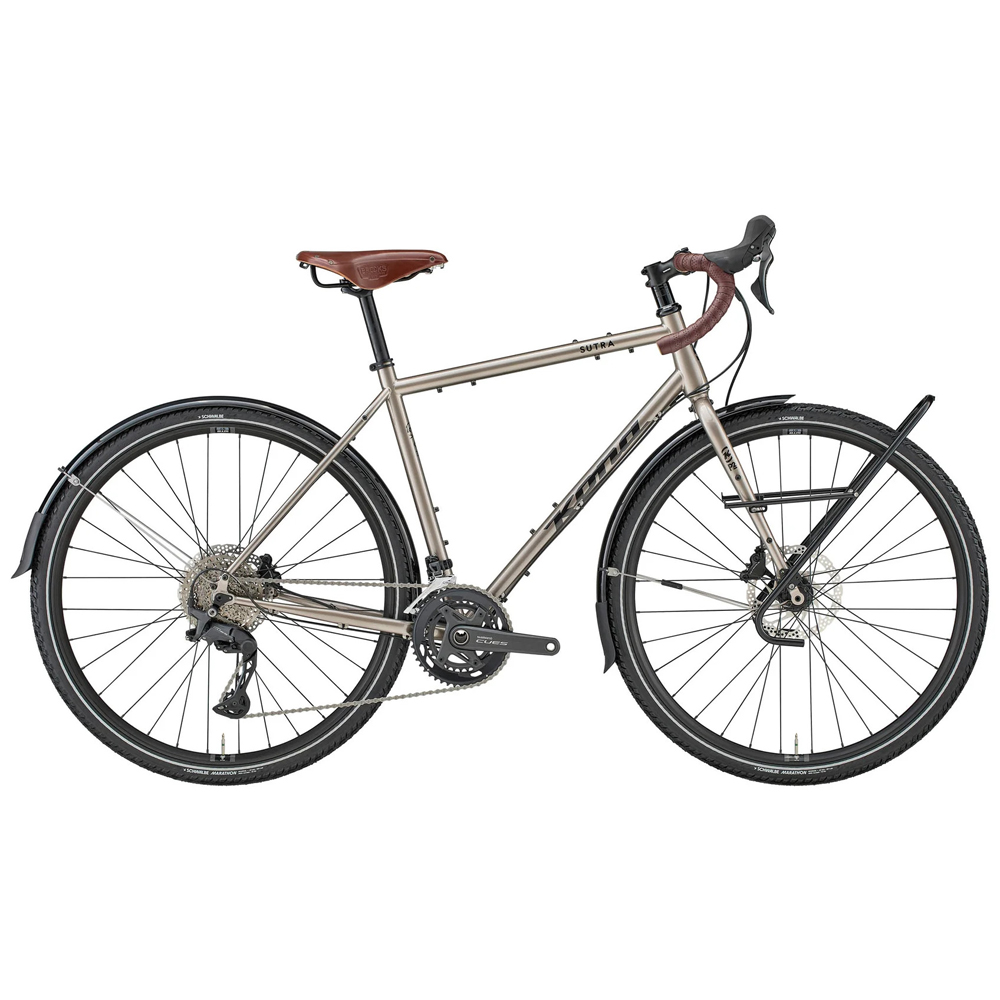

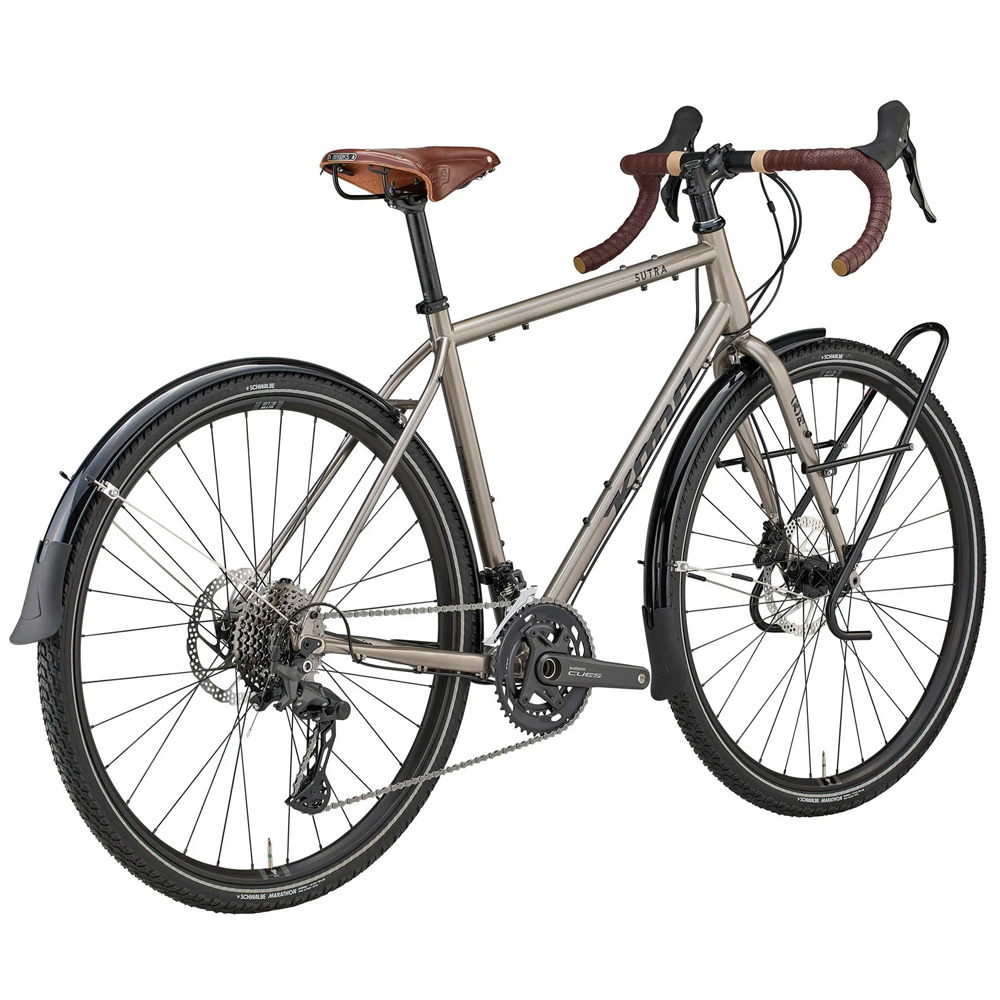

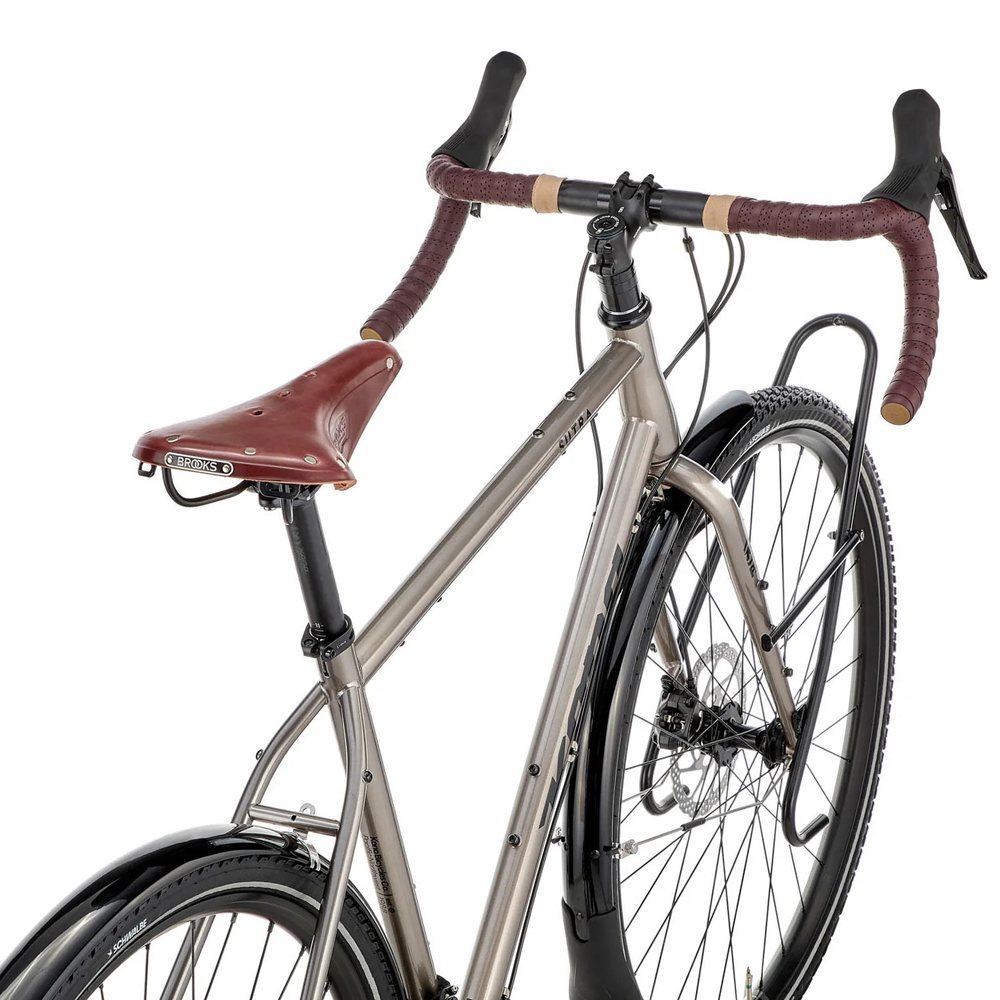

The Sutra is a steel touring bike with an analog soul in a digital world. Its Kona Cromoly frame delivers the smooth, steady ride that makes long days and loaded miles feel right, while a Brooks saddle, full fenders, integrated controls, and a Tubus low-rider front rack leave it ready for the road straight out of the box. It’s a modern take on a classic—equally at home crossing the city, crossing the continent, or stretching a short trip into a full world tour.

Features

Touring-Ready Front Rack: Comes with a Tubus Tara Big Apple low-rider rack for stable, balanced load-carrying on long tours.

Reliable Drivetrain: Shimano CUES 2×10 drivetrain with a 32/46t crank and 11–39t cassette offers dependable shifting and wide gear range.

Confident Braking: Shimano CUES 6030 Hydraulic disc brakes with 180mm rotors provide strong, reliable stopping power in all conditions.

Built for Comfort: Brooks B17 leather saddle and Microfiber grips deliver classic, long-distance comfort that only gets better with time.

Specs

Size 48 50 52 54 56 58
1 ST Length 480 500 520 540 560 580
2 TT Length 523 538 555 571 588 605
3 Reach 375 380 385 390 395 400
4 Stack 551 570 591 610 632 651
5 Standover 752 770 794 817 835 854
6 HT Angle 70.5 70.5 70.5 70.5 70.5 70.5
7 HT Length 105 125 150 170 195 215
8 ST Angle 75.0 74.5 74.0 73.5 73.0 72.5
9 CS Length 445 445 445 445 445 445
10 BB Drop 74 74 72 72 70 70
11 BB Height 281 281 283 283 285 285
12 Wheelbase 1036 1047 1061 1073 1086 1098
13 Front Center 602 613 626 638 651 662
14 Fork Length 415 415 415 415 415 415
15 Fork Offset 50 50 50 50 50 50

Frameset

  • Frame: Kona Cromoly Butted
  • Fork: Kona Project Two Cromoly Disc Touring
  • Rear Shock: N/A
  • Paint Color: Gloss Metallic Nickel w/ Charcoal Decals
  • Sizes: 48, 50, 52, 54, 56, 58

Drivetrain

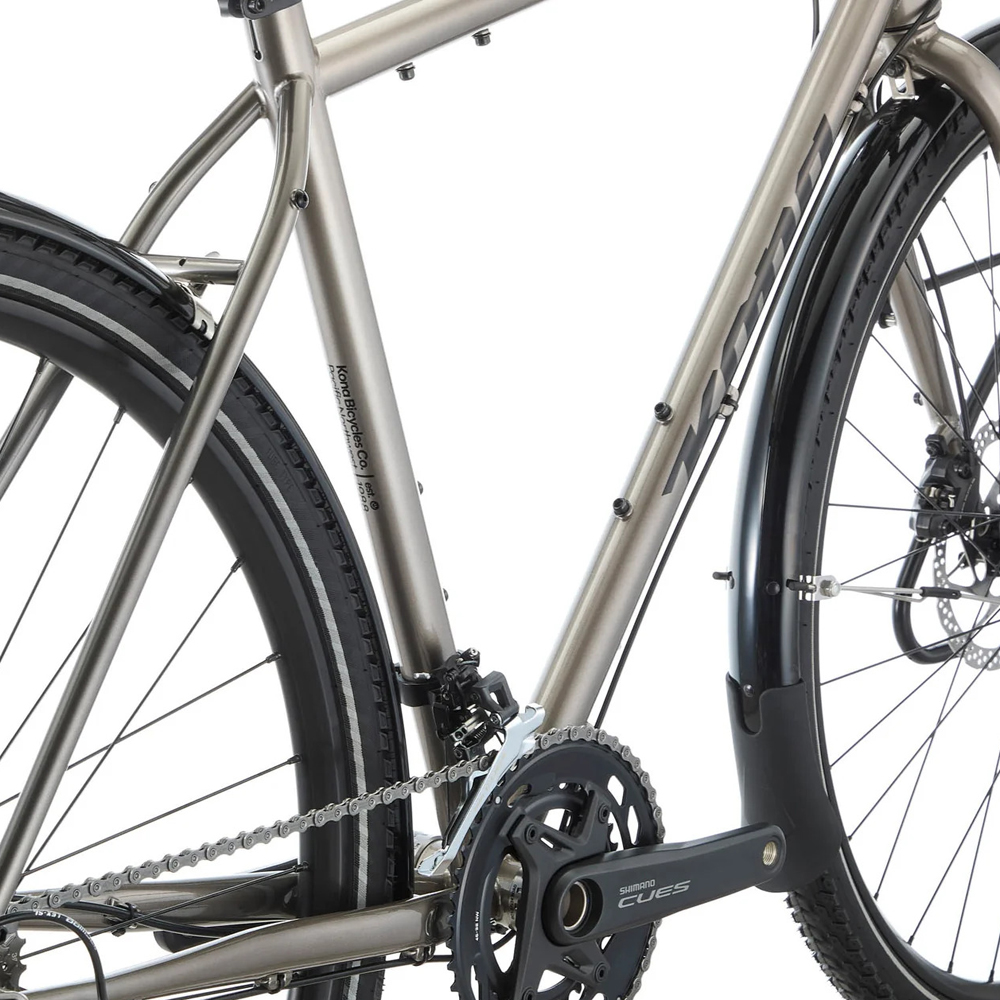

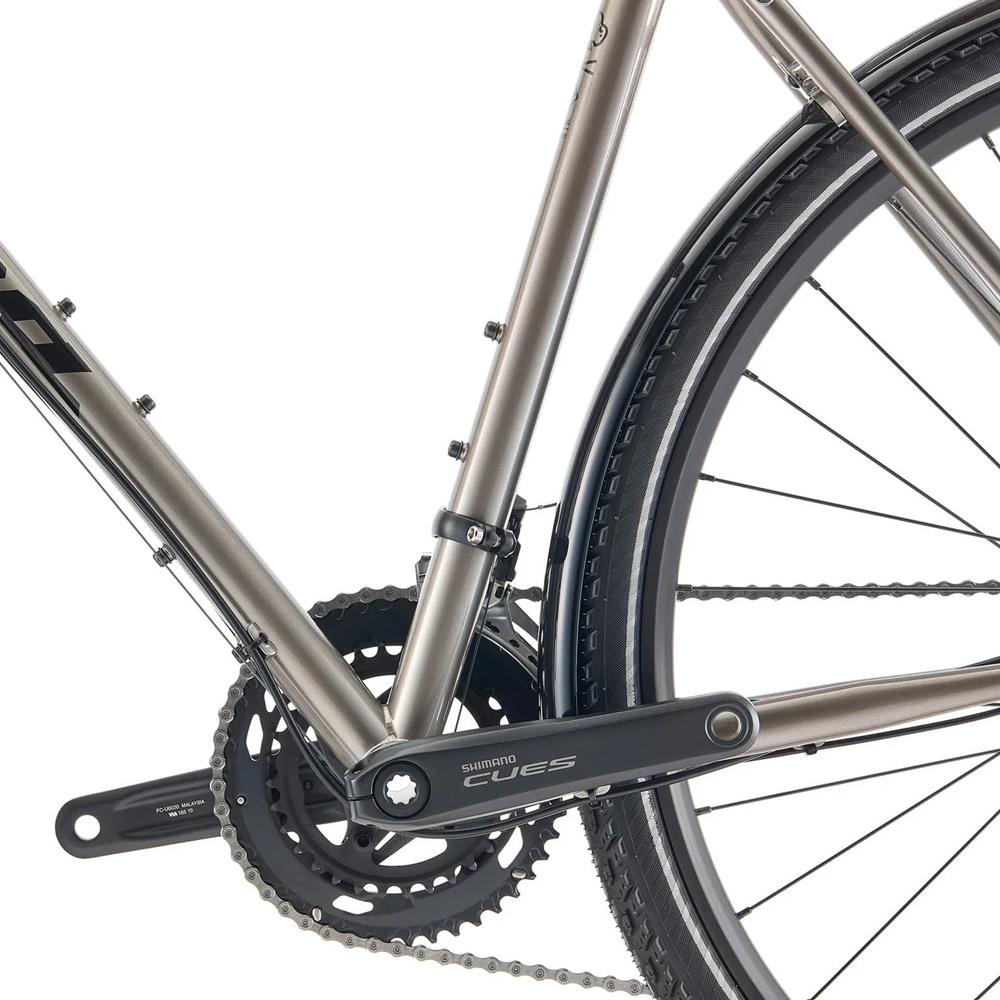

  • Crankset: Shimano CUES 6030, 32/46t
    • 48–54: 165mm
    • 56–58: 170mm
  • Bottom Bracket: Shimano BSA 68
  • Chain: Shimano LG500
  • Cassette: Shimano CUES LG400, 11–39t, 10-speed

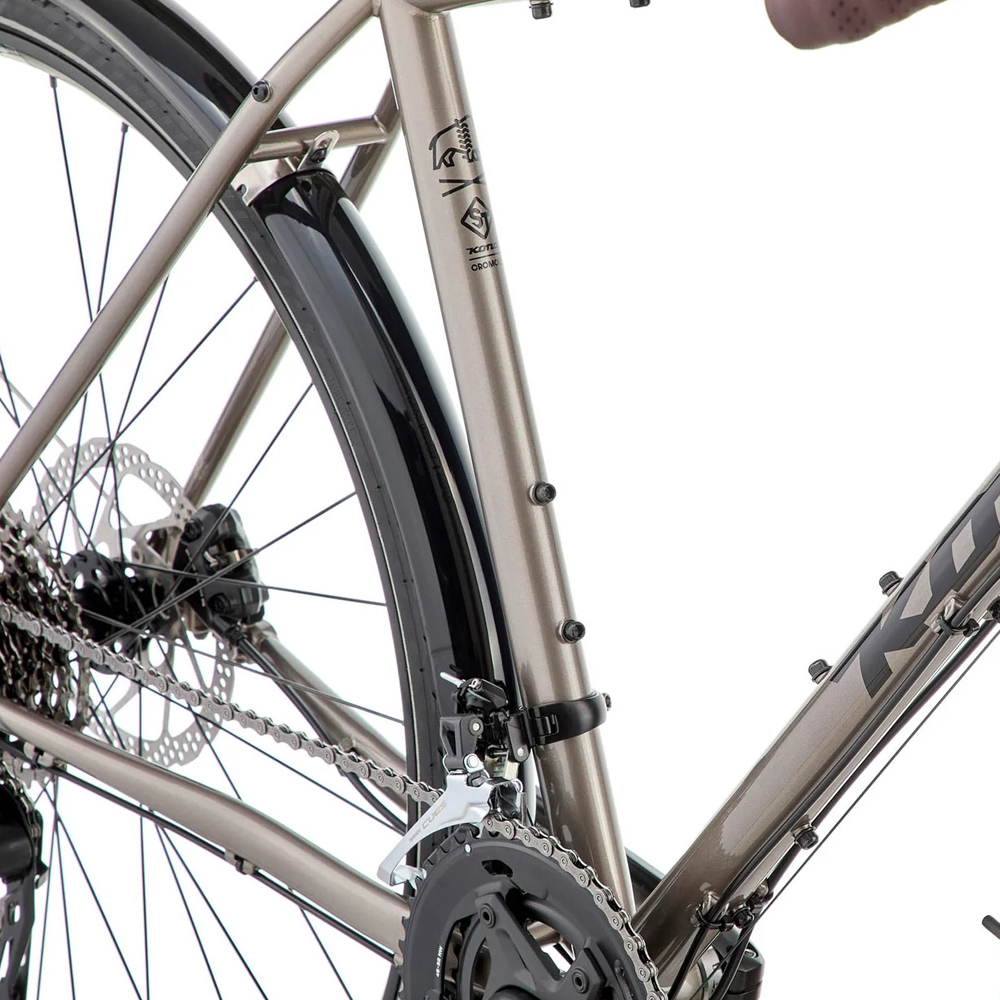

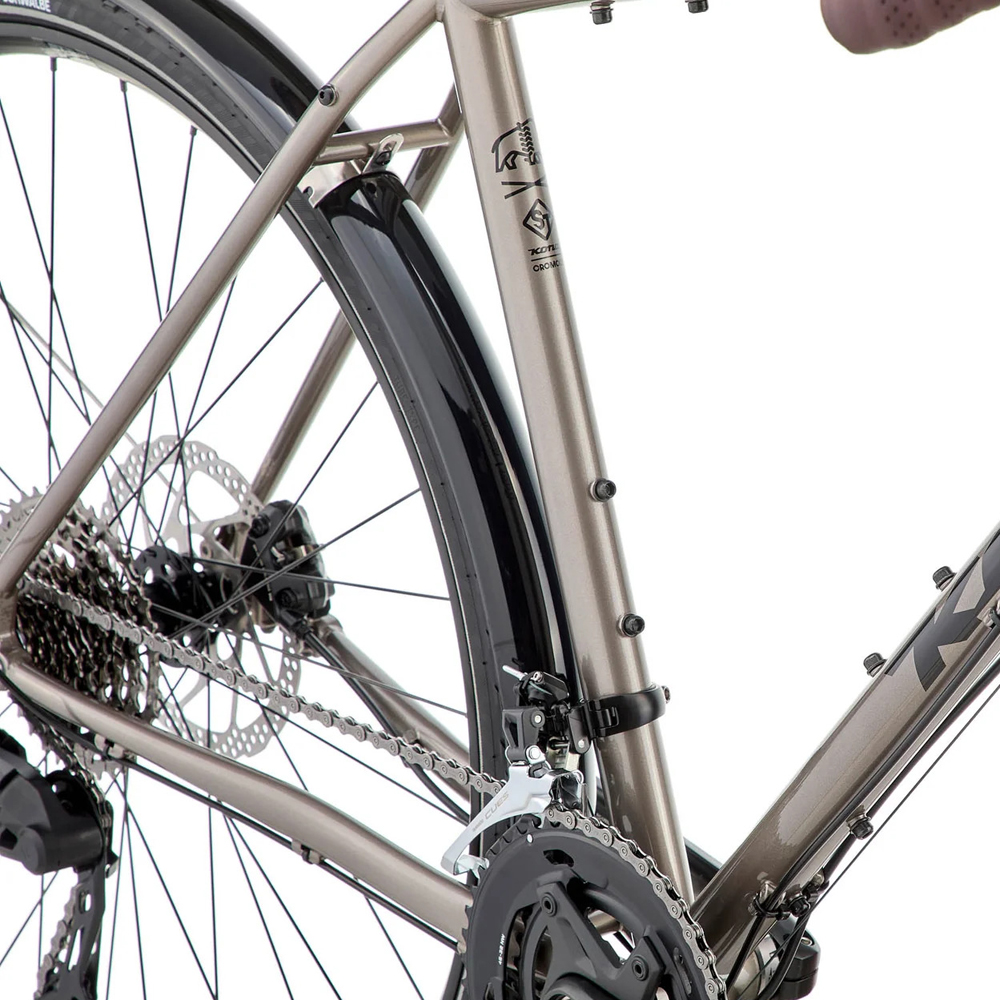

  • Front Derailleur: Shimano CUES 6030
  • Rear Derailleur: Shimano CUES 6020
  • Shifters: Shimano CUES 6030
  • Chainguide: N/A
  • Pedals: N/A

Brakes

  • Brake Calipers: Shimano CUES 6030 Hydraulic
  • Brake Levers: Shimano CUES 6030 Hydraulic
  • Front Rotor: Shimano 180mm, 6-bolt
  • Rear Rotor: Shimano 180mm, 6-bolt

Components

  • Headset: FSA NO.1/NO.10 EC44/ZS56

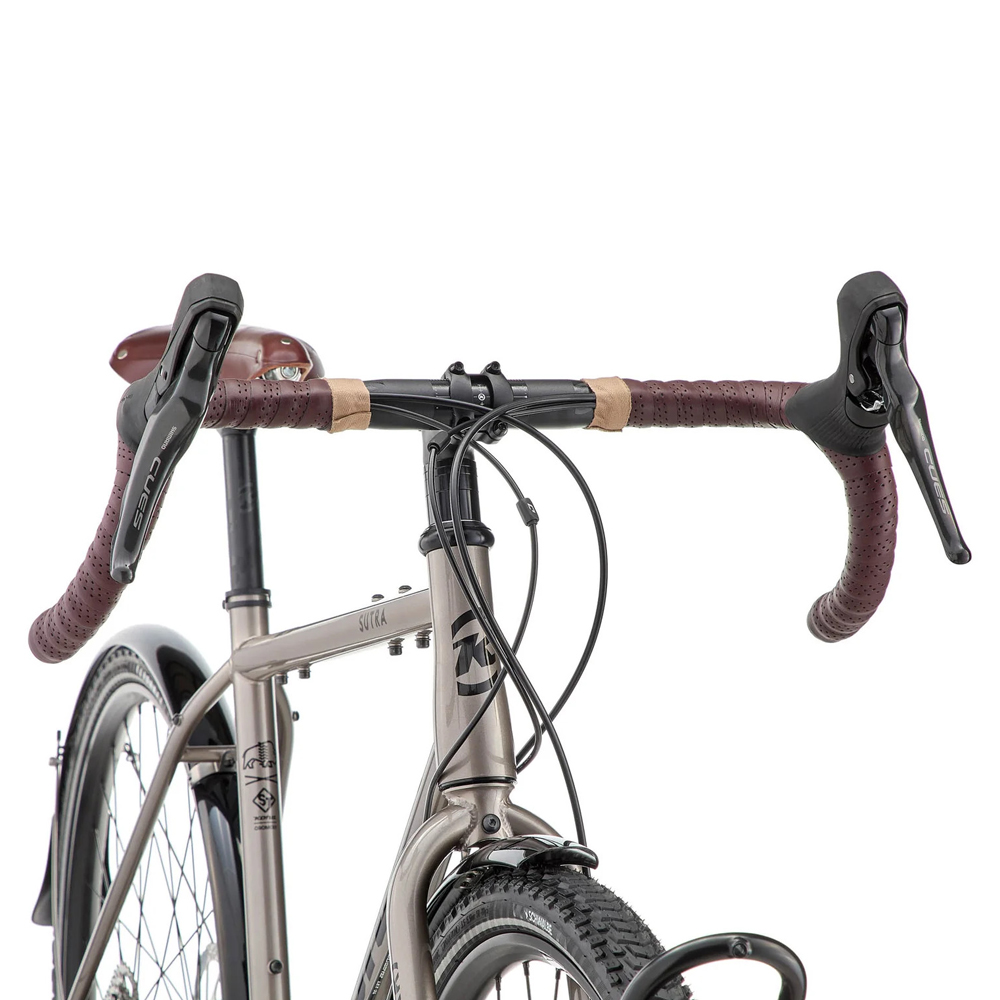

  • Handlebar: Kona Gravel Dropbar, 31.8mm
    • 48: 42cm
    • 50–52: 44cm
    • 54: 46cm
    • 56–58: 48cm
  • Stem: Kona 31.8mm, 6º rise
    • 48–52: 60mm
    • 54–56: 70mm
    • 58: 80mm
  • Seatpost: Kona w/ Offset, 27.2mm
    • 48–52: 350mm
    • 54–58: 375mm
  • Seat Clamp: Kona Clamp, 31.8mm
  • Grips / Bar Tape: Brooks Microfiber Brown
  • Saddle: Brooks B17 Leather Brown

Wheels

  • Front Hub: Formula 12x100mm
  • Rear Hub: Formula 12x142mm HG
  • Spokes: Stainless 2.0mm Black
  • Rims: WTB i25
  • Front Tire: Schwalbe Marathon Mondial, 700x40c
  • Rear Tire: Schwalbe Marathon Mondial, 700x40c

Extras

  • Fenders: Included w/ mudflaps
  • Front Rack: Tubus Tara Big Apple Front Rack

Warranty

Kona’s bicycles fall between a 1 and 2 year warranty. Please see Kona’s extensive warranty details to review their limitations.
